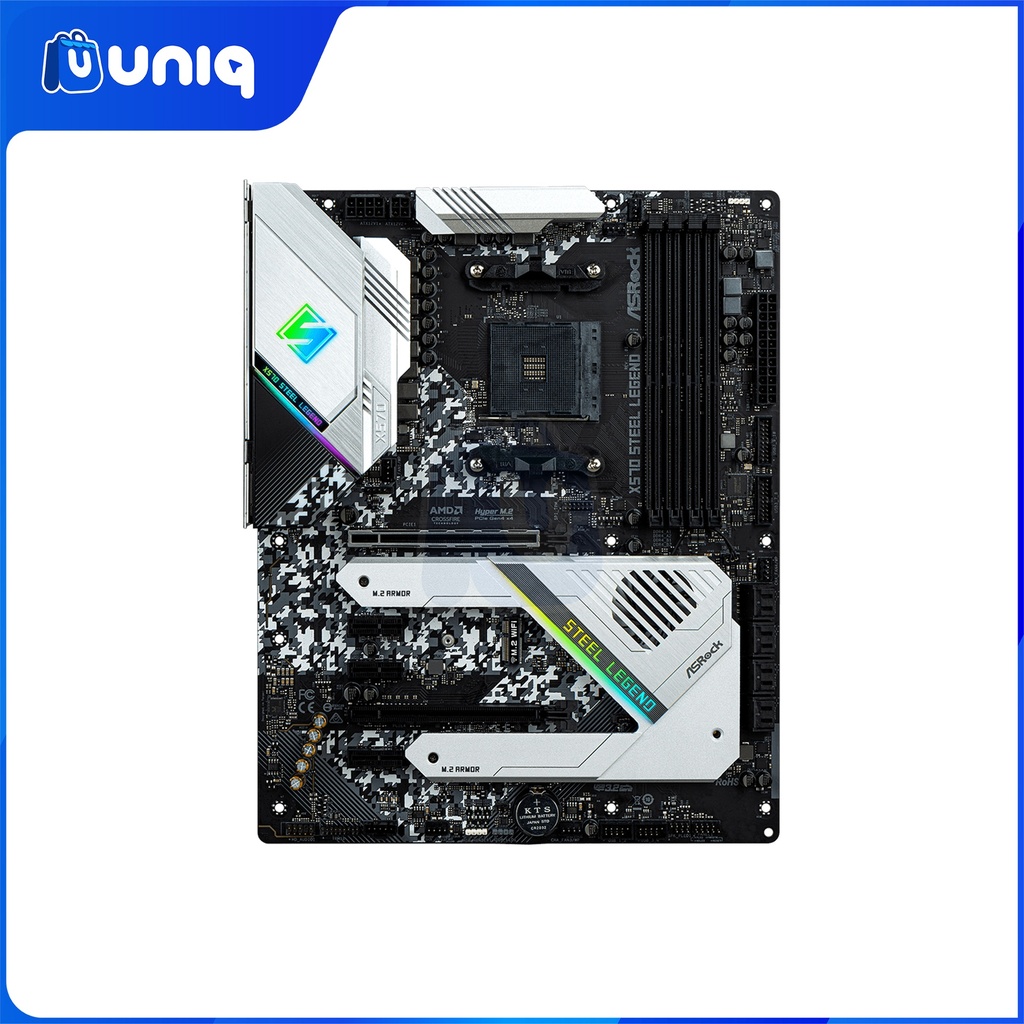

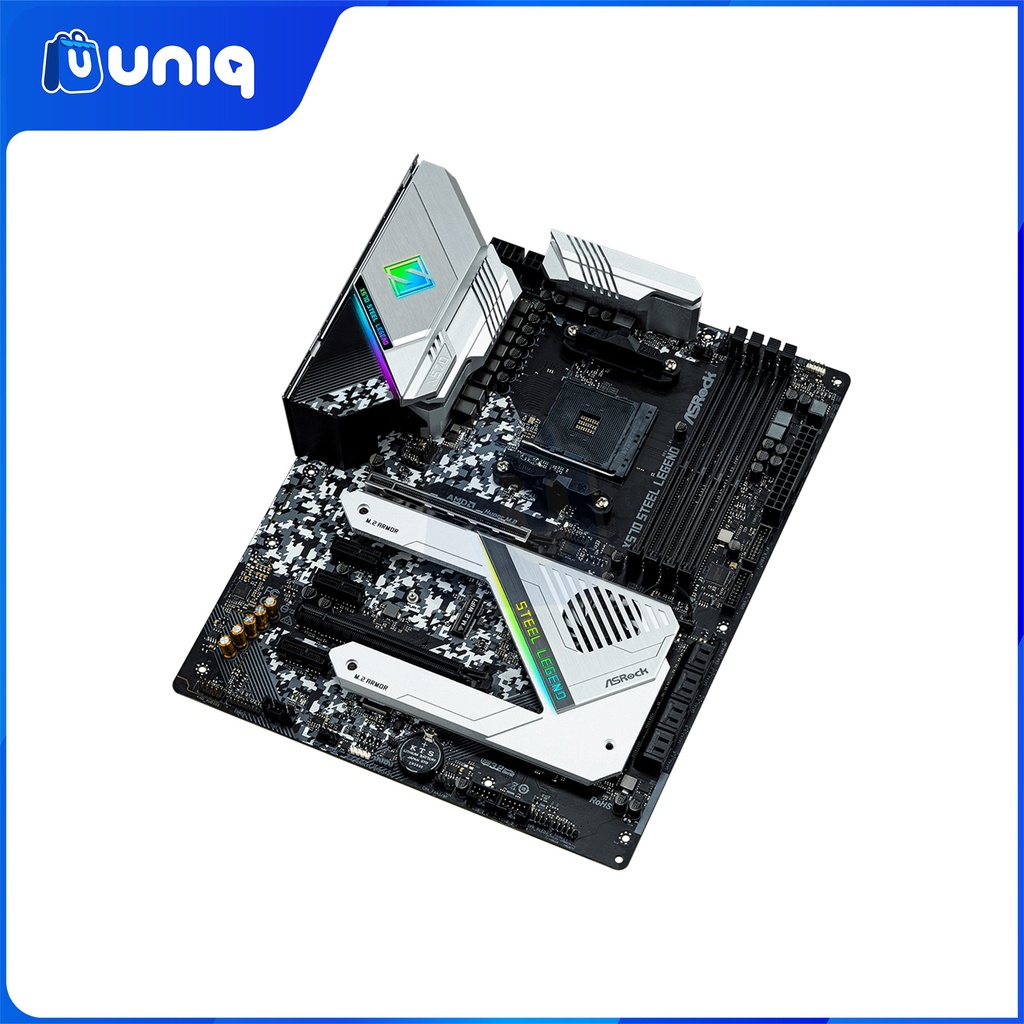

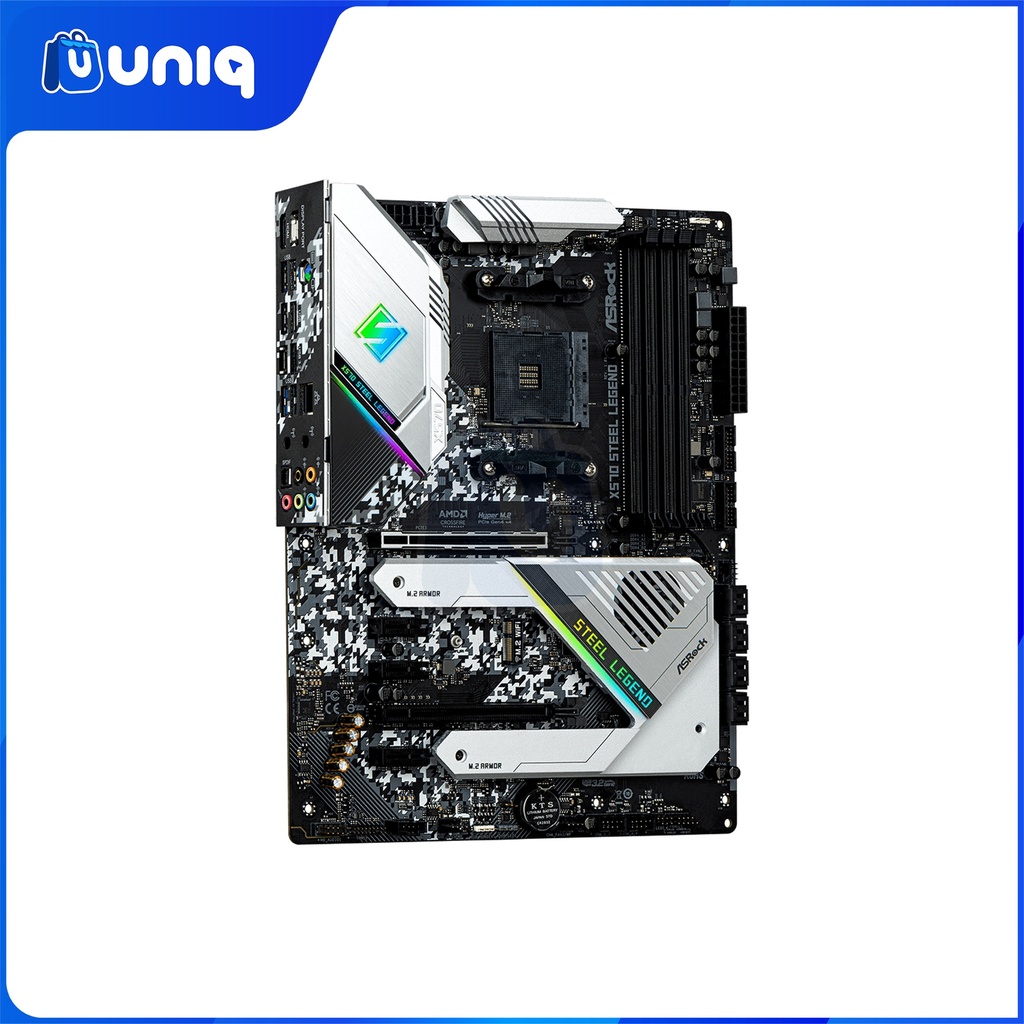

Unique Feature
|
ASRock

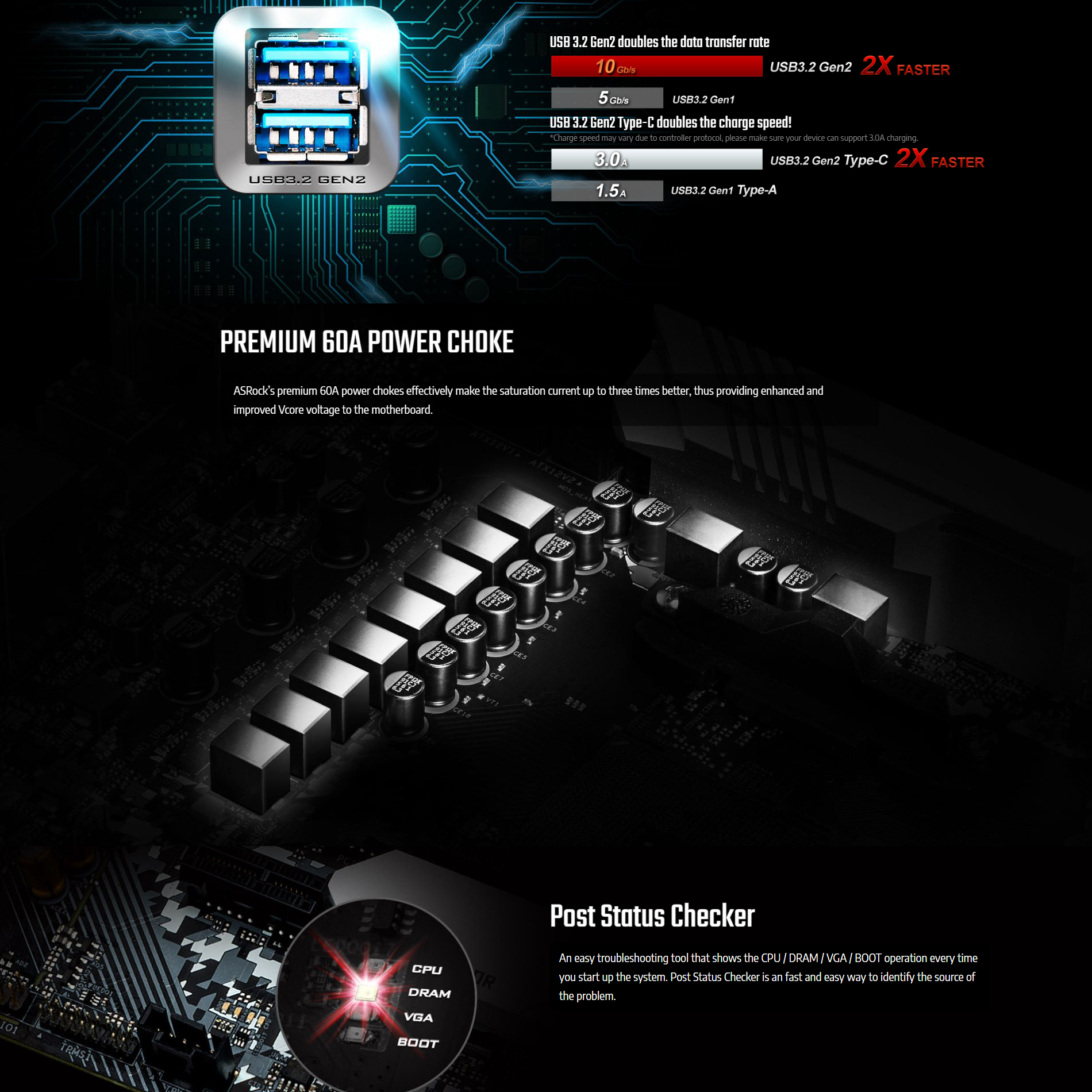

USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)

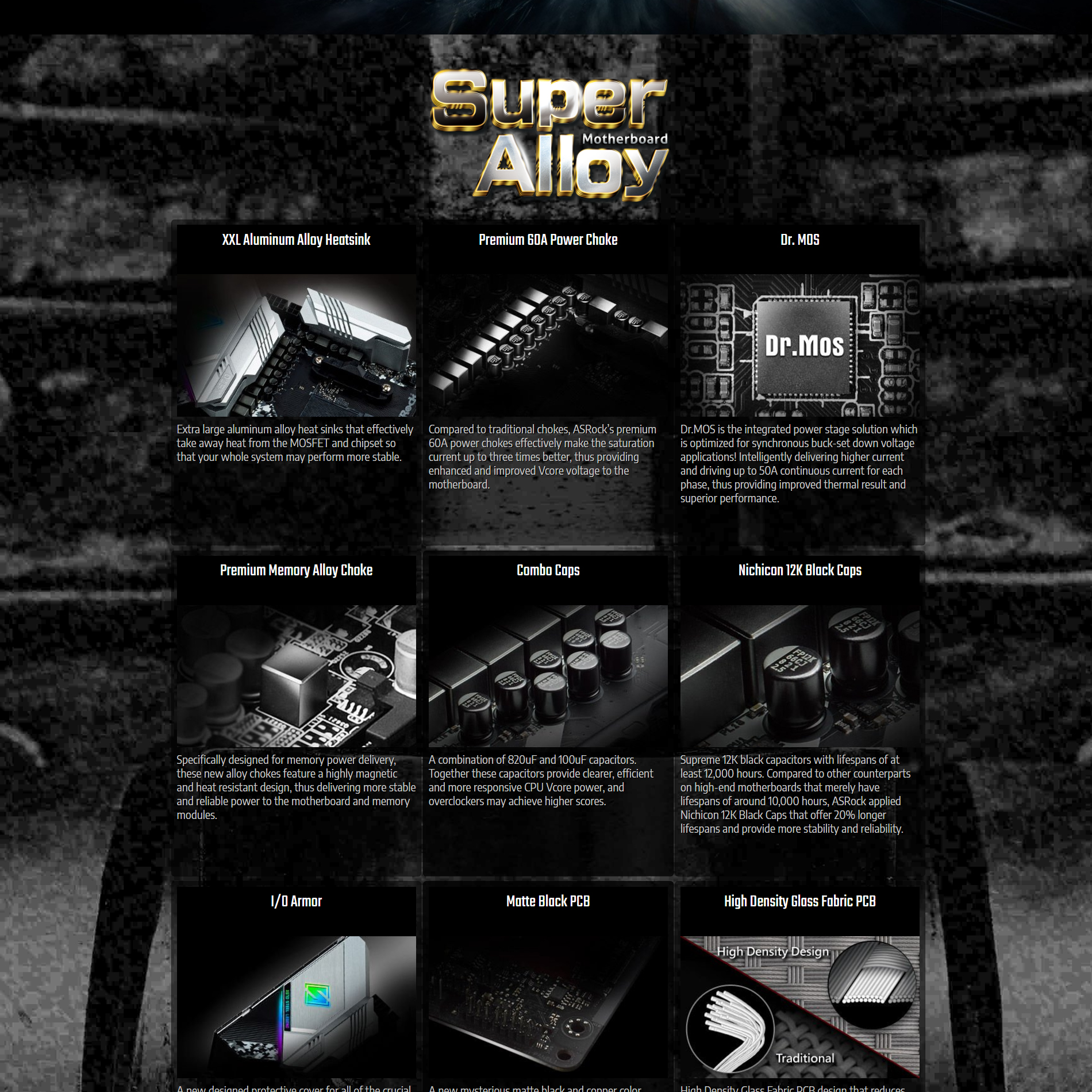

ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder
choke)
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer
capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB

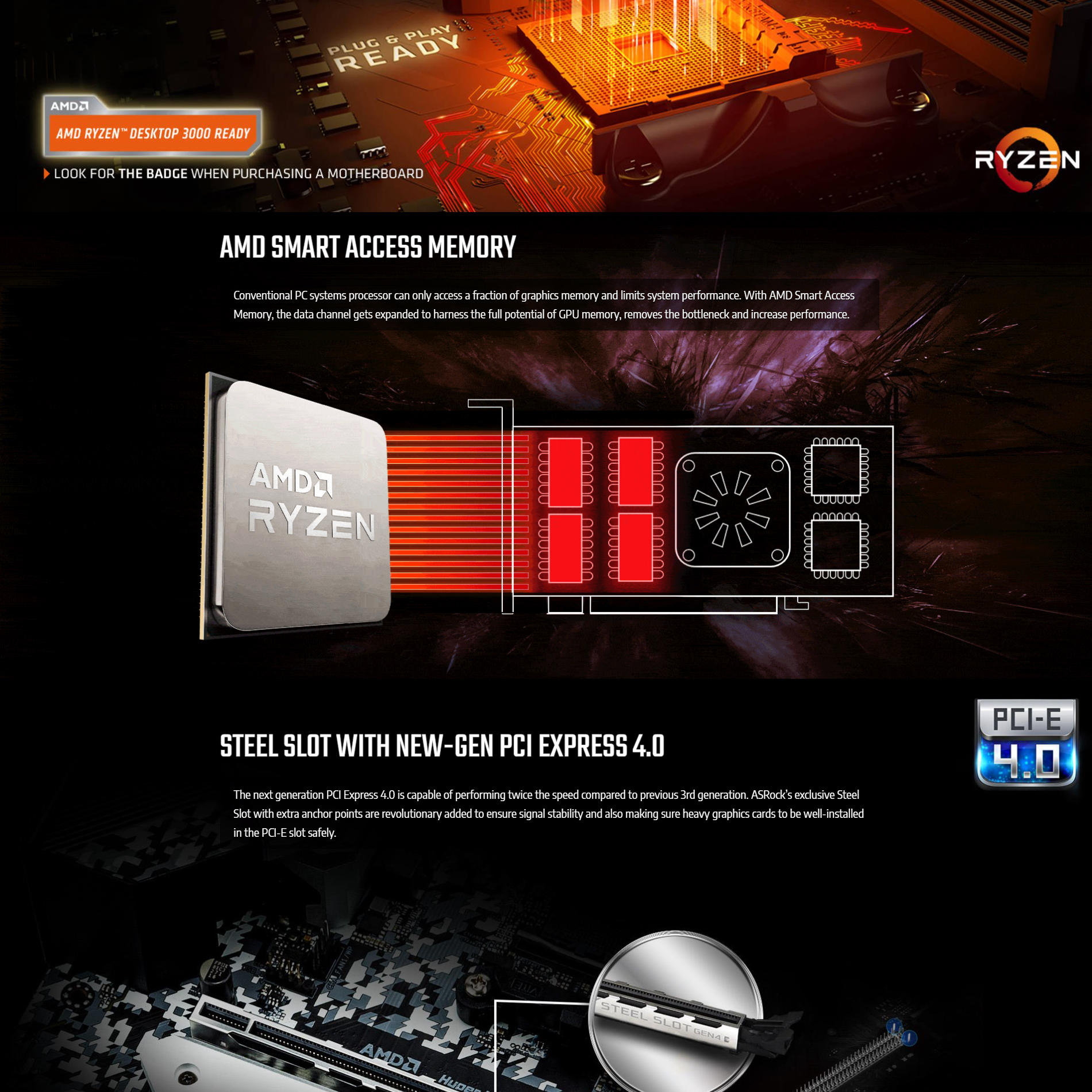

ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink

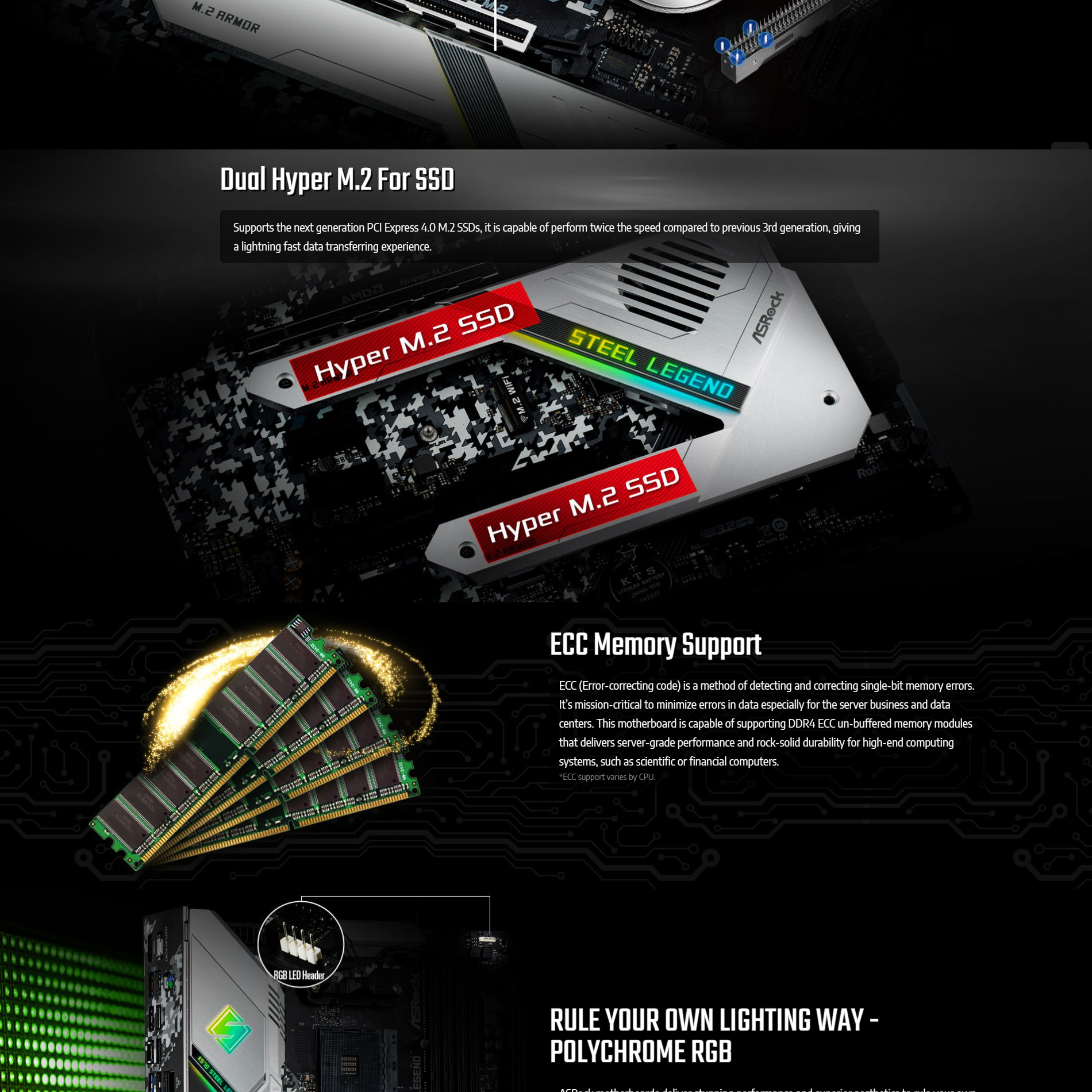

ASRock Hyper M.2 (PCIe
Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all
USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
|
|
CPU
|
- Supports AMD AM4 Socket Ryzen™
2000, 2000 G-Series, 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000
G-Series Desktop Processors*

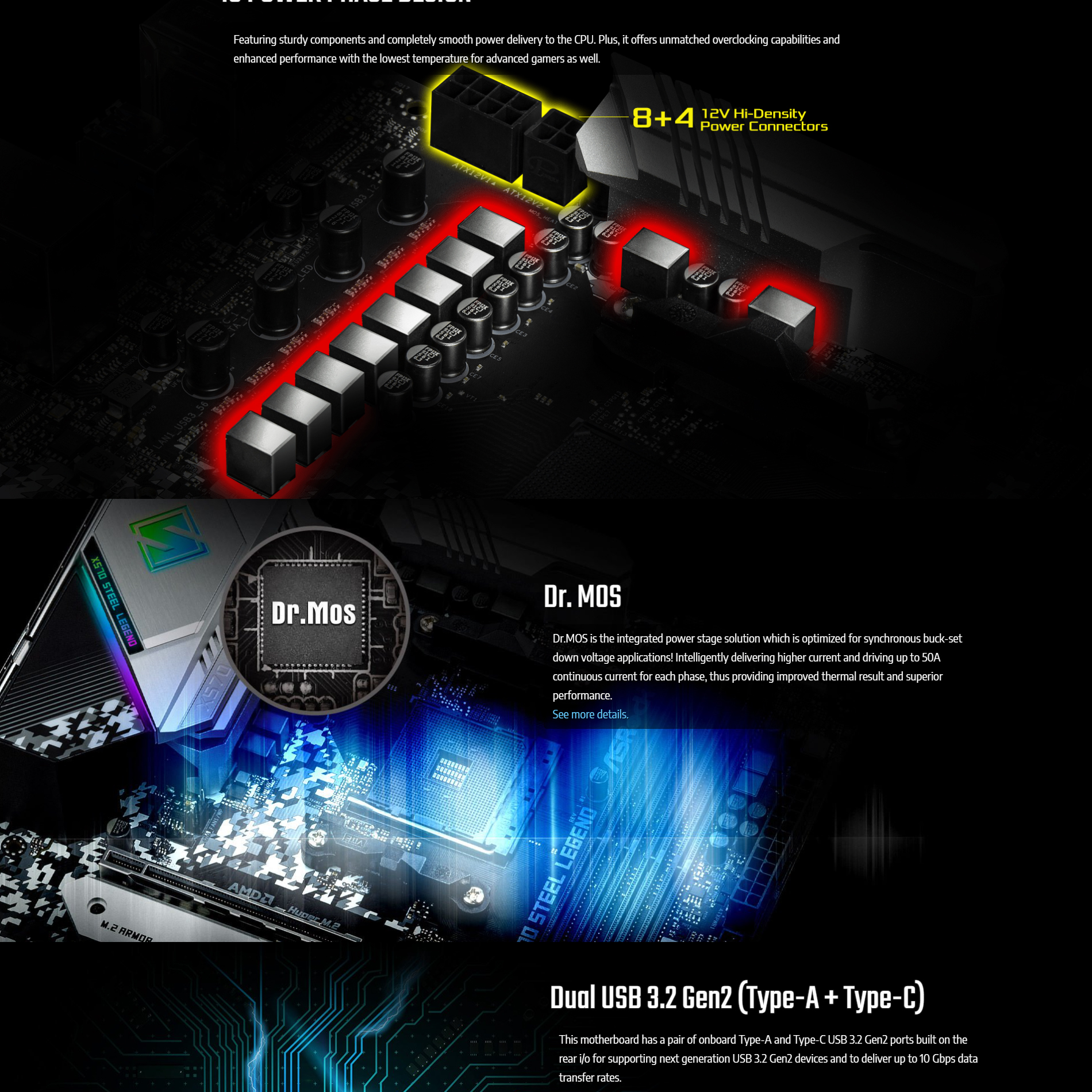

- Intersil Digital PWM
- 10 Power Phase design
*Please refer to CPU support list
for details.
|
|
Chipset
|
- AMD X570
|
|
Memory
|
- Dual Channel DDR4 Memory
Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) /
4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) /
3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC &
non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) /
4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) /
3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC &
non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) /
4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) /
3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC &
non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC)
/ 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC)
/ 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC,
un-buffered memory*
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) /
3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 /
2667 / 2400 / 2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15μ Gold Contact in DIMM Slots
*For Ryzen Series APUs (Picasso,
Cezanne and Renoir), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support.
|
|
BIOS
|
- 256Mb AMI UEFI Legal BIOS with
GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP
Voltage Multi-adjustment
|
|
Graphics
|
- Integrated AMD Radeon™ Vega
Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent
display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @
60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate
Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.0
- Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports Microsoft PlayReady
*Actual support may vary by CPU
**The Max shared memory 16GB requires
32GB system memory installed.
|
|

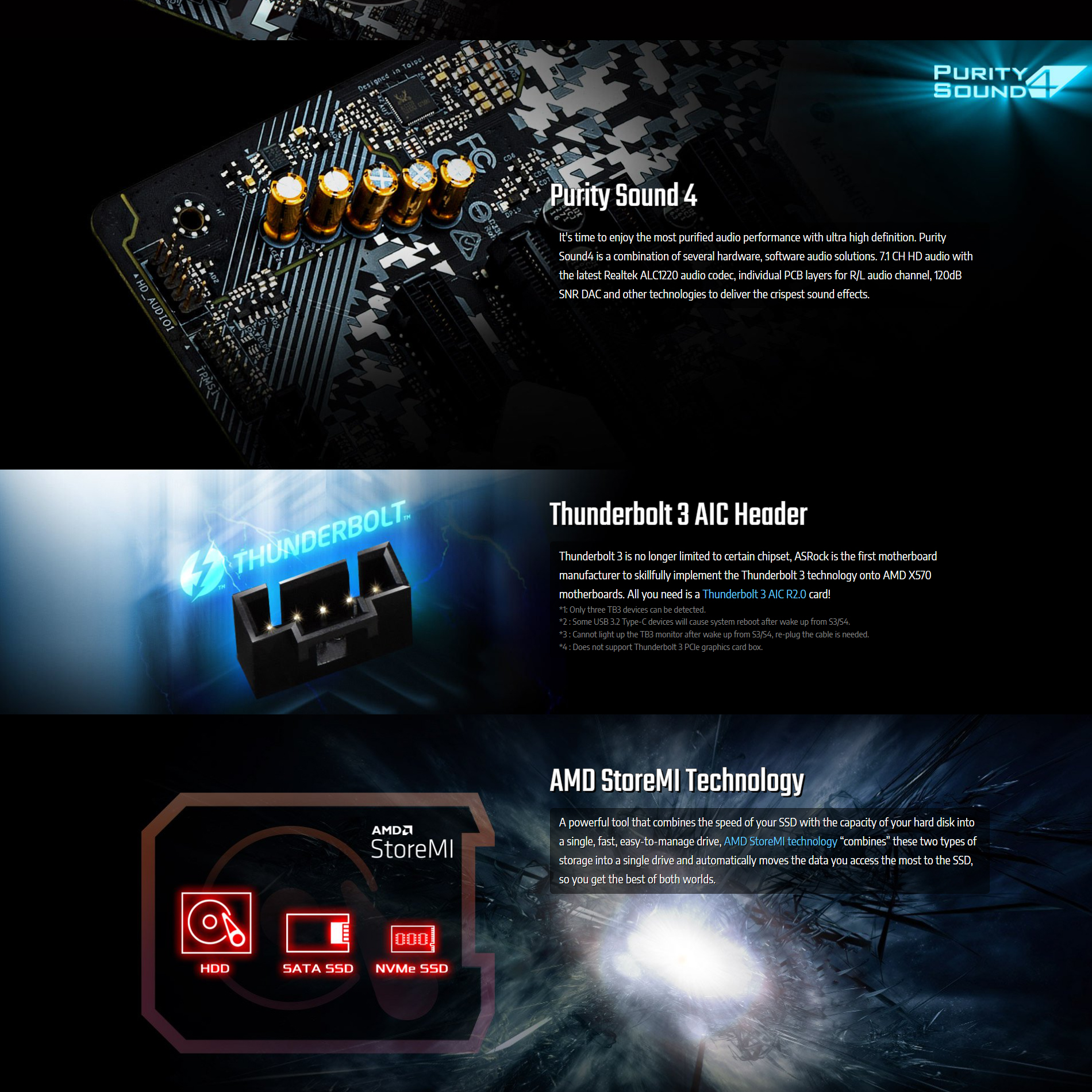

Audio
|
- 7.1 CH HD Audio with Content
Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports
up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
|
|
LAN
|
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT*
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
*To support WOL on I211 LAN "Please
refer to FAQ"
|
|
Slots
|
AMD Ryzen series CPUs (Vermeer,
Matisse)
- 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) /
x4 (PCIE4))*
AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) /
x4 (PCIE4))*
AMD Ryzen series CPUs (Picasso)
- 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) /
x4 (PCIE4))*
- 3 x PCI Express 4.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks
|
|
Storage
|
- 8 x SATA3 6.0 Gb/s Connectors,
support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2
PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4
(32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110
M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)
(with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle
Ridge and Picasso)*
*If Thunderbolt™ support is enabled,
SATA type M.2 will be disabled.
Supports NVMe SSD as boot disks
NVMe SSD is not supported with AMD Athlon™ 3000G Processors
Supports ASRock U.2 Kit
Support RAID 0/1/10
|
|
Connector
|
- 1 x Power LED and Speaker Header
- 1 x AMD Fan LED Header*

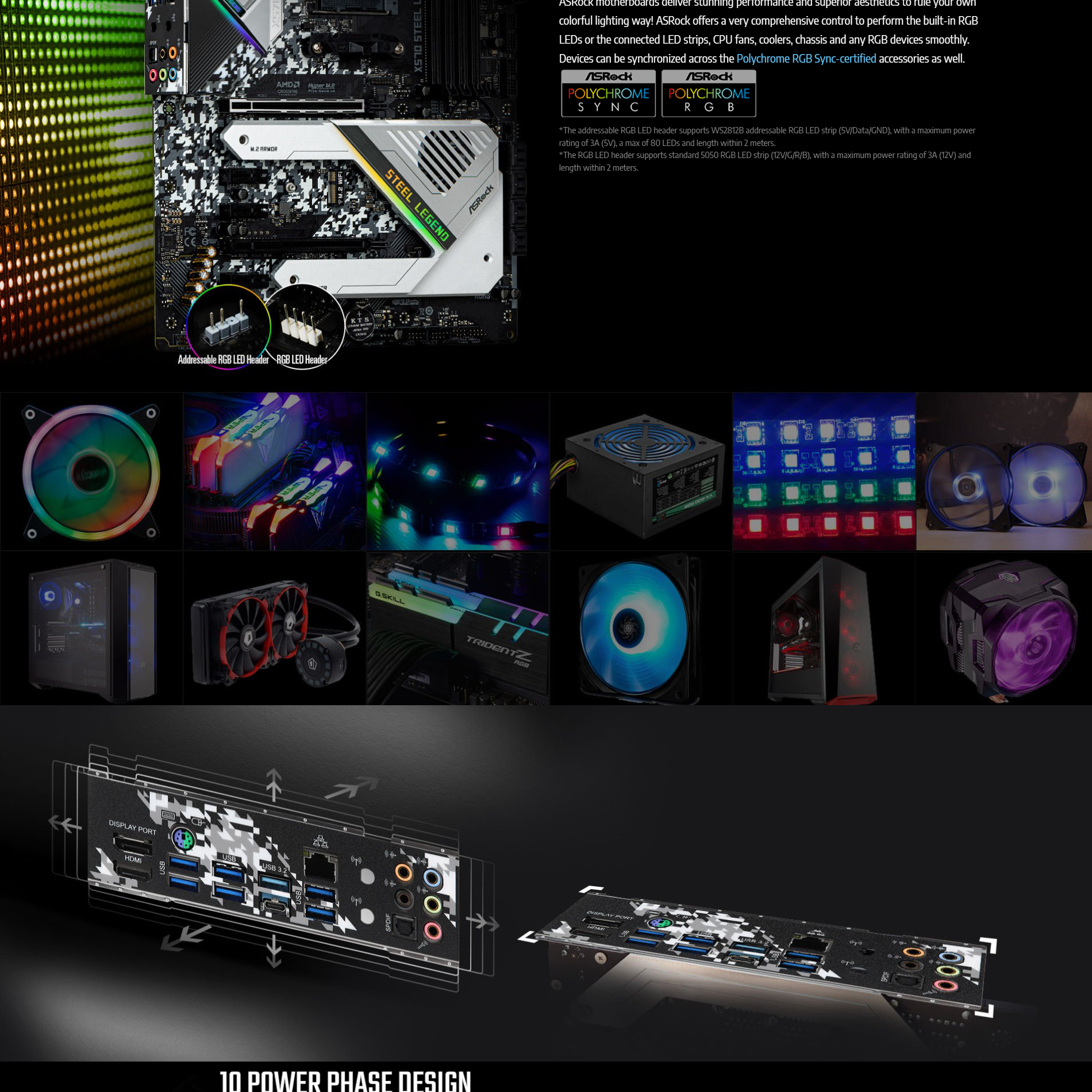

- 1 x RGB LED Header**
- 1 x Addressable LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x AMD LED Fan USB Header
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC
Card R2.0 only)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD
Protection)
- 1 x SPI TPM Header*******
*The AMD Fan LED Header is
compatible with a regular RGB LED stripe.
The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and
length up to 2.5M.
**Supports in total up to 12V/3A, 36W
LED Strip
***Supports in total up to 5V/3A, 15W
LED Strip
****The CPU Fan Connector supports the
CPU fan of maximum 1A (12W) fan power.
*****The CPU/Water Pump Fan supports the
water cooler fan of maximum 2A (24W) fan power.
******The Chassis/Water Pump Fan supports
the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto
detect if 3-pin or 4-pin fan is in use.
*******Please refer to the link for
further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI
|
|

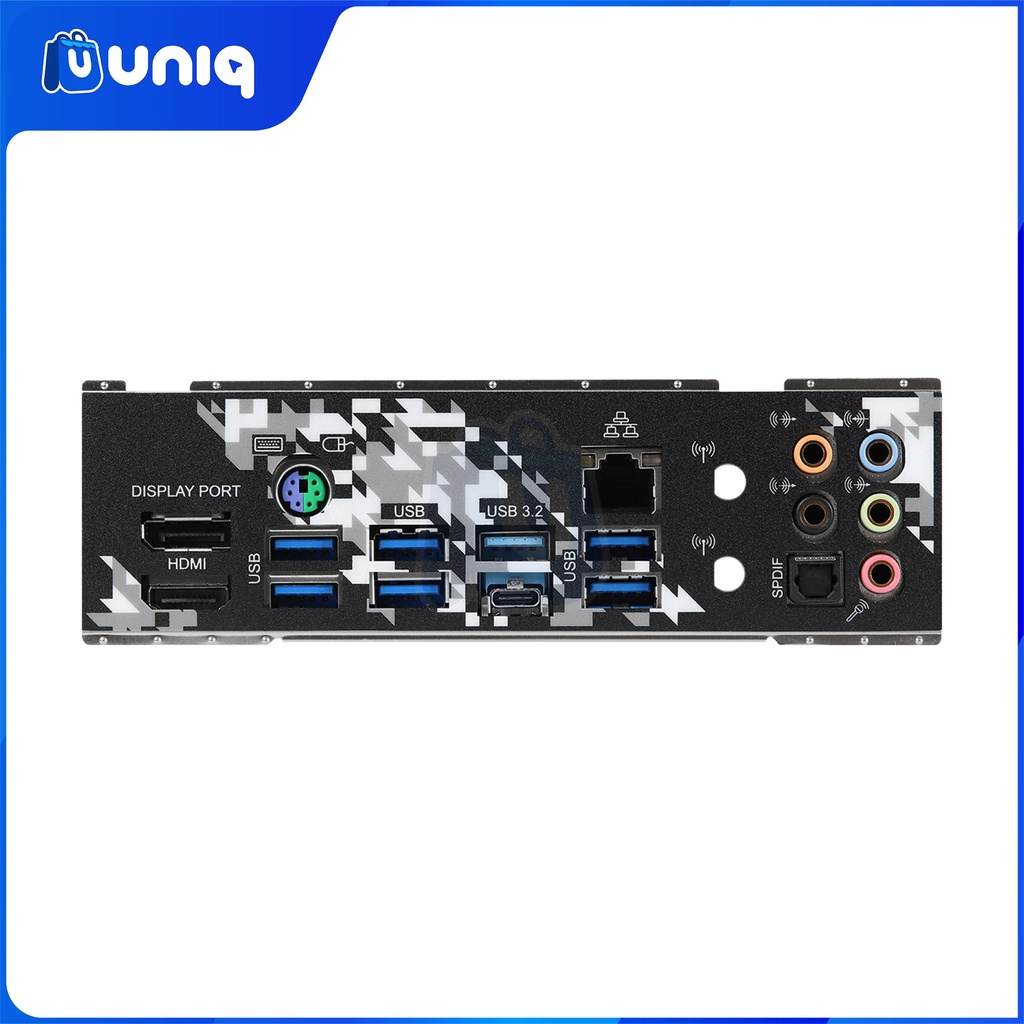

Rear Panel I/O
|
- 2 x Antenna Ports (on I/O Panel
Shield)
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker /
Microphone (Gold Audio Jacks)
*Ultra USB Power is supported on
USB3_56 ports.
ACPI wake-up function is not supported on USB3_56 ports.
|
|
Software and UEFI
|
Software
- ASRock A-Tuning
- ASRock Polychrome SYNC
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
*These utilities can be downloaded
from ASRock Live Update & APP Shop.
|
|
Support CD
|
- Drivers, Utilities, AntiVirus
Software (Trial Version), Google Chrome Browser and Toolbar
|
|
Hardware Monitor
|
- Temperature Sensing: CPU,
CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU,
CPU/Water Pump, Chassis, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump
Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM,
PREM VDDCR_SOC, +1.8V, VDDP
|
|
Form Factor
|
- ATX Form Factor: 12.0-in x
9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB
|
|
OS
|
- Microsoft Windows® 10 64-bit / 11 64-bit
|
|
Certifications
|
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
