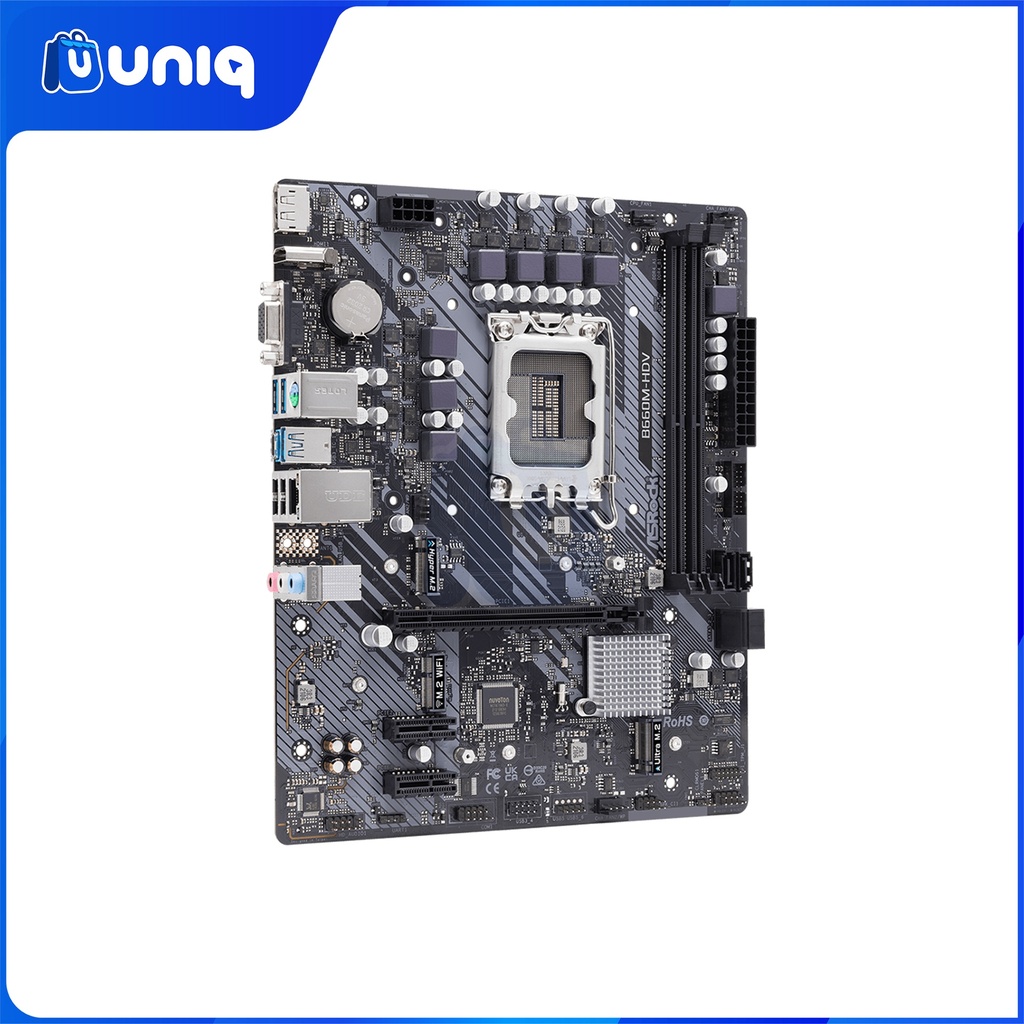

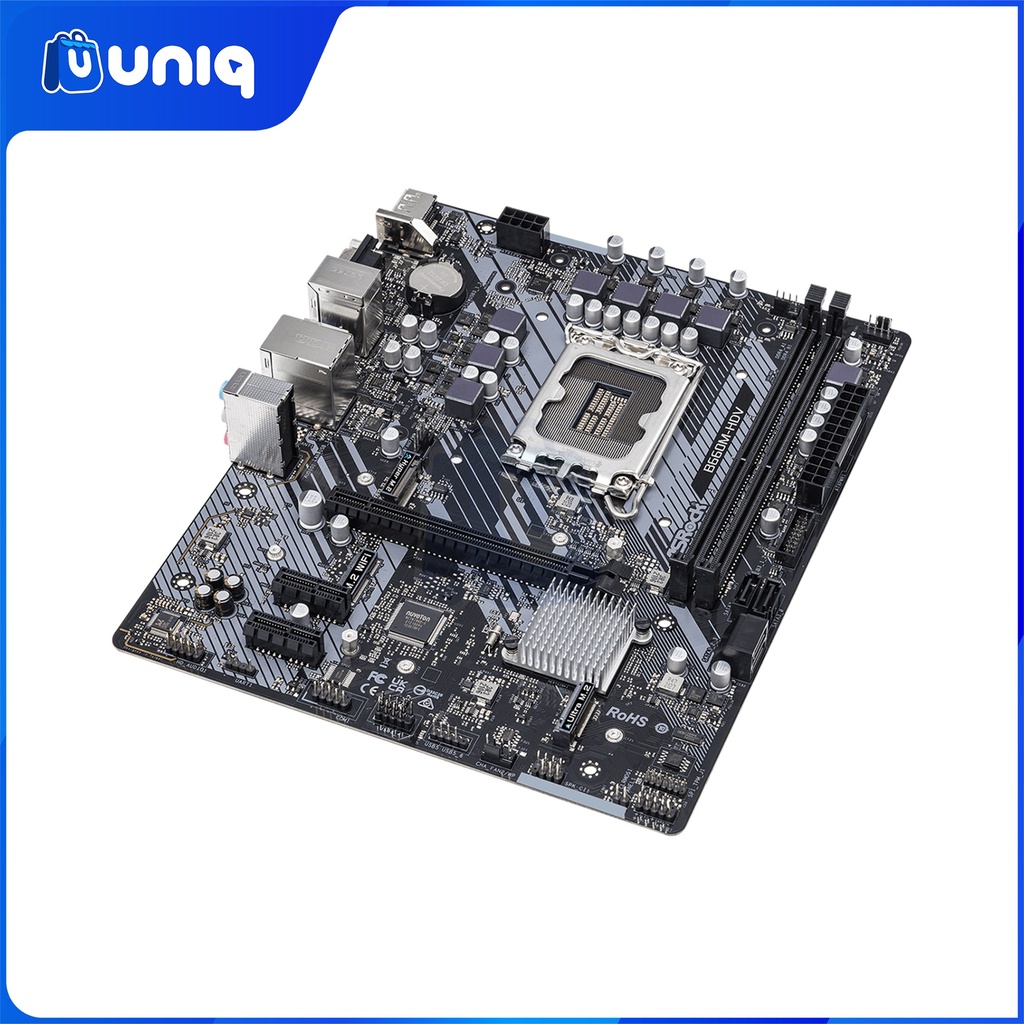

Unique Feature
|
ASRock
Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Hyper M.2 (PCIe
Gen4x4)
ASRock Full Spike Protection (for all
USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
|
|
CPU
|
- Supports 14th, 13th & 12th Gen Intel® Core™
Processors (LGA1700)
- Digi Power design
- 6 Power Phase design
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0
Technology
|
|
Chipset
|
- Intel® B660
|
|
Memory
|
- Dual Channel DDR4 Memory
Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile
(XMP) 2.0
*Supports DDR4 3200 natively.
|
|
BIOS
|
- 128Mb AMI UEFI Legal BIOS with
multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V
PCH Voltage Multi-adjustment
|
|
Graphics
|
- Intel® Xe
Graphics Architecture (Gen 12)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K
(4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K
(7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
*Intel® UHD
Graphics Built-in Visuals and the VGA outputs can be supported only with
processors which are GPU integrated.
|
|
Audio
|
- 7.1 CH HD Audio (Realtek
ALC897/887 Audio Codec)
- Supports Surge Protection
|
|
LAN
|
- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
|
|
Slots
|
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
*Supports NVMe SSD as boot disks
|
|
Storage
|
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64
Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s
& PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors**
*Supports Intel® Optane™ Memory H Series (M2_2 only)
Supports Intel® Volume Management Device
(VMD)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
** If M2_2 is occupied by a
SATA-type M.2 device, SATA3_3 will be disabled.
|
|
RAID
|
- Supports RAID 0, RAID 1, RAID 5
and RAID 10 for SATA storage devices
|
|

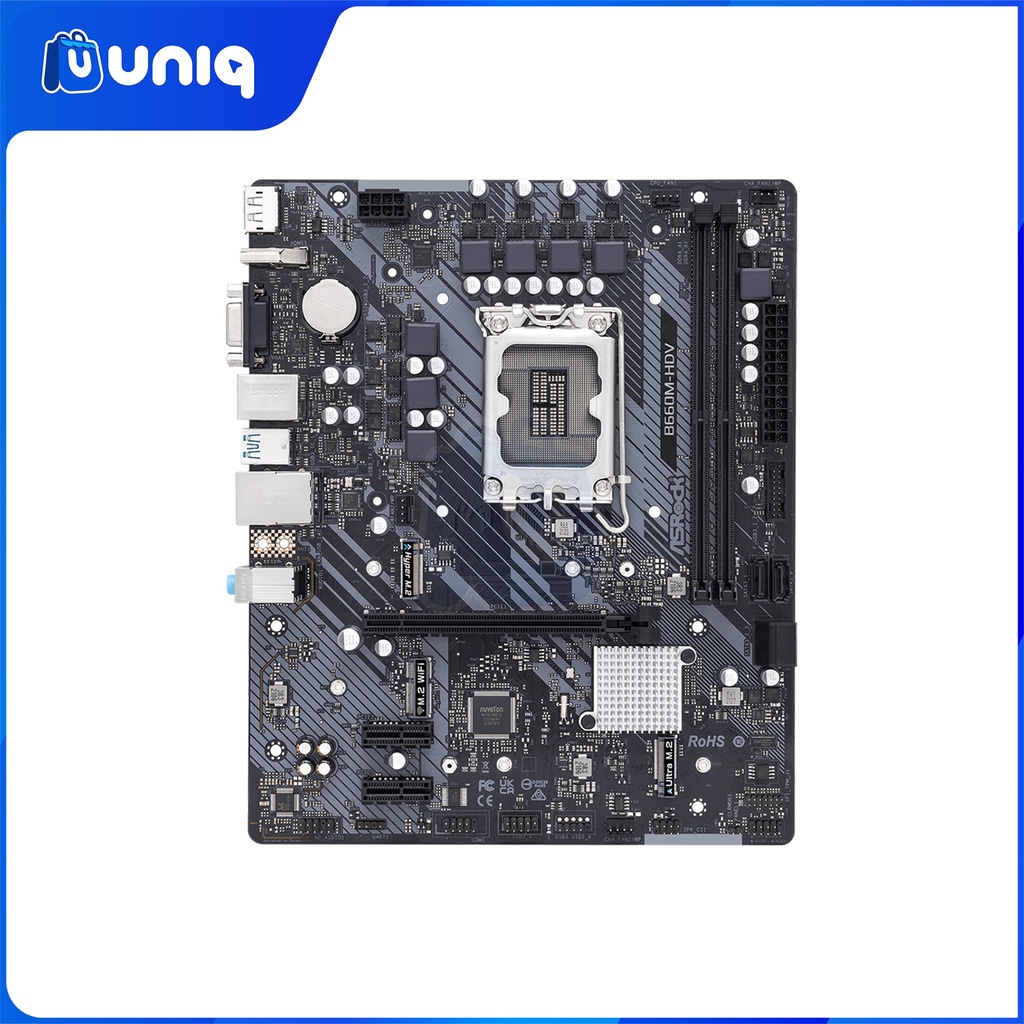

Connector
|
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD
Protection)
*The CPU Fan Connector supports the
CPU fan of maximum 1A (12W) fan power.
**The CPU/Water Pump Fan supports the
water cooler fan of maximum 2A (24W) fan power.
***The Chassis/Water Pump Fan supports
the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in
use.
|
|

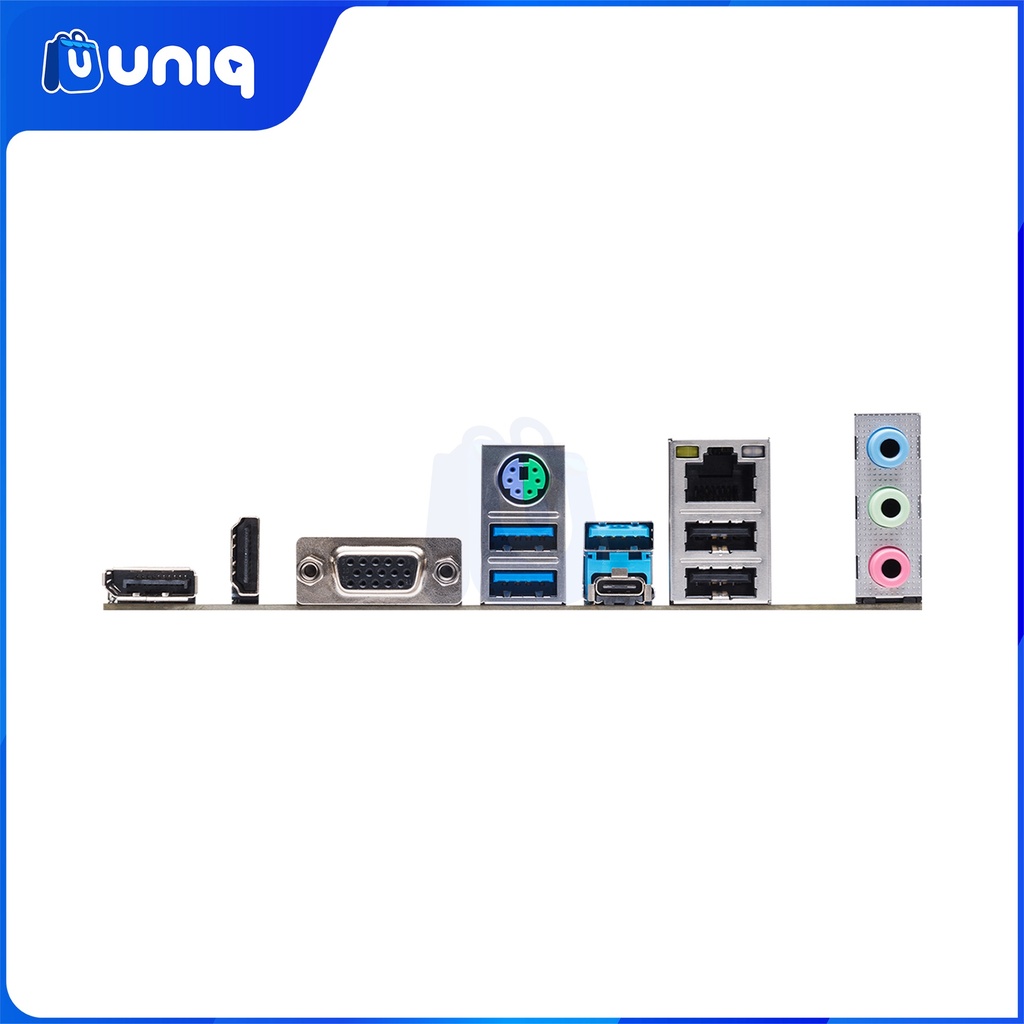

Rear Panel I/O
|
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
|
|
Software and UEFI
|
Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
*These utilities can be downloaded
from ASRock Live Update & APP Shop.
|
|
Support CD
|
- Drivers, Utilities, AntiVirus
Software (Trial Version)
|
|
Hardware Monitor
|
- Fan Tachometer: CPU, CPU/Water
Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU,
CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC,
+0.82V PCH, +12V, +5V, +3.3V
|
|
Form Factor
|
- Micro ATX Form Factor: 9.6-in x
7.9-in, 24.4 cm x 20.1 cm
- Solid Capacitor design
|
|
OS
|
- Microsoft Windows® 10 64-bit / 11 64-bit
|
|
Certifications
|
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
|
