Model
|
RT-AX1800HP
|
|
Network Standard
|
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
|
|
WiFi Data Rate
|
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
|
|

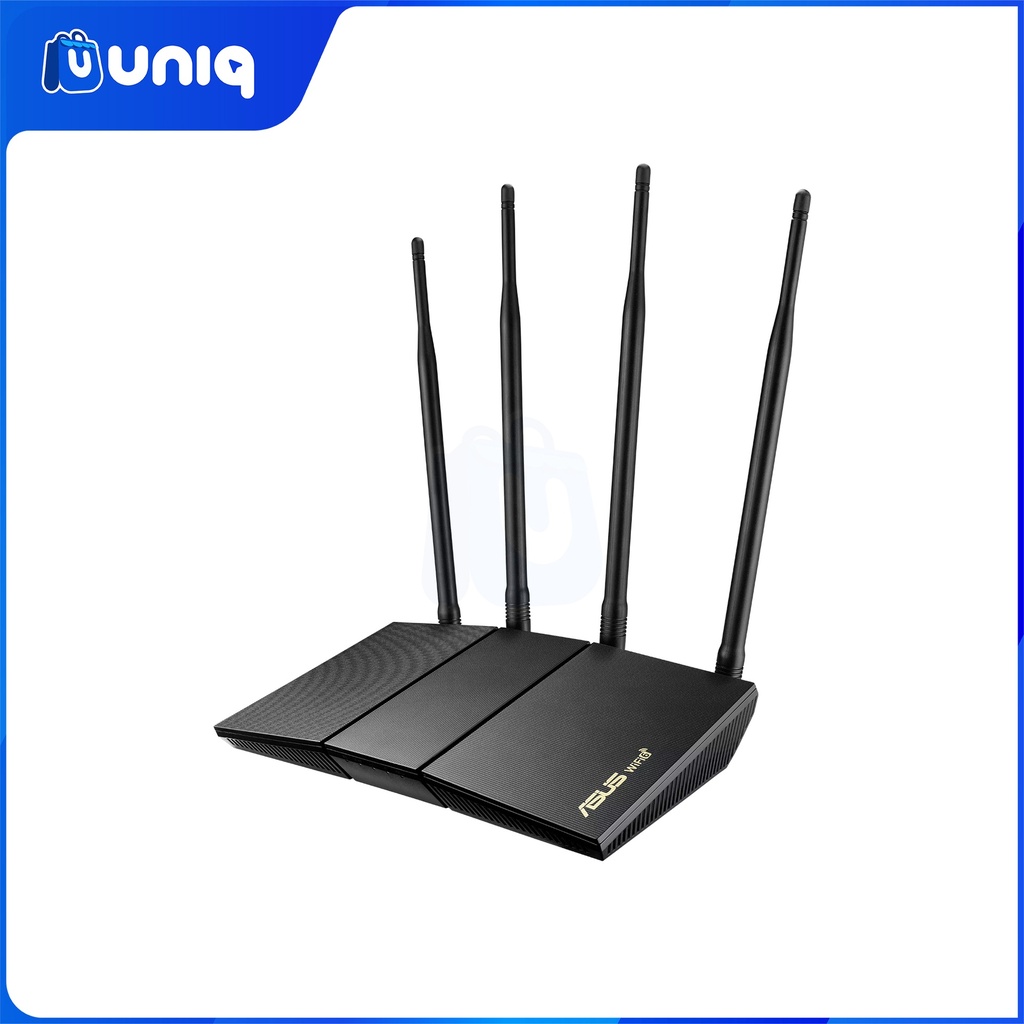

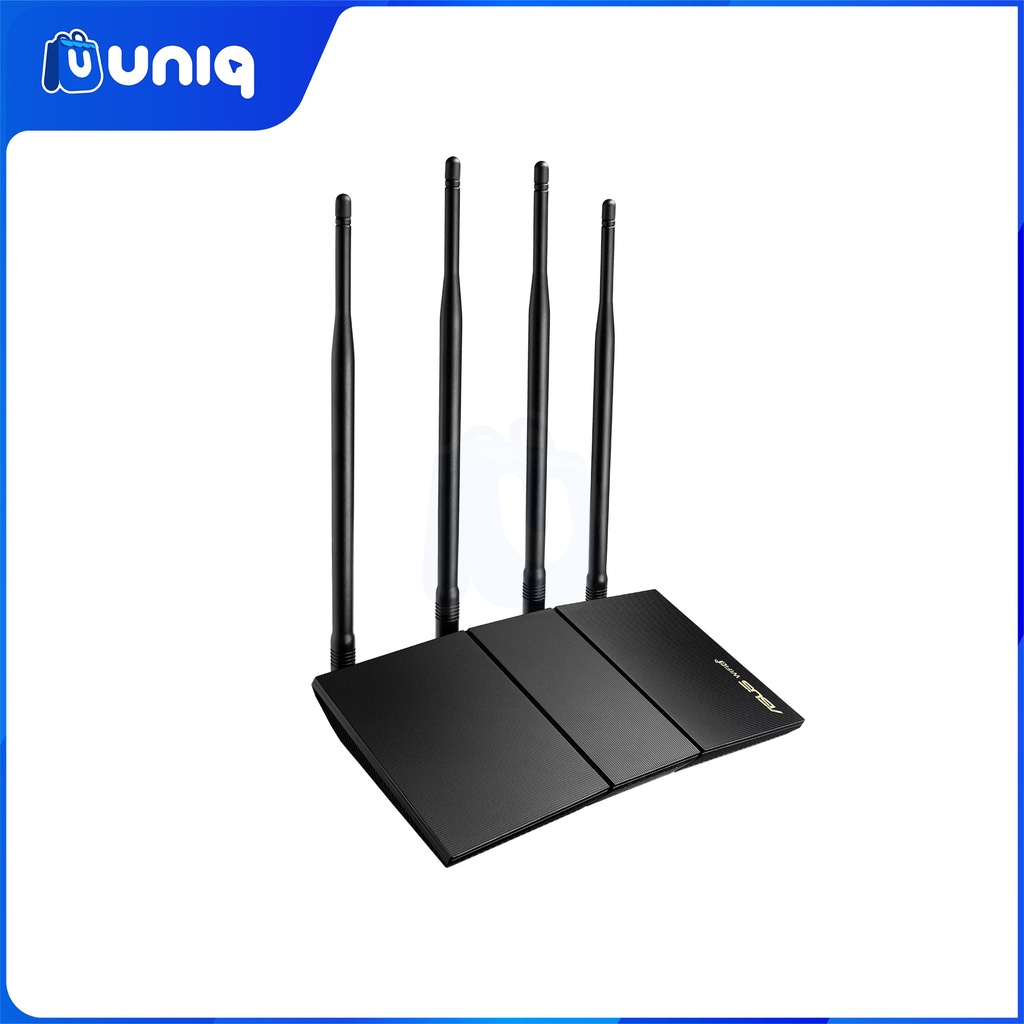

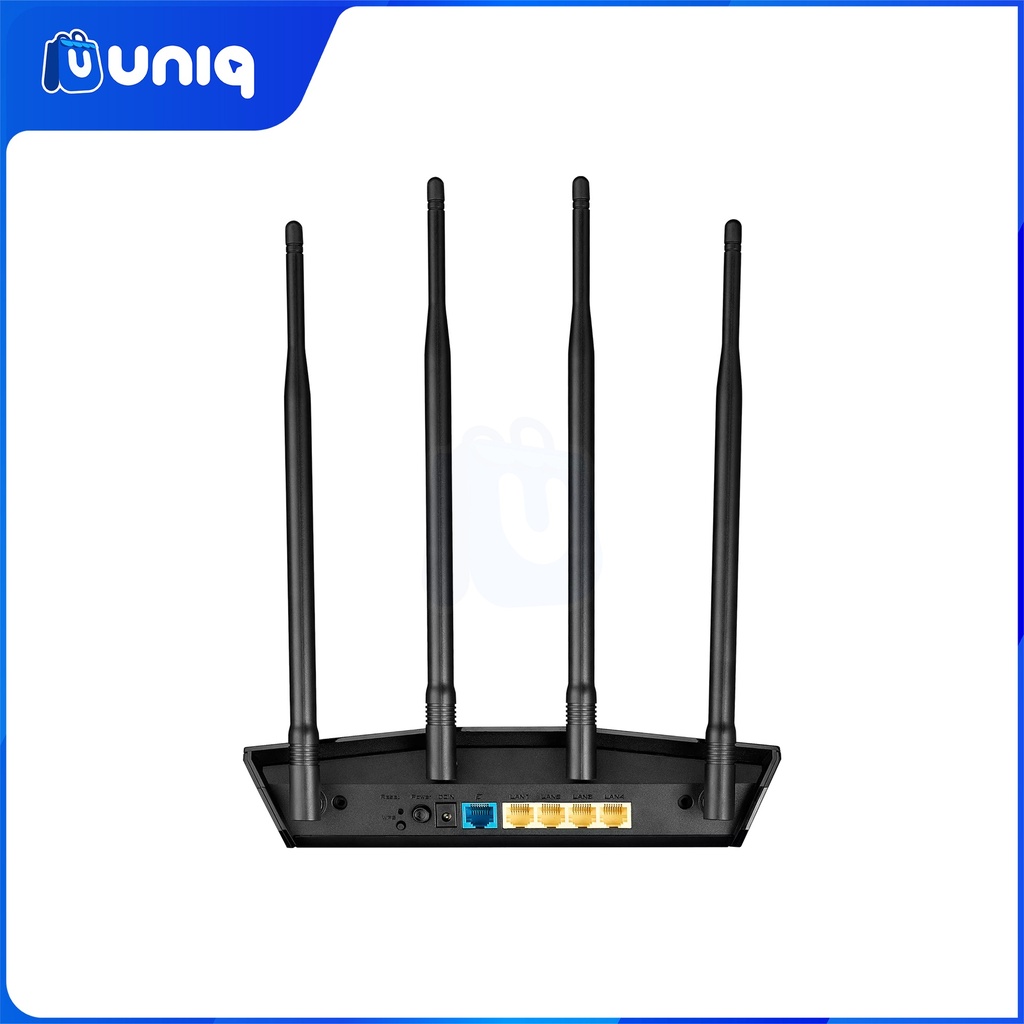

Antenna
|
External antenna x 4
|
|
Transmit / Receive
|
2.4GHz 2x2
5GHz 2x2
|
|
Processor
|
Dual-core (4 VPE)
|
|
Memory
|
128 MB Flash
256 MB RAM
|
|
Boosts Speed
|
OFDMA (Orthogonal Frequency
Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
|
|
Operating Frequency
|
2.4G Hz / 5 GHz
|
|
Operating Mode
|
Access Point, Media Bridge,
Repeater, Router
|
|

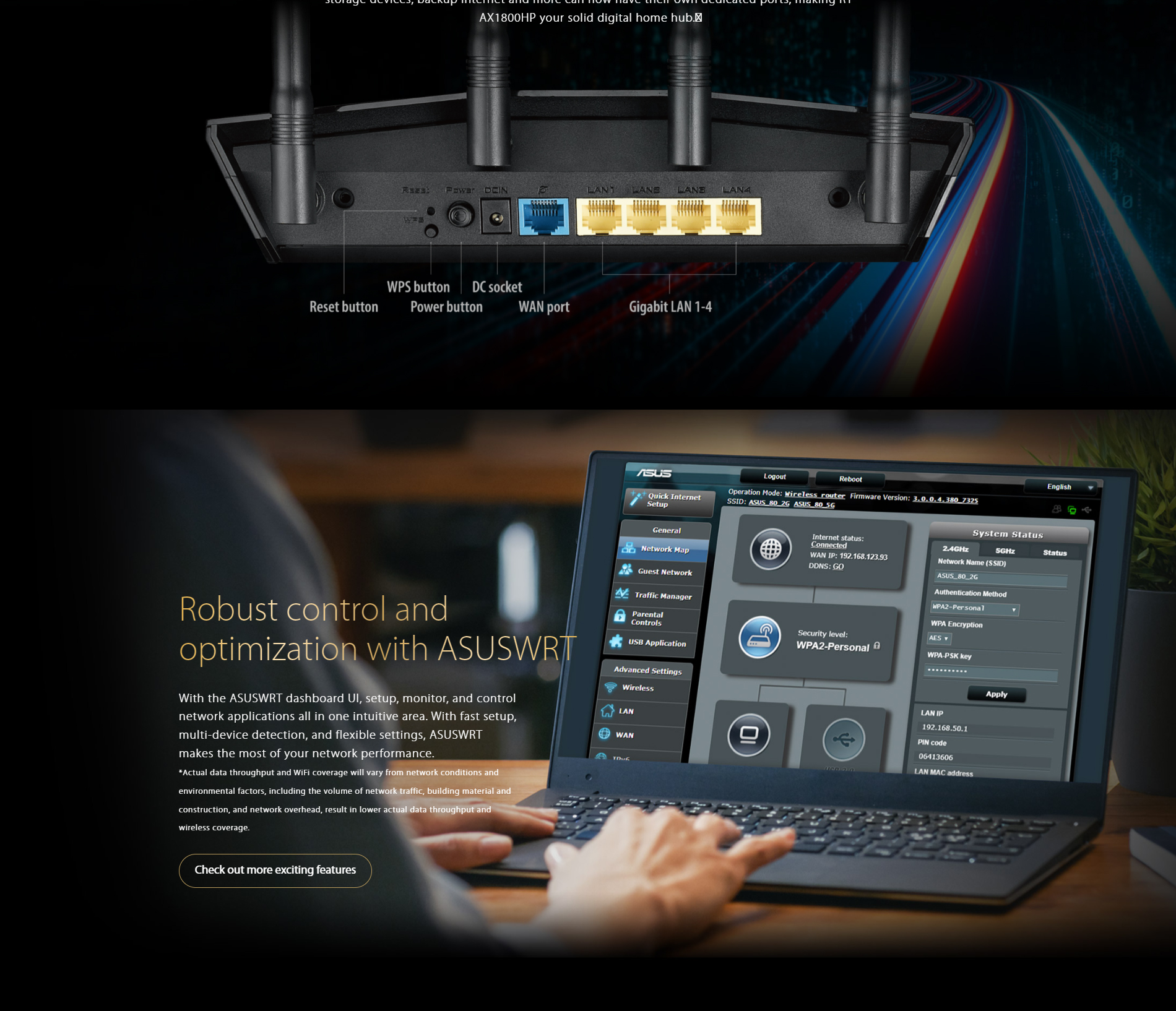

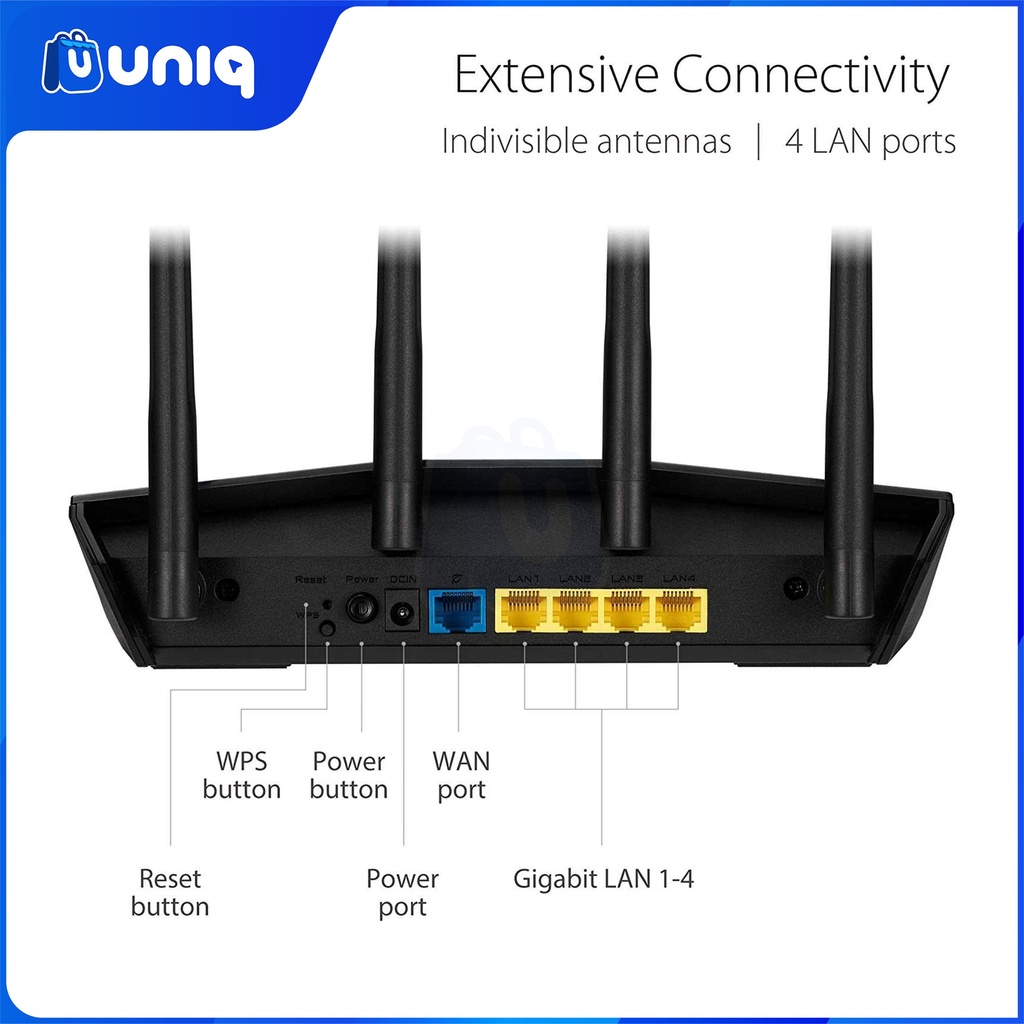

I/O Ports
|
RJ45 for Gigabits BaseT for WAN x
1, RJ45 for Gigabits BaseT for LAN x 4
|
|
Buttons
|
WPS Button, Reset Button, Power
Switch
|
|
LED Indicator
|
Power x 1
2.4G x 1
5G x 1
LAN x 1
WAN x 1
|
|
Power Supply
|
AC Input : 100V~240V(50~60Hz)
DC Output : 12 V with max. 1.5A current
|
|
Product Weight (g)
|
390g / 0.86lb
|
|
Product Dimensions
|
230 x 134 x 56 mm
9.06 x 5.28 x 2.2 inch
|
|
AiMesh
|
AiMesh
• Primary AiMesh Router
• AiMesh Node
|
|
Parental Control
|
"Allow you to block access to
unwanted websites and apps."
Customized Internet Schedule
|
|
Guest Network
|
"The Guest Network provides
Internet connection for guests but restricts access to your local
network."
|
|
Security
|
Open system, WPA/WPA2-Personal,
WPA/WPA2-Enterprise, WPA3-Personal
WPS
Let's Encrypt
SSH
Firewall
|
|
AiProtection
|
• Malicious Site Blocking
• Infected Device Prevention and Blocking
|
|
VPN
|
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
|
|
Traffic Control
|
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
|
|
WAN
|
Internet connection Type : PPPoE,
PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port forwarding
DMZ
DDNS
|
|
LAN
|
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
|
|
Wireless
|
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
|
|
Administration
|
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
|
