Model Name
|

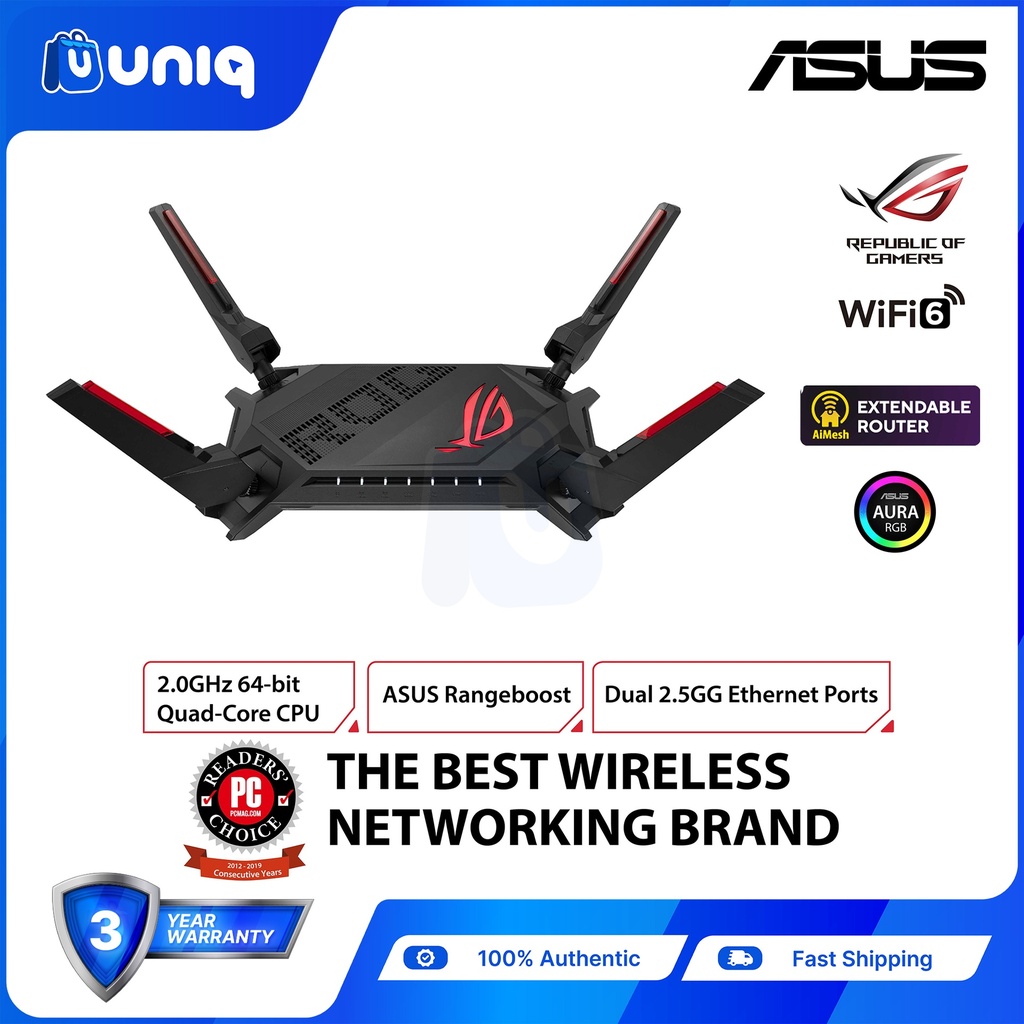

GT-AX6000
|
|
Network
Standard
|
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6
|
|
Product
Segment
|
AX6000 ultimate AX performance
|
|
WiFi Data
Rate
|
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
|
|
Antenna
|
External antenna x 4
|
|
Transmit /
Receive
|
2.4GHz 4x4
5GHz 4x4
|
|
Processor
|
2.0 GHz quad-core processor
|
|
Memory
|
256 MB Flash, 1 GB RAM
|
|
Boosts
Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth,
|
|
Operating
Frequency
|
2.4G Hz / 5 GHz
|
|
Operating
Mode
|
Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
|
|

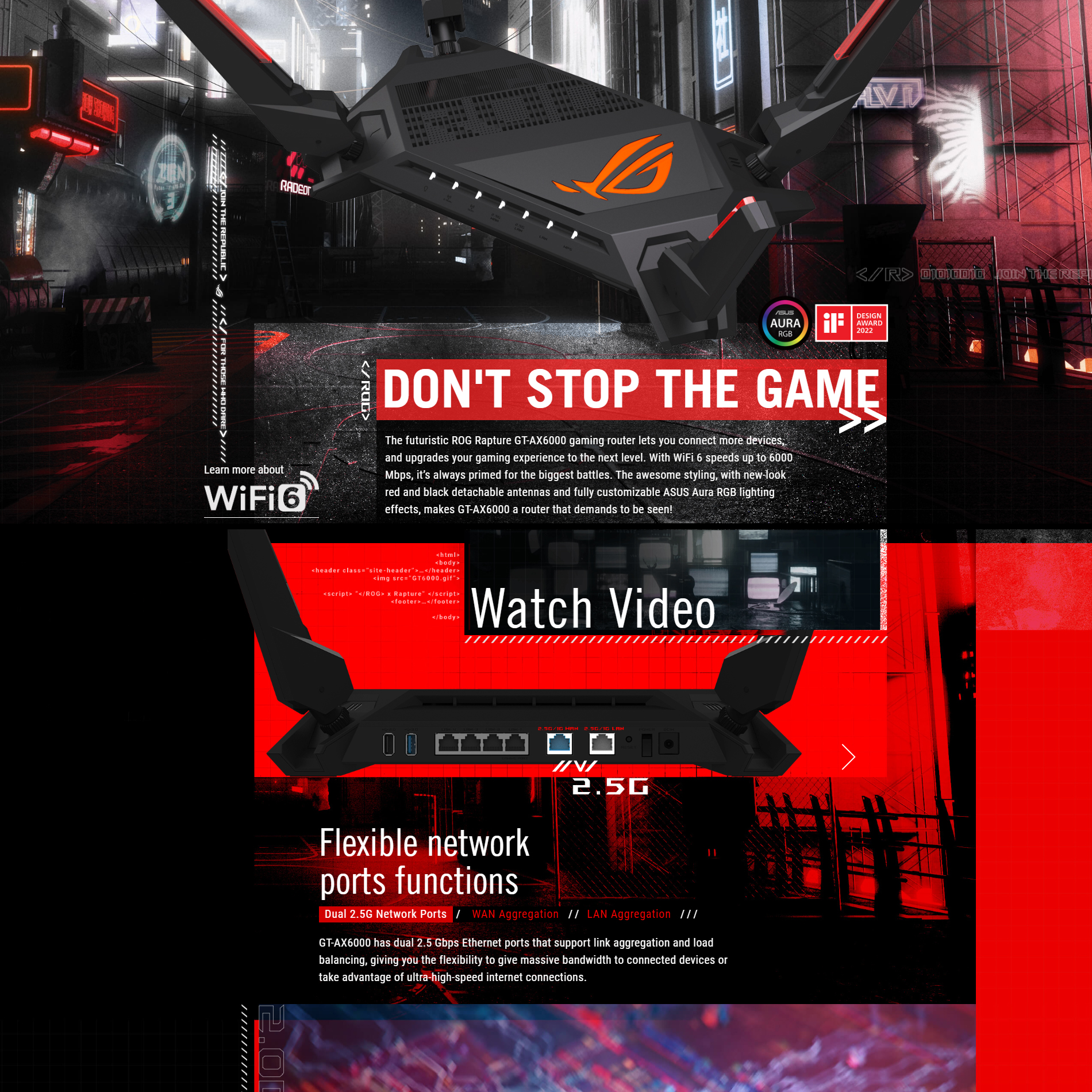

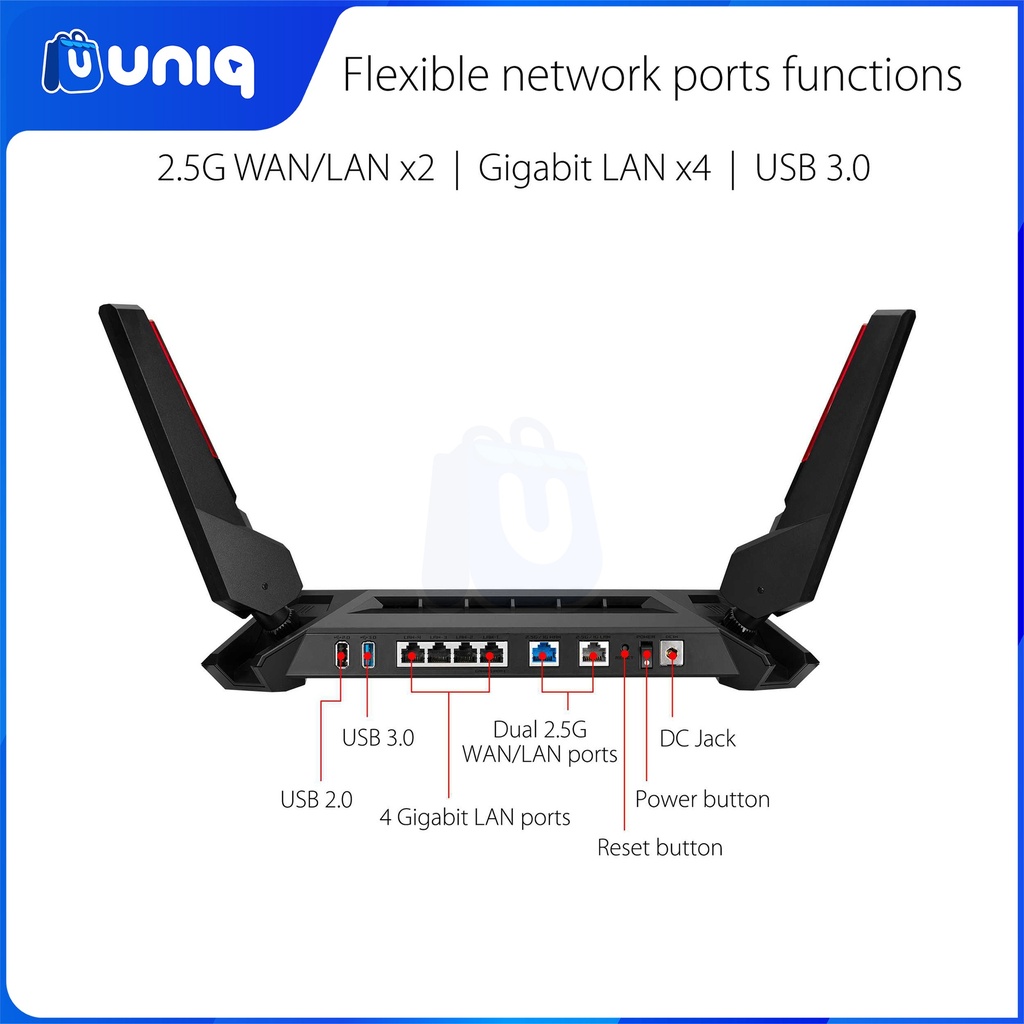

I/O Ports
|
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
RJ45 for 2.5 Gigabits BaseT for LAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
USB 2.0 x 1
|
|
Buttons
|
WPS Button,
Reset Button,
Power Button,
LED Control Button
|
|
LED
Indicator
|
Power x 1
2.4GHz x 1
5GHz x 1
2.5G WAN x 1
2.5G LAN x 1
LAN x 1
WPS x 1
|
|
Power
Supply
|
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current
|
|
Product
Weight (g)
|
1121.4 g
|
|
Product
Dimensions
|
337.7 x 196.0 x 220.9 mm
|
|

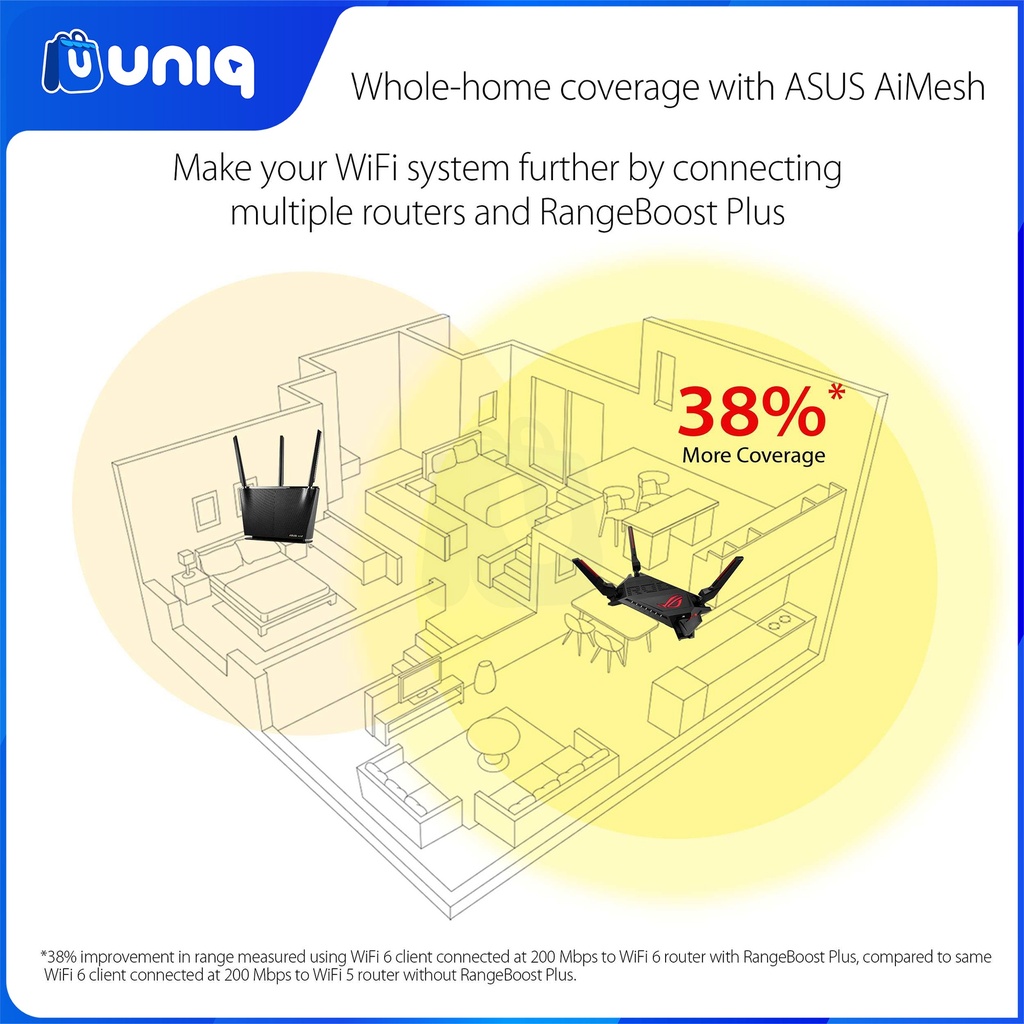

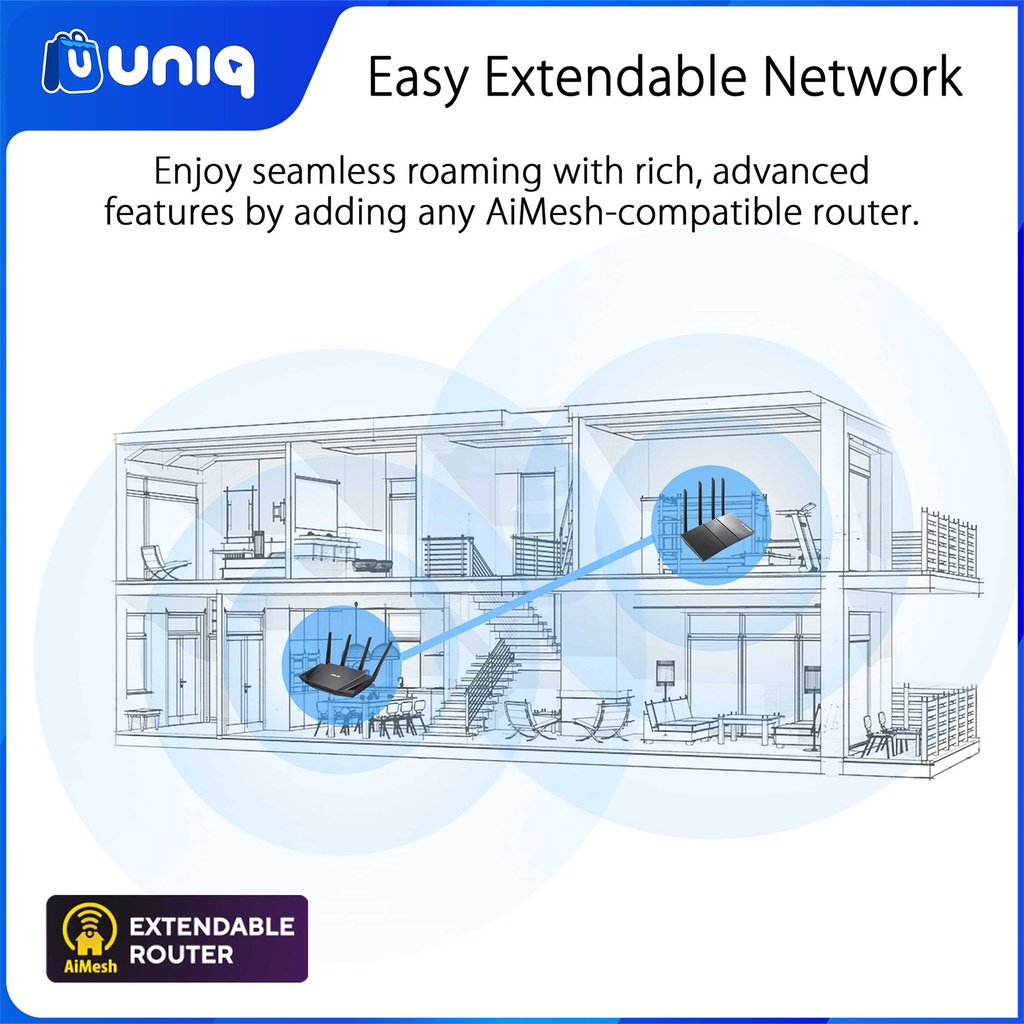

AiMesh
|
AiMesh
• Primary AiMesh Router
• AiMesh Node
|
|
Game
|

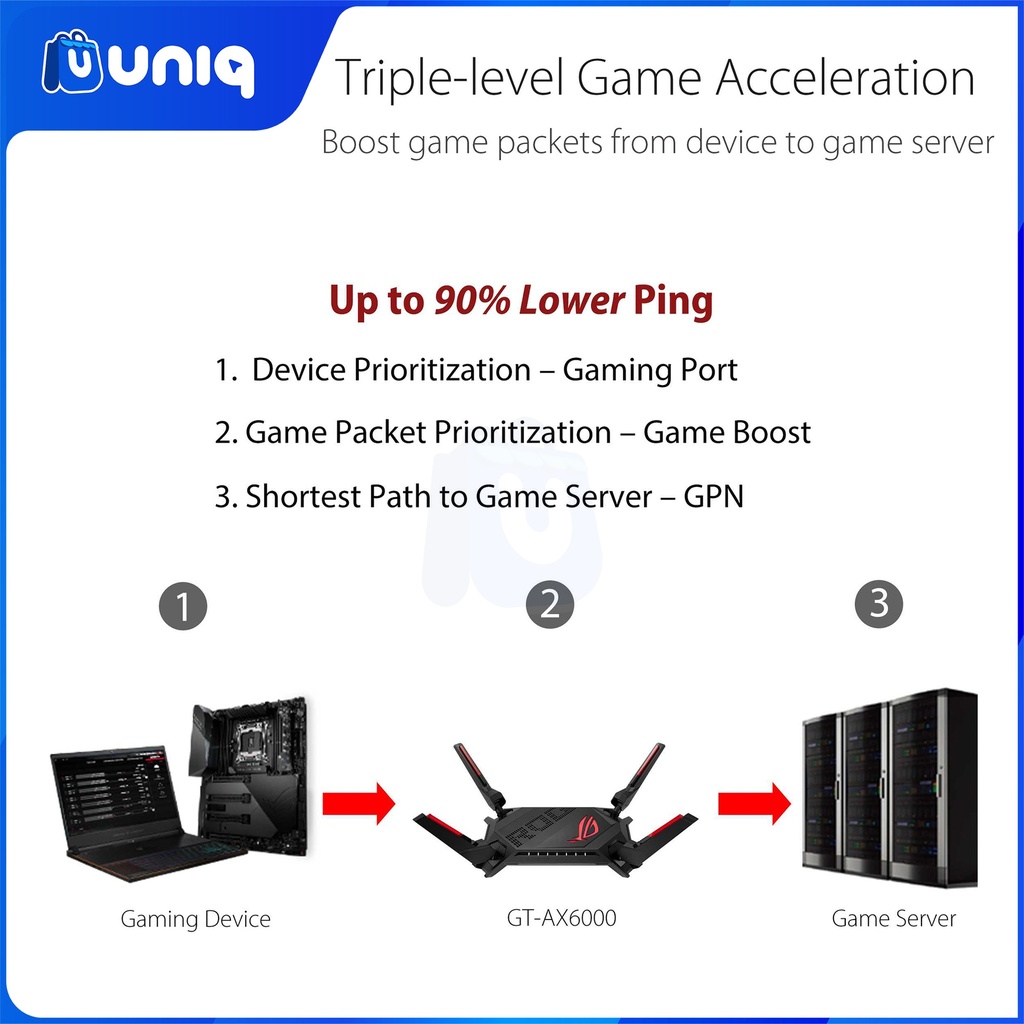

Game Boost / Acceleration
ROG_First
OpenNAT (Game Profile)

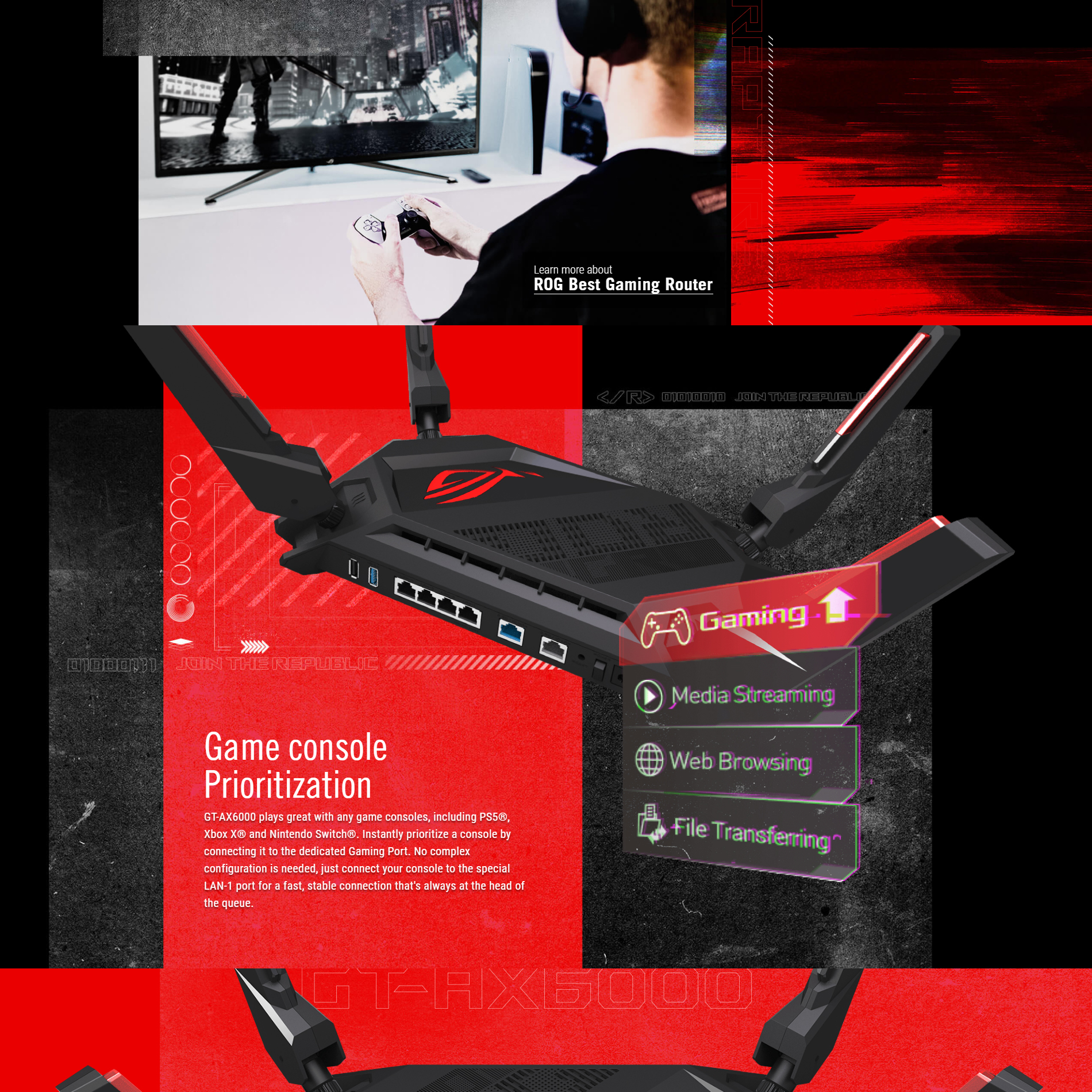

Gaming Port
|
|
Parental
Control
|
"Allow you to block access to unwanted websites and apps."
Parental Control Customized Internet Schedule
|
|
Guest
Network
|
"The Guest Network provides Internet connection for guests but
restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal
|
|
Security
|
WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal,
WPA/WPA2-Enterprise
WPS
SSH
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
|
|
AiProtection
|
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
|
|
VPN
|
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Fusion
|
|
Traffic
Control
|
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
|
|
WAN
|
Internet Connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN

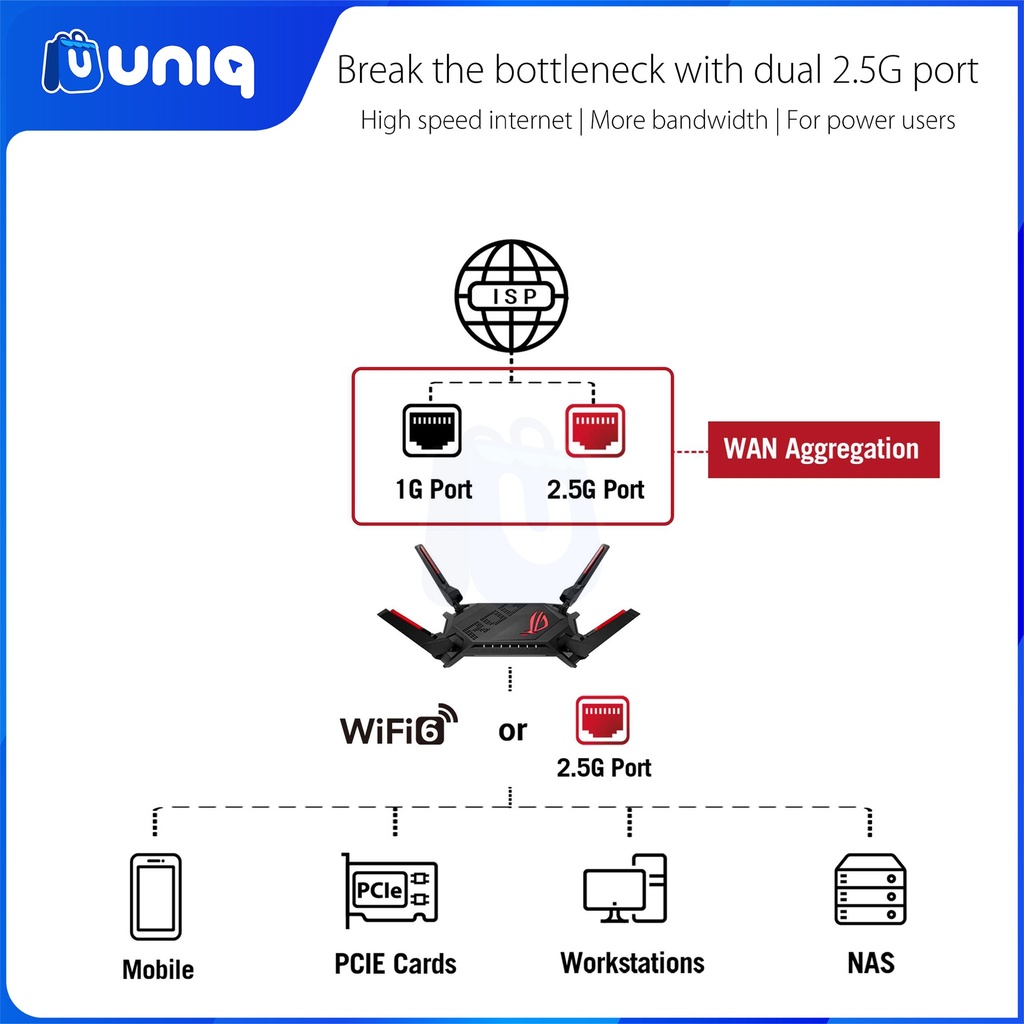

WAN Aggregation
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
|
|
LAN
|
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
|
|
Wireless
|
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
|
|
USB
application
|
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
|
|
User
Interface
|
Operating system : ASUSWRT
|
|
Administration
|
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
|
