Model
|

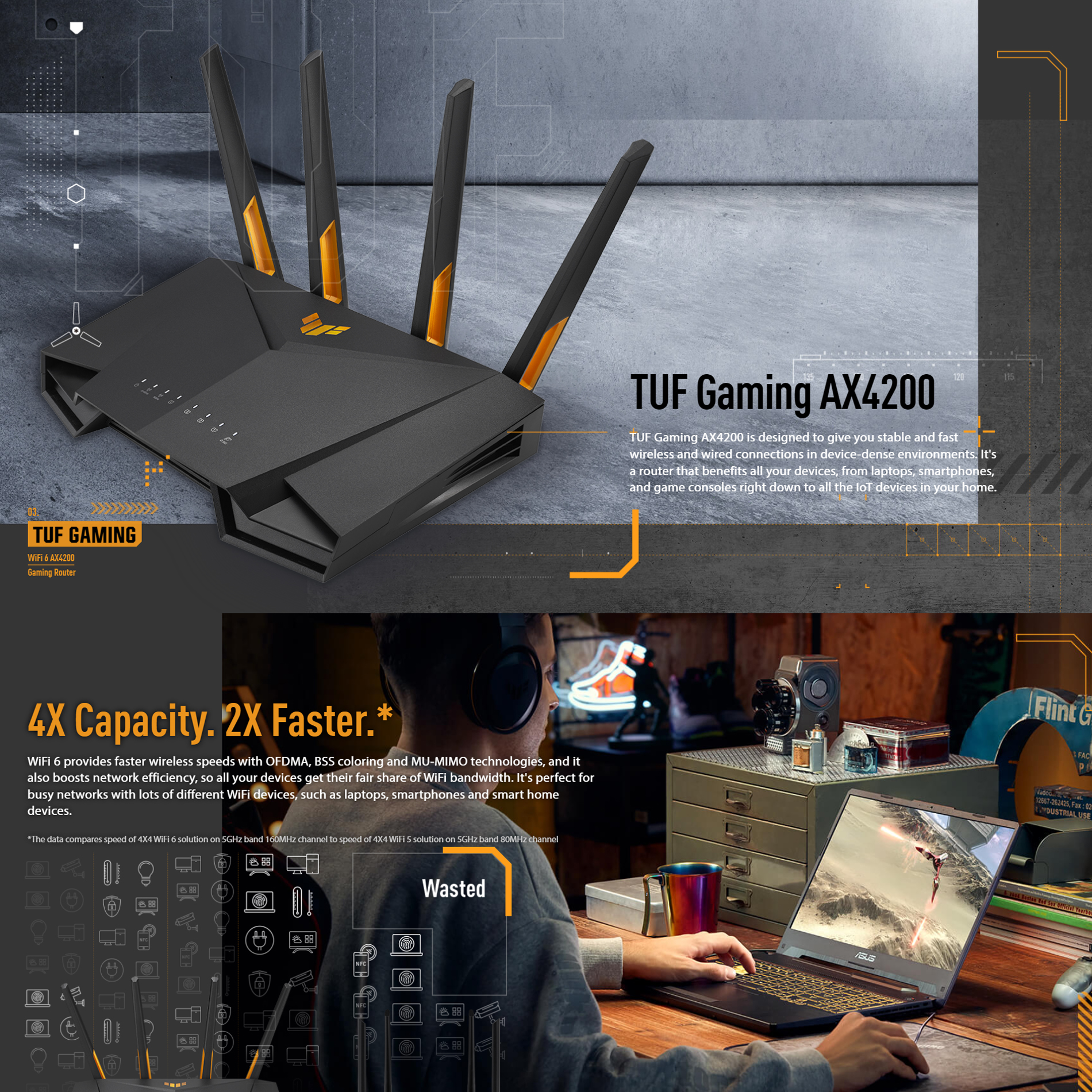

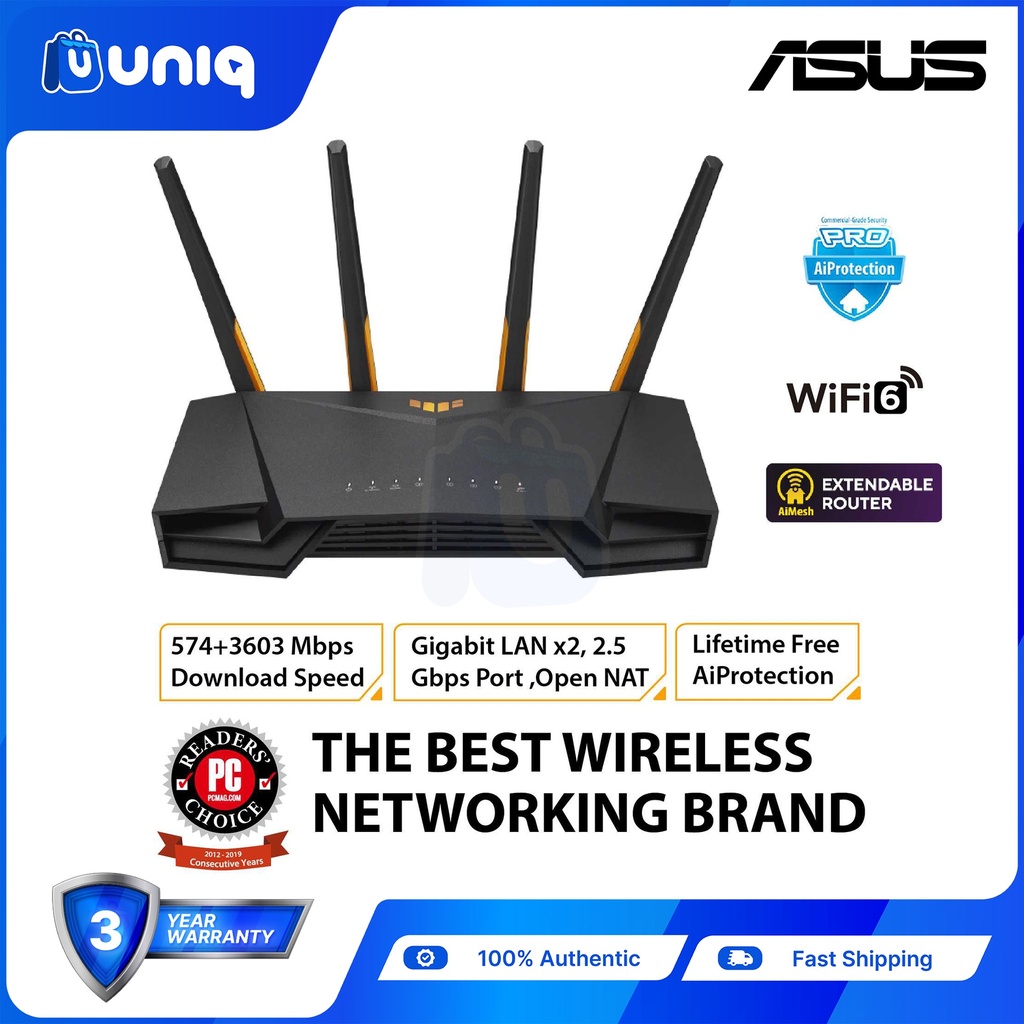

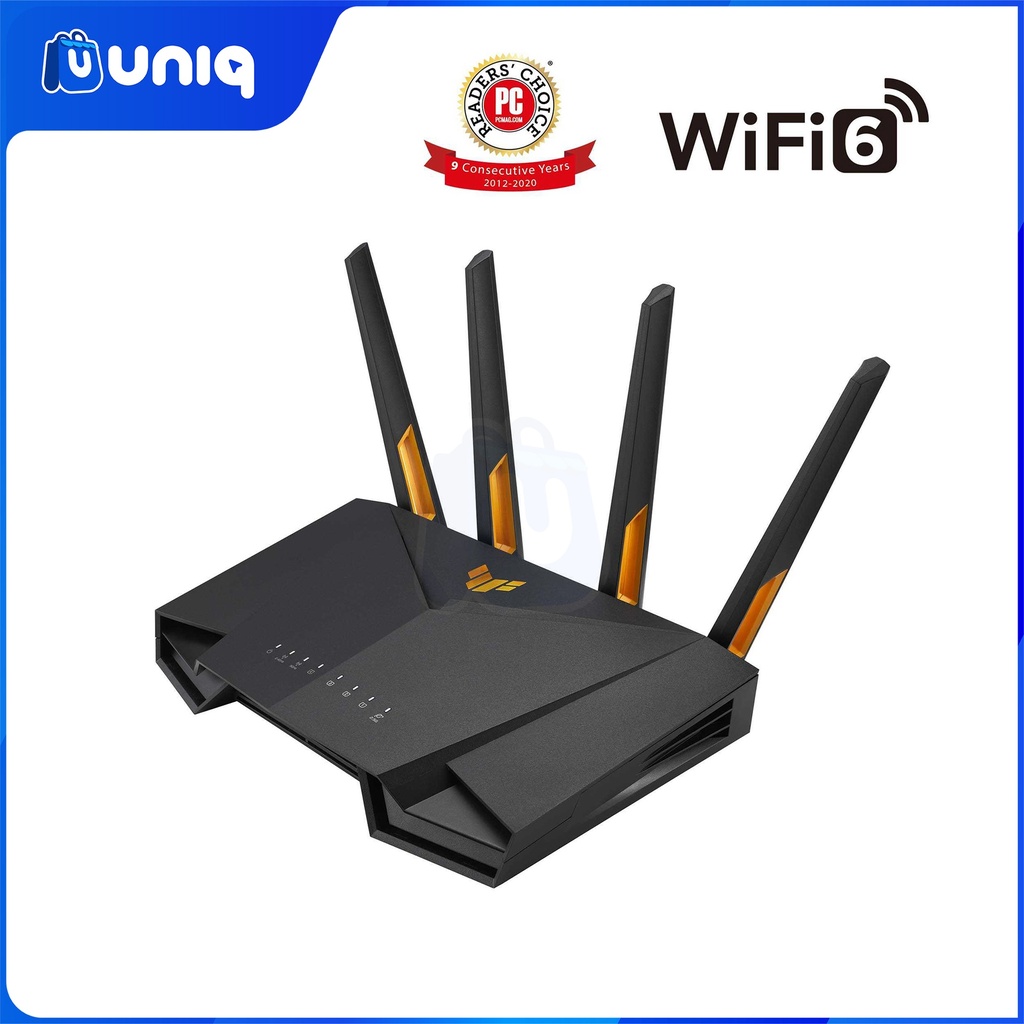

TUF Gaming AX4200
|
|
Network Standard
|
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
|
|
Product Segment
|
AX4200 ultimate AX performance:
574+3603 Mbps
|
|
WiFi Data Rate
|
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 450 Mbps
WiFi 4 (802.11n) (256QAM) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 2600 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps
|
|
Antenna
|
External antenna x 4
|
|
Transmit / Receive
|
2.4GHz 2x2
5GHz 3x3
|
|
Processor
|
2.0 GHz quad-core processor
|
|
Memory
|
256 MB Flash
512 MB RAM
|
|
Boosts Speed
|
OFDMA (Orthogonal Frequency
Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
|
|
Operating Frequency
|
2.4GHz / 5GHz
|
|
Operating Mode
|
Wireless router mode
Access point mode
Media bridge mode
|
|

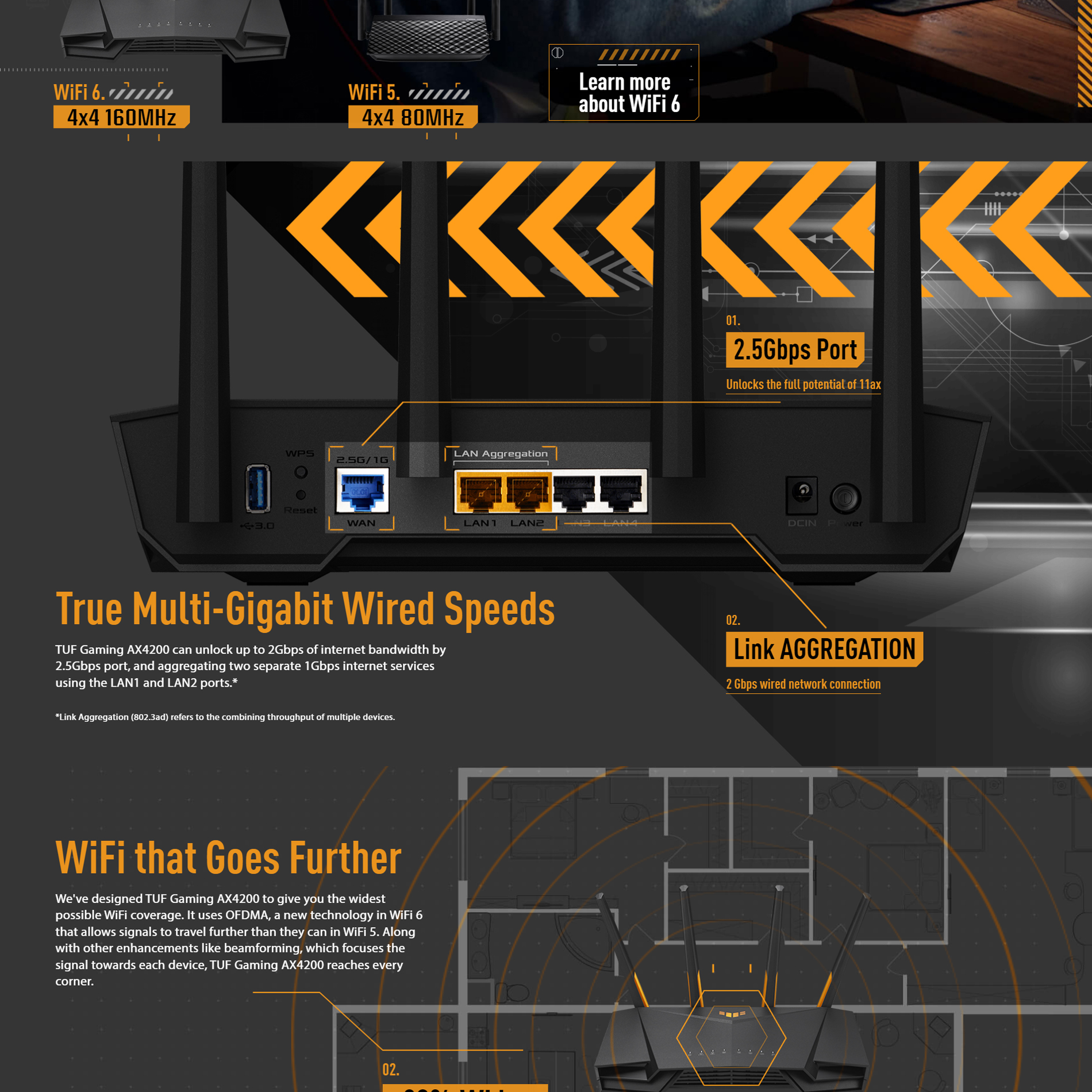

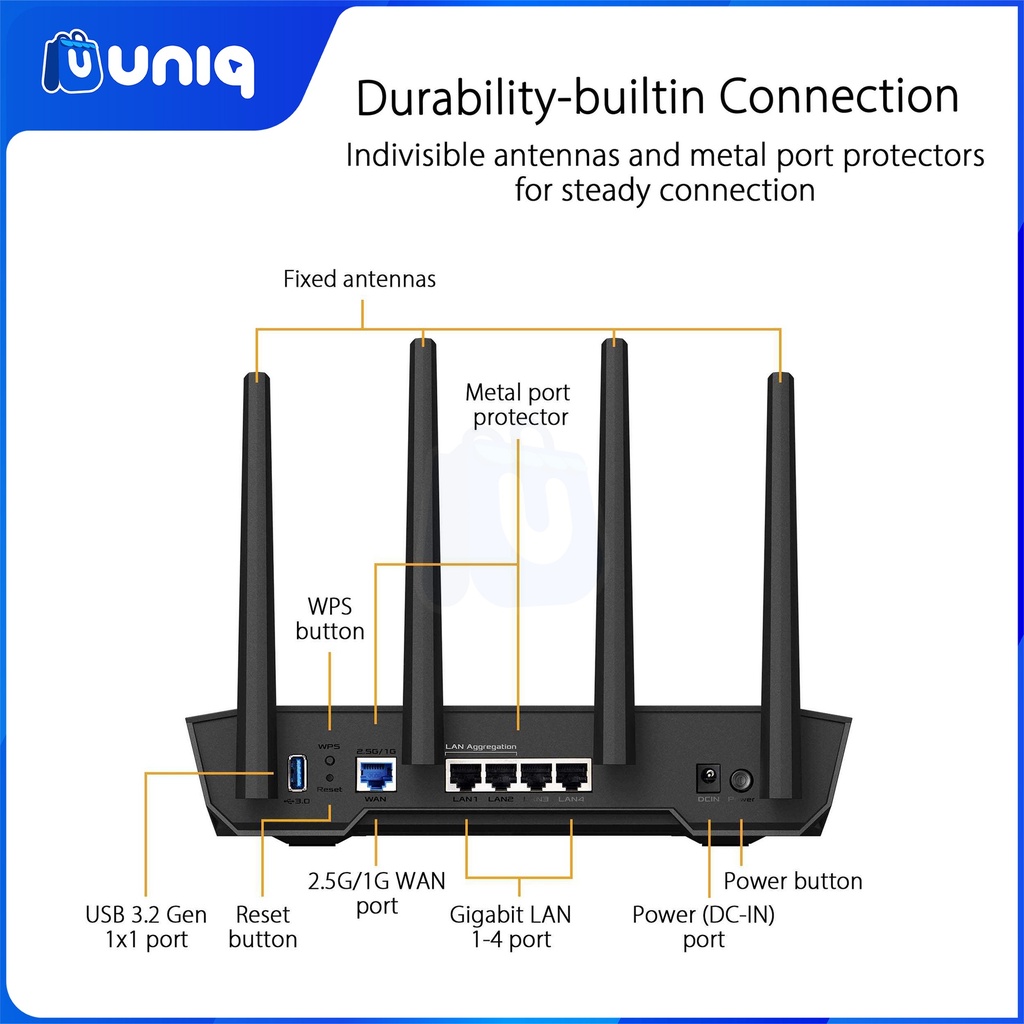

I/O Ports
|

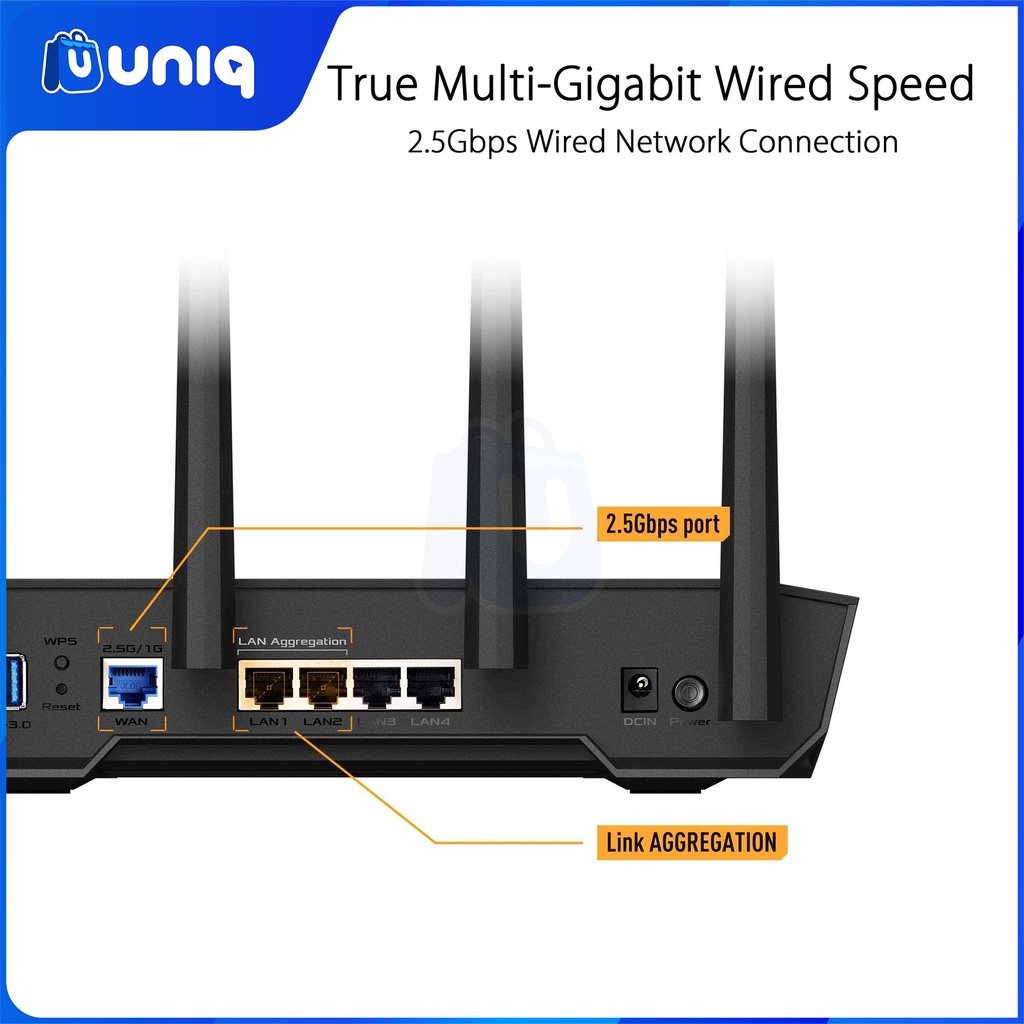

RJ45 for 2.5 Gigabits BaseT for WAN
x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
|
|
Buttons
|
WPS Button, Reset Button, Power
Button
|
|
LED Indicator
|
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
|
|
Power Supply
|
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2.5 A current
|
|
Product Weight (g)
|
547.4 g
|
|
Product Dimensions
|
265 x 178 x 186 mm
|
|
AiMesh
|
AiMesh
• Primary AiMesh Router
• AiMesh Node
|
|
Game
|
Game Boost / Acceleration
Mobile Game Mode
OpenNAT (Game Profile)
|
|
Parental Control
|
"Allow you to block access to
unwanted websites and apps."
Safe Browsing
Customized Internet Schedule
|
|
Guest Network
|
"The Guest Network provides
Internet connection for guests but restricts access to your local
network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
|
|
Security
|
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
|
|
AiProtection
|
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
|
|
VPN
|
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard

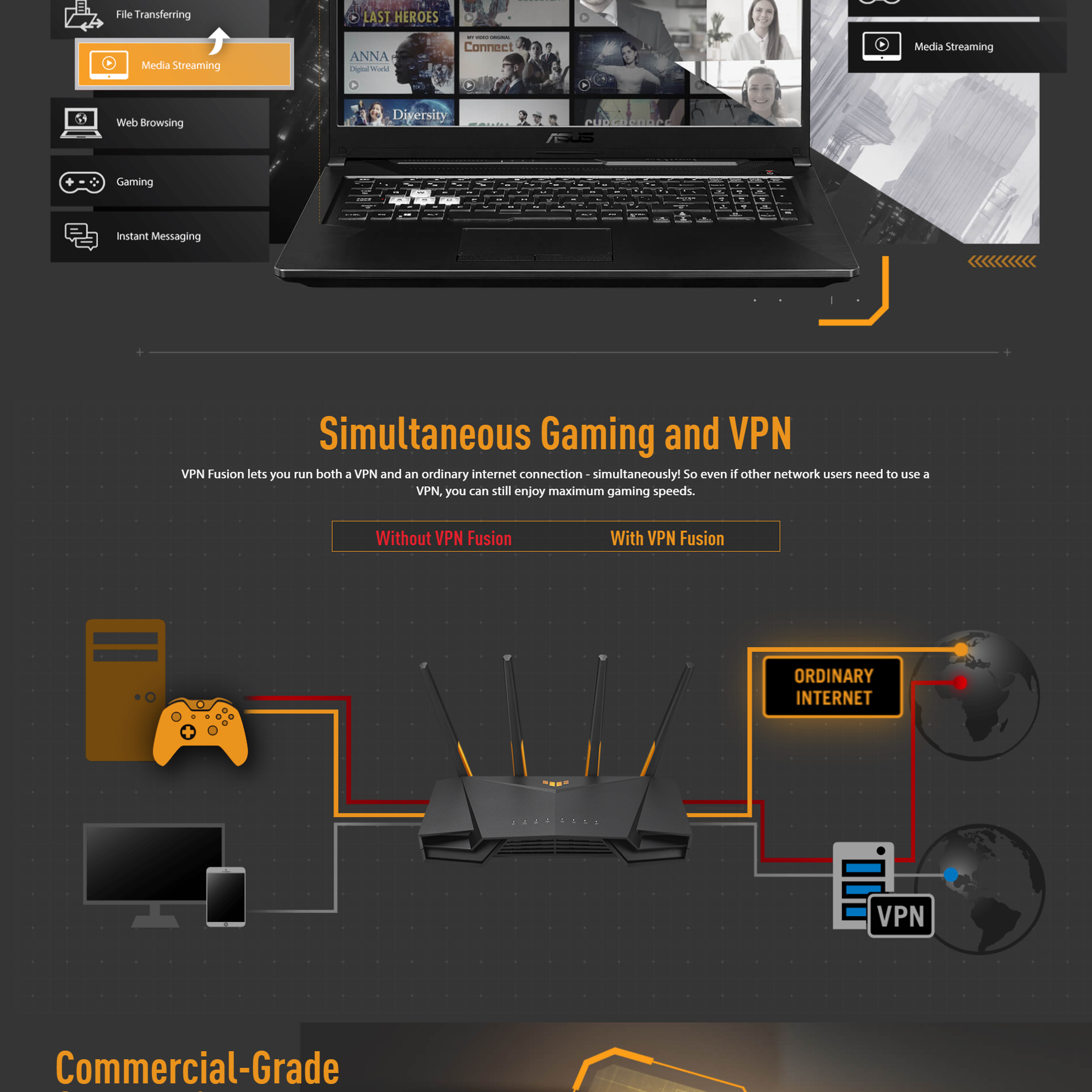

VPN Fusion
|
|
Traffic Control
|
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
|
|
WAN
|
Internet connection Type : PPPoE,
PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through,
RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
|
|
LAN
|
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
|
|
Wireless
|
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
|
|
USB application
|
File System : HFS+, NTFS, vFAT,
ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
|
|
Administration
|
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
|
