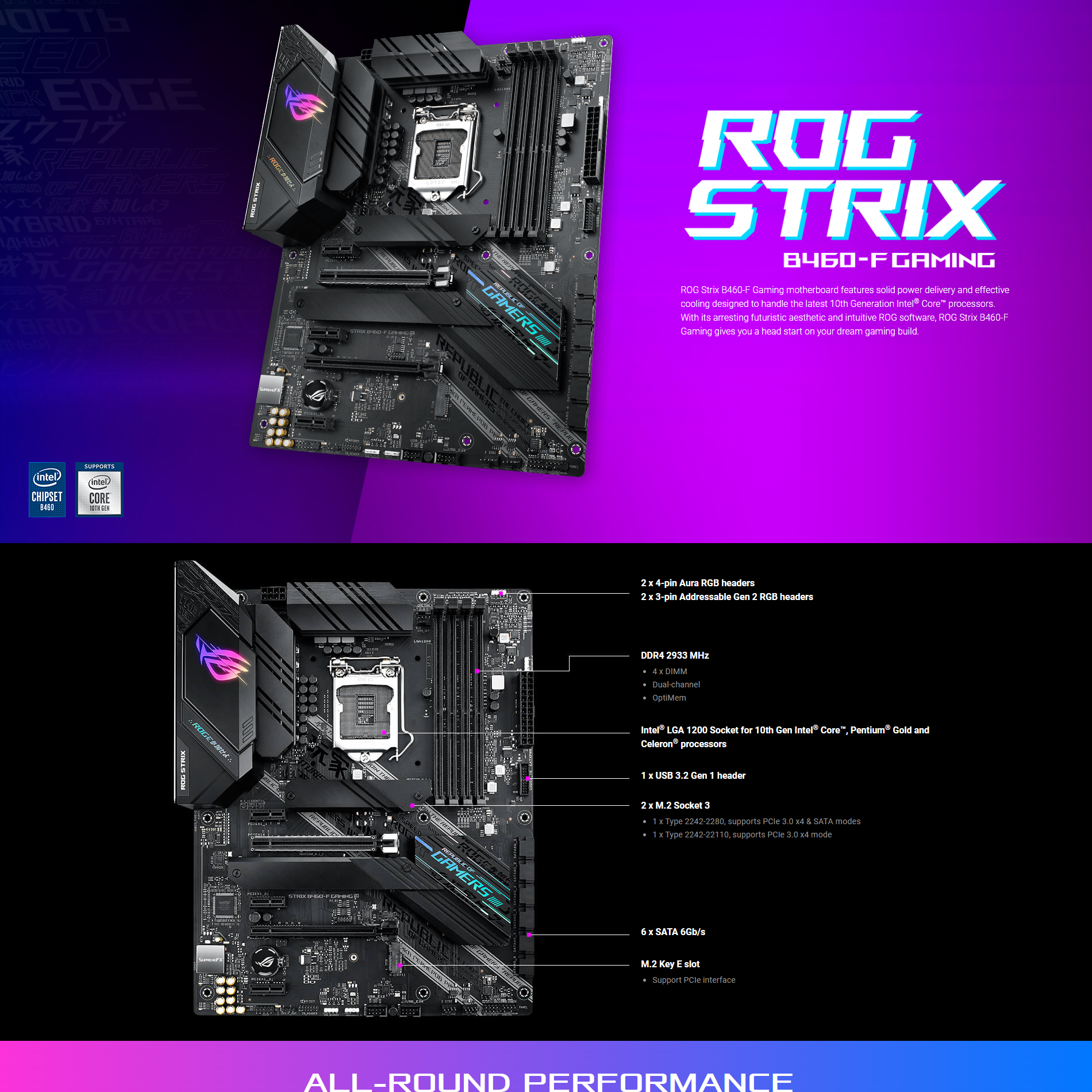

Model
|
ROG STRIX B460-F GAMING
|
CPU
|
Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14nm CPU
* Refer to www.asus.com
for CPU support list
|
Chipset
|
Intel® B460
|
Memory
|
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC,
Un-buffered Memory *
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to
www.asus.com for the Memory QVL (Qualified Vendors Lists).
Supports Intel® Extreme Memory Profile (XMP)
Dual Channel Memory Architecture
|
Graphic
|
1 x DisplayPort 1.4 **
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
Please refer to www.intel.com for any
update.
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
|
Multi-GPU Support
|
Supports AMD 2-Way CrossFireX Technology
|

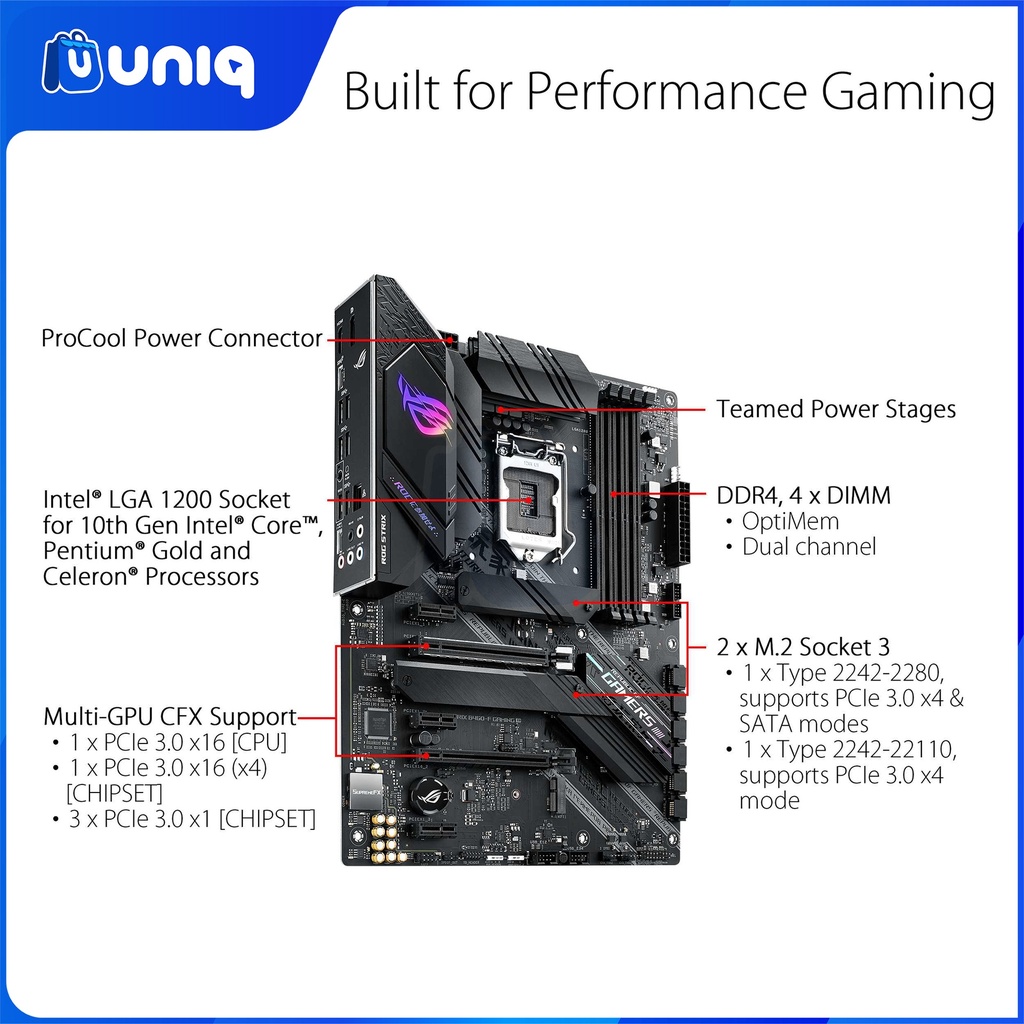

Expansion Slots
|
3 x PCIe 3.0 x1 *2
Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x4 mode) *1
1 x PCIe 3.0 x16
|
Storage
|
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices
support (SATA & PCIE 3.0 x 4 mode)*3
Intel® B460 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage
devices support (PCIE 3.0 x 4 mode)
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Optane™ Memory Ready
Support Raid 0, 1, 5, 10
6 x SATA 6Gb/s port(s)
|
LAN
|
Intel® I219-V 1Gb Ethernet
ASUS LANGuard
|
Wireless Data Network
|
M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.
|

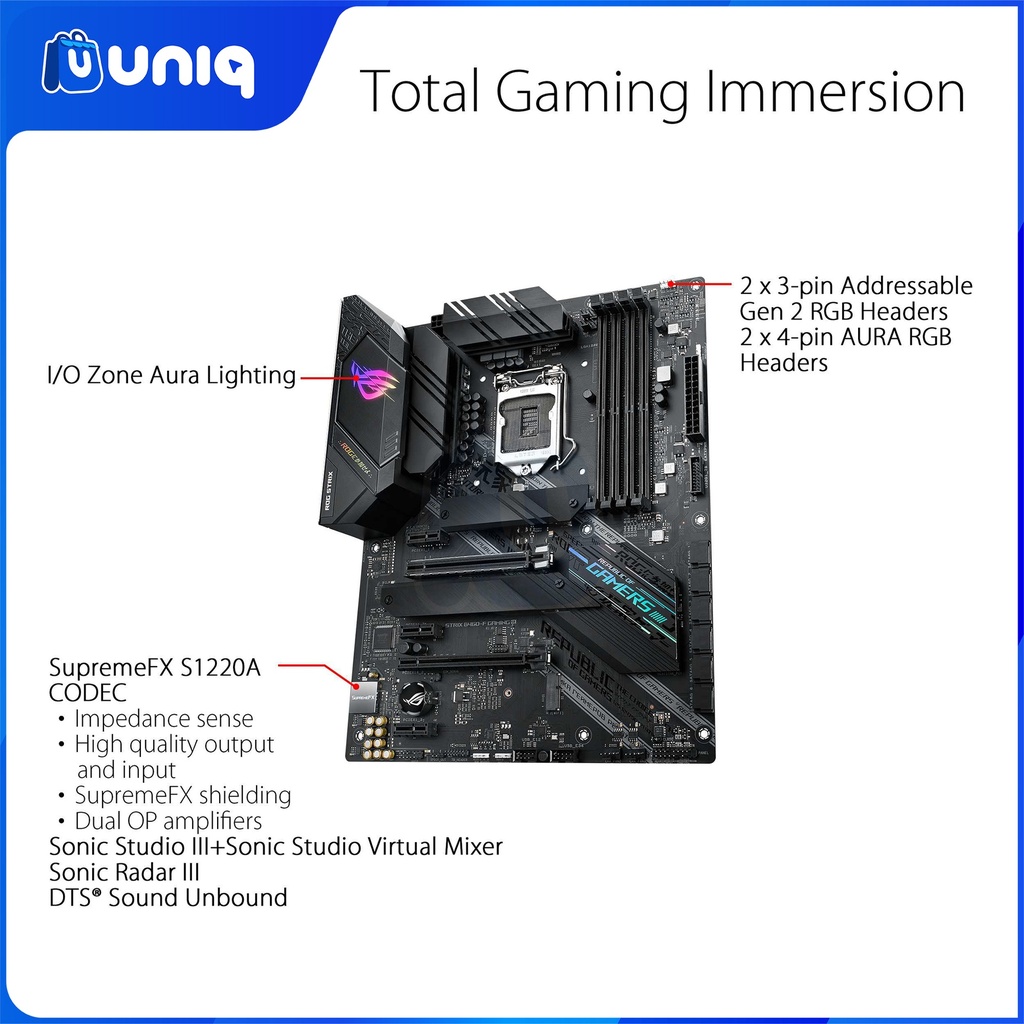

Audio
|
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
- Rear audio USB Type-C® port
- Premium Japanese audio capacitors
- Audio Cover
- SupremeFX Shielding™ Technology
- Supports up to 32-Bit/192kHz playback
- Dual OP Amplifiers
- High quality120dBSNR stereo playback outputand113dBSNR recording
input
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel
Jack-retasking
Audio Feature :
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported
for 8-Channel audio.
|
USB Ports
|
1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C®)
1 x USB 2.0 port(s)(1 x audio USB Type-C® )
Front USB Port ( Total 6 )
Rear USB Port ( Total 8 )
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
|
Software Features
|
[ROG Exclusive
Software]
- RAMCache III
- ROG CPU-Z

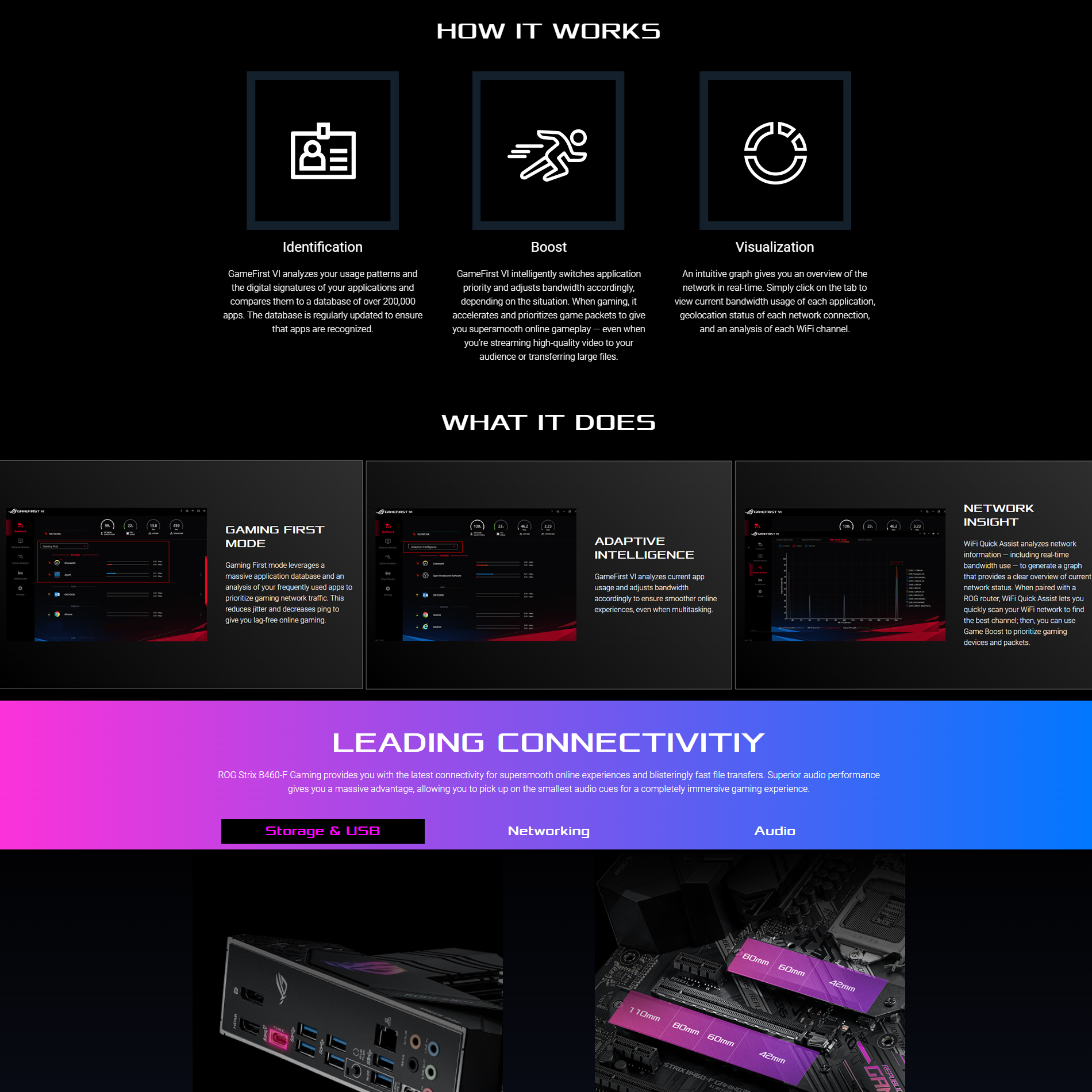

- GameFirst VI
- Sonic Studio
III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus
software
[ASUS Exclusive
Software]
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And
Power Saving Utility: TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
- EZ update
ASUS CPU-Z
DAEMON Tools
WinRAR
[UEFI BIOS]
ASUS EZ DIY
- ASUS CrashFree
BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS
EZ Mode
FlexKey
|
ASUS Special Features
|
Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow
green])
- ASUS Q-Slot

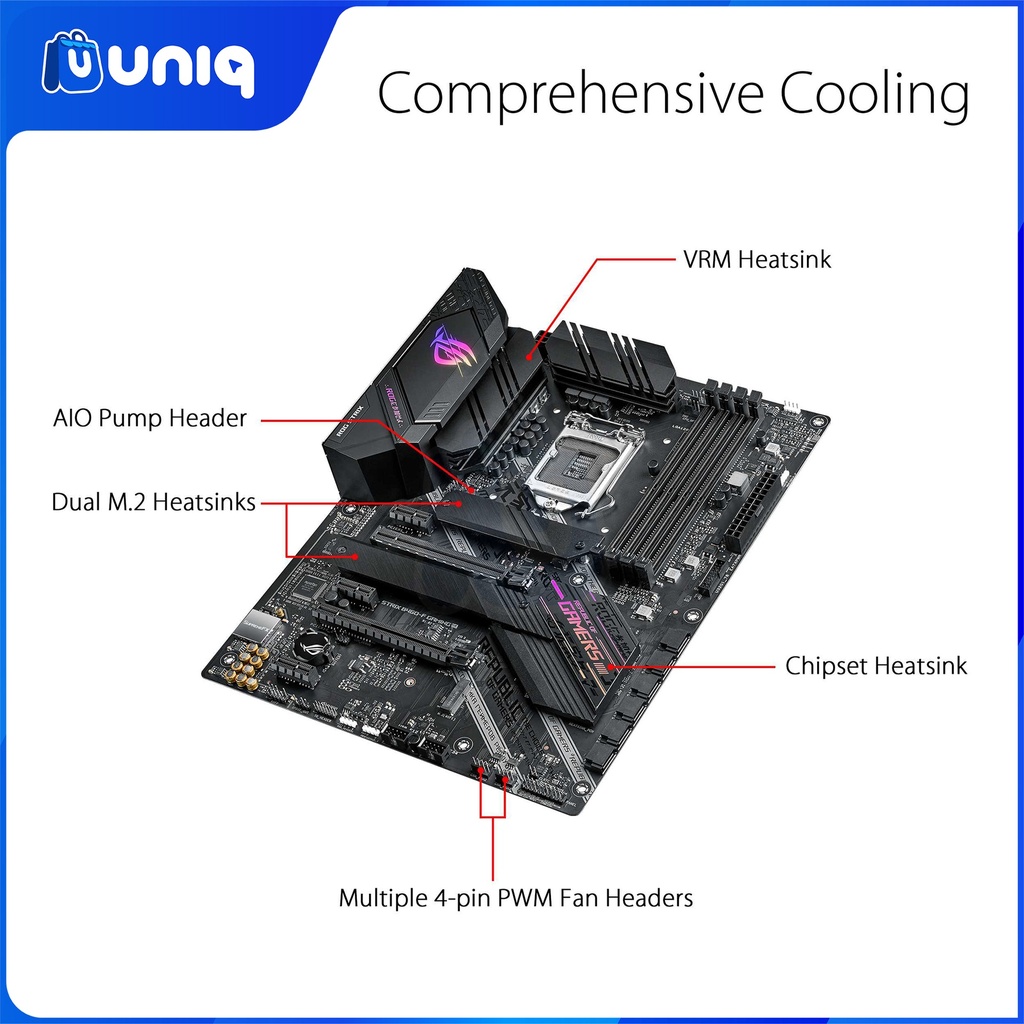

ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Procool
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
Rear audio USB Type-C® connector
|

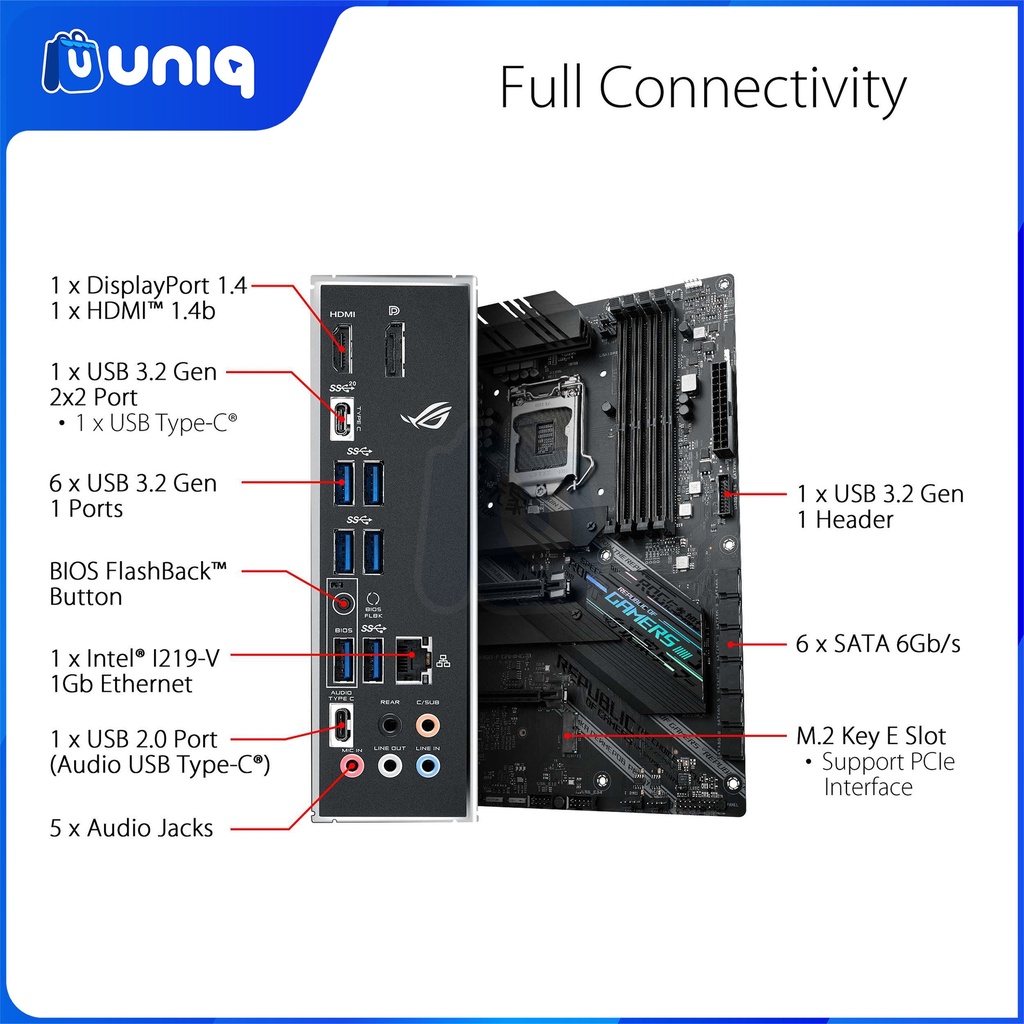

Back I/O Ports
|
1 x USB 2.0 (1 for audio USB Type-C®)
1 x Intel® I219-V 1Gb Ethernet
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
6 x USB 3.2 Gen 1
1 x USB BIOS FlashBack™ Button(s)
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)
|
Internal I/O Ports
|
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2
Gen 1 port(s)
2 x M.2 Socket 3
1 x Thunderbolt header(s)
1 x M.2 with E key for Wi-Fi module
2 x Addressable Gen 2 header(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x System panel connector
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
|
BIOS
|
128 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|
Operating System
|
Windows® 10 64-bit
|
Form Factor
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATX Form Factor
|
Note
|
*1 The PCIEX16_2 shares bandwidth with the
PCIEX1_1 and PCIEX1_3. When PCIEX16_2 runs x4 mode, PCIEX1_1 and PCIEX1_3
will be disabled. The PCIEX16_2 will run x2 mode when PCIEX1_1 or PCIEX1_3 is
occupied.
*2 The PCIEX1_1
and PCIEX1_3 share bandwidth with PCIEX16_2. The PCIEX1_2 shares bandwidth
with M.2 slot (Key E).
*3 When M.2_1 is
operating in SATA mode, SATA6G_1 will be disabled.
|
