Model
|

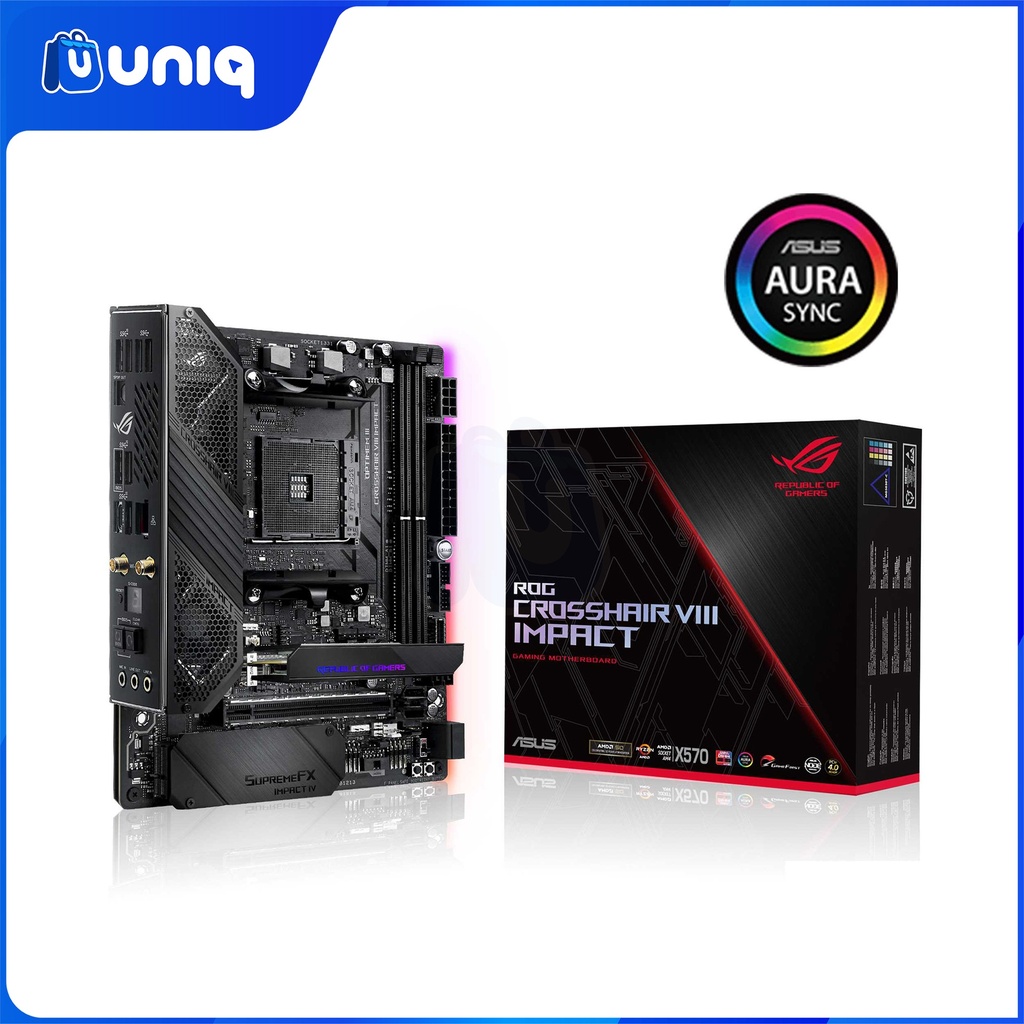

ROG Crosshair VIII Impact
|
CPU
|
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with
Radeon™ Vega Graphics Processors
* Refer to www.asus.com
for CPU support list
|

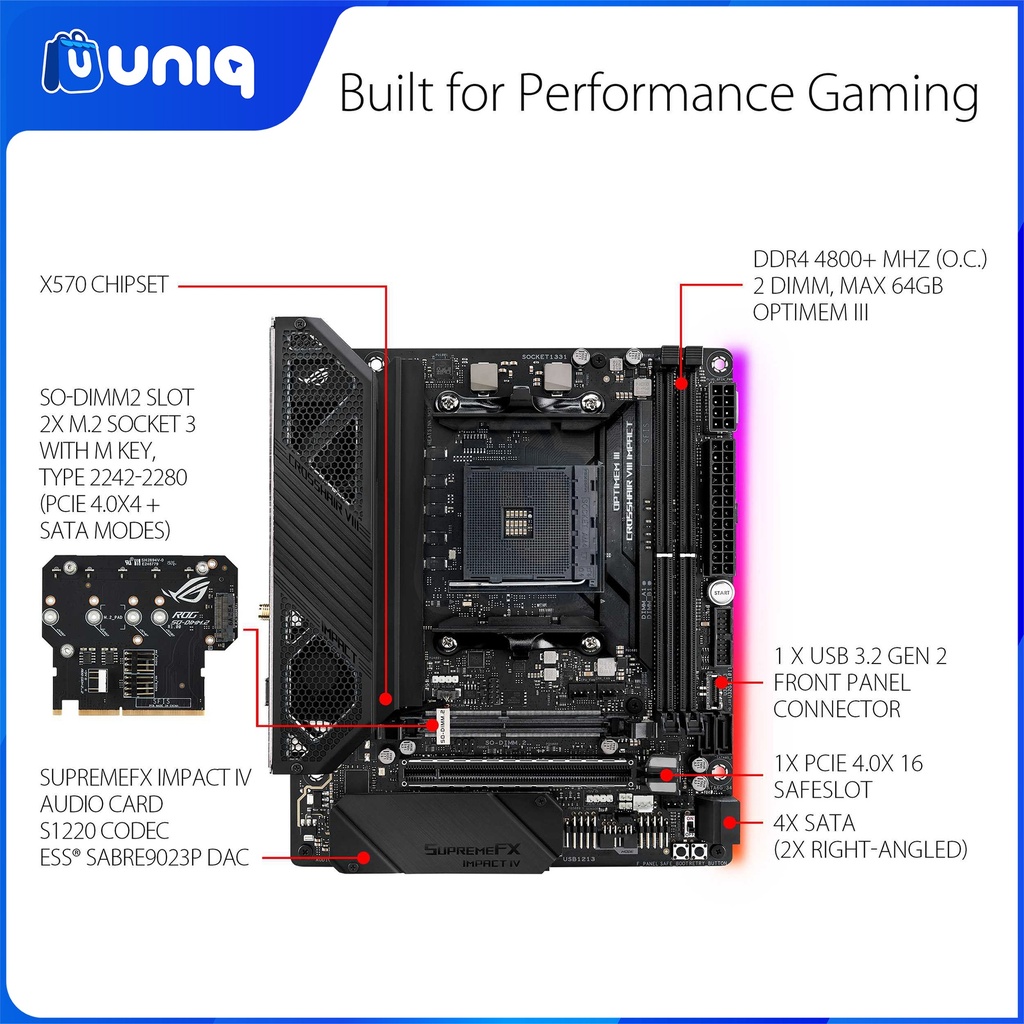

Chipset
|
AMD X570
|
Memory
|
2 x DIMM, Max. 64GB, DDR4
3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133
MHz Un-buffered Memory
2 x DIMM, Max. 64GB, DDR4
4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133
MHz Un-buffered Memory
2 x DIMM, Max. 64GB, DDR4
3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
* Double Capcity DRAM support depends on the DRAM models
3rd Gen AMD Ryzen™ Processors
2nd Gen AMD Ryzen™ Processors
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Dual Channel Memory Architecture
* Refer to www.asus.com
for the Memory QVL (Qualified Vendors Lists).
|
Expansion Slots
|
1 x PCIe 4.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x8 mode)
|
Storage
|
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices
support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and
SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
3rd Gen AMD Ryzen™ Processors :
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega
Graphics Processors :
AMD X570 chipset :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and
SATA modes) storage devices support
Support Raid 0, 1, 10
|
LAN
|
ROG GameFirst Technology
Intel® I211-AT
ASUS LAN Guard
|
Wireless Data Network
|
Intel® Wi-Fi 6 AX200
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO
supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160
|
Bluetooth
|
Bluetooth® 5.0
|
Audio
|
ROG SupremeFX8-Channel High Definition Audio CODEC
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS® Sound Unbound
- High quality120dBSNR stereo playback outputand113dBSNR recording
input
- SupremeFX Shielding Technology
- Sonic Radar III
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel
Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported
for 8-Channel audio.
|
USB Ports
|
2 x USB 3.2 Gen 2 port(s)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
4 x USB 3.2 Gen 2 port(s)
3rd Gen AMD RyzenTM Processors :
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega
Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
|

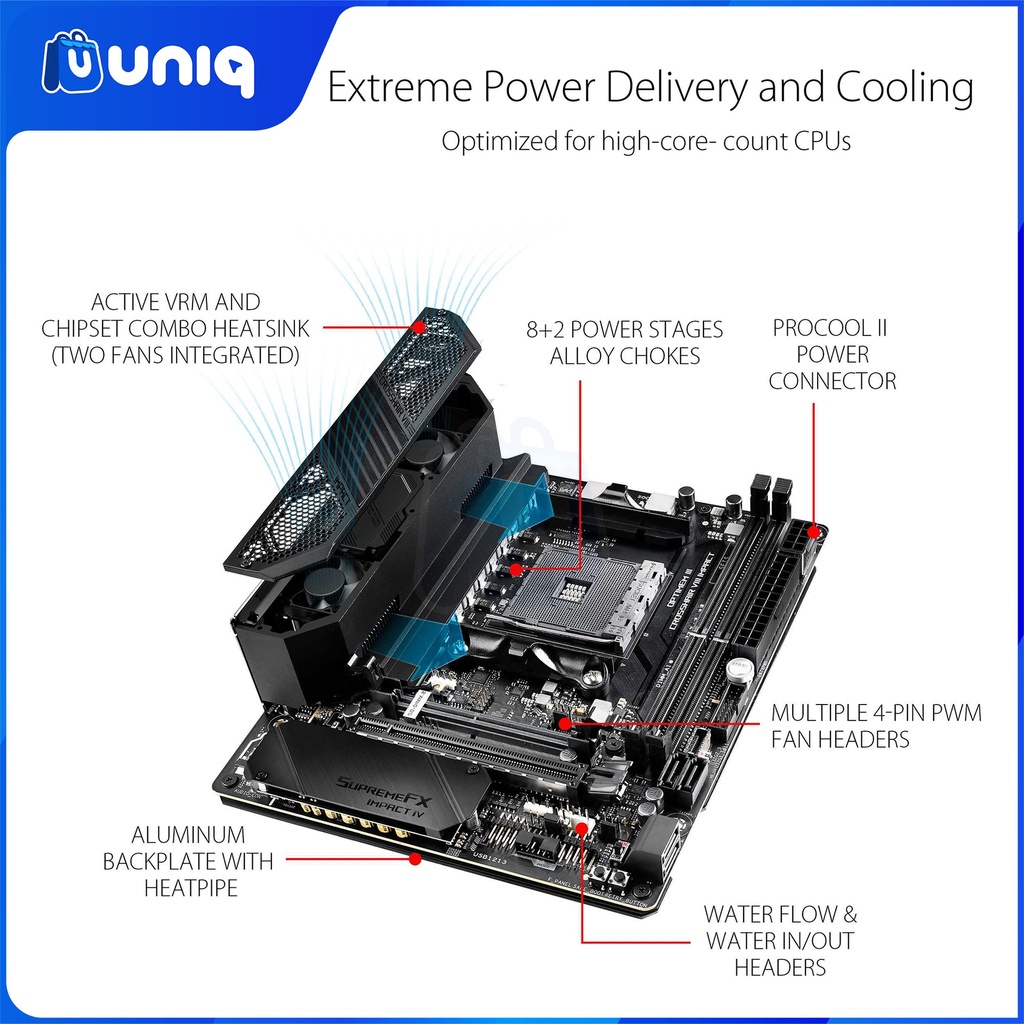

ROG Exclusive Features
|
- Infineon TDA21472 Power Stage
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :

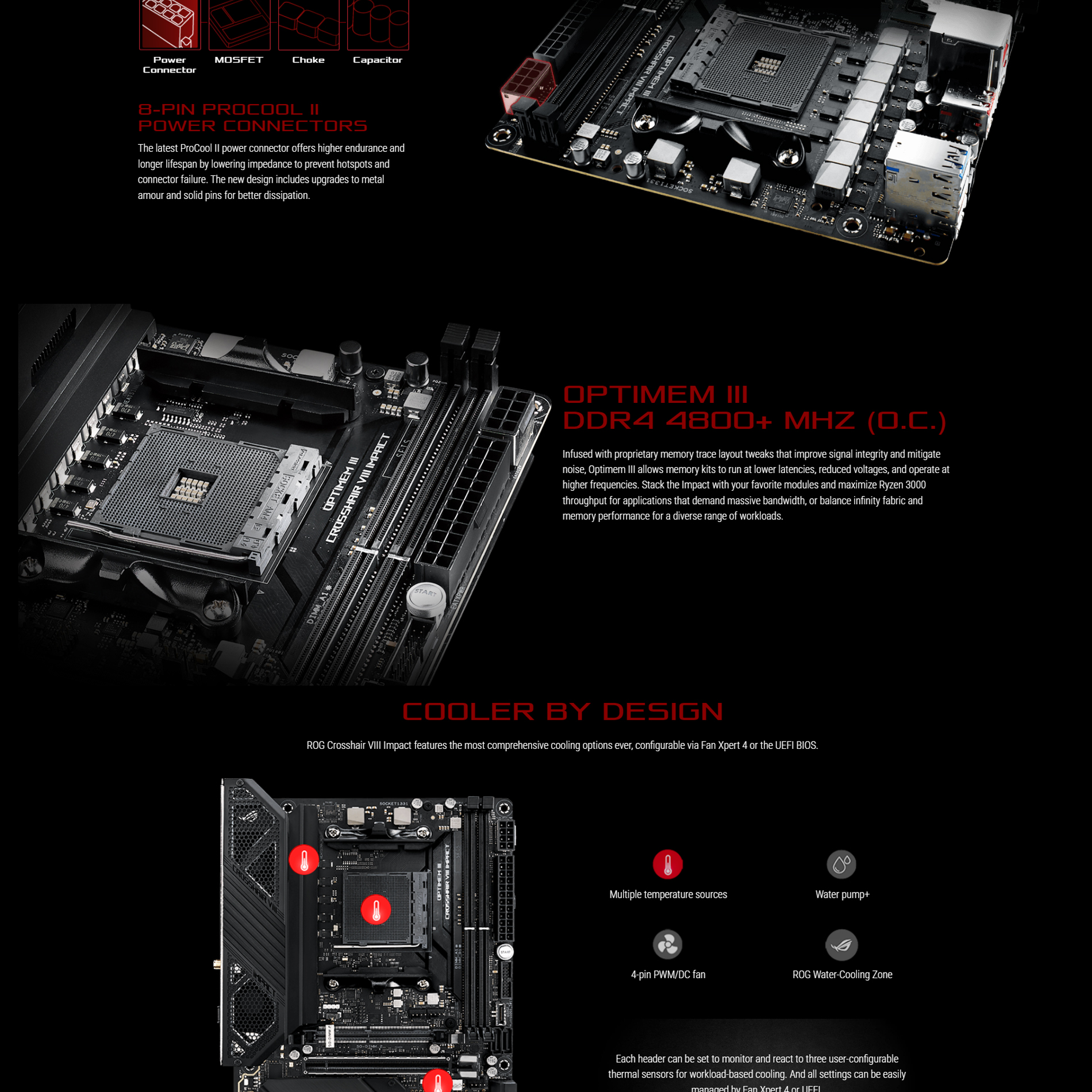

- OptiMem III
- Safe Boot button
- Slow Mode
- LN2 Mode
Extreme Tweaker
ROG Patented Pre-mounted I/O Shield
- RAMDisk
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
|
Special Features
|
- USB BIOS FlashBack™
ASUS Dual Intelligent Processors 5-Way Optimization by Dual
Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM,
Fan Expert 4, and Turbo App
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- ASUS C.P.R.(CPU Parameter Recall)
- Clear CMOS Button
- Reset Button
- Start Button
- ReTry button
- ASUS Q-Code
- ASUS NODE: hardware control interface
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
AURA :
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
|

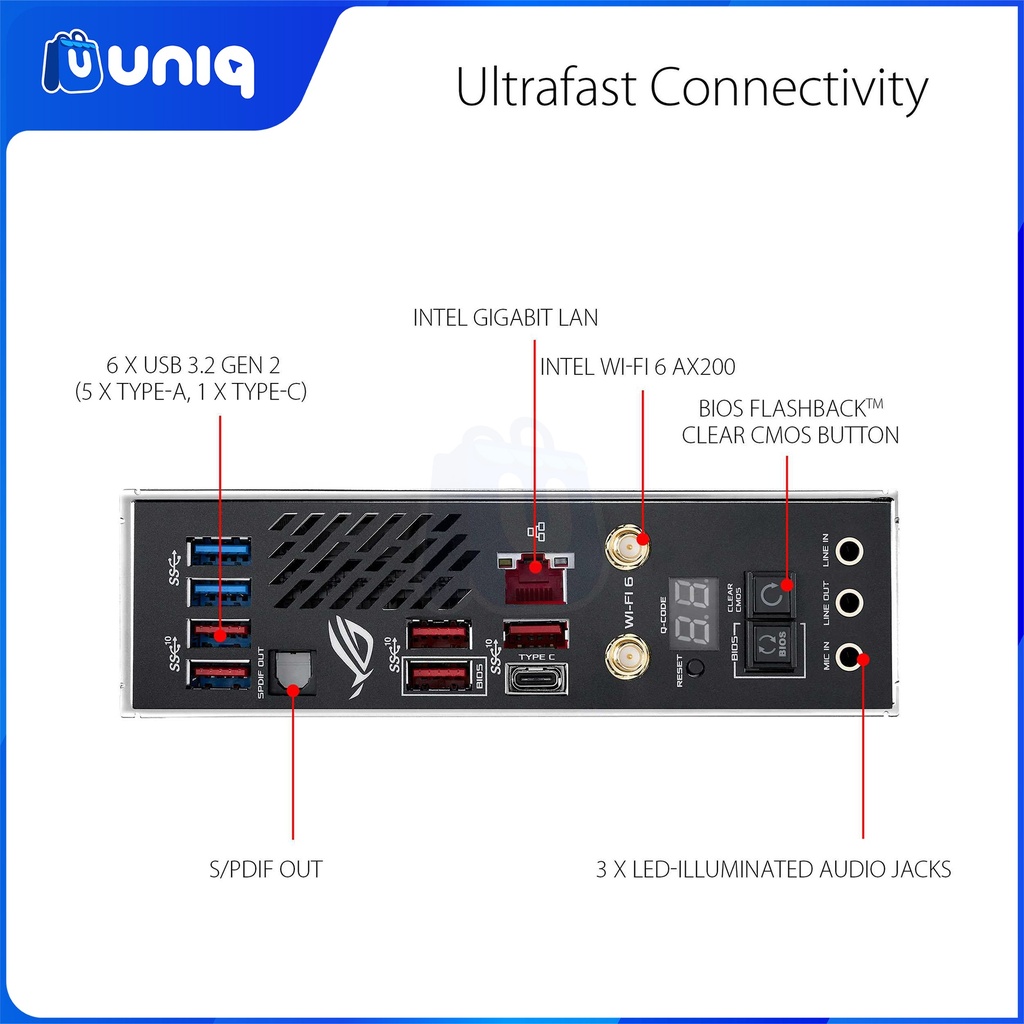

Back I/O Ports
|
2 x USB 3.2 Gen 1 (up to 5Gbps) ports
6 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
1 x USB BIOS FlashBack™ Button(s)
1 x Q-Code LED
3 x LED-illuminated audio jacks
1 x Clear CMOS button(s)
1 x ASUS Wi-Fi Module
Anti-surge LAN (RJ45) port
1 x Optical S/PDIF out
|
Internal I/O Ports
|
2 x Radiator Fan Headers
2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices
support

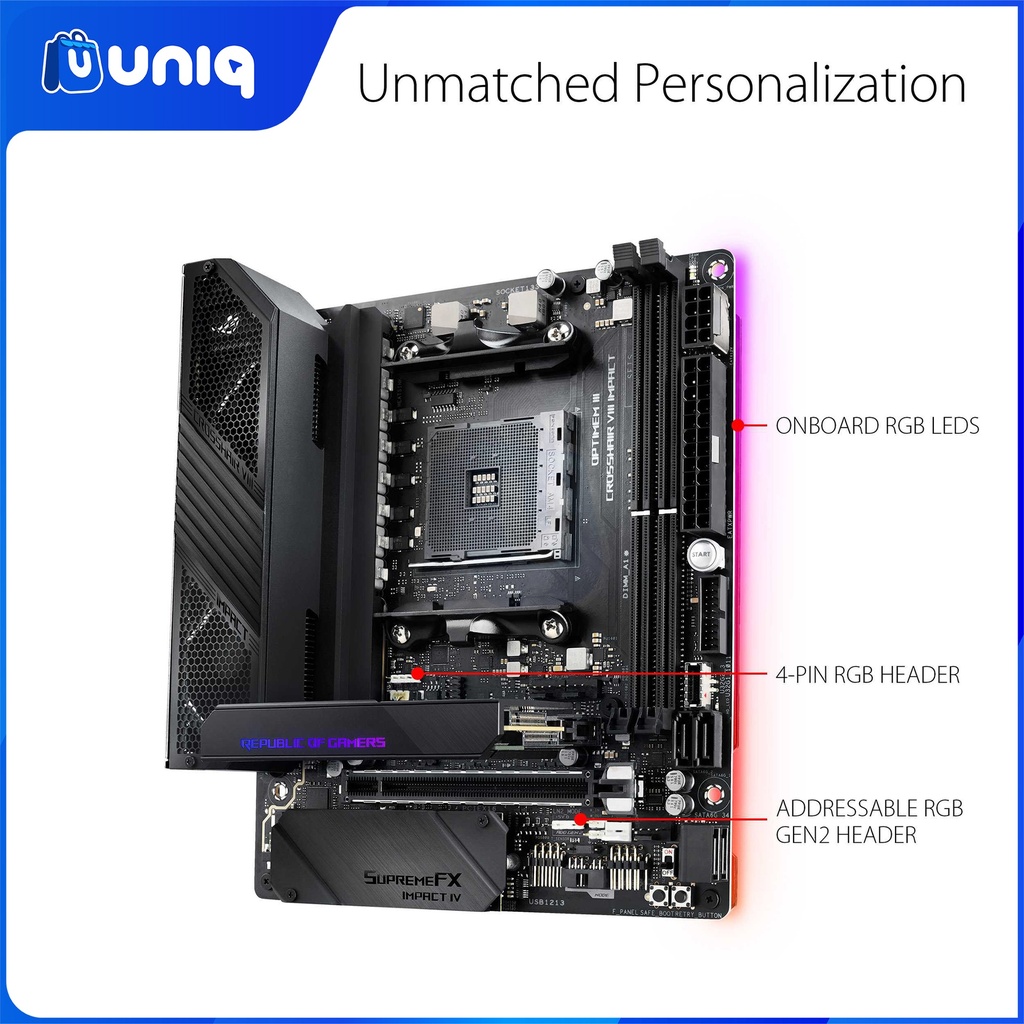

1 x Aura RGB Strip Headers
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Chassis Fan connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
2 x Addressable Gen 2 header(s)
1 x W_PUMP+ connector
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x System panel connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Node Connector(s)
1 x T_Sensor Connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB
ports
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0,
SM BIOS 3.2, ACPI 6.2
|
Manageability
|
WOL, PXE
|
Operating System
|
Windows® 10 64-bit
|

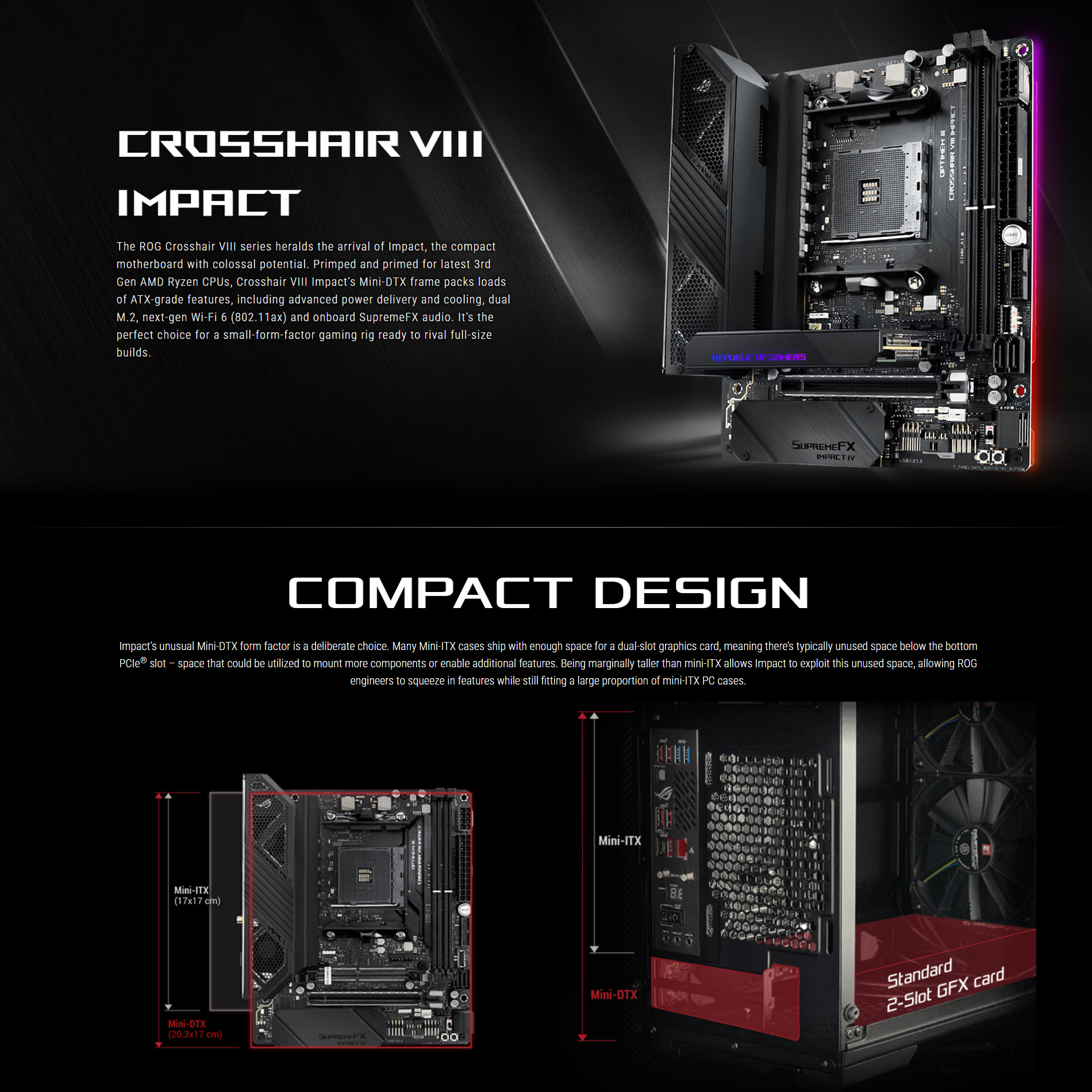

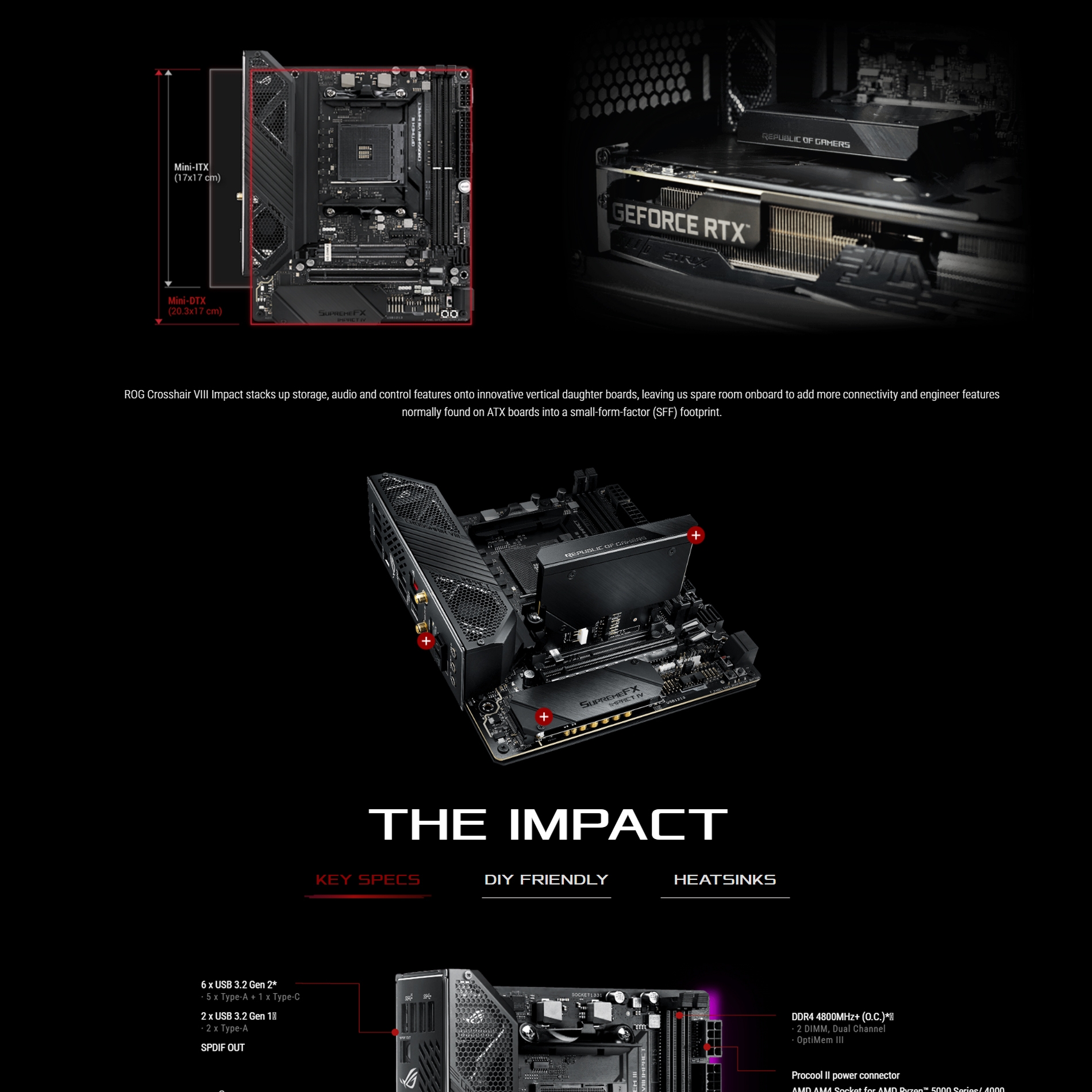

Form Factor
|
Mini-DTX Form Factor
8 inch x 6.7 inch ( 20.3 cm x 17 cm )
|
