CPU
|
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™
Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
Chipset
|
Z690
|
Memory
|
4
x DIMM, Max. 192GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/
5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel
Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported
memory types, data rate(Speed), and number of DRAM module vary depending on
the CPU and memory configuration, for more information refer to www.asus.com
for memory support list.
|
Graphics
|
1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between CPU types. Please refer to
www.intel.com for any updates.
** Support 8K@60Hz as specified in DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI 2.1.
|

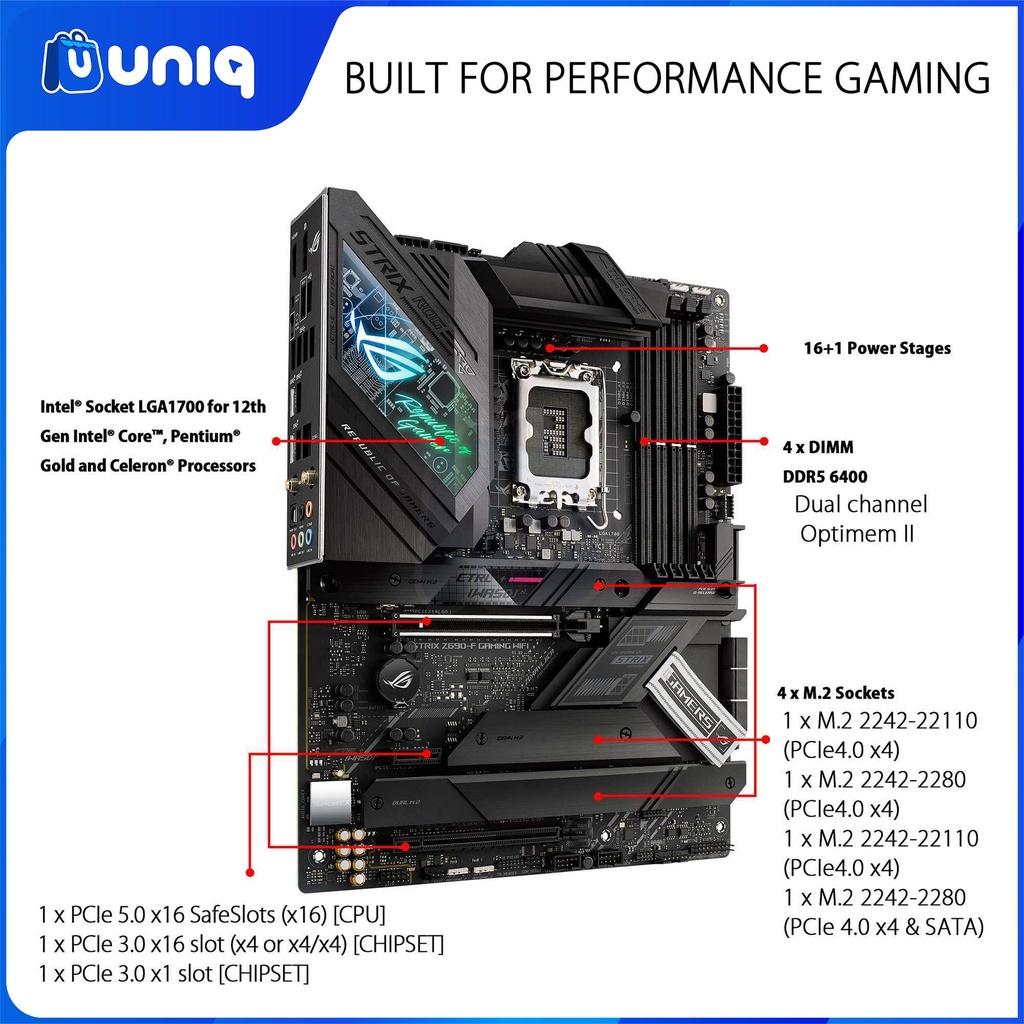

Expansion Slots
|
Intel® 14th & 13th & 12th Gen Processors*
1 x PCIe 5.0 x16
slot
- Intel® 13th & 12th support PCIe 5.0 x16 mode
Intel® Z690 Chipset
1 x PCIe 3.0 x16
slot (supports x4 mode or x4/x4 mode)
1 x PCIe 3.0 x1
slot
* Please check
PCIe bifurcation table in support site.
|
Storage
|
Supports 4 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® 14th & 13th & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4
mode)
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4
mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 &
SATA modes)
6 x SATA 6Gb/s ports***
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID
0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
*** RAID configuration is not supported on the SATA6G_E1-2 ports.
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet
|
Wireless & Bluetooth
|
Intel® Wi-Fi 6E
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
* WiFi 6E 6GHz regulatory may vary between countries, and function
will be ready in Windows 11 or later.
** Bluetooth v5.2 function will be ready in Windows 11 or later.
|

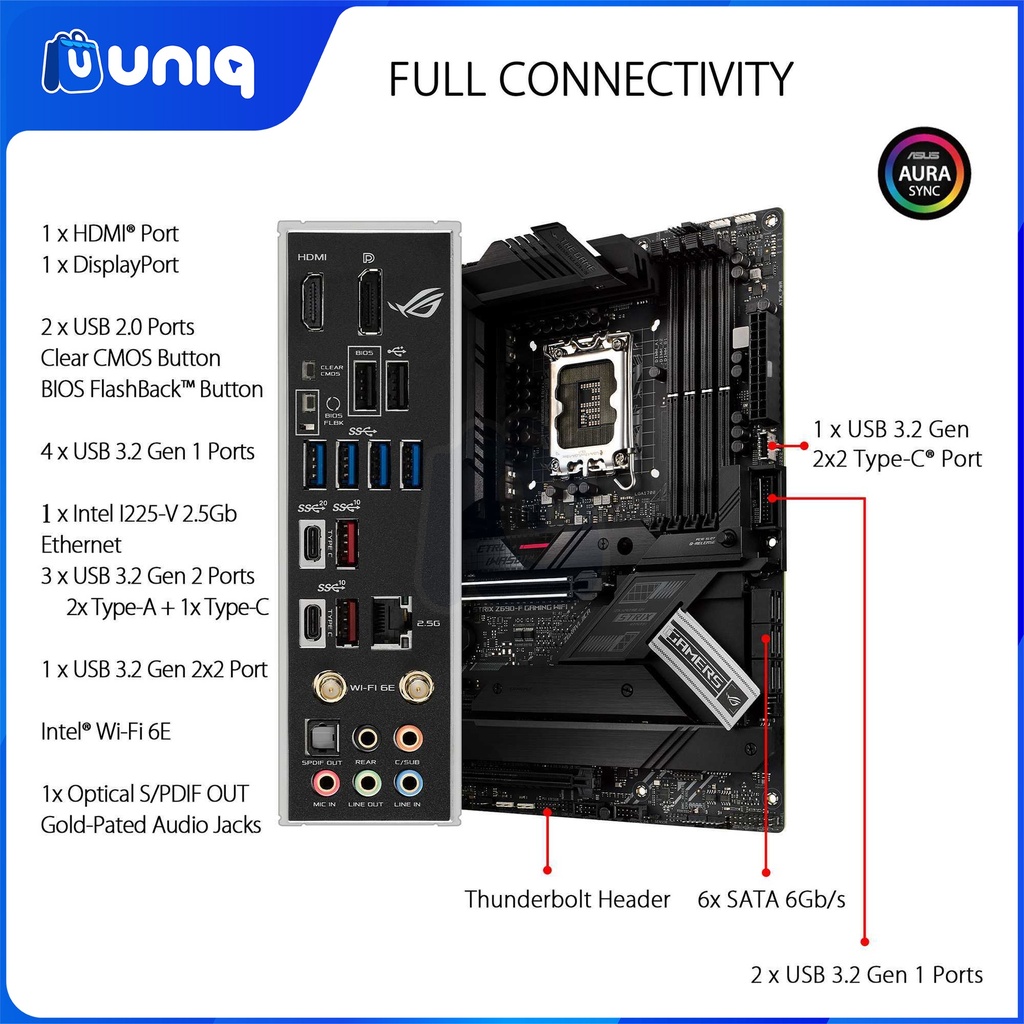

USB
|
Rear USB:Total 10 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
|

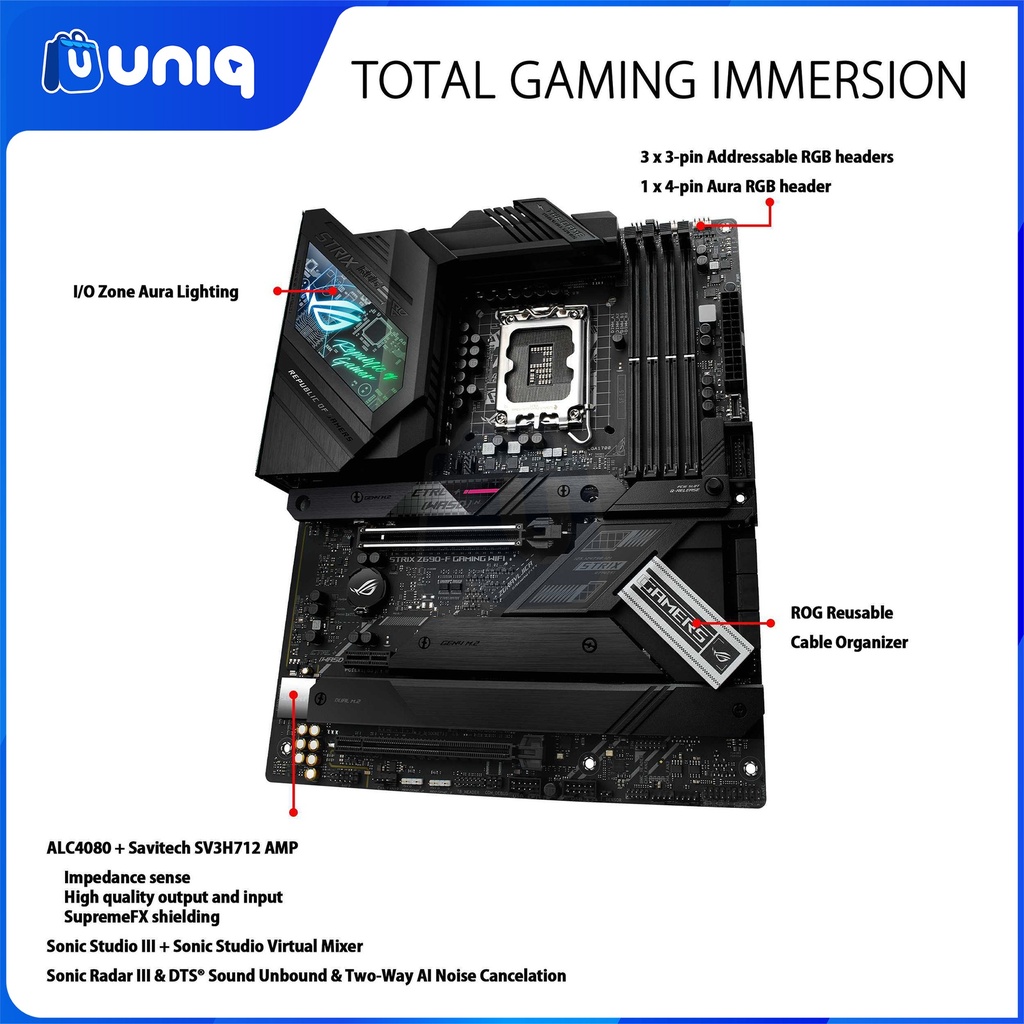

Audio
|
ROG
SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense
for front and rear headphone outputs
- Supports:
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality
120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to
32-Bit/384 kHz playback"
Audio Features
- SupremeFX
Shielding Technology
- ALC4080 +
Savitech SV3H712 AMP
- Gold-plated
audio jacks
- Rear optical
S/PDIF out port
- Premium audio
capacitors
- Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to
use spatial audio make sure to connect your audio output device to the audio
jack on the front panel of your chassis.
|

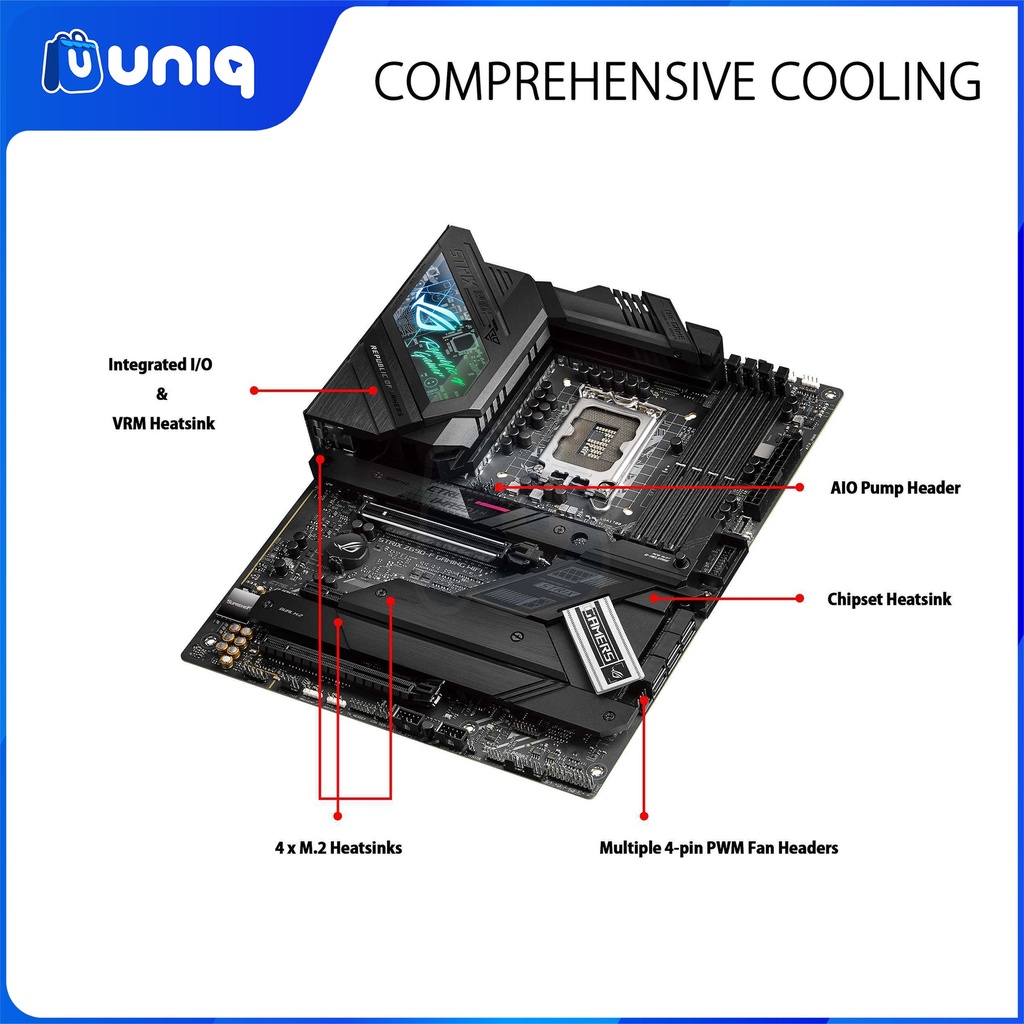

Internal I/O Connectors
|
Fan
and Cooling related
1 x 4-pin CPU Fan
header
1 x 4-pin CPU OPT
Fan header
1 x 4-pin AIO
Pump header
5 x 4-pin Chassis
Fan headers
Power related
1 x 24-pin Main
Power connector
2 x 8-pin +12V
Power connector
Storage related
4 x M.2 slots
(Key M)
6 x SATA 6Gb/s
ports
USB
1 x USB 3.2 Gen
2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1
header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0
headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable
Gen 2 headers
1 x AURA RGB
header
1 x BMC header
1 x CPU Over
Voltage jumper
1 x Front Panel
Audio header (AAFP)
1 x SPI TPM
header (14-1pin)
1 x 20-3 pin
System Panel header with Chassis intrude function
1 x Thermal
Sensor header
1 x Thunderbolt header
|
Special Features
|
Extreme
Engine Digi+
- 5K Black
Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot
Q-Release
- Q-DIMM
- Q-LED (CPU
[red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal
Solution
- M.2 heatsink
backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™
button
- BIOS FlashBack™
LED
- Clear CMOS
button
-CPU Socket lever
protector
- ProCool II
- Pre-mounted I/O
shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen
2 RGB headers
ASUS HYDRANODE
- 1 x Chassis fan
support* (CHA_FAN1P)
* Visit ASUS
Website for the latest compatibility list.
TPM header
|
Software Features
|
ROG
Exclusive Software
- ROG CPU-Z
- GameFirst VI
- Sonic Studio
III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus
software
ASUS Exclusive
Software
Armoury Crate
- AIDA64 Extreme
(60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI
Noise Cancelation
AI Suite 3
- Easy
Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR

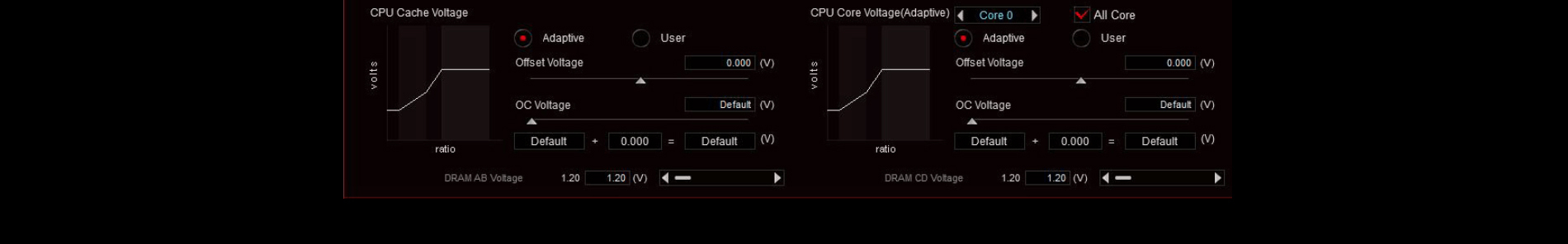

UEFI BIOS
AI Overclocking
Guide
ASUS EZ DIY
- ASUS CrashFree
BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS
EZ Mode
FlexKey

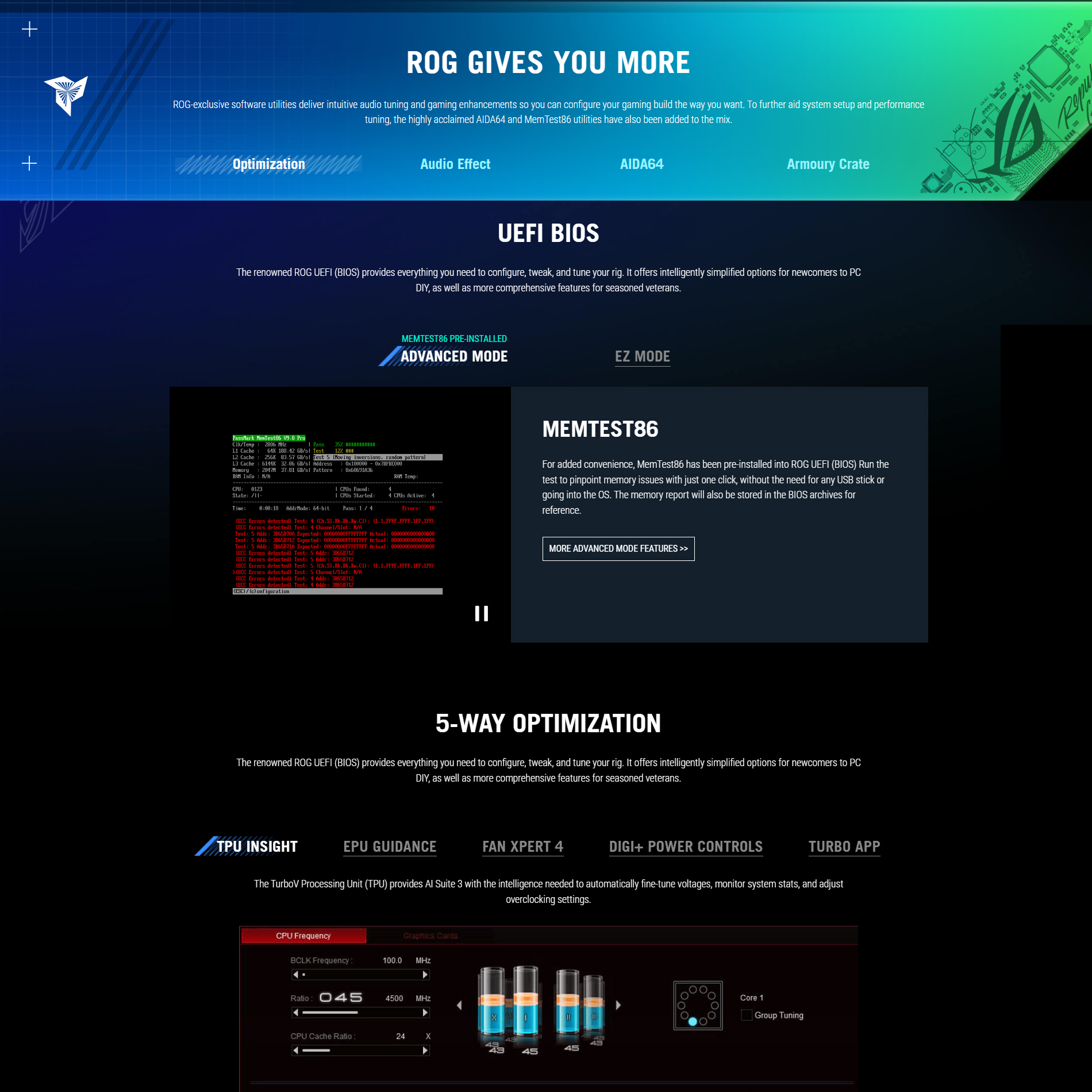

MemTest86
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|
Form Factor
|
ATX
30.5cm x 24.4cm
|
