Model Model
|
TUF GAMING Z690-PLUS WIFI D4
|
|
CPU
|
Intel® Socket LGA1700 for 13th Gen
Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors
Intel® Socket
LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
|
Chipset
|
Z690
|
|
Storage
|
Supports 4 x M.2 slots and 4 x
SATA 6Gb/s ports
Intel® 14th & 13th & 12th
Gen Processors
M.2_1 slot (Key M), type
2242/2260/2280/22110
- Intel® 14th & 13th & 12th
Gen processors support PCIe 4.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type
2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M.2_3 slot (Key M), type
2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type
2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology
supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology
supports Intel® Optane Memory H Series on PCH attached M.2 slots.
|
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet
TUF LANGuard
|
|
USB
|
Rear USB:Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB
Type-C®)
2 x USB 3.2 Gen 2 ports (2 x
Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A
+ 1 x USB Type-C®)
1 x USB 3.2 Gen 2 connector
(supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support
additional 4 USB 2.0 ports
|
|
Form
Factor
|
ATX
30.5cm x 24.4cm
|
|
Memory
|
4 x DIMM, Max. 128GB, DDR4
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory
Profile (XMP)
OptiMem II
*Actual Memory frequency support
depends on the CPU types and DRAM modules, for more information refer to
www.asus.com for the Memory QVL (Qualified Vendors Lists).
|
|
Graphics
|
1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary
between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as
specified in DisplayPort 1.4
***Supports 4K@60Hz as specified in
HDMI 2.1.
**** VGA resolution support depends
on processors' or graphic cards' resolution.
|
|
Expansion Slots
|
Intel® 14th & 13th & 12th
Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4
mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation
table in support site.
** Supports Intel® Optane Memory H Series on
PCH-attached PCIe slot
|
|

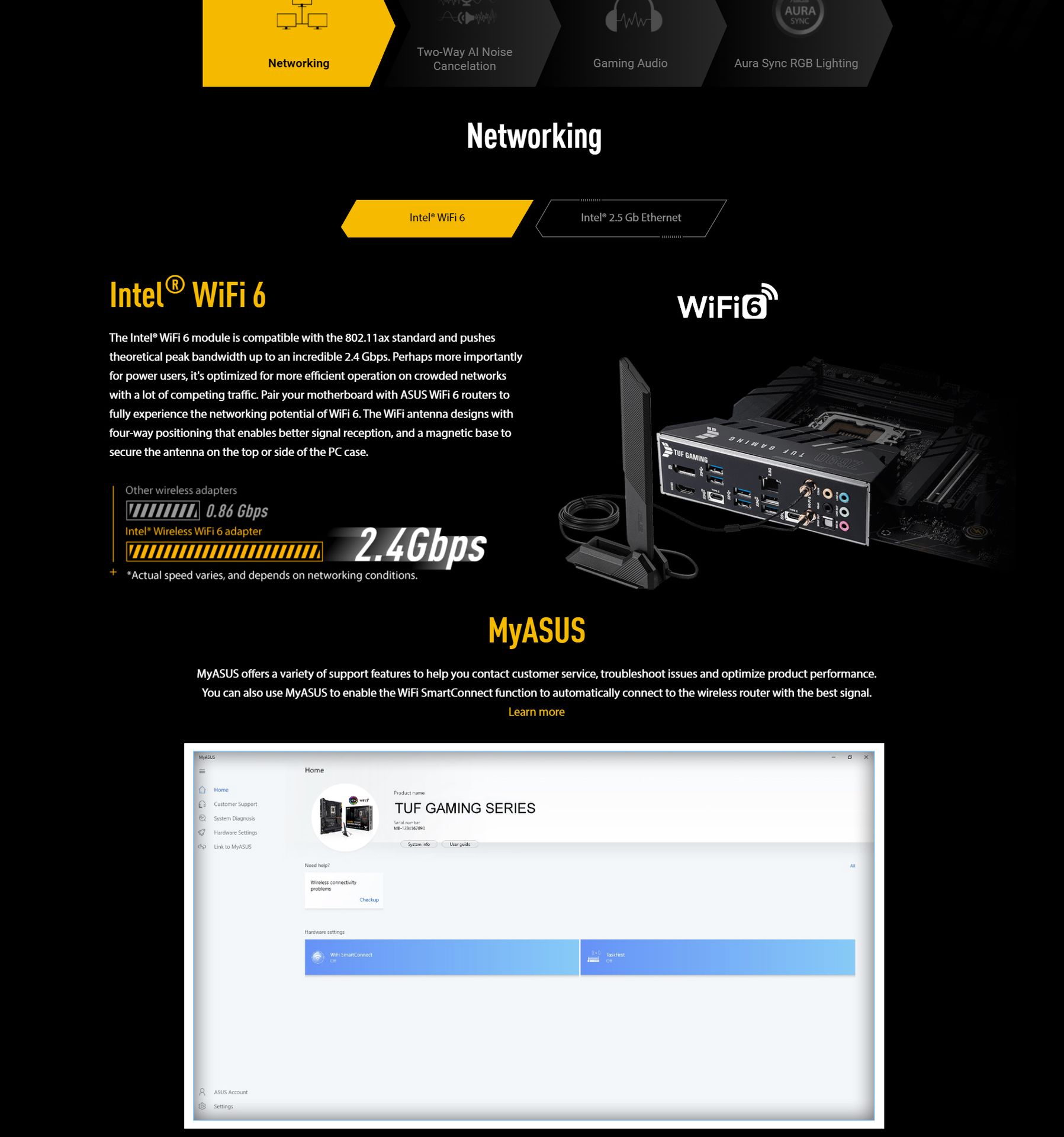

Wireless
& Bluetooth
|
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
|
|
Audio
|
Realtek 7.1 Surround Sound High
Definition Audio CODEC*
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz
playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
|
|

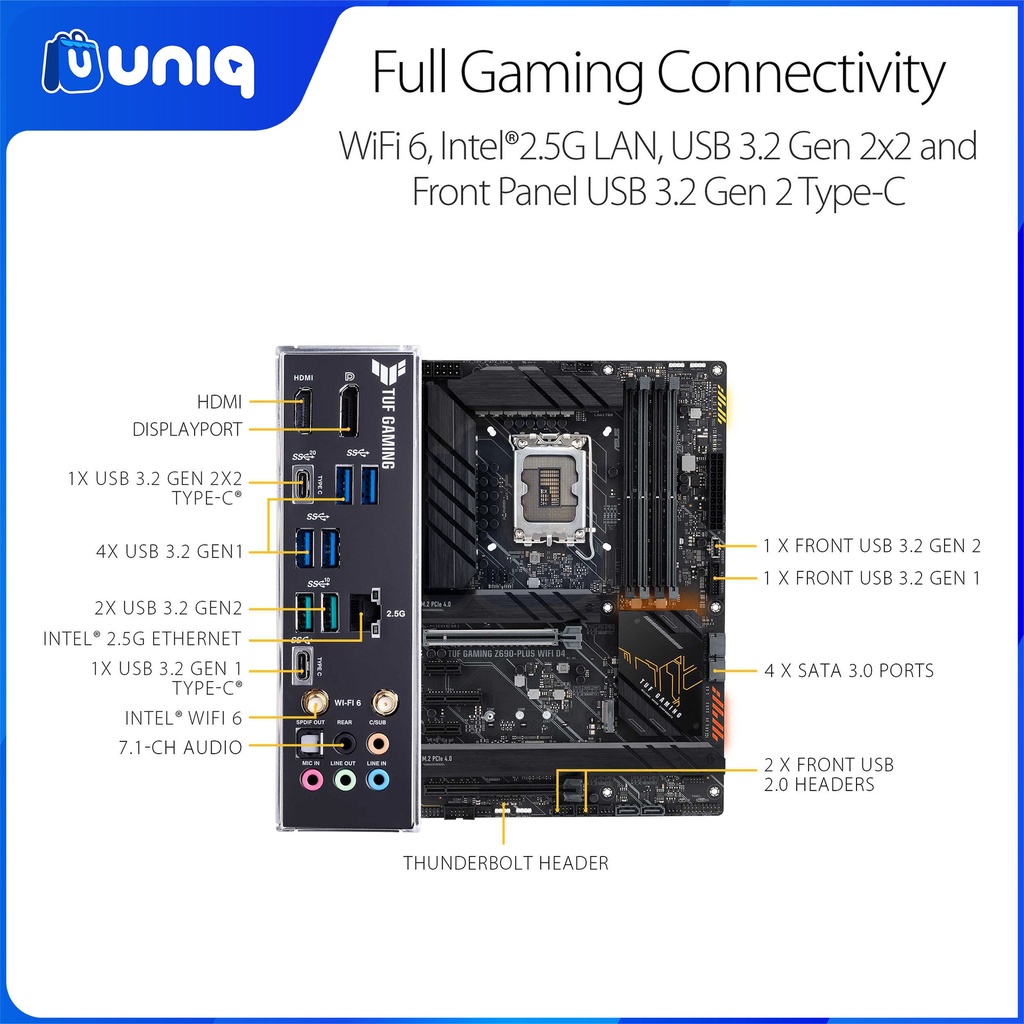

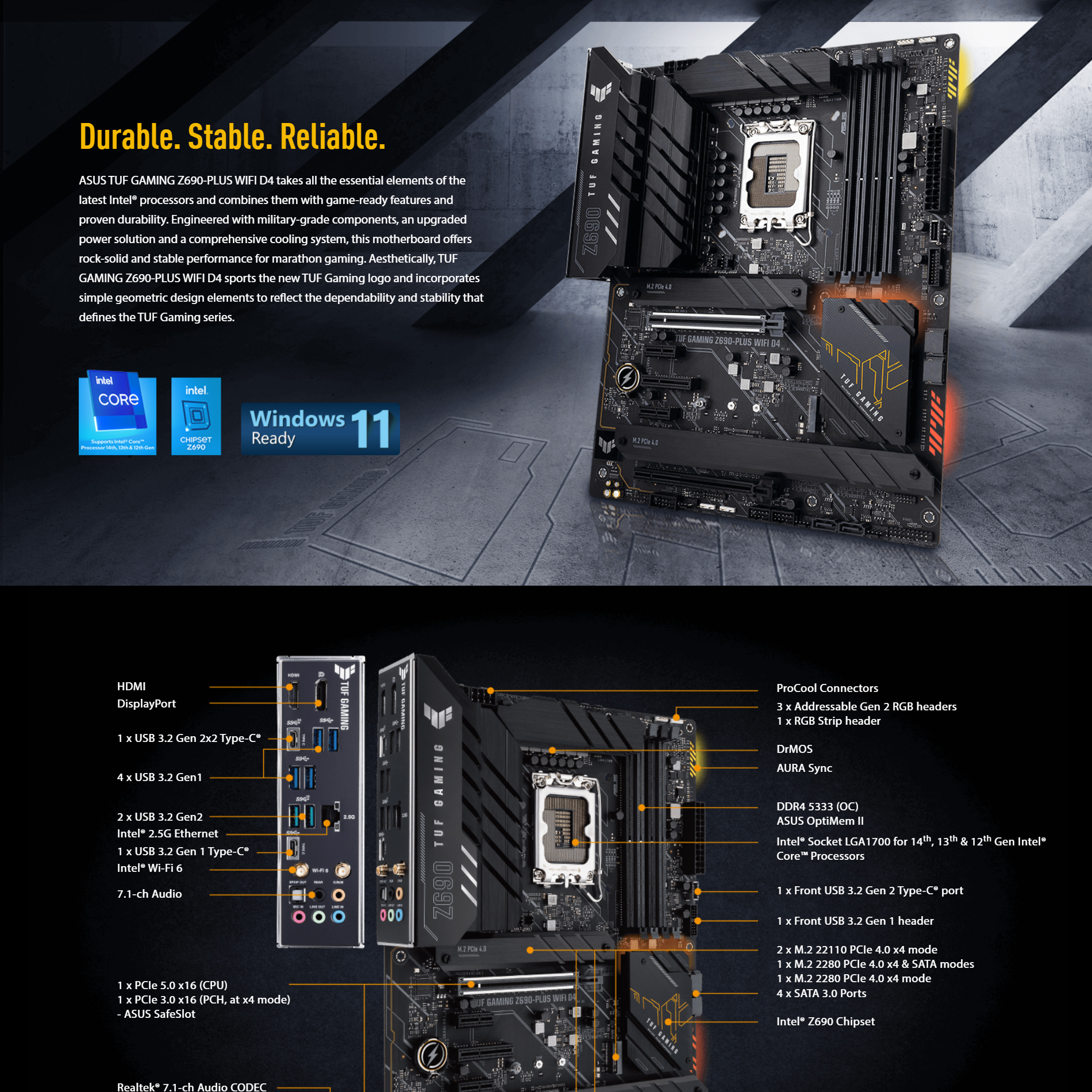

Back
Panel I/O Ports
|
1 x USB 3.2 Gen 2x2 port (1 x USB
Type-C®)
2 x USB 3.2 Gen 2 ports (2 x
Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A
+ 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
|
|
Internal
I/O Connectors
|
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector
(supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support
additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header
with Chassis intrude function
1 x Thunderbolt™ header
|
|
Special
Features
|

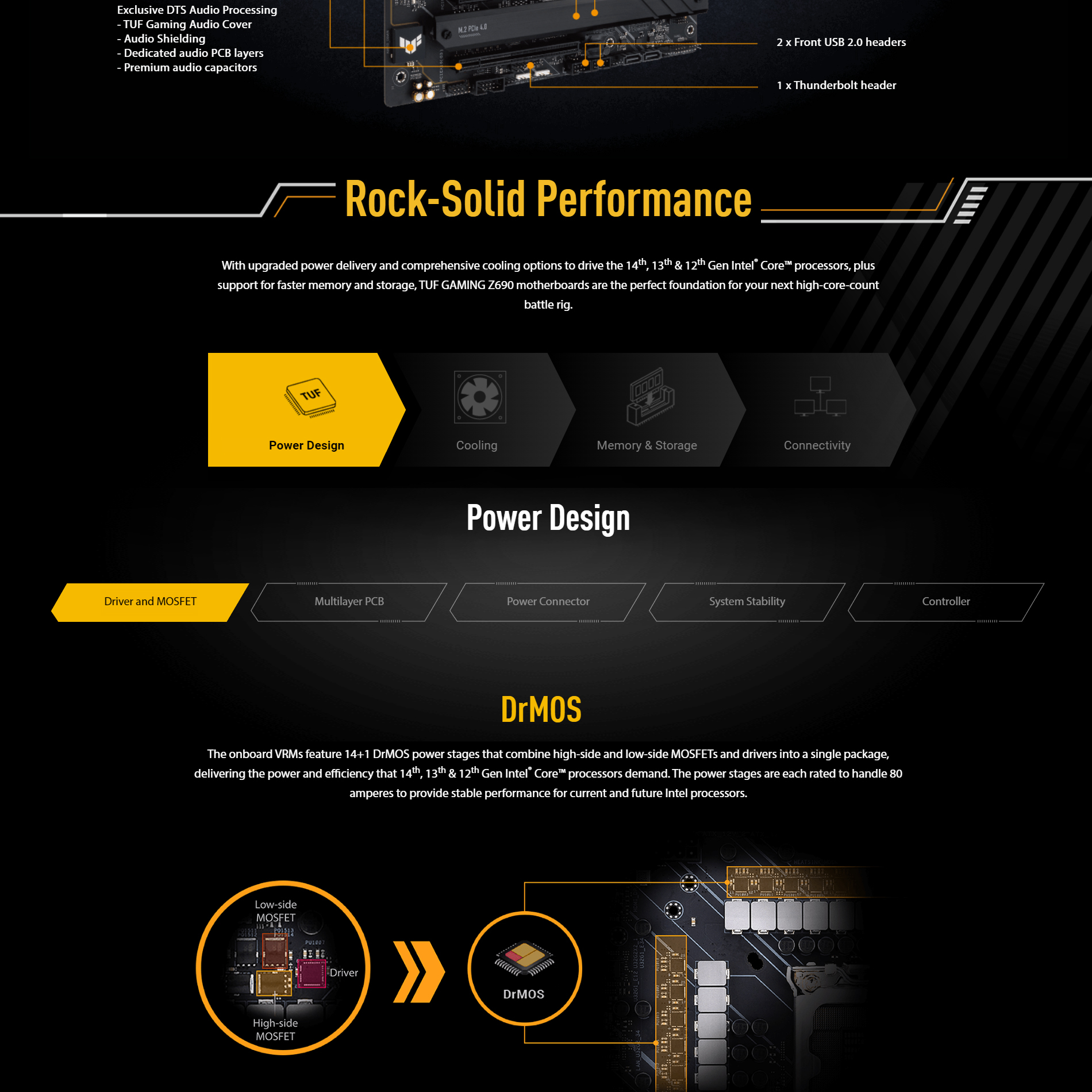

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design
with DrMOS)
- Enhanced DRAM Overcurrent
Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow],
VGA [white], Boot Device [yellow green])
- Q-Slot

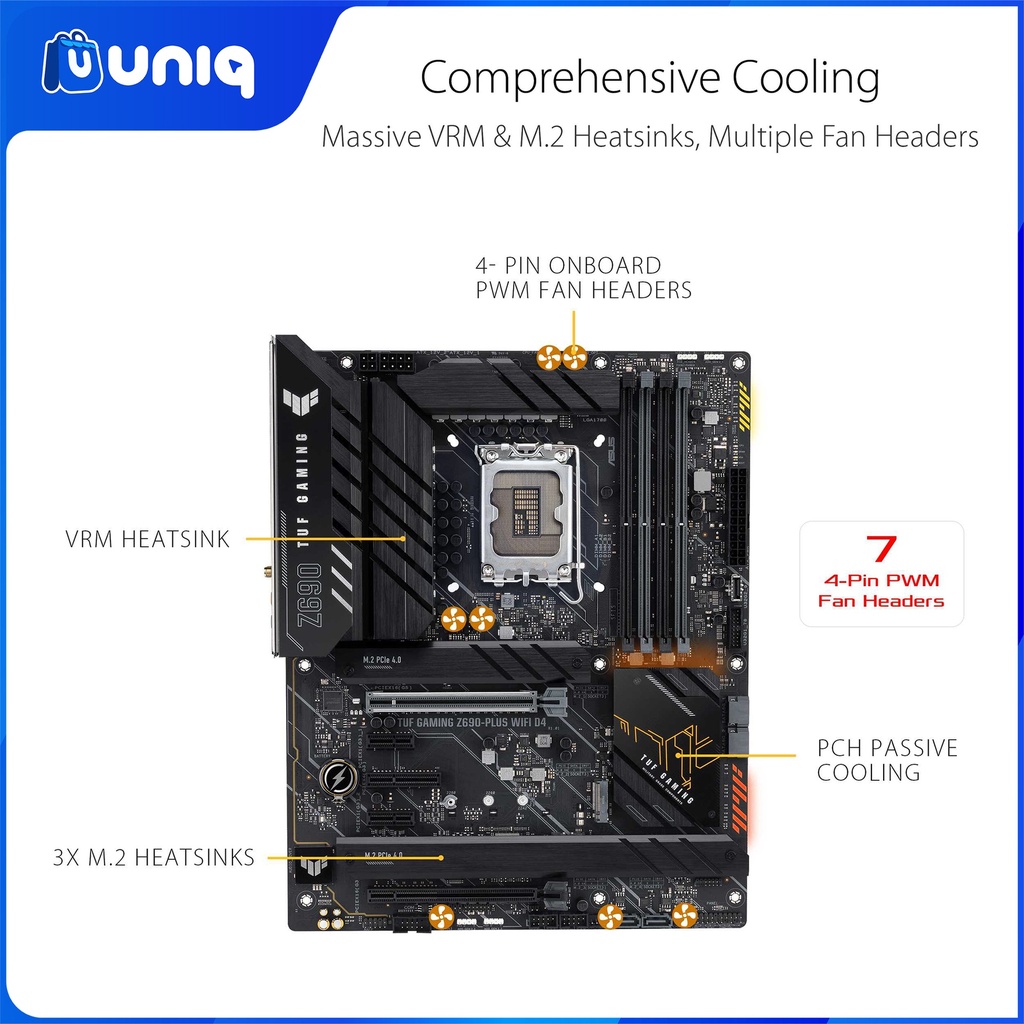

ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM

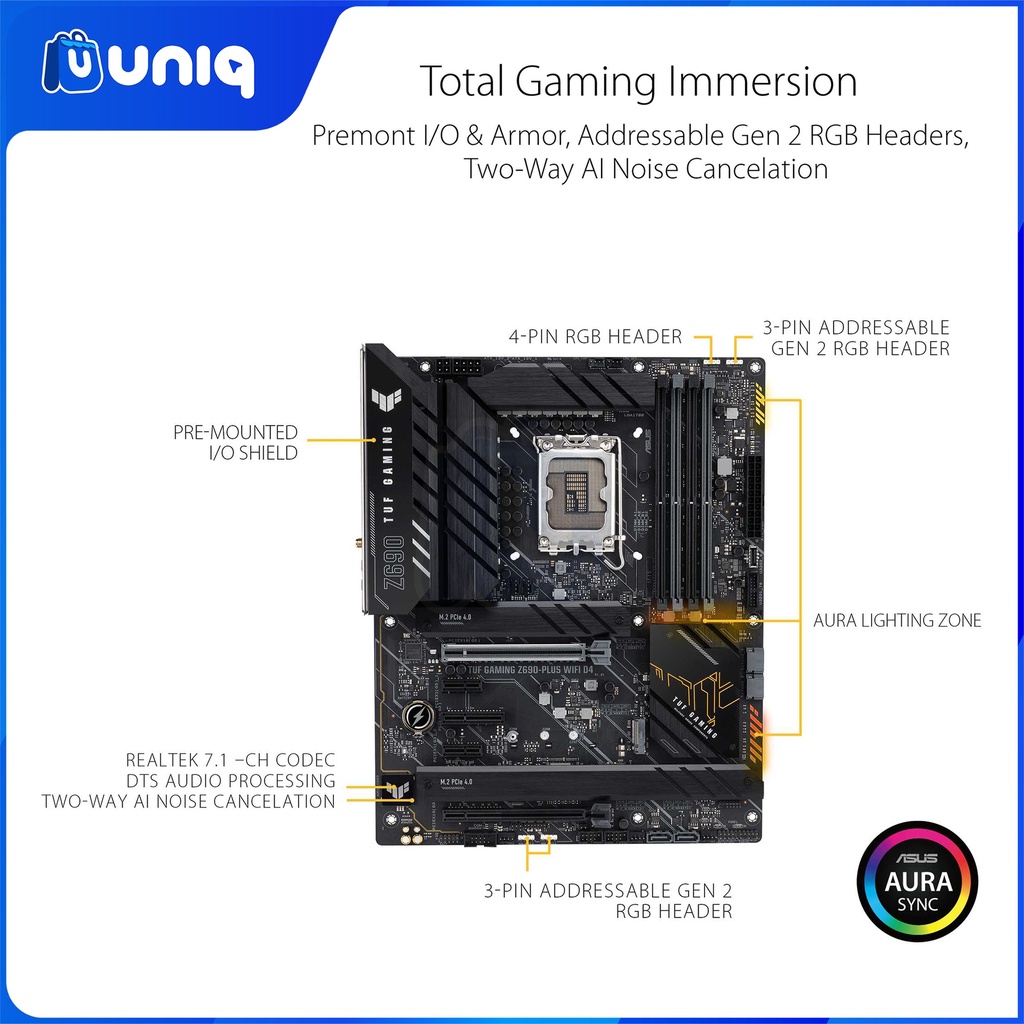

AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
|
|
Software
Features
|
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving
Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free
Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
|
|
BIOS
|
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability
|
WOL by PME, PXE
|
