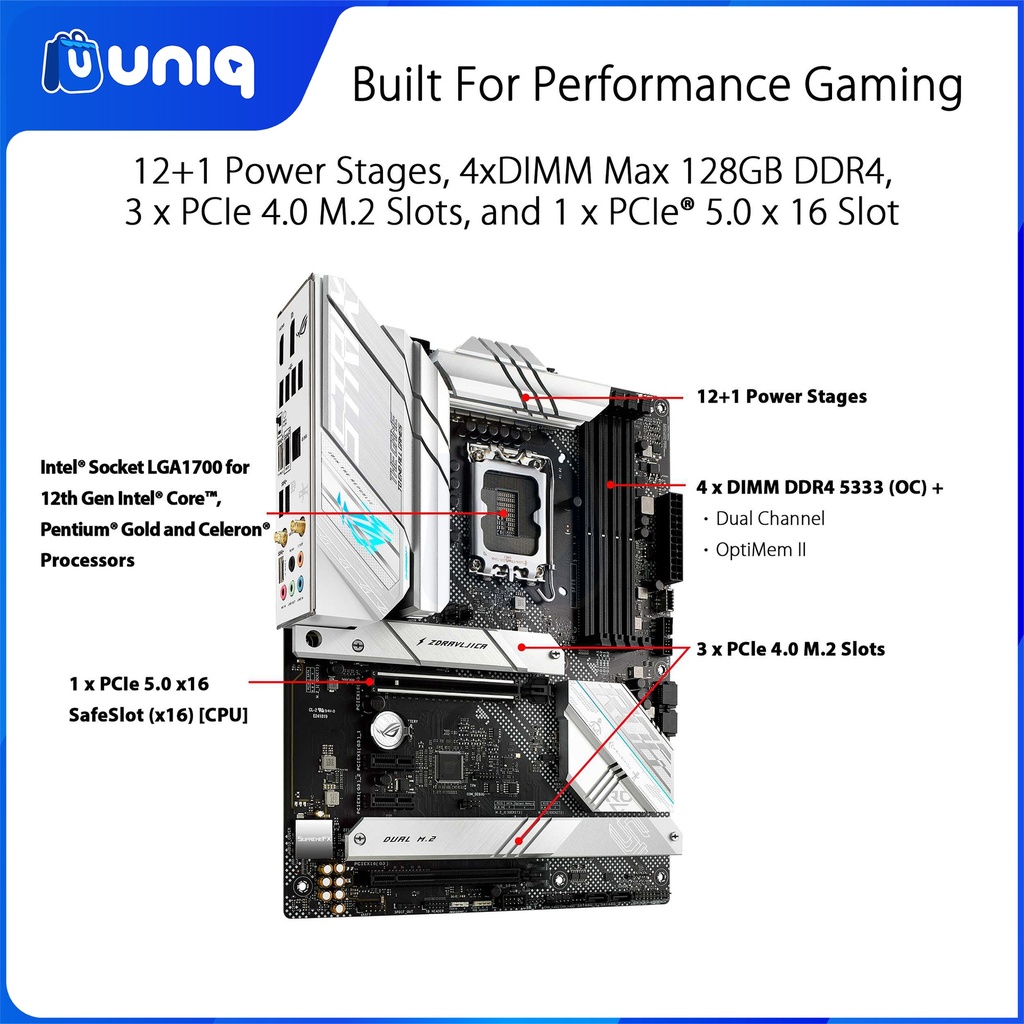

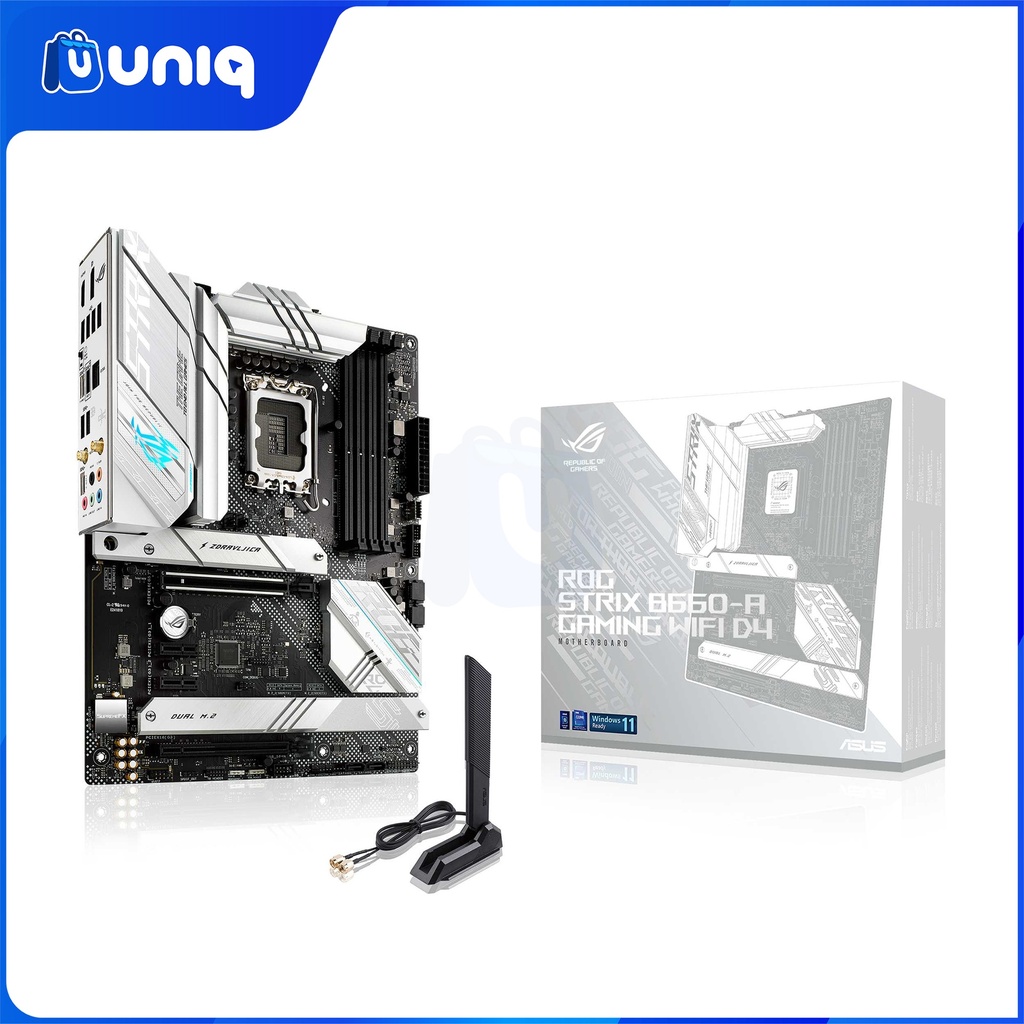

CPU
|
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™
12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
Chipset
|
Intel® B660 Chipset
|
Memory
|
4 x DIMM, Max. 128GB, DDR4 5333(OC)
/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
OptiMem II
*Actual Memory frequency support depends on the CPU types and DRAM
modules, for more information refer to www.asus.com for the Memory QVL
(Qualified Vendors Lists).
|
Graphics
|
1
x DisplayPort**
1 x HDMI® port***
*Graphics
specifications may vary between CPU types. Please refer to www.intel.com for
any updates.
** Support
4K@60Hz as specified in DisplayPort 1.4.
***Support
4K@60Hz as specified in HDMI 2.1.
**** VGA
resolution support depends on processors' or graphic cards' resolution.
|
Expansion Slots
|
Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe
5.0/4.0/3.0 x16 slot(s)*
Intel® B660 Chipset**
1 x PCIe 3.0 x16
slot (supports x4 mode)*
2 x PCIe 3.0 x1
slots
* Please check
PCIe bifurcation table in User Guide Chapter 1 // support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
|

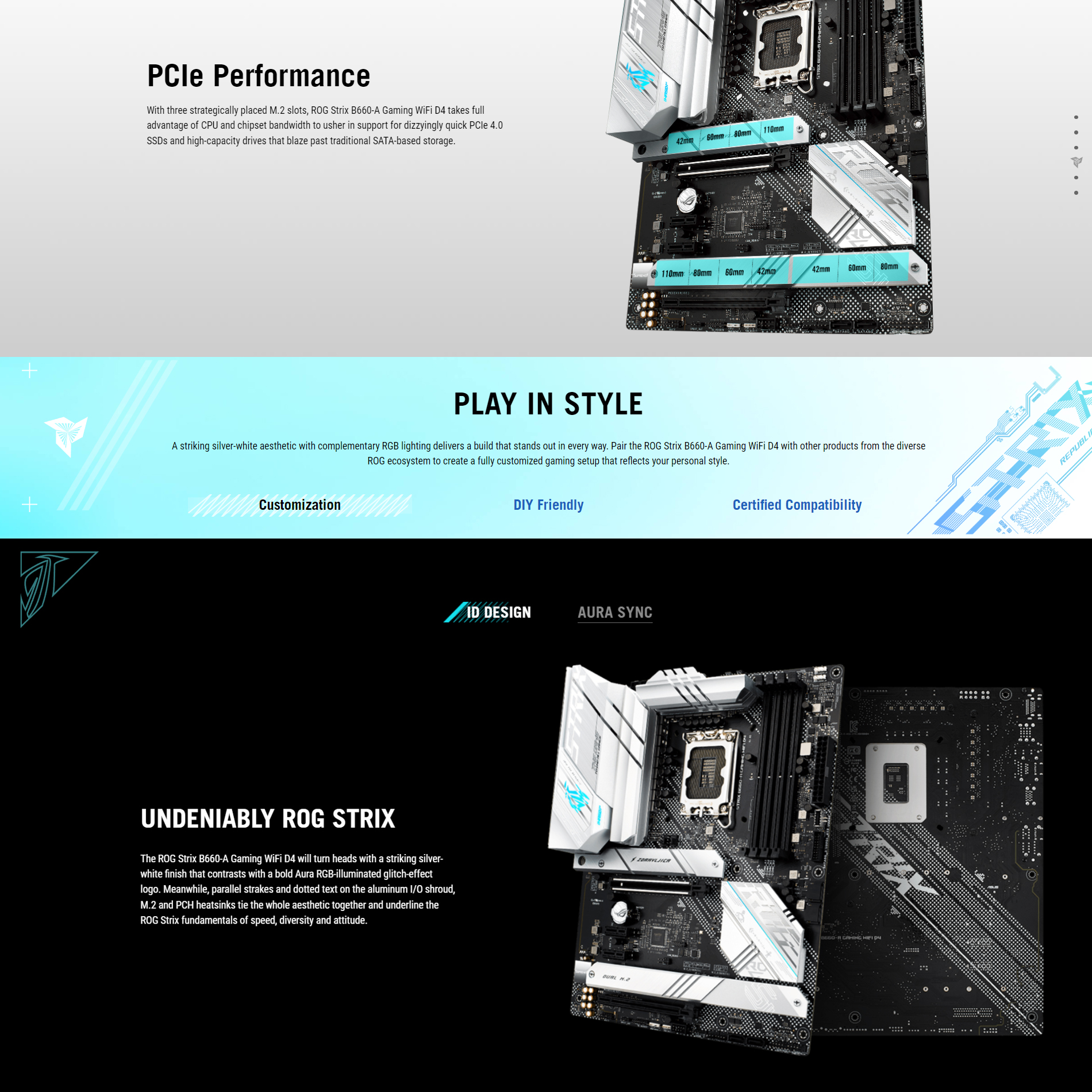

Storage
|
Total
supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key
M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset
M.2_2 slot (Key
M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
M.2_3 slot (Key
M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s
ports***
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
|
Ethernet
|
1
x Intel® 2.5Gb
Ethernet
ASUS LANGuard
|
Wireless & Bluetooth
|
Wi-Fi 6
2x2 Wi-Fi 6
(802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz
frequency band
Bluetooth v5.2
|
Audio
|
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
ALC4080
- Impedance sense
for front and rear headphone outputs
- Supports:
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality
120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to
32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding
Technology
- Savitech
SV3H712 AMP
- Premium audio
capacitors
- Audio cover
* Due to
limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1
Surround Sound audio.
**The rear panel
Line out port does not support spatial audio. If you wish to use spatial
audio make sure to connect your audio output device to the audio jack on the
front panel of your chassis.
|
Back Panel I/O Ports
|

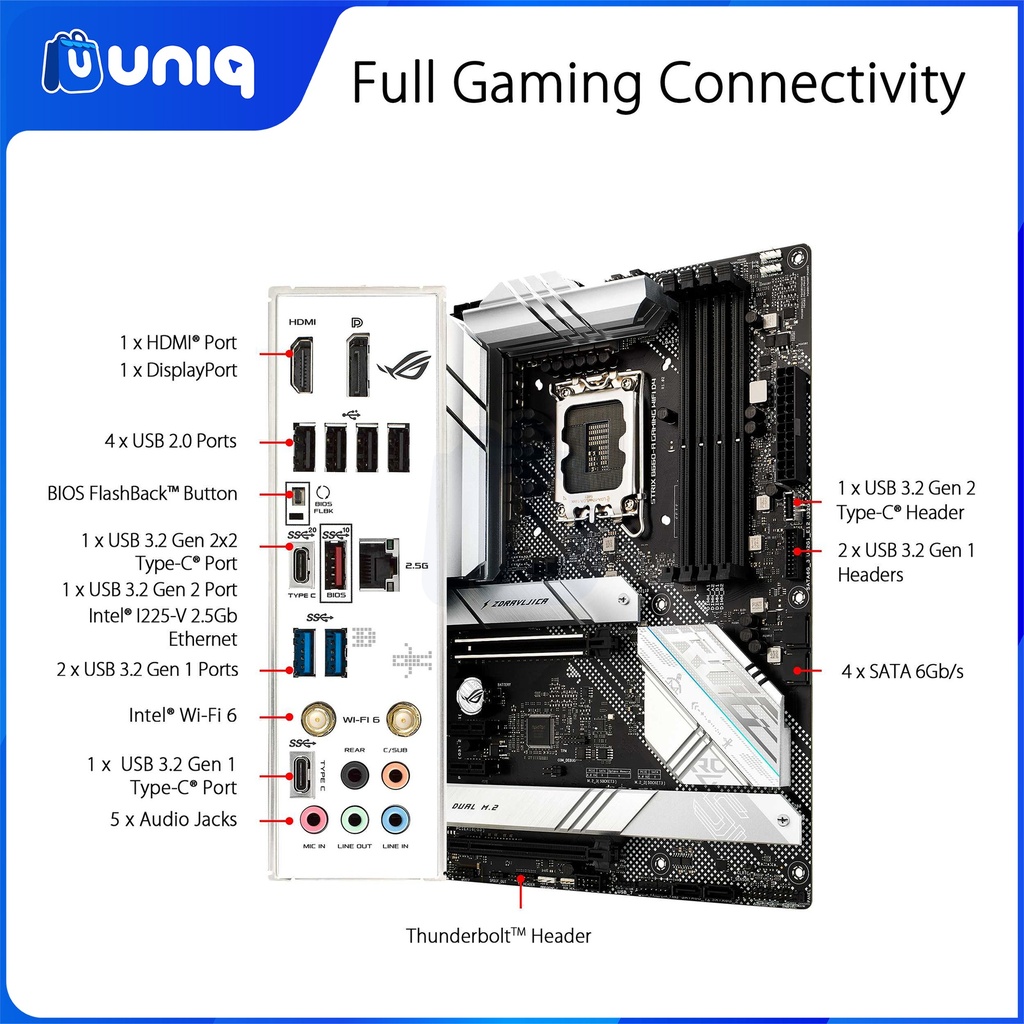

1
x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2
port(s) (1 x Type-A)
3 x USB 3.2 Gen 1
port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0
port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
|
Internal I/O Connectors
|

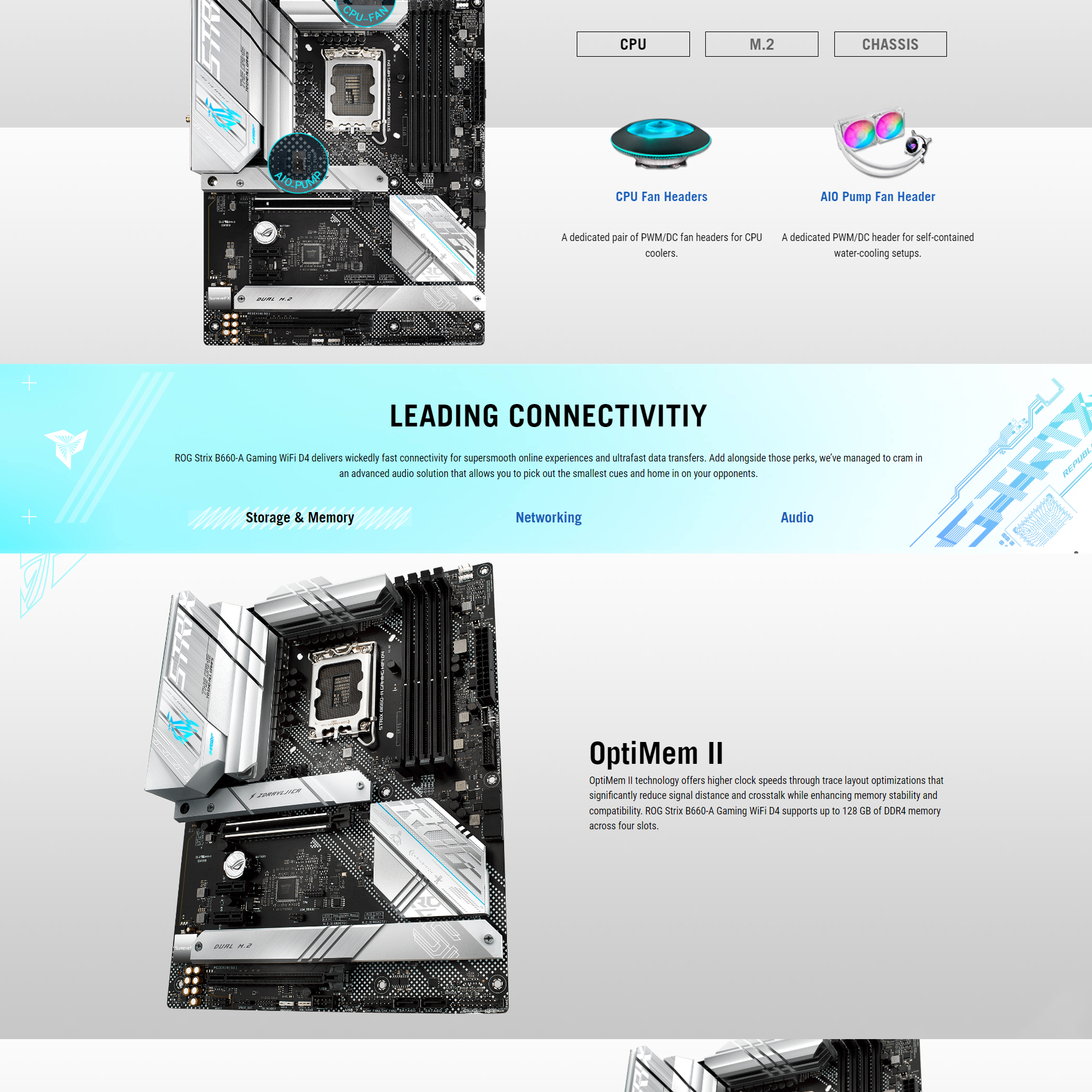

Fan and Cooling related

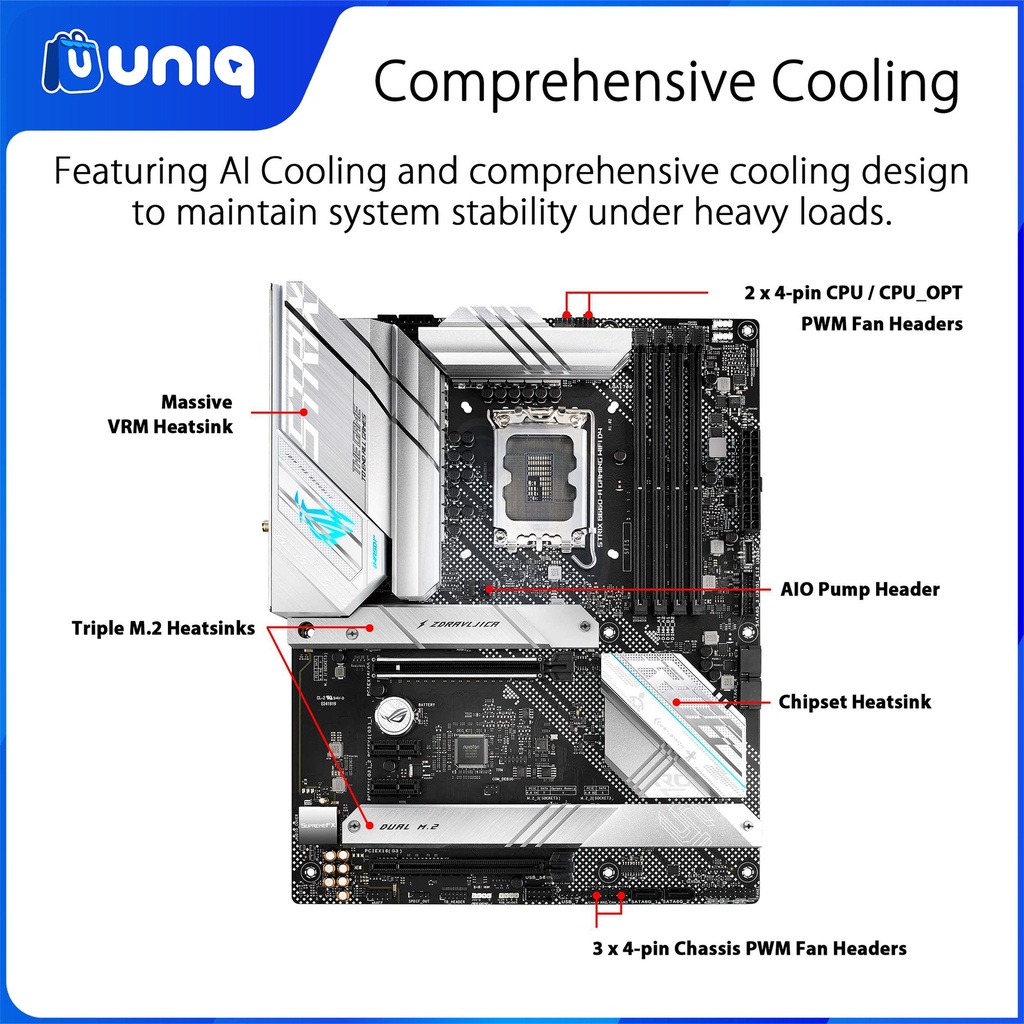

1 x 4-pin CPU Fan
header(s)
1 x 4-pin CPU OPT
Fan header(s)
1 x 4-pin AIO
Pump header(s)
3 x 4-pin Chassis
Fan header(s)
Power related
1 x 24-pin Main
Power connector
1 x 8-pin +12V
Power connector
1 x 4-pin +12V
Power connector
Storage related
3 x M.2 slots
(Key M)
4 x SATA 6Gb/s
ports
USB
1 x USB 3.2 Gen 2
connector (support USB Type-C®)
1 x USB 3.2 Gen 1
header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0
10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports
Miscellaneous

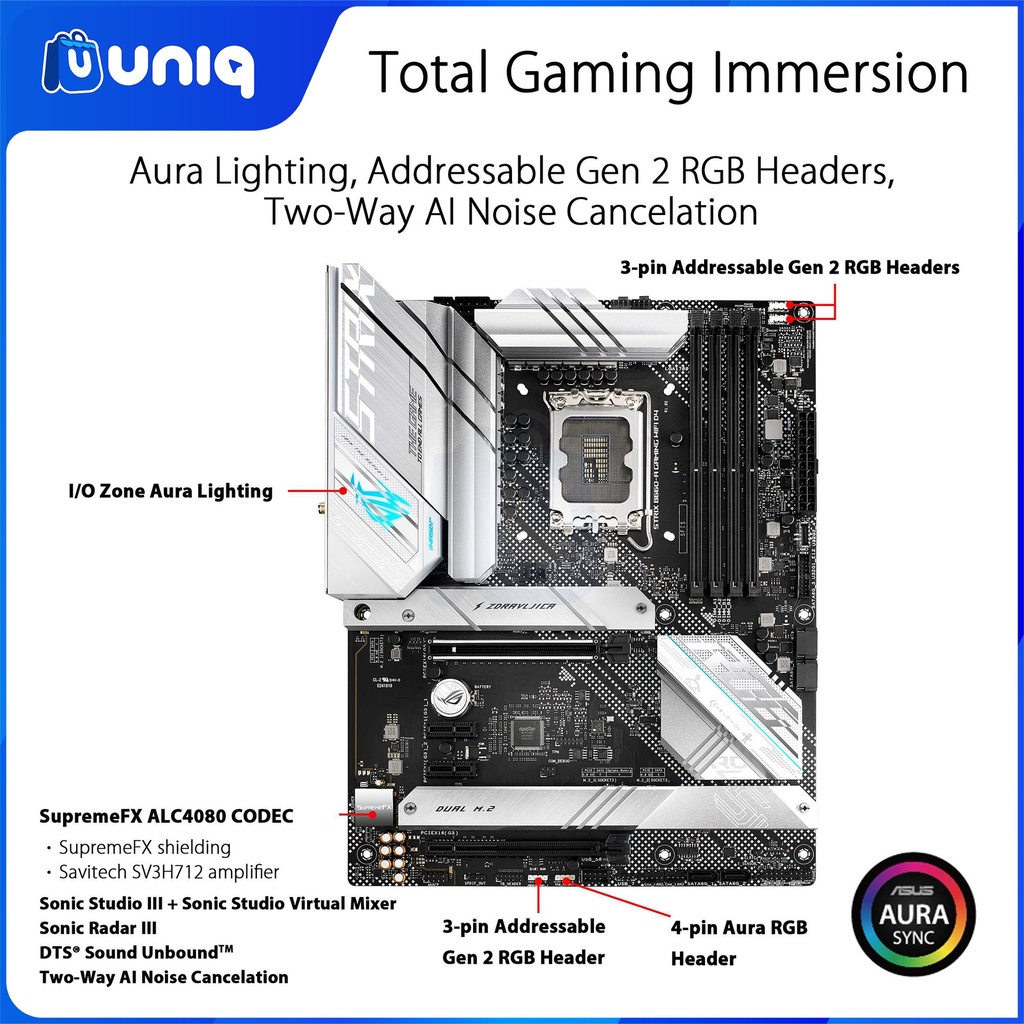

3 x Addressable
Gen 2 headers
1 x AURA RGB
header
1 x Clear CMOS
header
1 x Front Panel
Audio header (AAFP)
1 x S/PDIF Out
header
1 x SPI TPM
header (14-1pin)
1 x 20-3 pin
System Panel header with Chassis intrude function
1 x Thunderbolt™
header
|

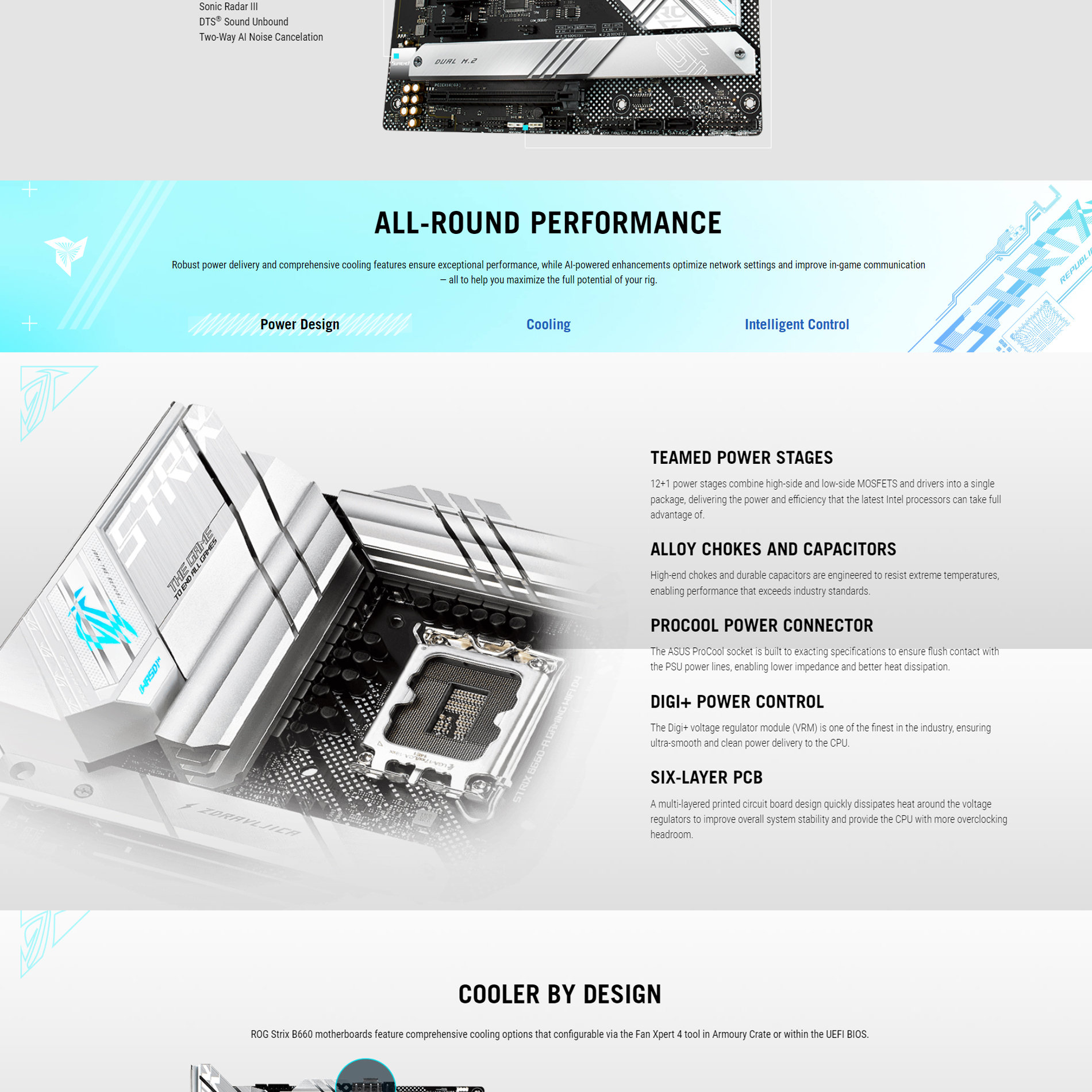

Special Features
|
Extreme Engine Digi+
-5K Black
Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU
[red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

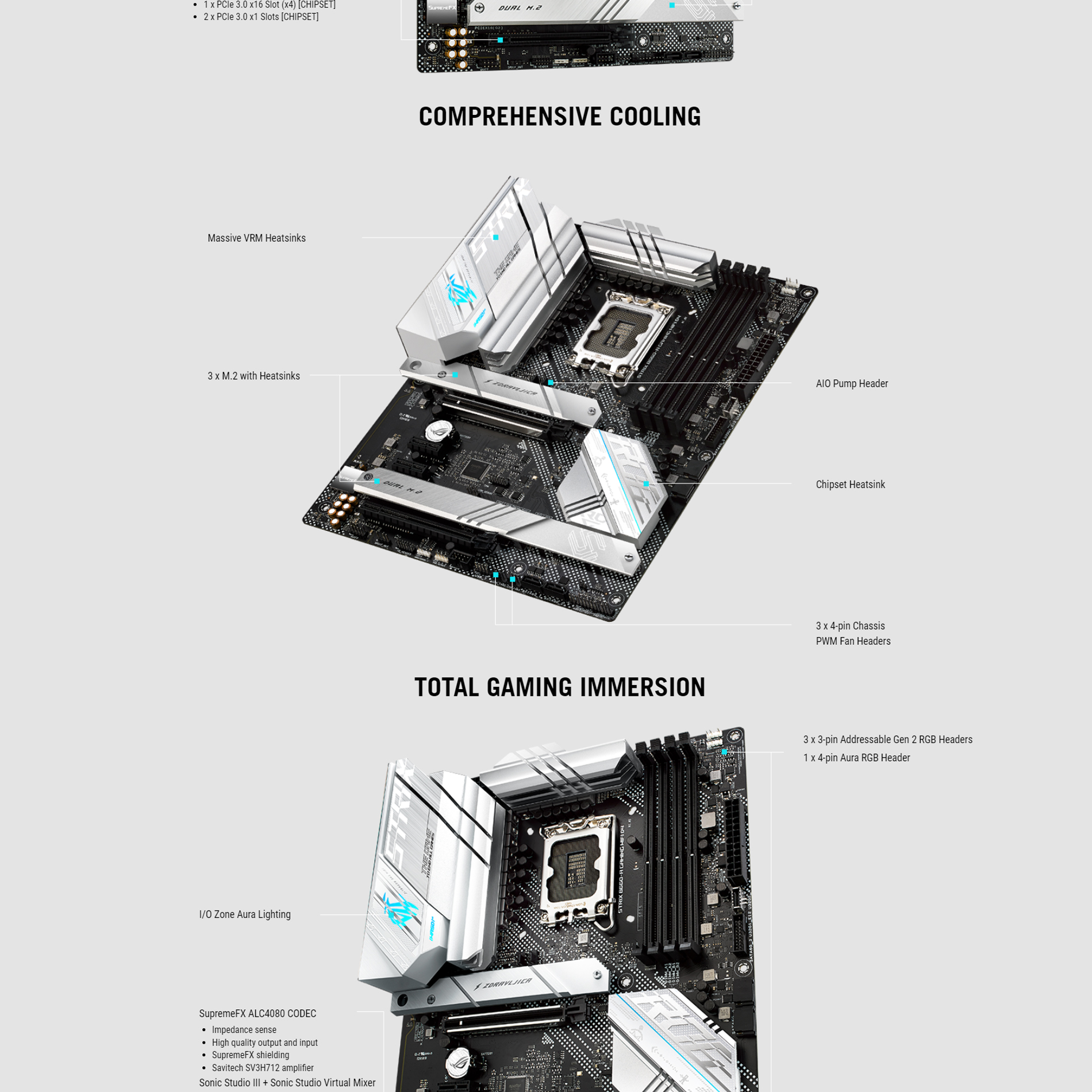

ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink
design
ASUS EZ DIY
- BIOS FlashBack™
button
- BIOS FlashBack™
LED
- CPU Socket
lever protector
- Pre-mounted I/O
shield
- SafeSlot
- SafeDIMM

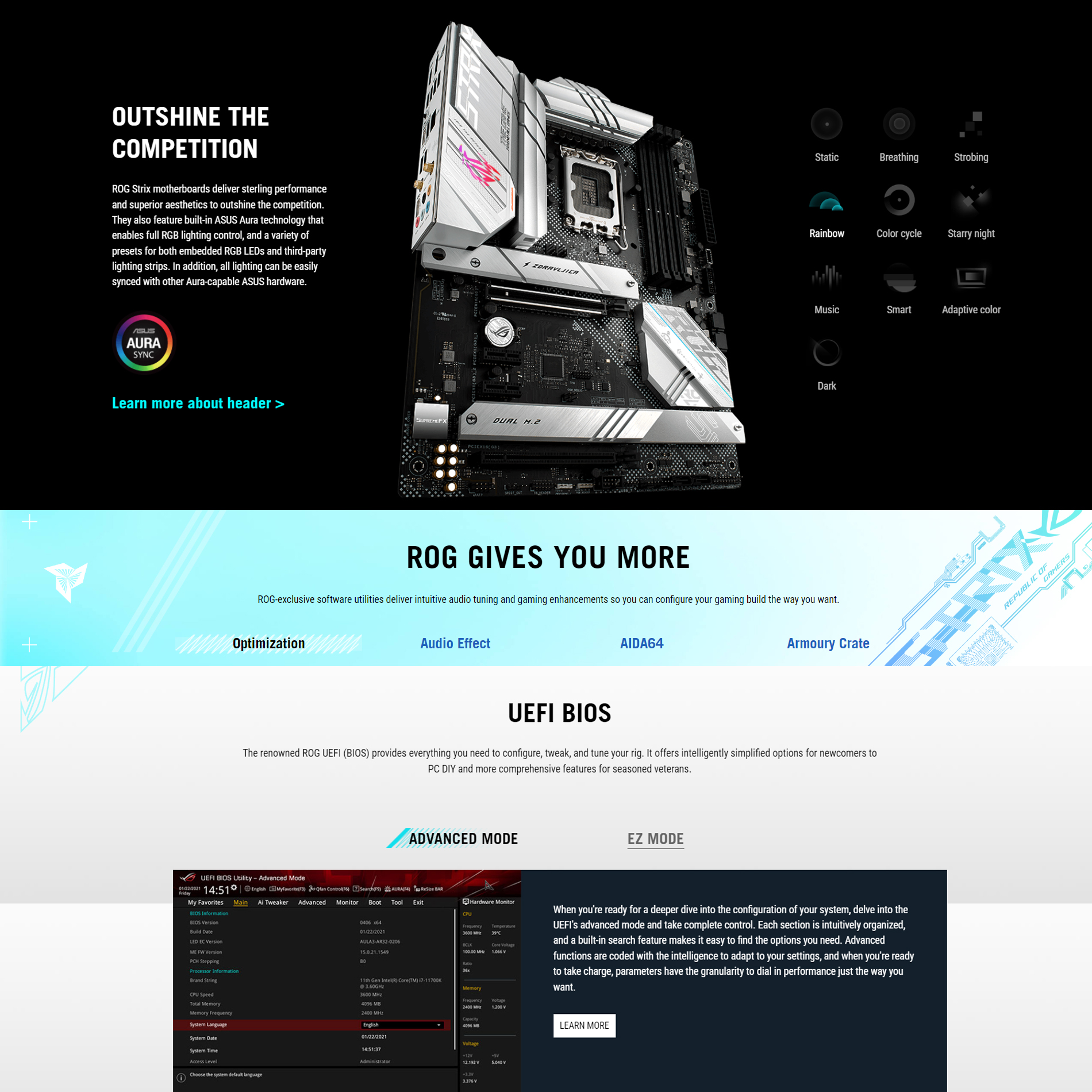

AURA Sync
- AURA RGB
header(s)
- Addressable Gen
2 header(s)
|
Software Features
|
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio
III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus
software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme
(60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI
Noise Cancelation

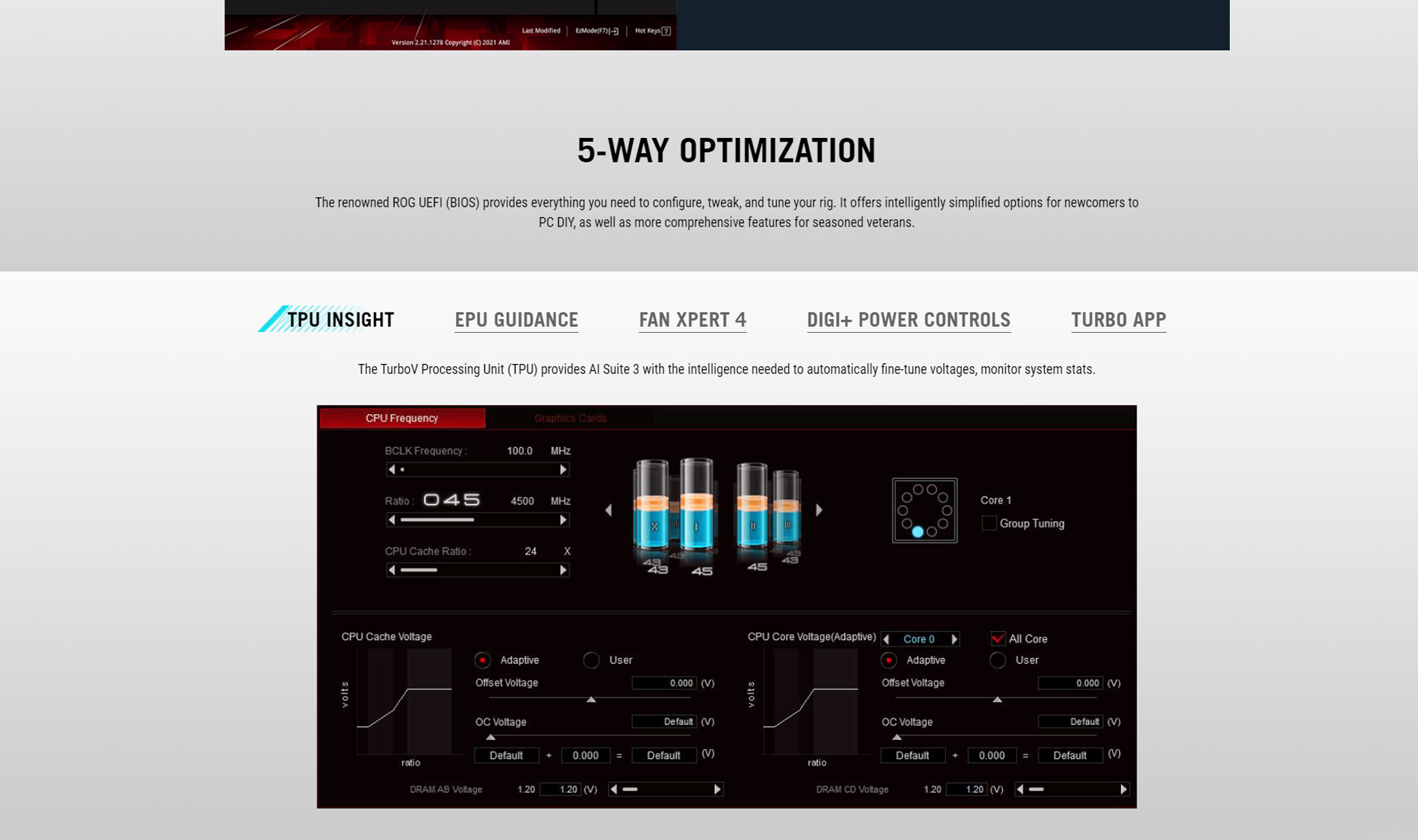

AI Suite 3
- Performance And
Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree
BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS
EZ Mode
|
BIOS
|
192 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|
Operating System
|
Windows® 11 64-bit,
Windows® 10 64-bit
|
Form Factor
|
ATX
Form Factor
12 inch x 9.6
inch ( 30.5 cm x 24.4 cm )
|
