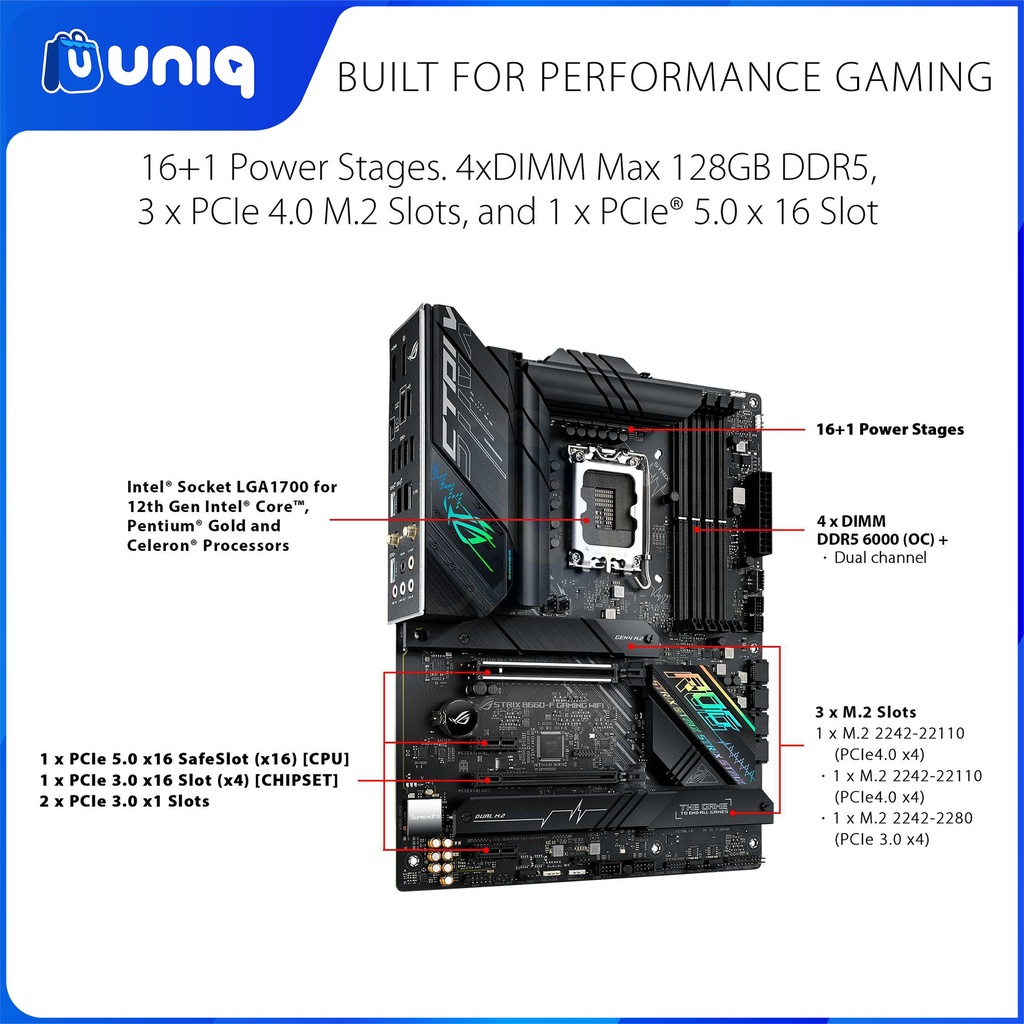

CPU
|
Intel® Socket LGA1700 for Intel® Core™ 14th &
13th Gen Processors, Intel® Core
12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max
Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
|
Chipset
|
Intel® B660 Chipset
|
Memory
|
4 x DIMM, Max. 196GB, DDR5
6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800, Un-buffered
Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual Memory data rate depends on the CPU types
and DRAM modules, for more information refer to www.asus.com for the Memory
QVL (Qualified Vendors Lists).
|
Graphics
|
1
x DisplayPort**
1 x HDMI® port***
*Graphics
specifications may vary between CPU types. Please refer to www.intel.com for
any updates.
** Support
8K@60Hz as specified in DisplayPort 1.4.
*** Support
4K@60Hz as specified in HDMI 2.1.
|
Expansion Slots
|
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16
slot (supports x16 mode)
Intel® B660
Chipset**
1 x PCIe 3.0 x16
slot (supports x4 mode)***
2 x PCIe 3.0 x1
slots
* Please check
PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
*** The
PCIEX16(G3) shares bandwidth with the PCIEX1(G3)_1 and PCIEX1(G3)_2. When
either PCIEX1(G3) slot enables, PCIEX16(G3) will run x2 mode.
|
Storage
|
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th
Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4
mode)
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4
mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
|
Ethernet
|
1
x Intel® 2.5Gb Ethernet
ASUS LANGuard
|
Wireless & Bluetooth
|
Wi-Fi
6
2x2 Wi-Fi 6
(802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz
frequency band
Bluetooth v5.2
|
USB
|
Rear USB (Total 9 ports)
1 x USB 3.2 Gen
2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2
ports (1 x Type-A)
5 x USB 3.2 Gen 1
ports (4 x Type-A, 1 x USB Type-C®)
2 x USB 2.0 ports
(2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2
connector (supports USB Type-C®)
1 x USB 3.2 Gen 1
header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0
headers support additional 4 USB 2.0 ports
|
Audio
|
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
ALC4080
- Impedance sense
for front and rear headphone outputs
- Supports:
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality
120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to
32-Bit/384 kHz playback
Audio Features
- SupremeFX
Shielding Technology
- Savitech
SV3H712 AMP
- Premium audio
capacitors
- Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to
use spatial audio make sure to connect your audio output device to the audio
jack on the front panel of your chassis.
|

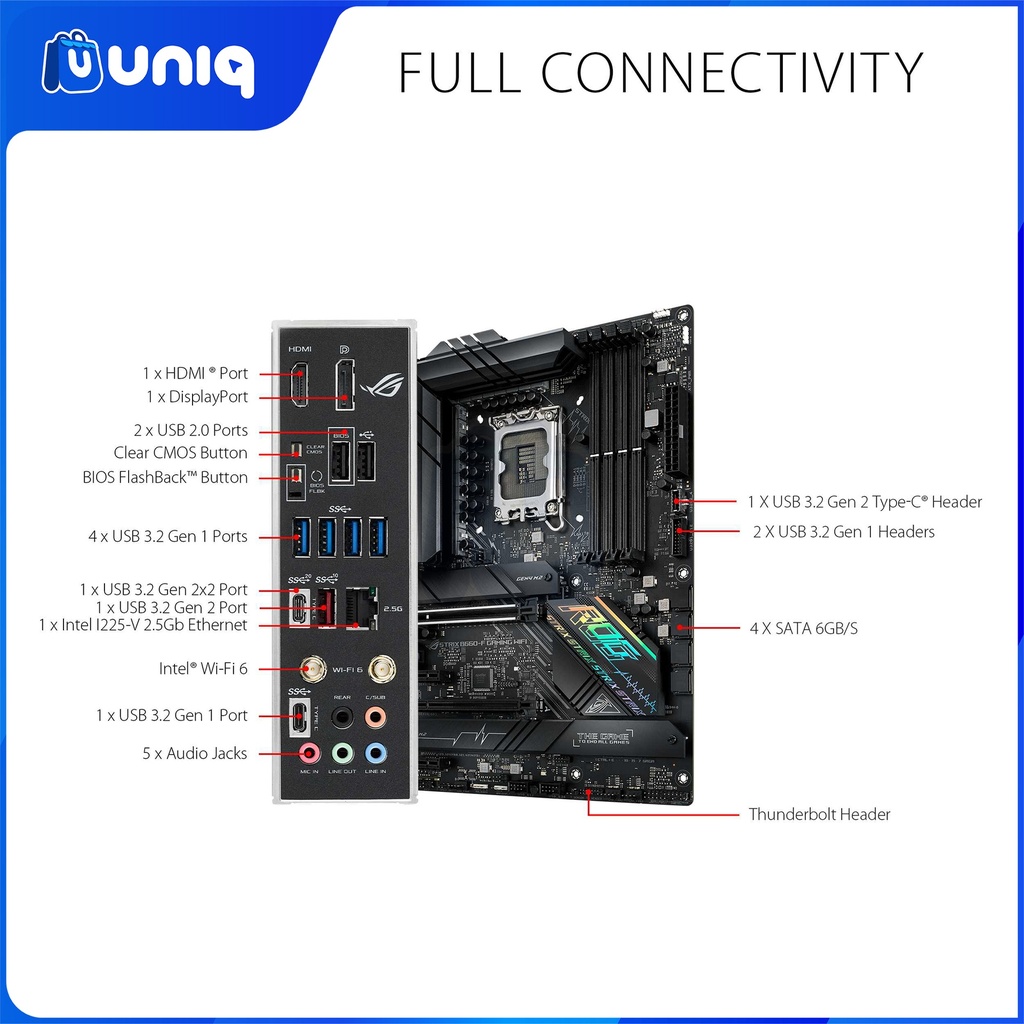

Back Panel I/O Ports
|
1
x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2
ports (1 x Type-A)
5 x USB 3.2 Gen 1
ports (4 x Type-A, 1 x USB Type-C®)
2 x USB 2.0 ports
(2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS
FlashBack™ button
1 x Clear CMOS
button
|
Internal I/O Connectors
|
Fan and Cooling related
1 x 4-pin CPU Fan
header
1 x 4-pin CPU OPT
Fan header
1 x 4-pin AIO
Pump header
4 x 4-pin Chassis
Fan headers
Power related
1 x 24-pin Main
Power connector
1 x 8-pin +12V
Power connector
1 x 4-pin +12V
Power connector
Storage related
3 x M.2 slots
(Key M)
4 x SATA 6Gb/s
ports
USB
1 x USB 3.2 Gen 2
connector (supports USB Type-C®)
1 x USB 3.2 Gen 1
header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0
headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable
Gen 2 headers
1 x AURA RGB
header
1 x S/PDIF Out
header
1 x Front Panel
Audio header (AAFP)
1 x SPI TPM
header (14-1pin)
1 x 20-3 pin
System Panel header with Chassis intrude function
1 x Thermal
Sensor header
1 x Thunderbolt™
header
|
Special Features
|
Extreme Engine Digi+
- 5K Black
Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU
[red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

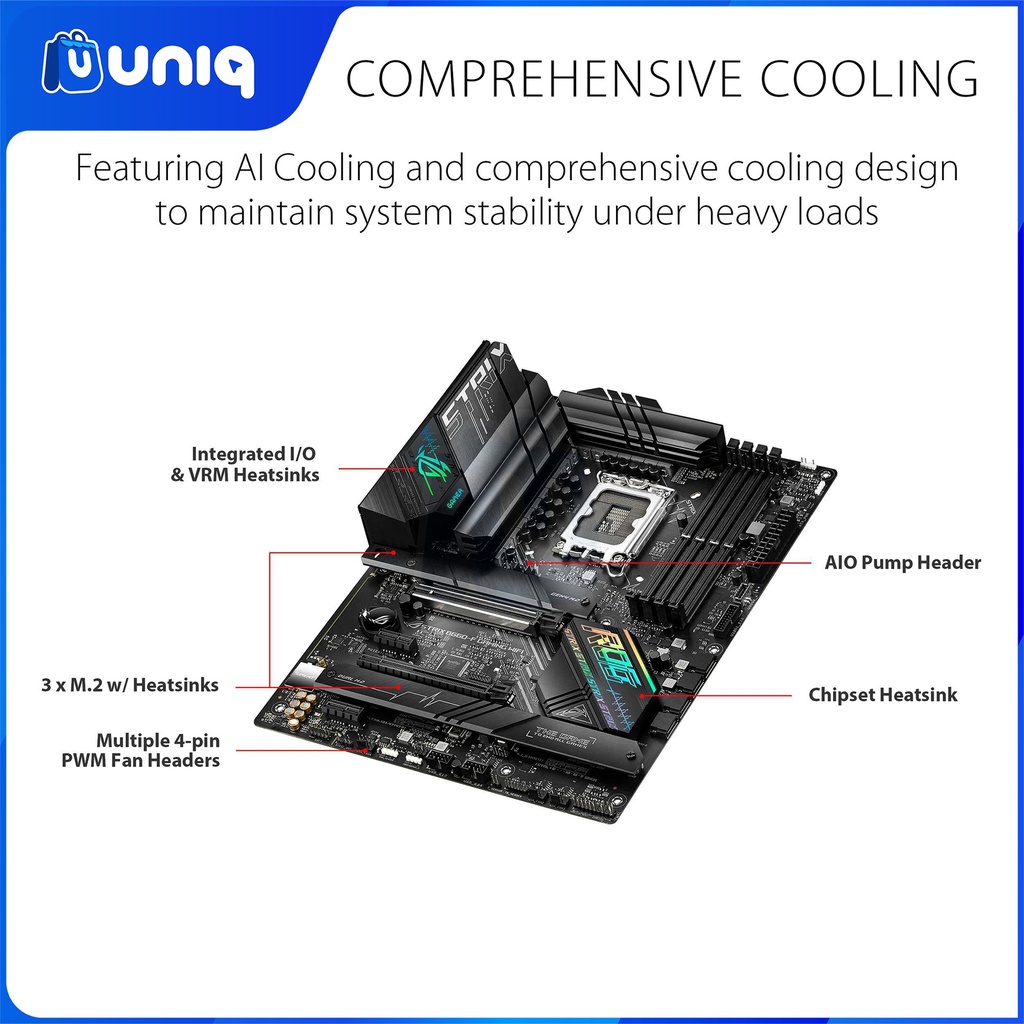

ASUS Thermal Solution
- M.2 heatsink
backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™
button
- BIOS FlashBack™
LED
- CPU Socket
lever protector
- Clear CMOS
button
- ProCool
- Pre-mounted I/O
shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen
2 RGB headers
|
Software Features
|
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio
III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus
software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme
(60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI
Noise Cancelation

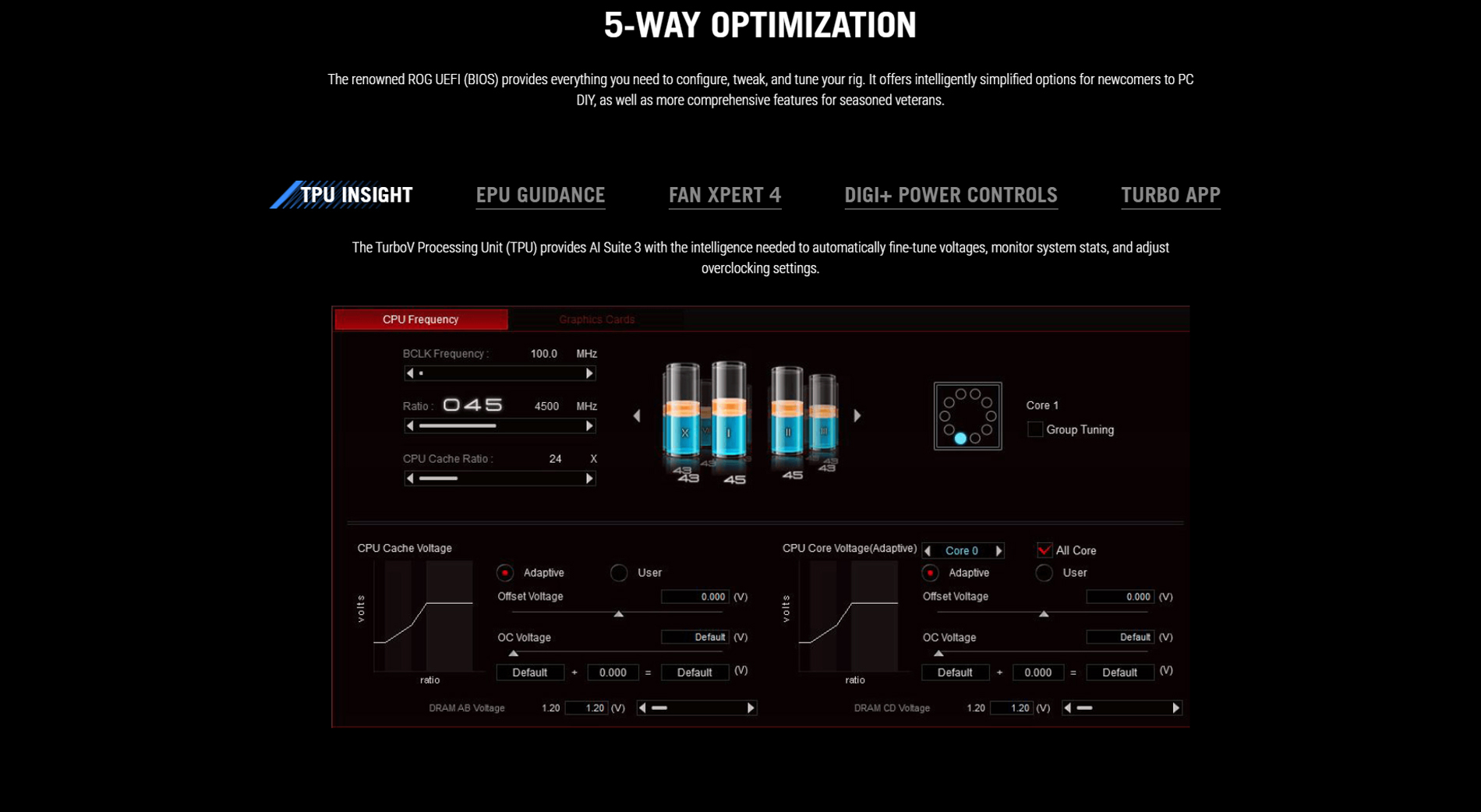

AI Suite 3
- Performance And
Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree
BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS
EZ Mode
MemTest86
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|
Operating System
|
Windows® 10 64-bit, Windows® 11 64-bit
|
Form Factor
|
ATX
Form Factor
12 inch x 9.6
inch ( 30.5 cm x 24.4 cm )
|
