Model
|
RT-N12+ B1
|
|
Network Standard
|
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
IPv4
IPv6
|
|
WiFi Data Rate
|
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
|
|
Antenna
|
Fixed antenna x 2
|
|
Transmit / Receive
|
MIMO technology
2.4GHz 2x2
|
|
Memory
|
8 MB Flash, 32 MB RAM
|
|
Operating Frequency
|
2.4G Hz
|
|
Operating Mode
|
Accesspoint, Router
|
|

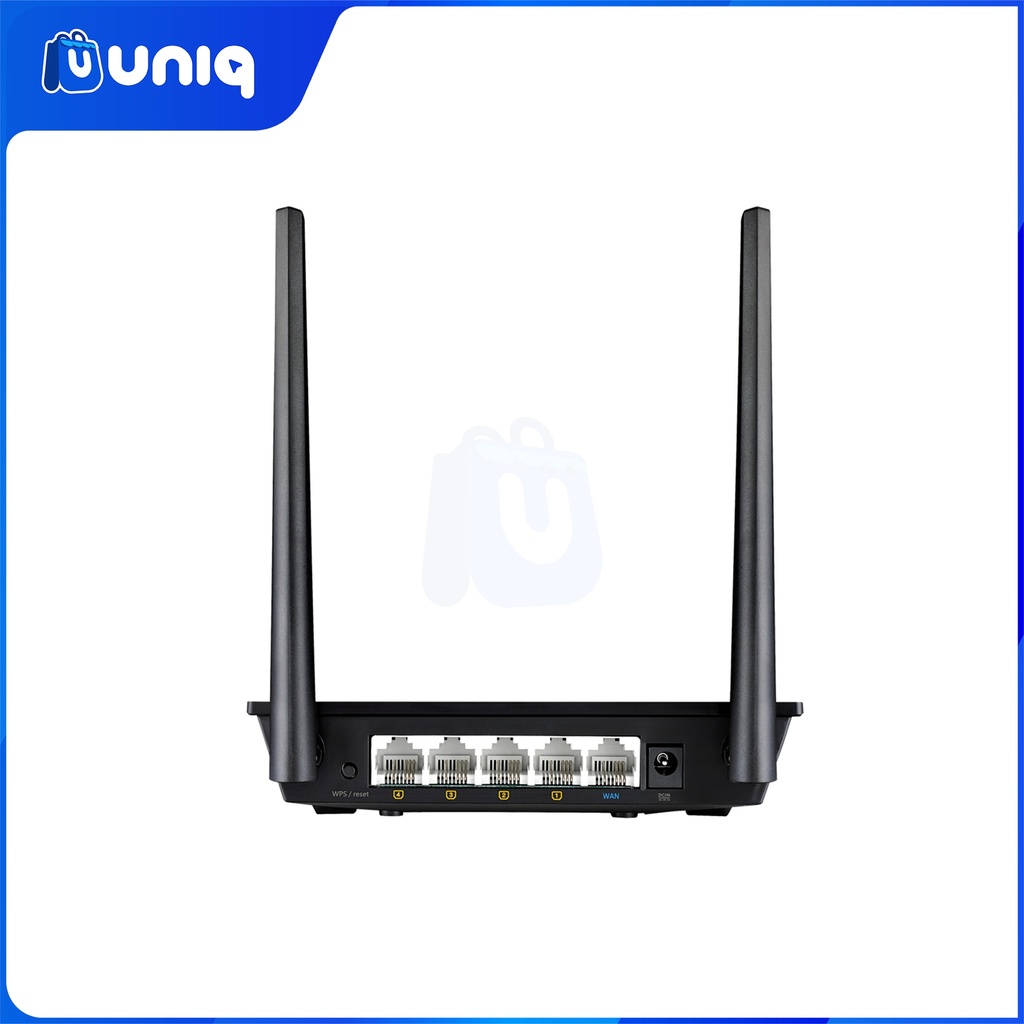

I/O Ports
|
RJ45 for 10/100 BaseT for WAN x 1,
RJ45 for 10/100 BaseT for LAN x 4
|
|
Buttons
|
WPS Button, Reset Button
|
|
LED Indicator
|
Power x 1
Wi-Fi x 1
WAN x 1
LAN x 1
|
|
Power Supply
|
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 0.5 A current
|
|
Package Content
|
RT-N12+ B1 Router x 1
Warranty Card x 1
Power Supply x 1
*Package content varies according to local requirements of each country
|
|
Product Weight (g)
|
168.9 g
|
|
Product Dimensions
|
146 x 111 x 28 ~ mm (WxDxH)
|
|
Parental Control
|
"Allow you to block access to
unwanted websites and apps."
Customized Internet Schedule
|
|

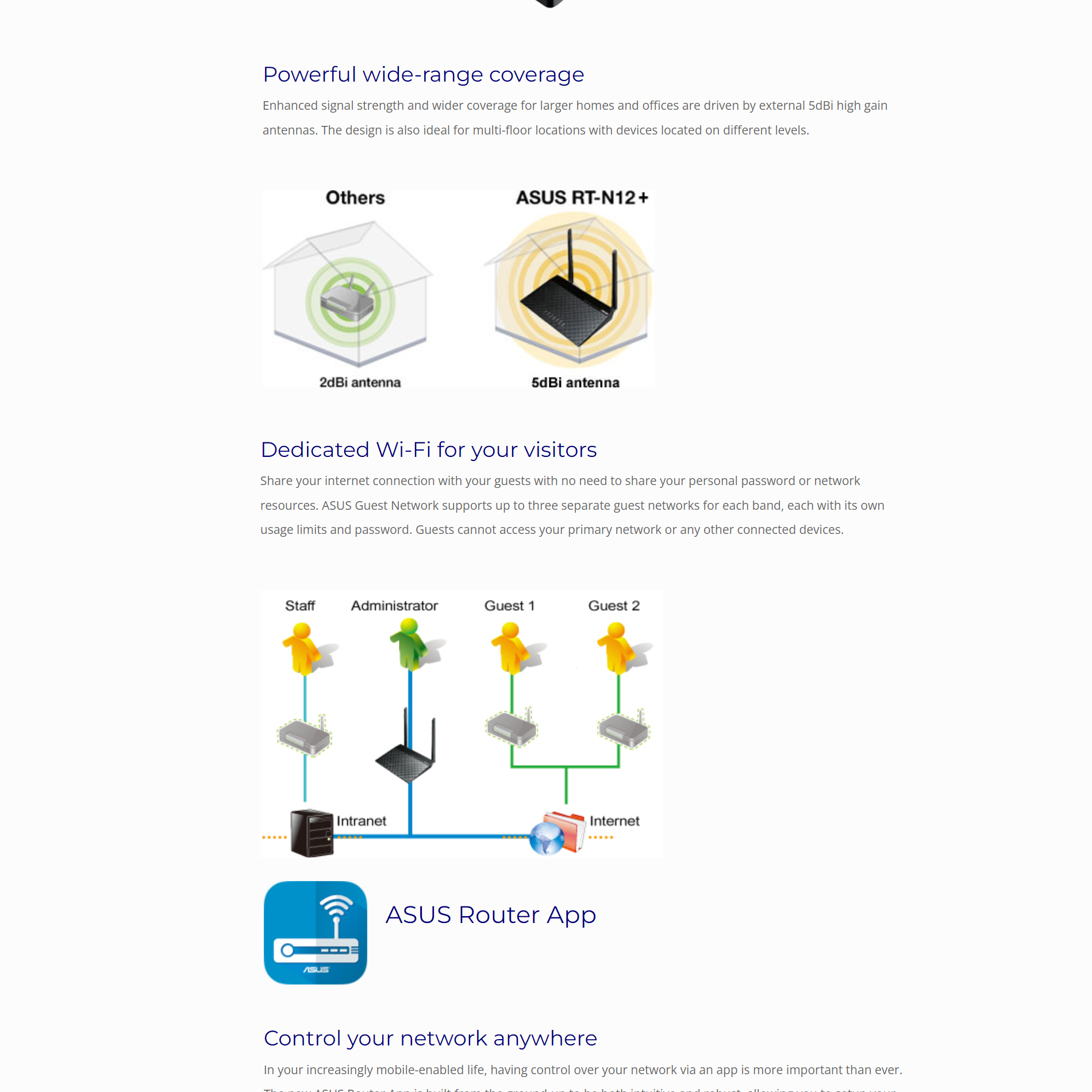

Guest Network
|
"The Guest Network provides
Internet connection for guests but restricts access to your local
network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2-Personal
|
|
Security
|
Open system, WPA/WPA2-Personal,
WPA/WPA2-Enterprise
WPS
SSH
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
|
|

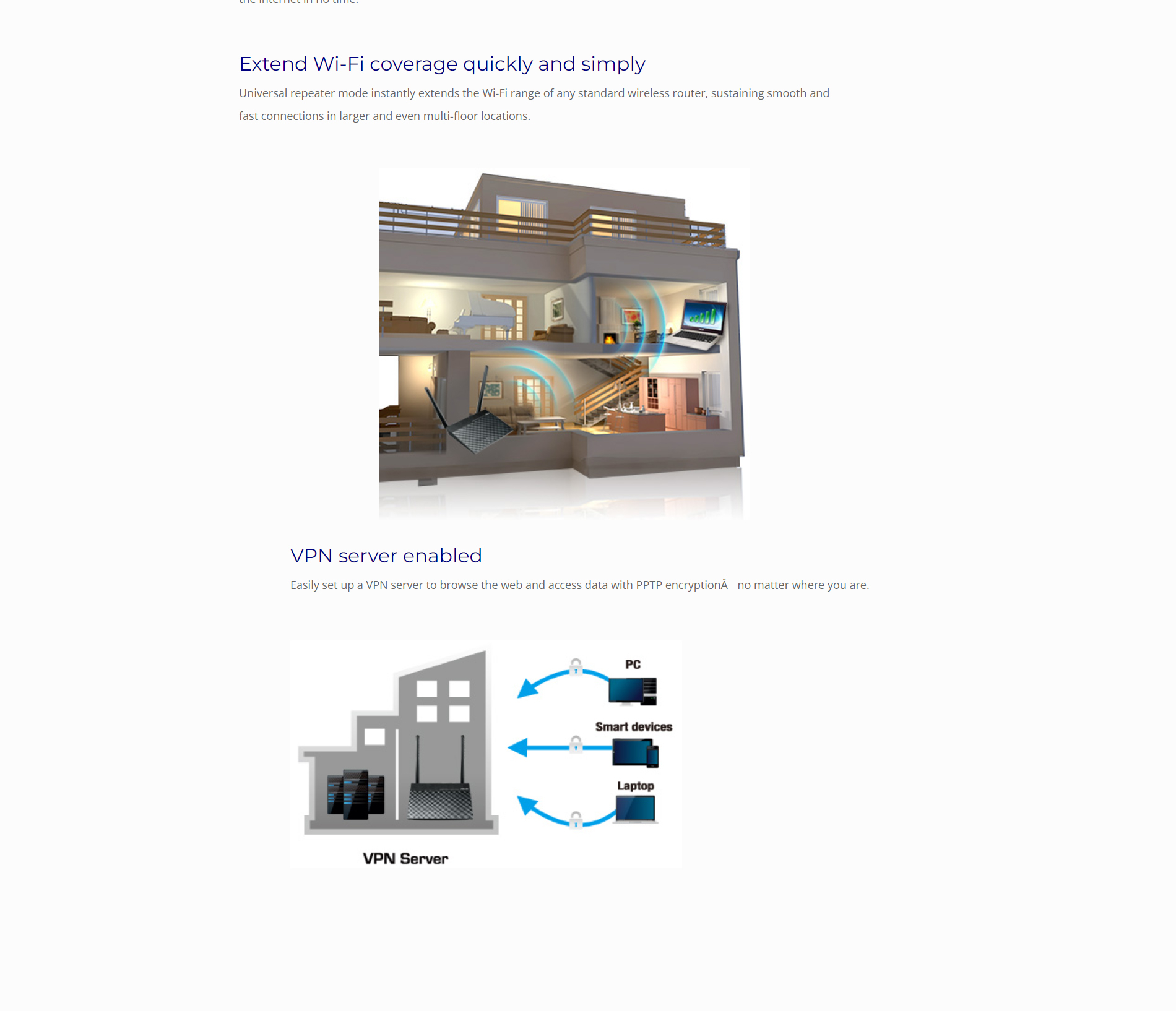

VPN
|
VPN Client L2TP
VPN Client PPTP
VPN Server PPTP
|
|
Traffic Control
|
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analysis Period : Daily, Weekly, Monthly
|
|
WAN
|
Internet connection Type : PPPoE,
PPTP, L2TP, Automatic IP, Static IP
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
|
|
LAN
|
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
|
|
Wireless
|
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
RADIUS Client
|
|
USB application
|
File System : No
|
|
Administration
|
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
|
