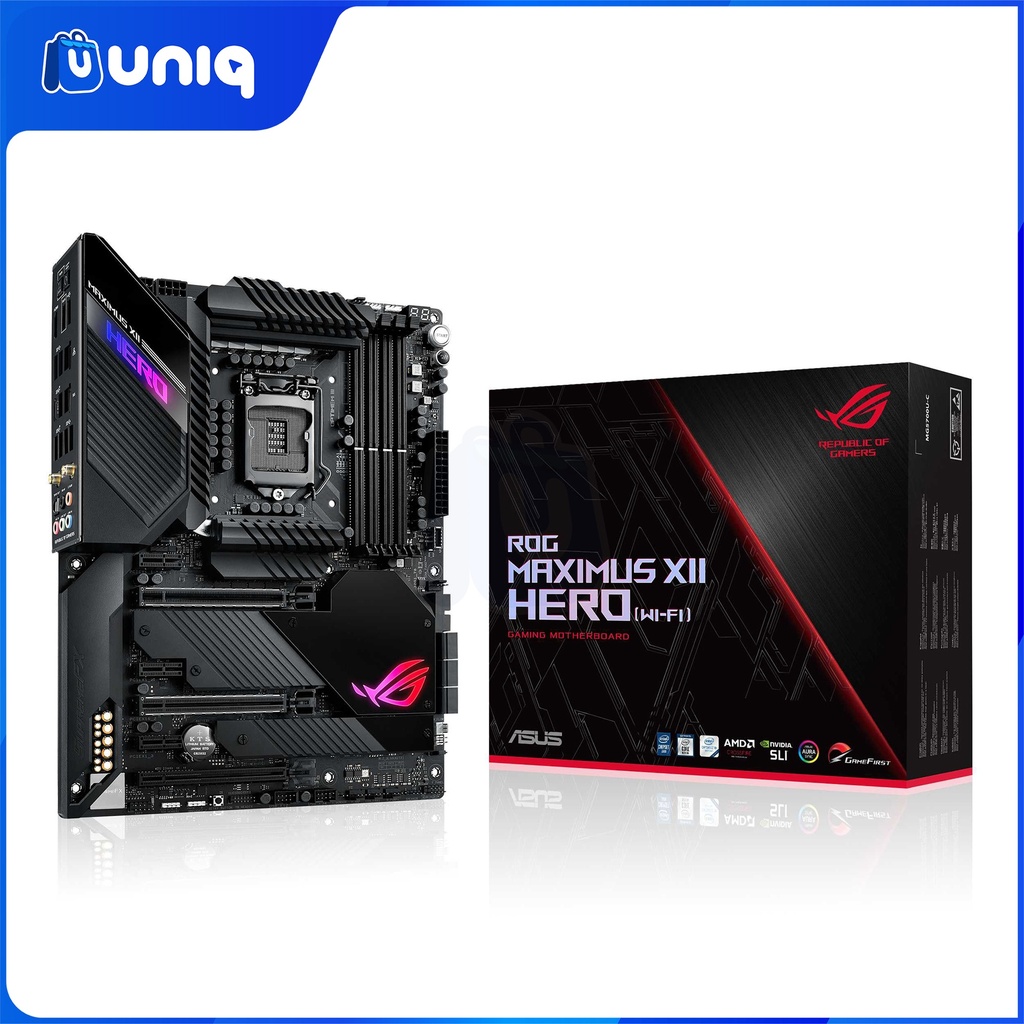

Model
|
ROG MAXIMUS XII HERO (WI-FI)
|

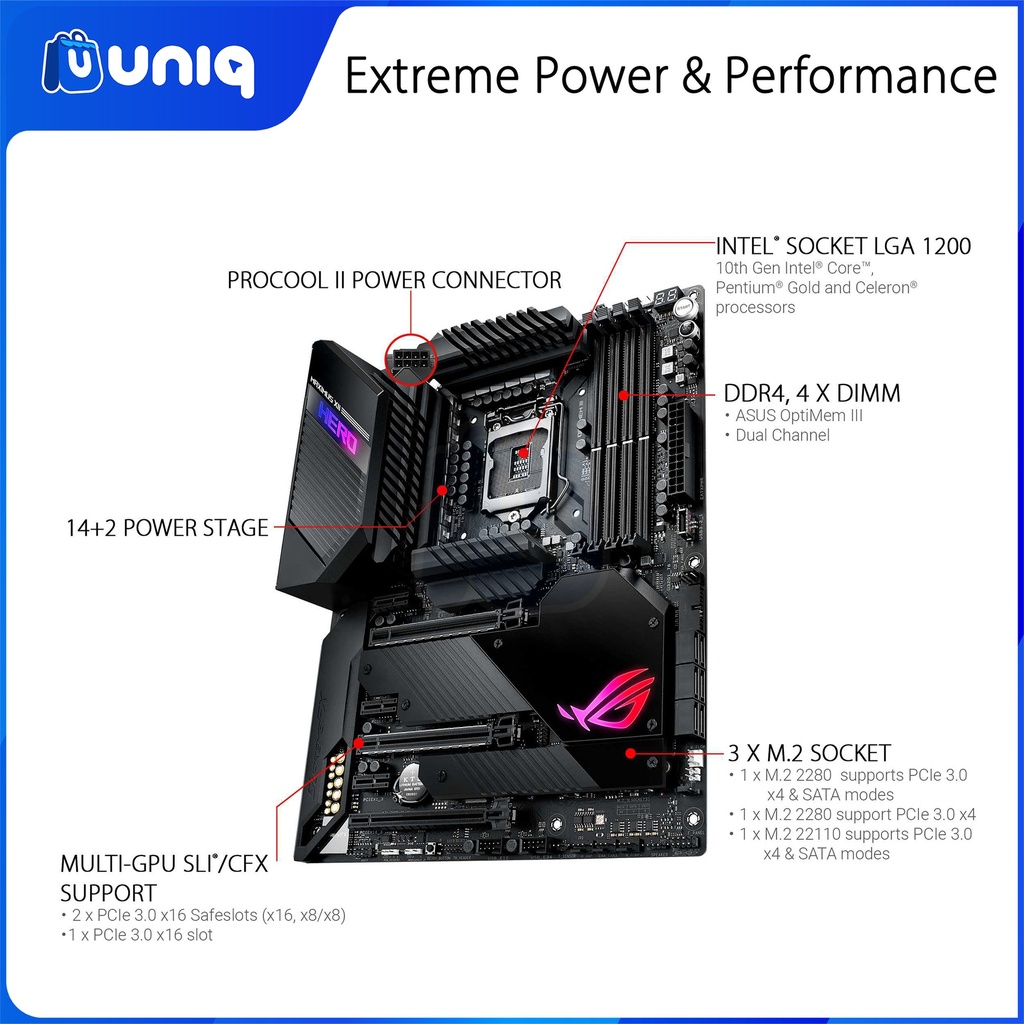

CPU
|
Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14nm CPU
* Refer to www.asus.com
for CPU support list
|
Chipset
|
Intel® Z490
|
Memory
|
4 x DIMM, Max. 128GB, DDR4
4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133
MHz Non-ECC, Un-buffered Memory *

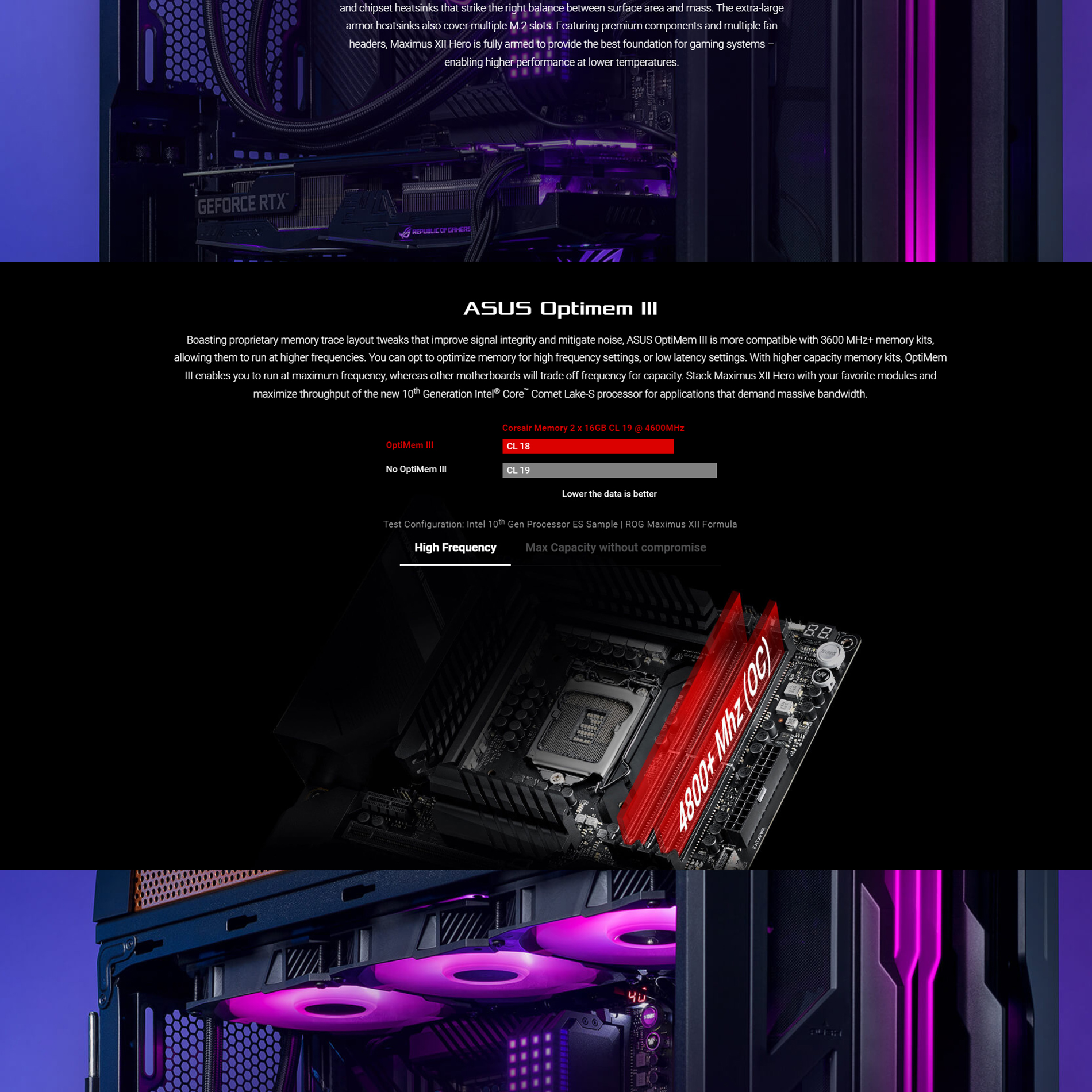

OptiMem III
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to
www.asus.com for the Memory QVL (Qualified Vendors Lists).
Supports Intel® Extreme Memory Profile (XMP)
Dual Channel Memory Architecture
|
Graphic
|
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Integrated Graphics Processor
|
Multi-GPU Support
|
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology
|

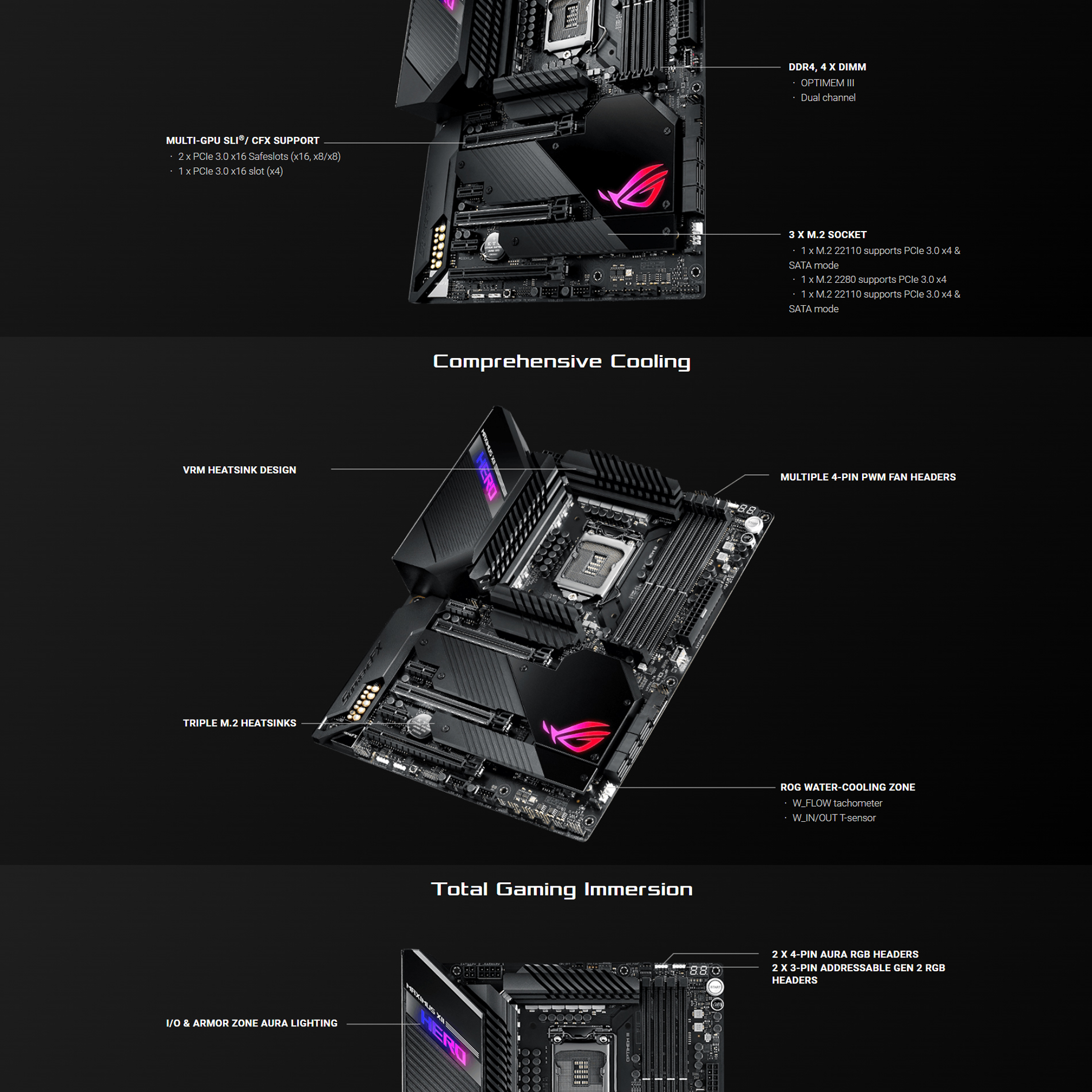

Expansion Slots
|
2 x PCIe 3.0 x16 (x16 or dual x8) *1
1 x PCIe 3.0 x16 (x4 mode) *2
Intel® 10th Gen Processors
Intel® Z490 Chipset
3 x PCIe 3.0 x1
|
Storage
|
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage
devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices
support (PCIE 3.0 x 4 mode)*4
1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage
devices support (SATA & PCIE 3.0 x 4 mode)
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® Z490 Chipset :
6 x SATA 6Gb/s port(s),
Intel® Optane™ Memory Ready
Support Raid 0, 1, 5, 10
|
LAN
|
Intel® I219-V 1Gb Ethernet
Marvell® AQtion AQC111C 5Gb Ethernet
ASUS LANGuard
|
Wireless Data Network
|
Intel® Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports CNVI interface
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
|
Bluetooth
|
Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
|
Audio
|

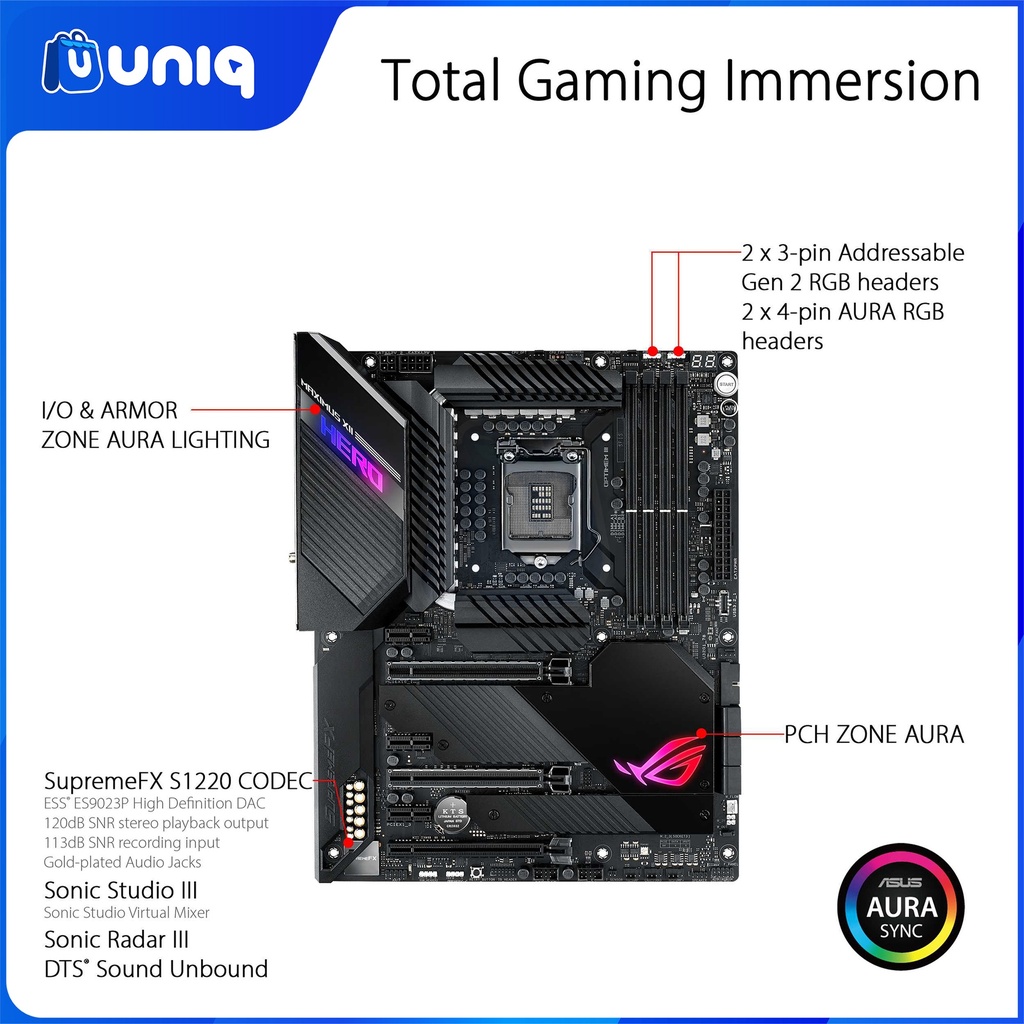

ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220*6
- Supports : Multi-streaming, Front Panel Jack-retasking, up to
24-Bit/192kHz playback
- ESS™ ES9023 DAC + RC4580 OP AMP
- Premium Japanese audio capacitors
- Audio Cover
- SupremeFX Shielding™ Technology
- Supports up to 32-Bit/192kHz playback
- Gold-plated jacks
- High quality120dBSNR stereo playback outputand113dBSNR recording
input
- Impedance sense for front and rear headphone outputs
Audio Feature :
- Optical S/PDIF out port(s) at back panel
|
USB Ports
|
4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C®)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 7 )
Rear USB Port ( Total 10 )
2 x USB 2.0 port(s)(2 x Type-A)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)
|
Software Features
|
[ROG Exclusive Software]
- Mem Tweakit
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio
III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- BullGuard
Internet Security (1-year full version)
[ASUS Exclusive
Software]
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- 5-way
Optimization with AI Overclocking: TPU, EPU, Digi+ Power Control, Fan Xpert
4, Turbo app
- EZ update
AI Charger
WinRAR
[UEFI BIOS]
AI Overclocking
Guide
ASUS EZ DIY
- ASUS CrashFree
BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS
EZ Mode
FlexKey
|
ASUS Special Features
|
ROG Extreme OC kit
- FlexKey button
- ReTry button
- Start button
Extreme Engine
Digi+
- 10K Black
Metallic Capacitors
- MicroFine Alloy
Choke
ASUS Q-Design
- ASUS Q-Code
- ASUS Q-Connector
- ASUS Q-DIMM
- ASUS Q-LED (CPU
[red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot

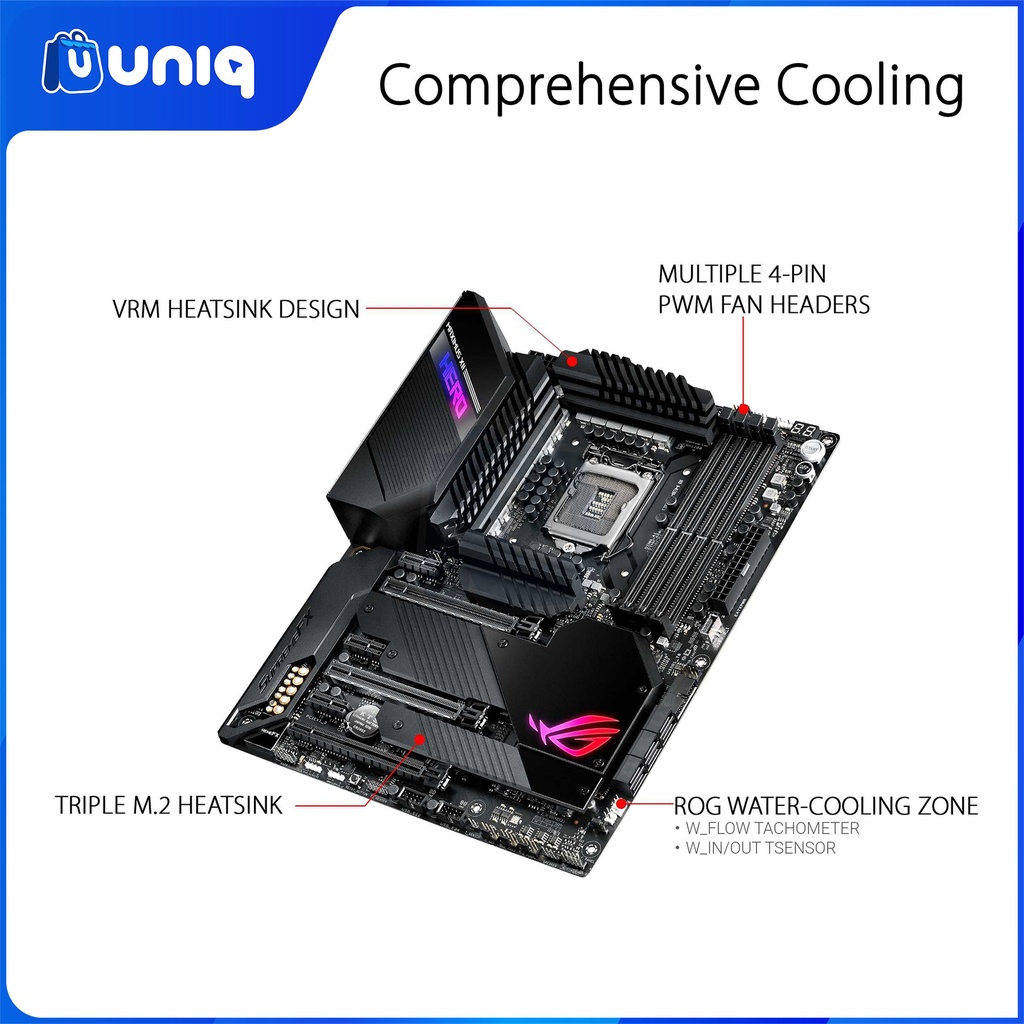

ASUS Thermal
Solution
- Aluminum M.2
heatsink cover
ASUS EZ DIY
- BIOS Flashback™ button
- Clear CMOS
button
- Procool II
- Pre-mounted I/O
shield
- SafeSlot
AURA Sync
- Standard RGB
headers
- Addressable Gen
2 RGB headers
|

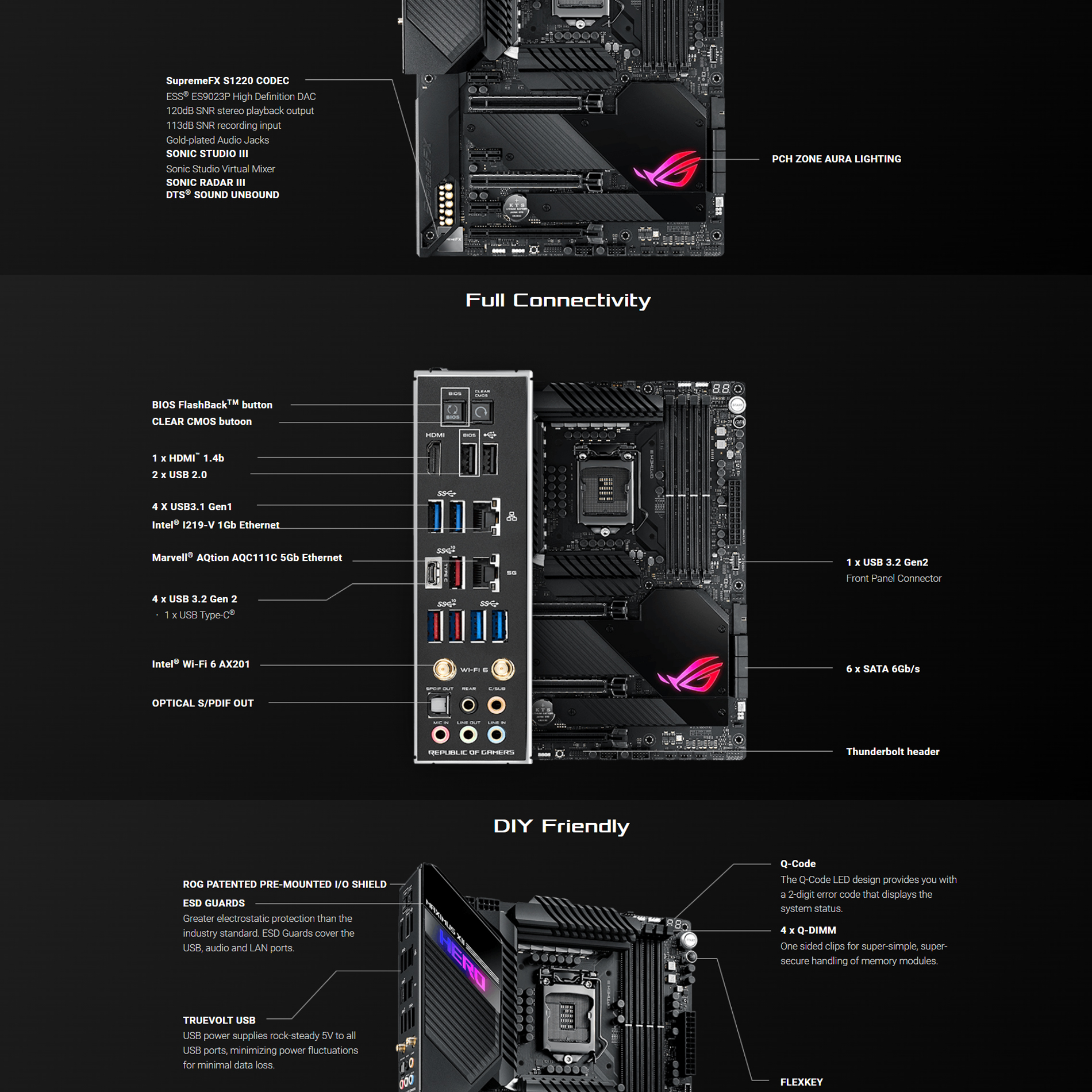

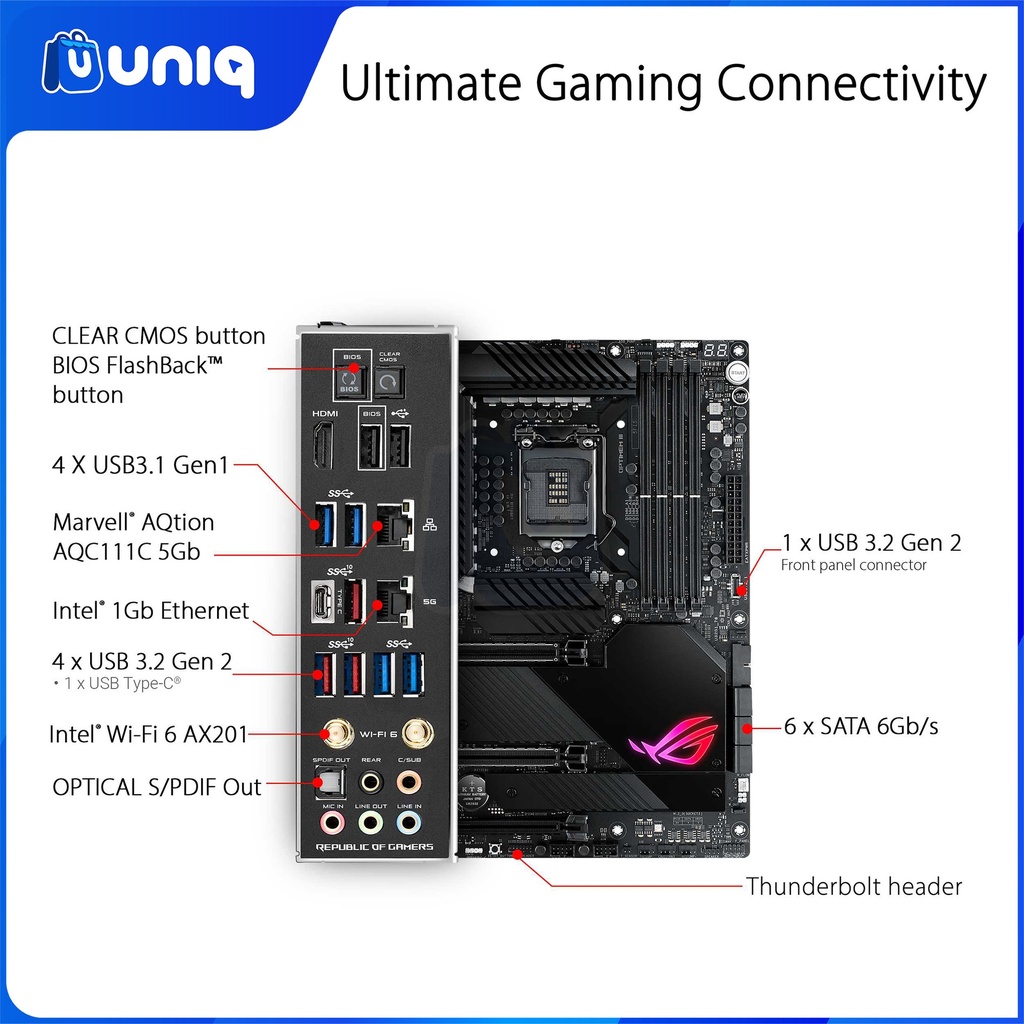

Back I/O Ports
|
1 x Marvell® AQtion AQC111C 5Gb Ethernet
1 x Intel® I219-V 1Gb Ethernet
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
1 x USB BIOS FlashBack™ Button(s)
1 x Clear CMOS button(s)
5 x Gold-plated audio jacks
1 x ASUS Wi-Fi Module
1 x HDMI
2 x USB 2.0
1 x Optical S/PDIF out
|
Internal I/O Ports
|
3 x M.2 Socket 3
1 x FlexKey button
1 x USB 3.2 Gen 1 front panel TypeC™ connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2
USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x H_AMP fan connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x ReTry button
1 x Speaker connector
1 x Start button
1 x W_PUMP+ connector
2 x Addressable Gen 2 header(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
1 x Thermal sensor connector(s)
1 x System panel connector
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
Manageability
|
WOL by PME, PXE
|
Operating System
|
Windows® 10 64-bit
|
Form Factor
|
12 inch x 9.5 inch ( 30.5 cm x 24.4 cm )
ATX Form Factor
|
Note
|
*1 Support PCIe bifurcation for RAID on CPU
function.
*2 The PCIEX16_3
shares bandwidth wih M.2_2. The PCIEX16_3 will be disabled when M.2_2 runs x4
mode.
*3 When M.2_1 is
operating in SATA mode, SATA6G_2 will be disabled.
*4 M.2_2 shares
bandwidth with PCIEX16_3. When M.2_2 runs x4 mode, PCIEX16_3 will be
disabled. When M.2_2 runs x2 mode, PCIEX16_3 runs x1 mode.
*5 M.2_3 shares
bandwidth with SATA6G_56. When M.2_3 is populated SATA6G_56 will be disabled.
*6 Due to
limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 7.1 Surround
Sound audio.
|
