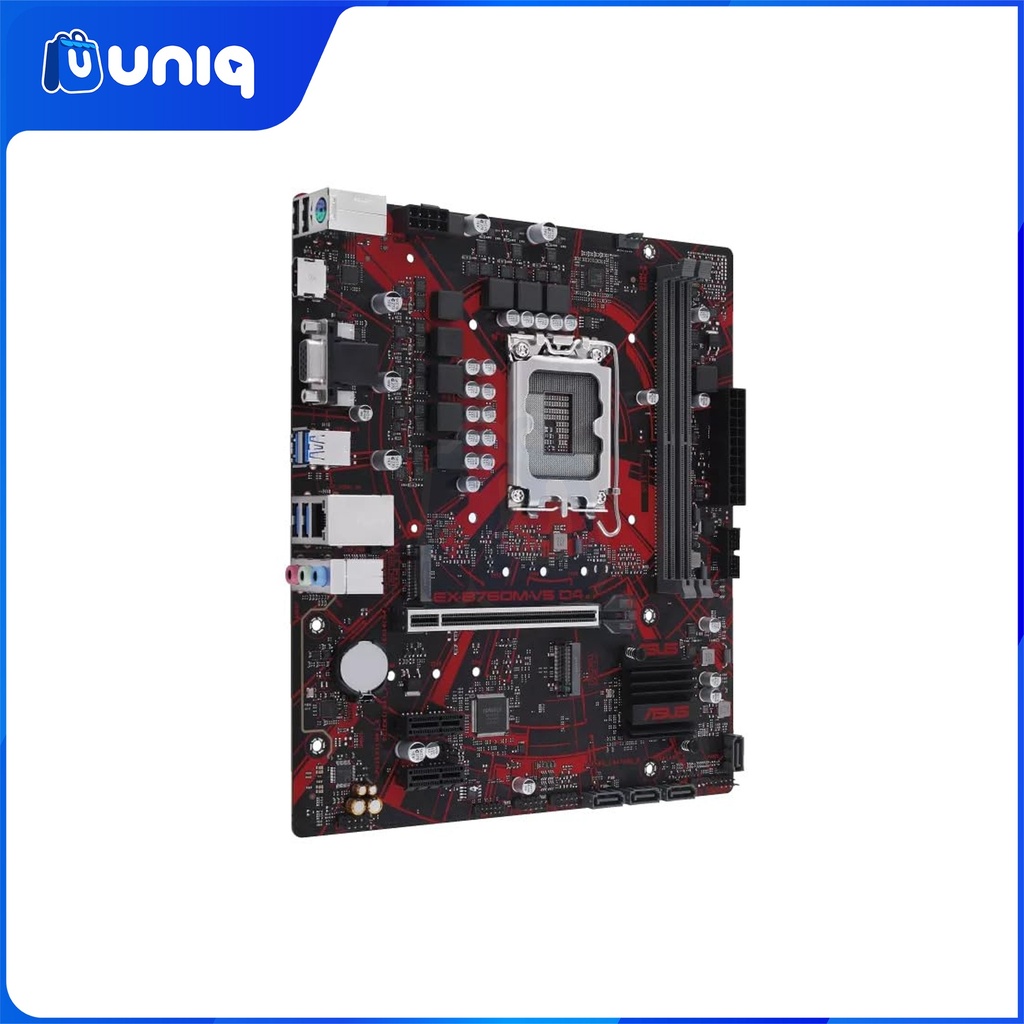

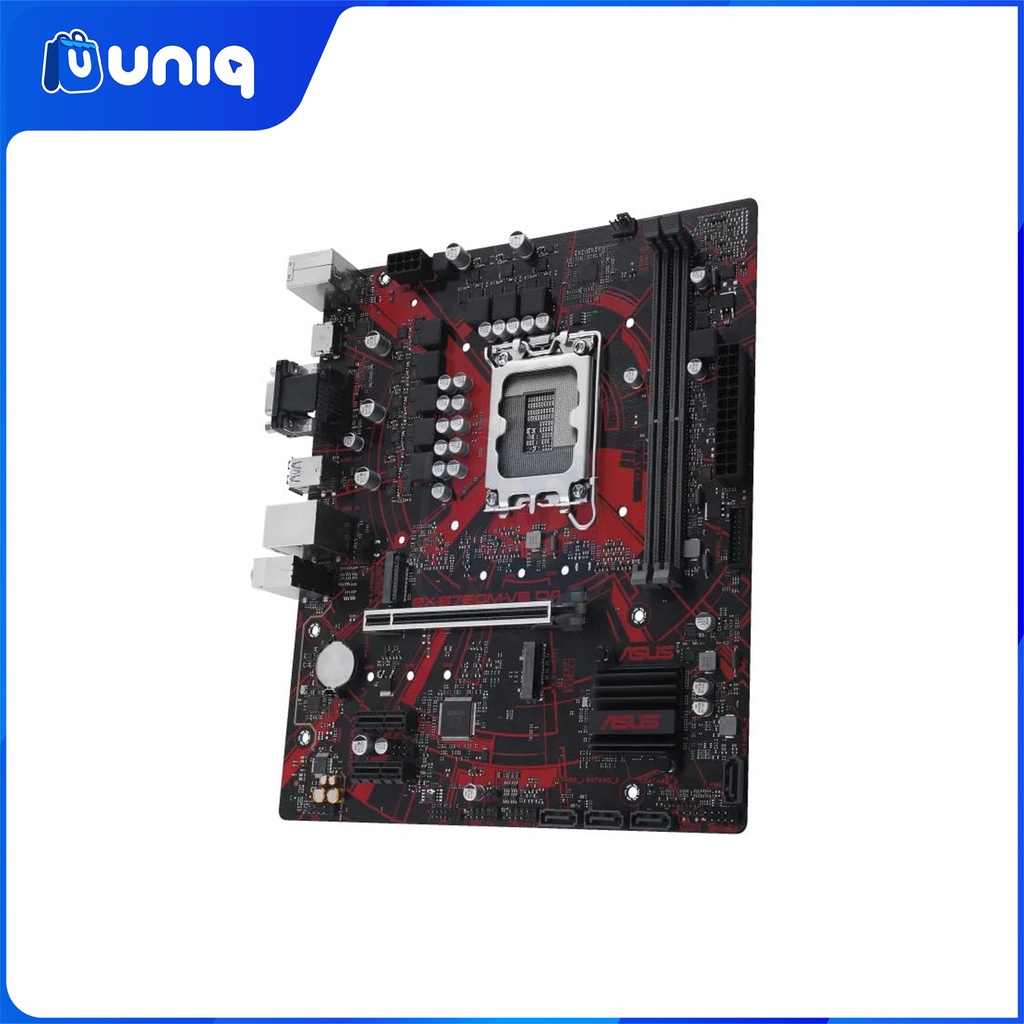

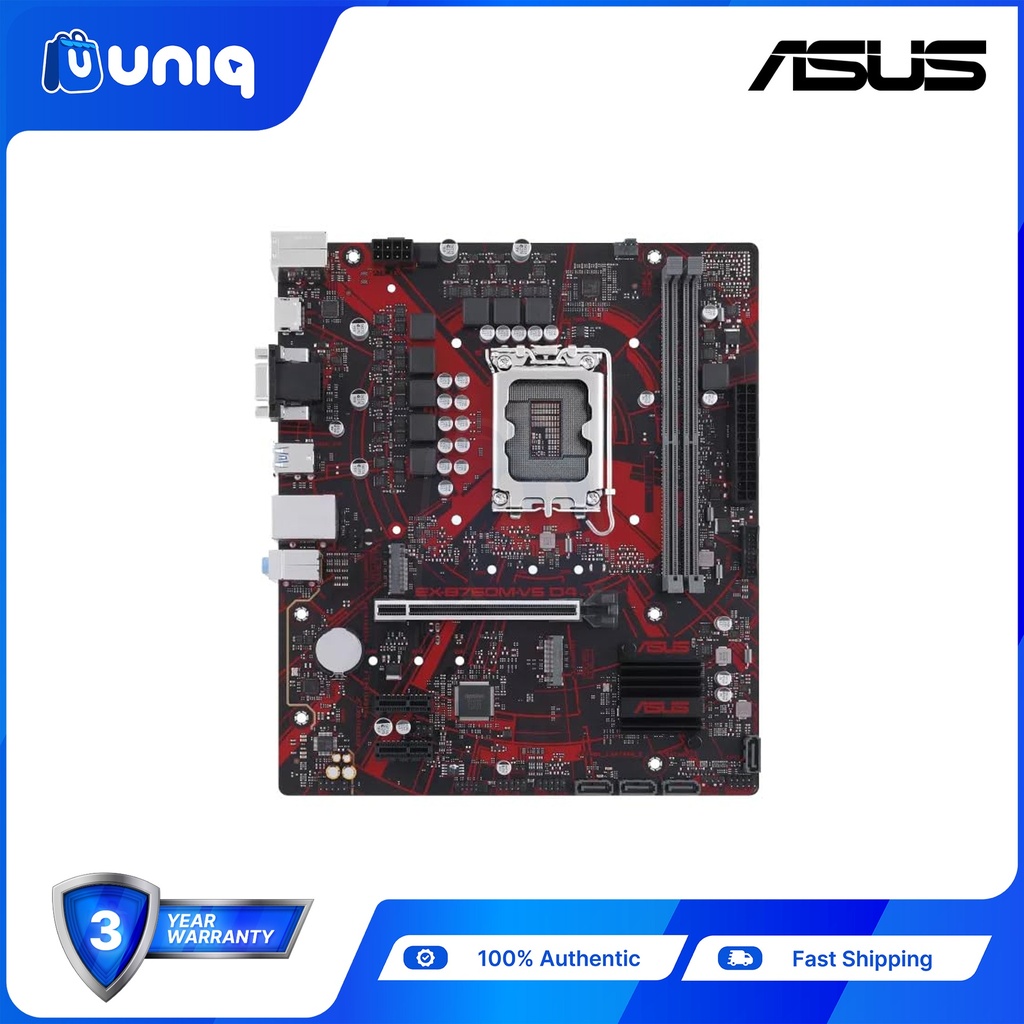

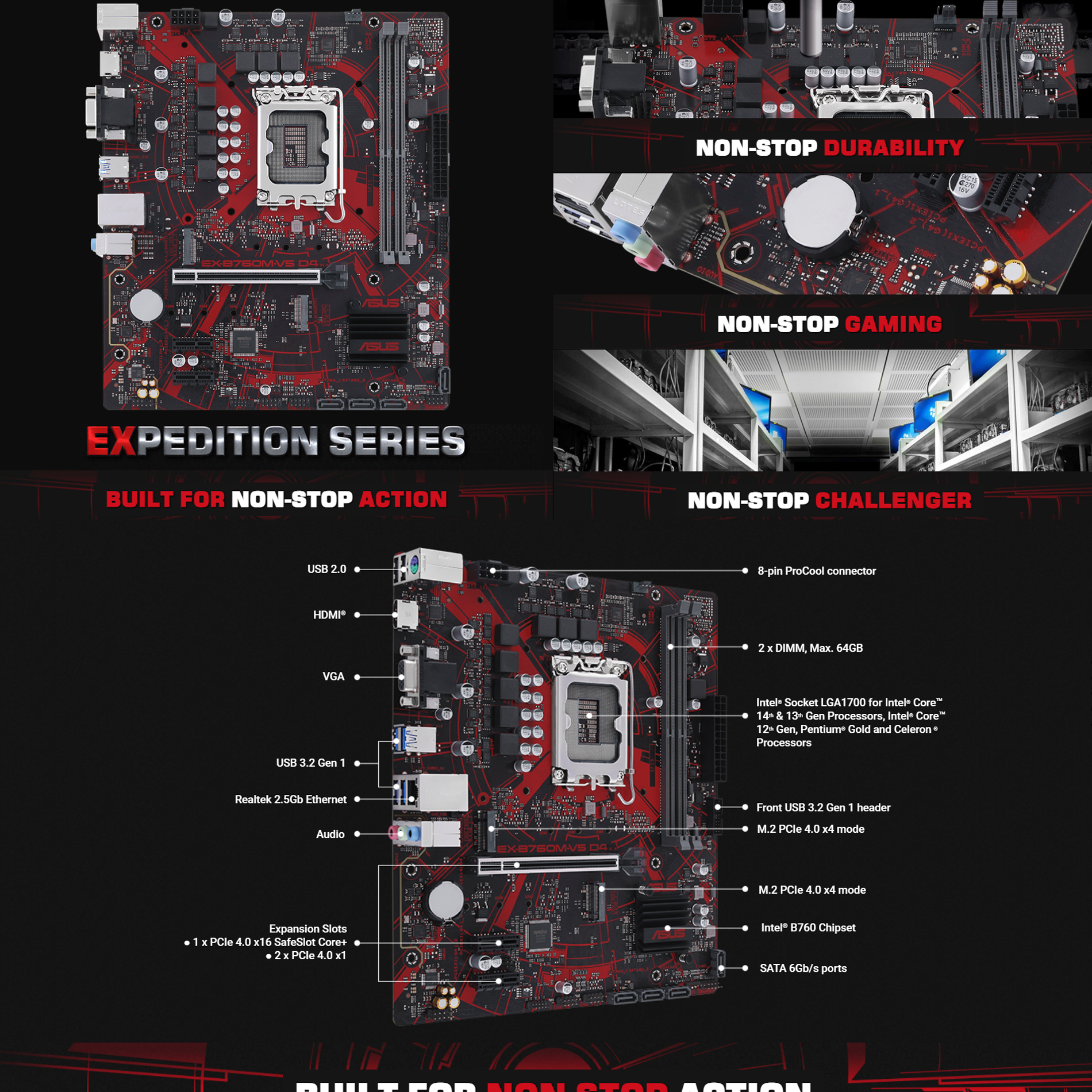

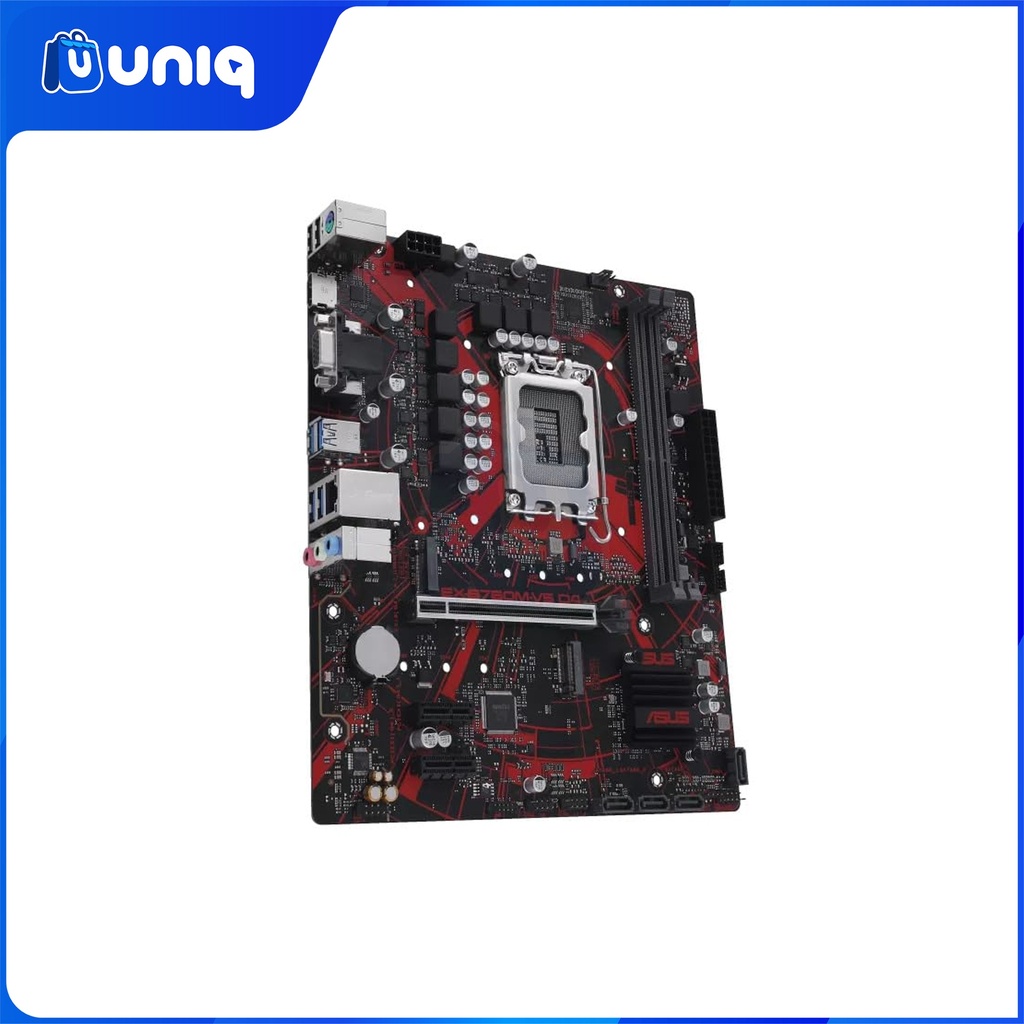

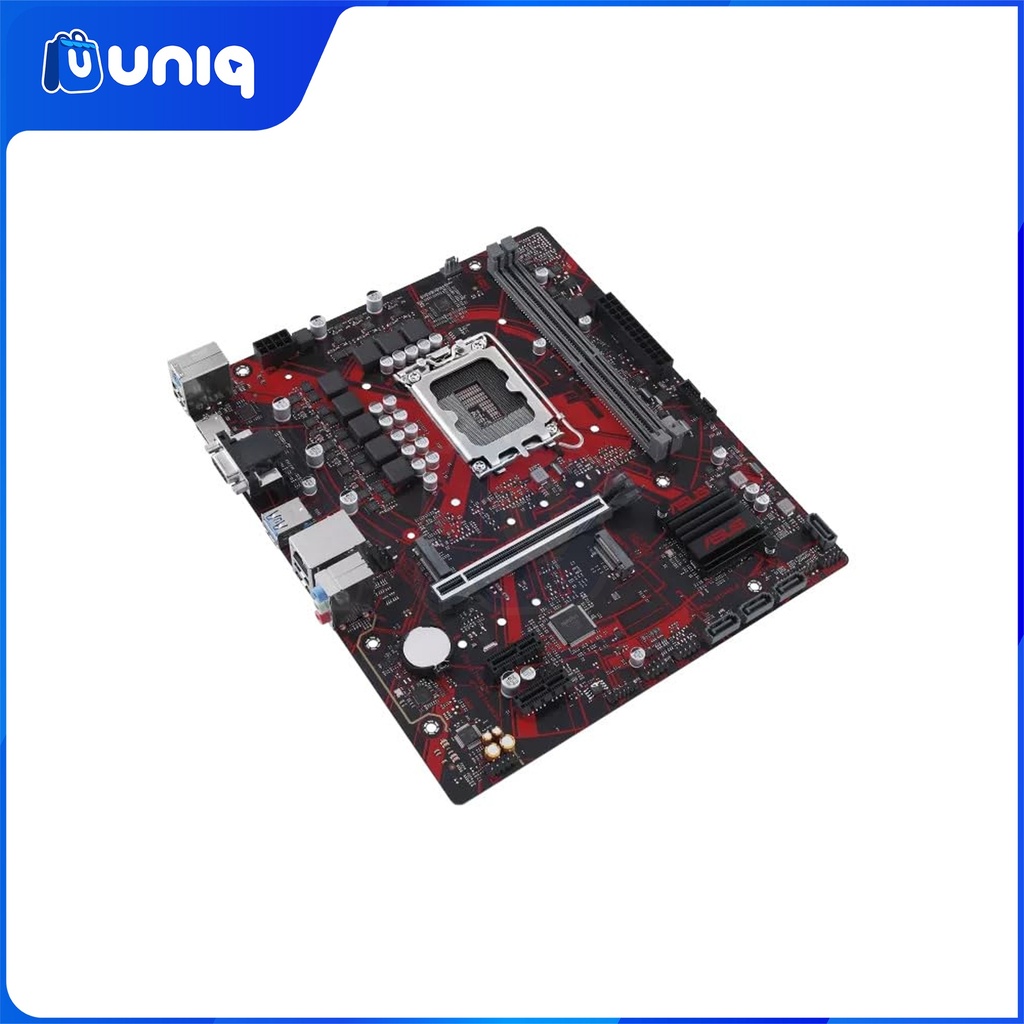

SALE!!! ASUS EX-B760M-V5 D4 Micro-ATX Motherboard

Model

EX-B760M-V5 D4

CPU

Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

Intel® B760 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4

5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Graphics

1 x VGA port1 x HDMI® port

Expansion Slots

Intel® 13th & 12th Gen Processors1 x PCIe 4.0 x16 slotIntel® B760 Chipset2 x PCIe 4.0 x1 slots

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 2.5Gb Ethernet

USB

Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 6 ports)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

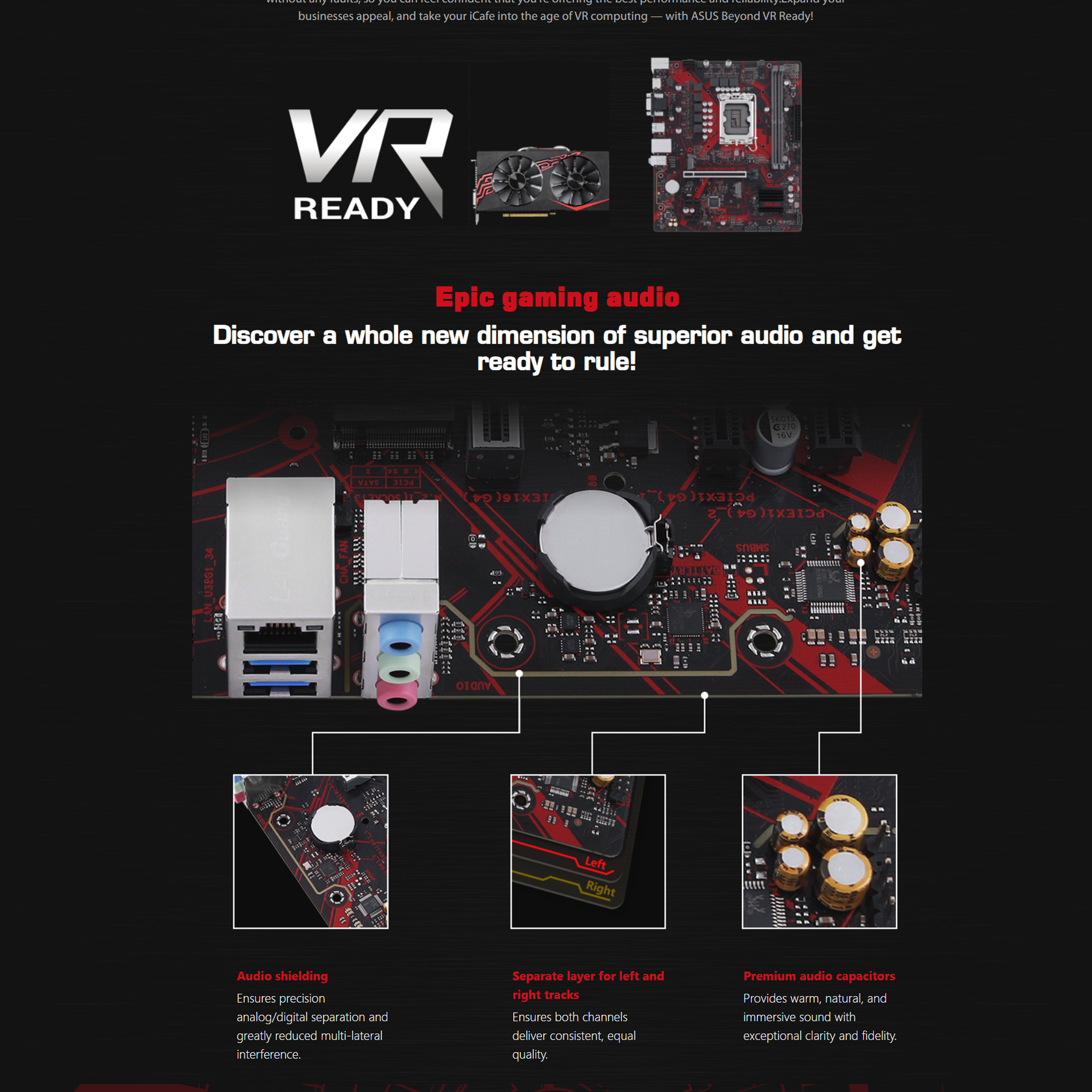

Realtek 7.1 Surround Sound High Definition Audio CODEC

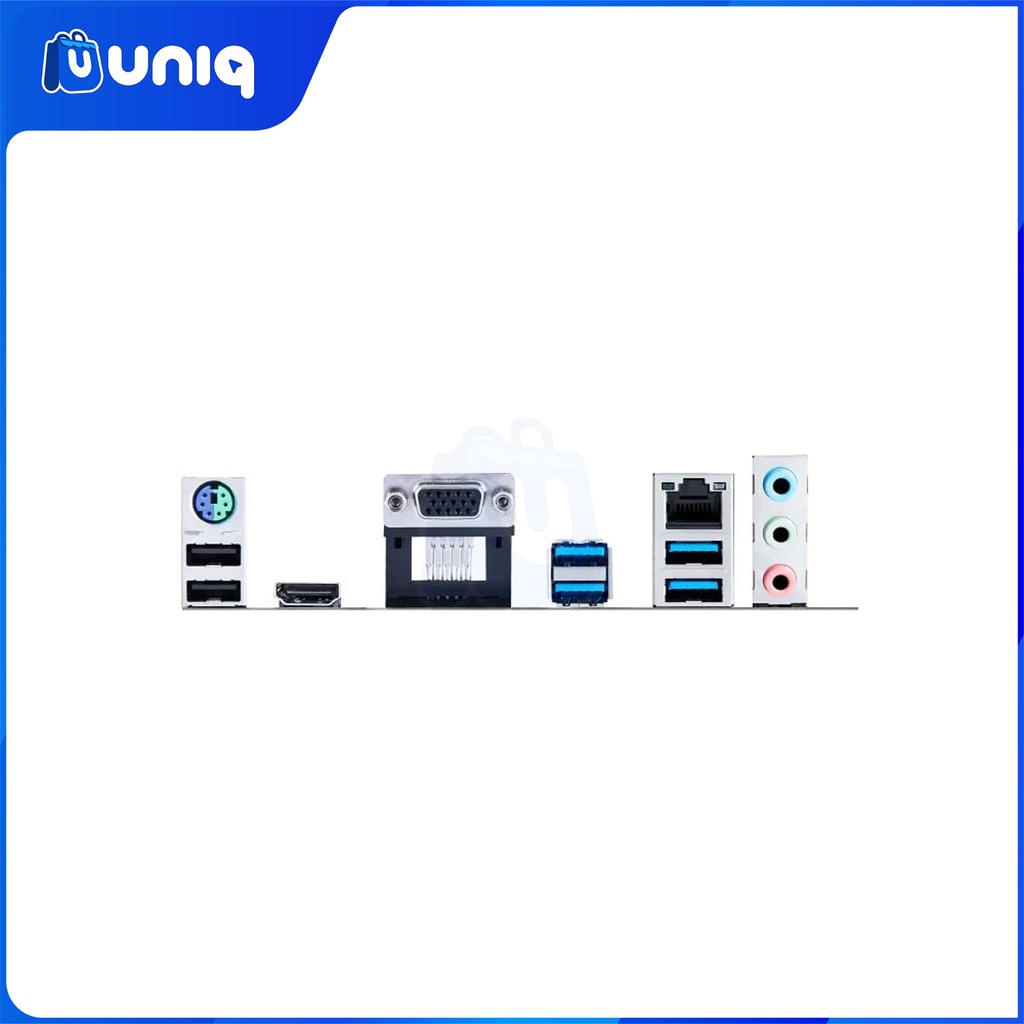

Back Panel I/O Ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMI® port3 x Audio jacks1 x Realtek 2.5Gb Ethernet port1 x PS/2 Keyboard/Mouse combo port

Special Features

ASUS 5X PROTECTION III, ASUS Q-Design, ASUS EZ DIY, Non-stop Action, Non-stop Challenger, Non-stop Durability

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

mATX Form Factor
