Network Standard
|
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)

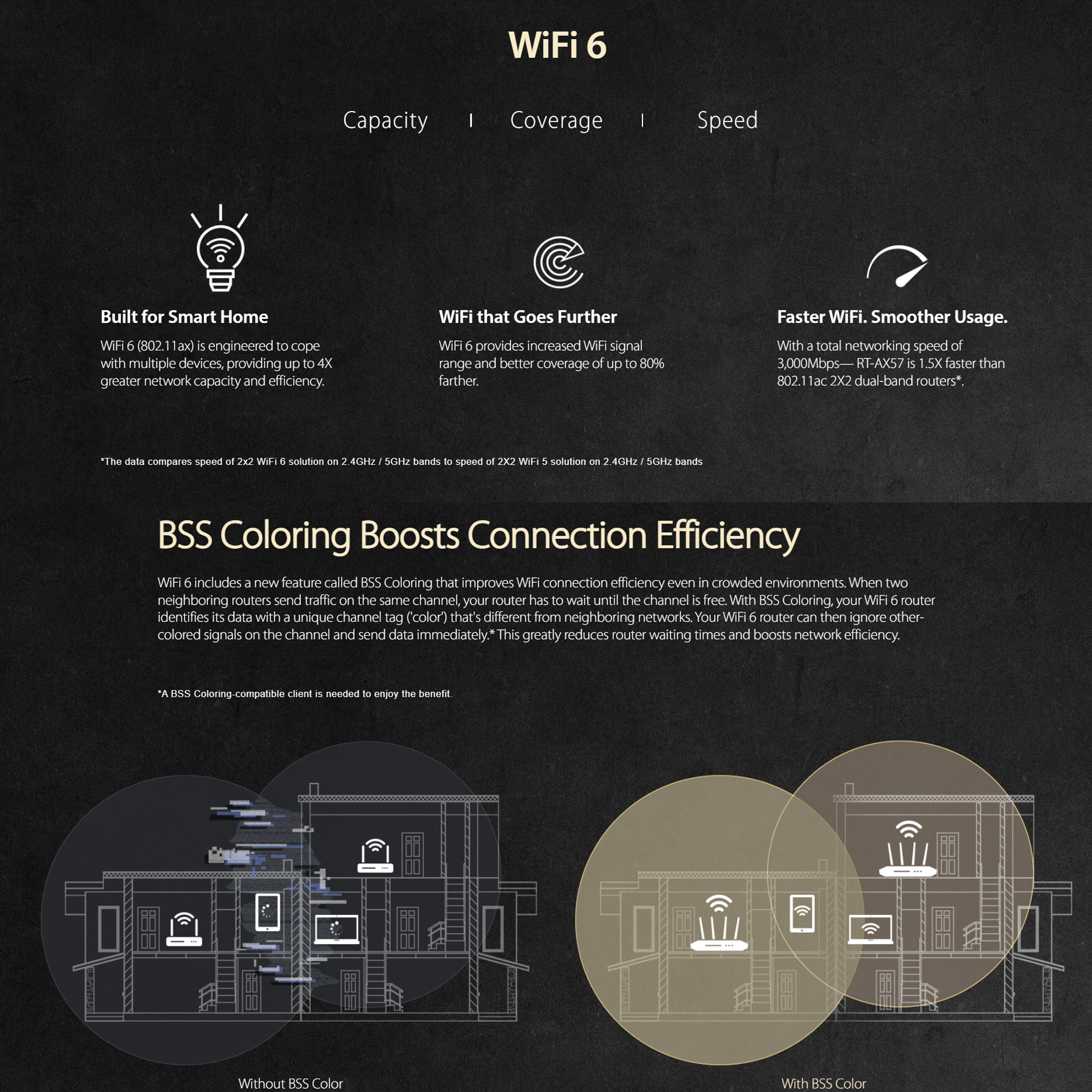

WiFi 6 (802.11ax)
IPv4
IPv6
|
|
Product Segment
|
AX3000 ultimate AX performance :
2402 Mbps+ 574 Mbps
|
|
WiFi Data Rate
|
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
|
|

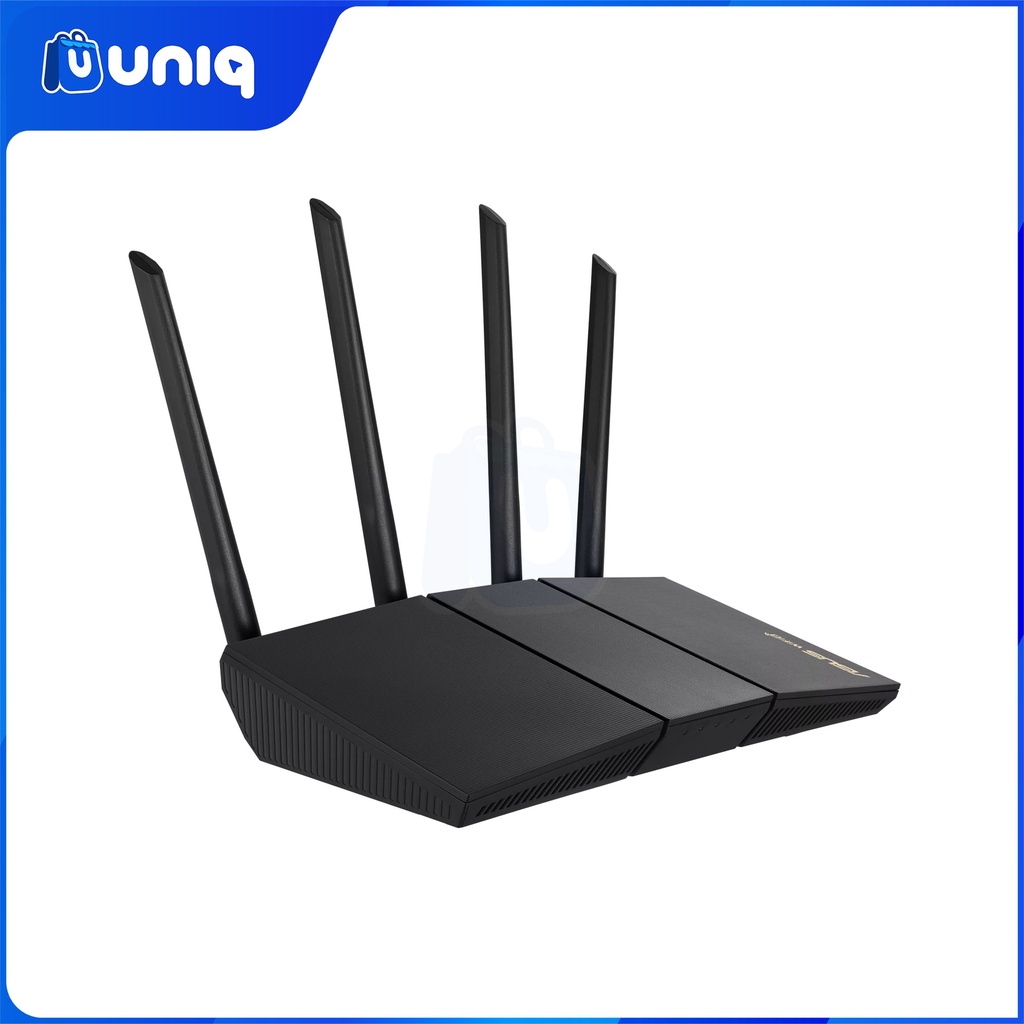

Antenna
|
External antenna x 4
|
|
Transmit / Receive
|
2.4GHz 2x2
5GHz 2x2
|
|
Processor
|
1.7GHz quad-core processor
|
|
Memory
|
128 MB Flash
256 MB RAM
|
|
Boosts Speed
|
OFDMA (Orthogonal Frequency
Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
|
|
Operating Frequency
|
2.4GHz / 5GHz
|
|
Operating Mode
|
Access Point, AiMesh Node, Media
Bridge, Repeater, Router
|
|

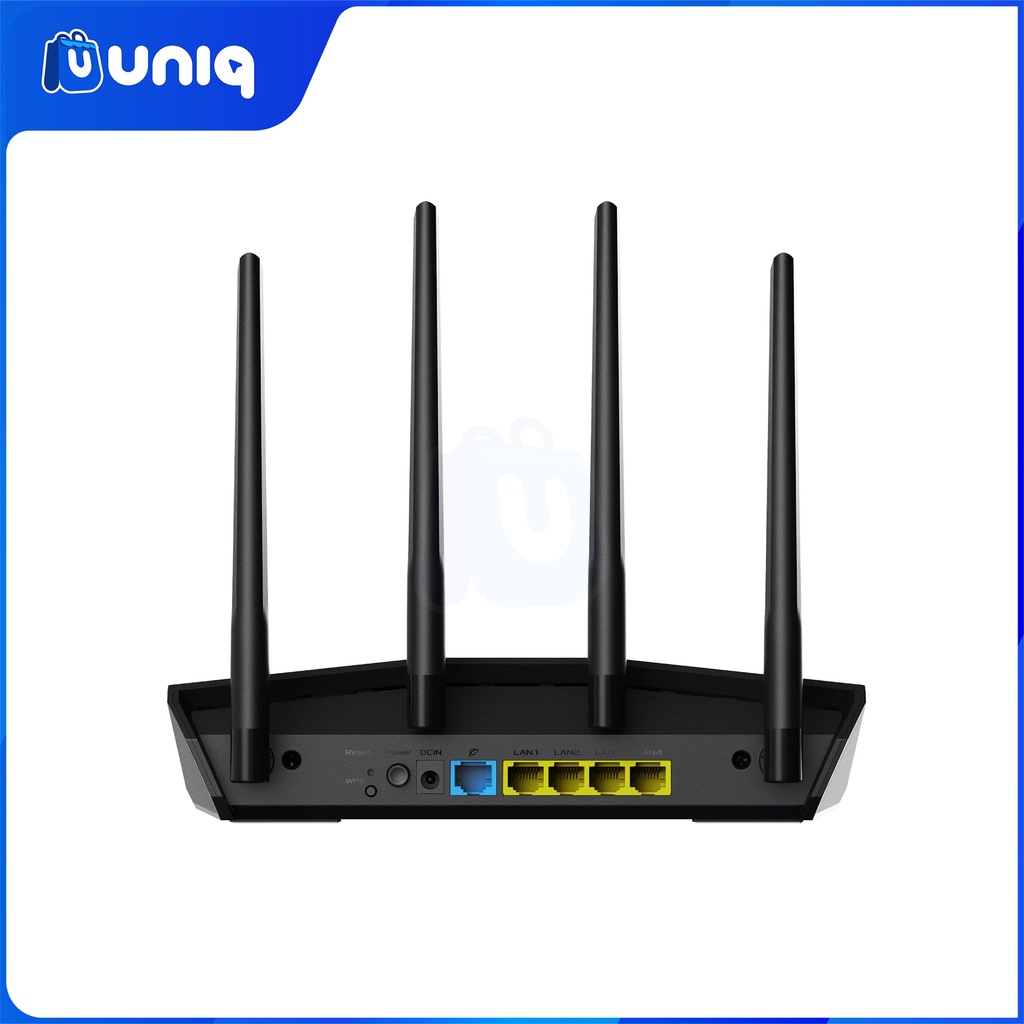

I/O Ports
|
RJ45 for Gigabits BaseT for WAN x
1, RJ45 for Gigabits BaseT for LAN x 4
|
|
Buttons
|
WPS Button, Reset Button, Power
Switch
|
|

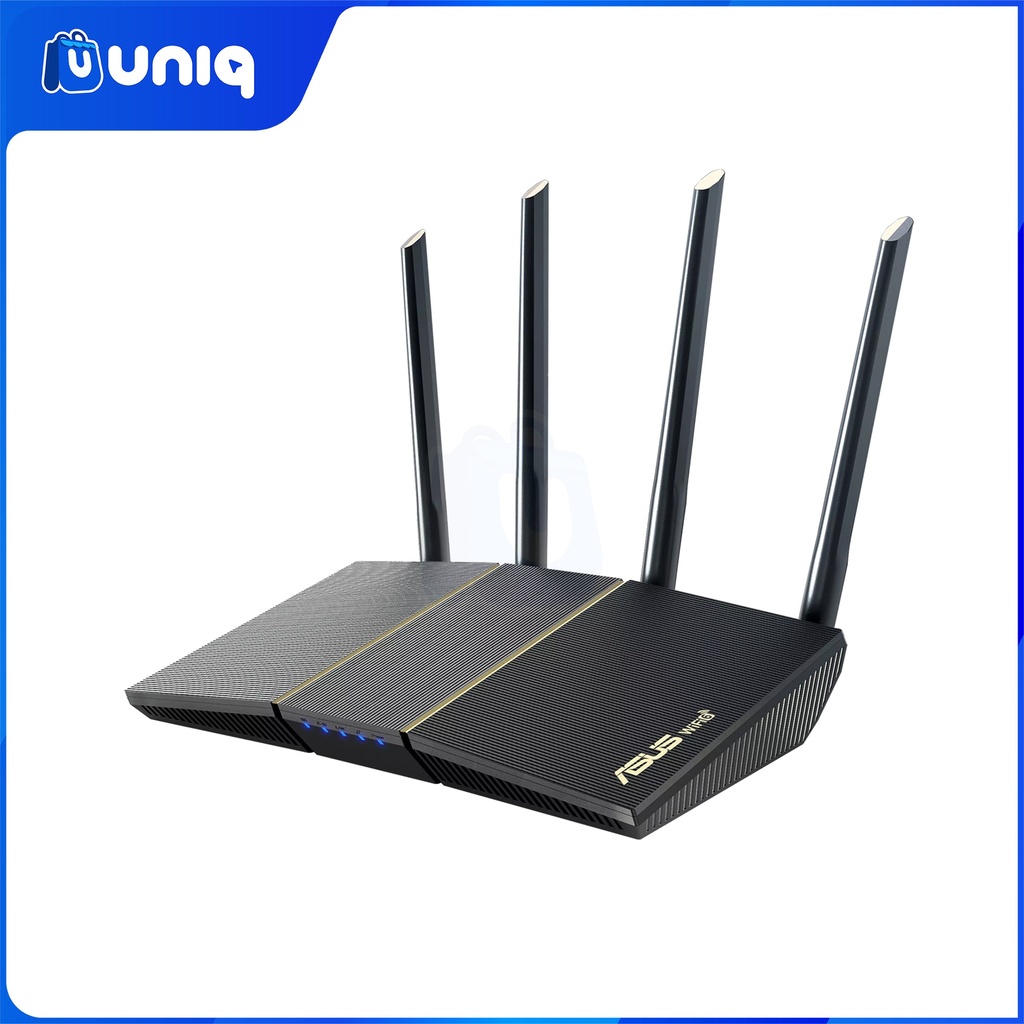

LED Indicator
|
Power x 1
2.4G x 1
5G x 1
LAN x 1
WAN x 1
|
|
Power Supply
|
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current
|
|
Product Weight (g)
|
374g
|
|
Product Dimensions
|
230 x 134 x 56 mm (WxDxH)
|
|
AiMesh
|
AiMesh
• Primary AiMesh Router
• AiMesh Node
|
|
Parental Control
|
"Allow you to block access to
unwanted websites and apps."
Customized Internet Schedule
|
|
Guest Network
|
"The Guest Network provides
Internet connection for guests but restricts access to your local
network."
|
|
Security
|
Open system, WPA/WPA2/WPA3-Personal,
WPA/WPA2-Enterprise
WPS
Let's Encrypt
SSH
Firewall
|
|
AiProtection
|
• Malicious Site Blocking
• Infected Device Prevention and Blocking
|
|
VPN
|
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
|
|
Traffic Control
|
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
|
|
WAN
|
Internet connection Type : PPPoE,
PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port triggering
DMZ
DDNS
|
|
LAN
|
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
Wake on LAN (WOL)
|
|
Wireless
|
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
|
|
Administration
|
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
|
