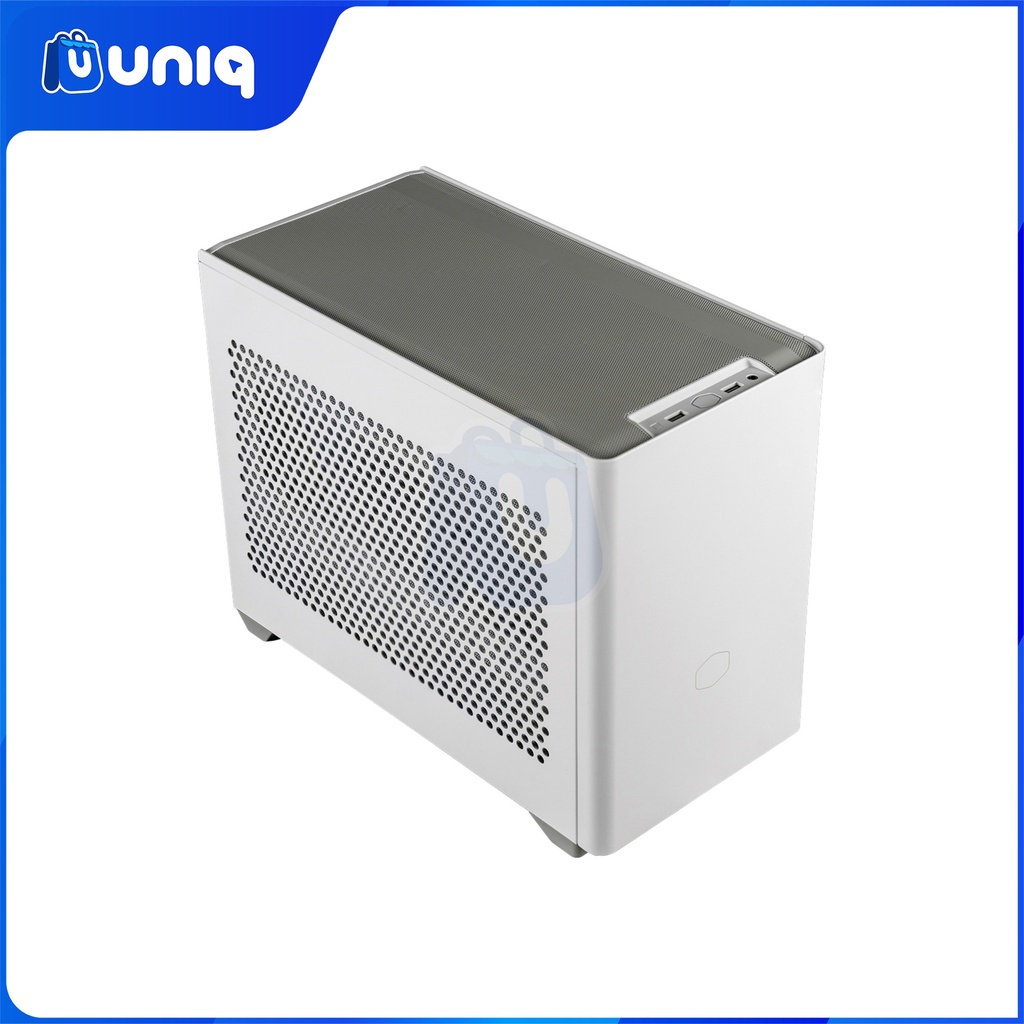

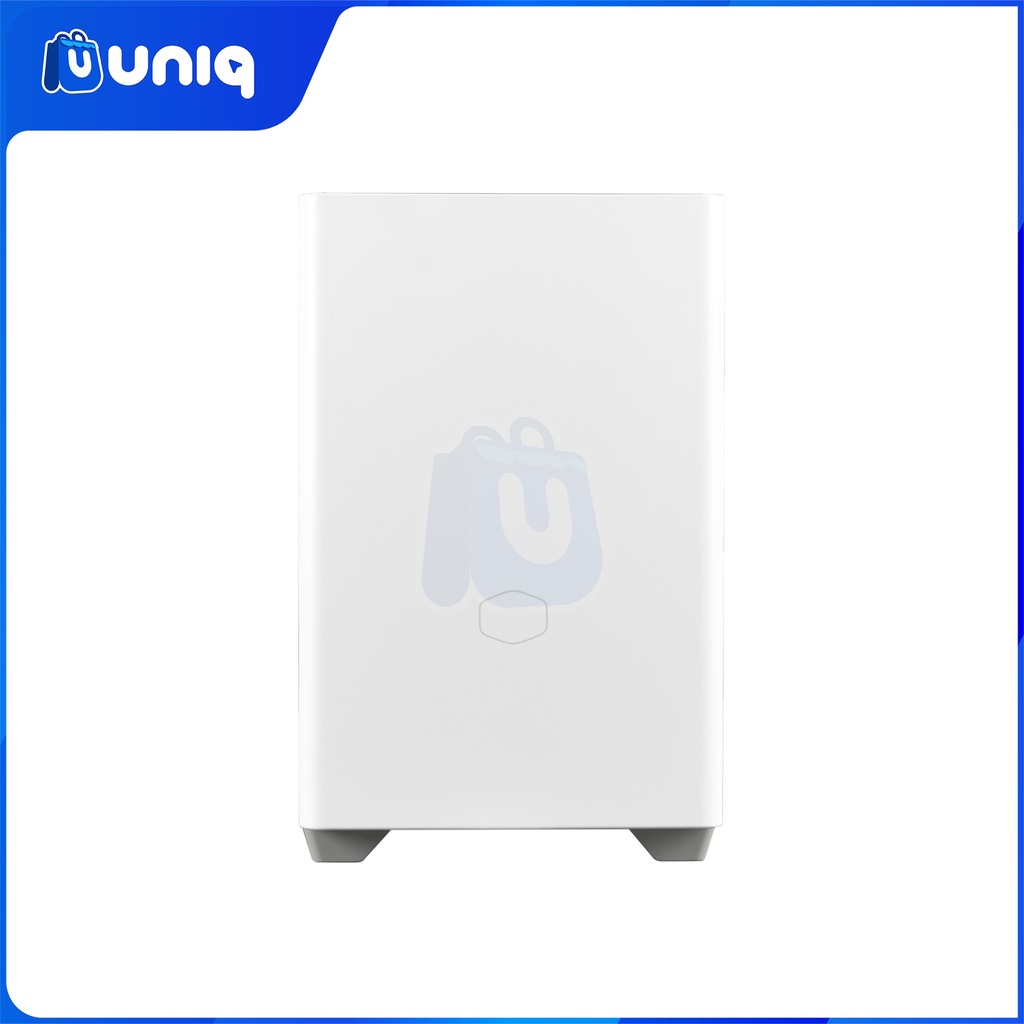

Exterior Color
|
White / Grey
|
|
Materials - Exterior
|
SGCC Steel, Mesh, ABS
Plastic
|
|

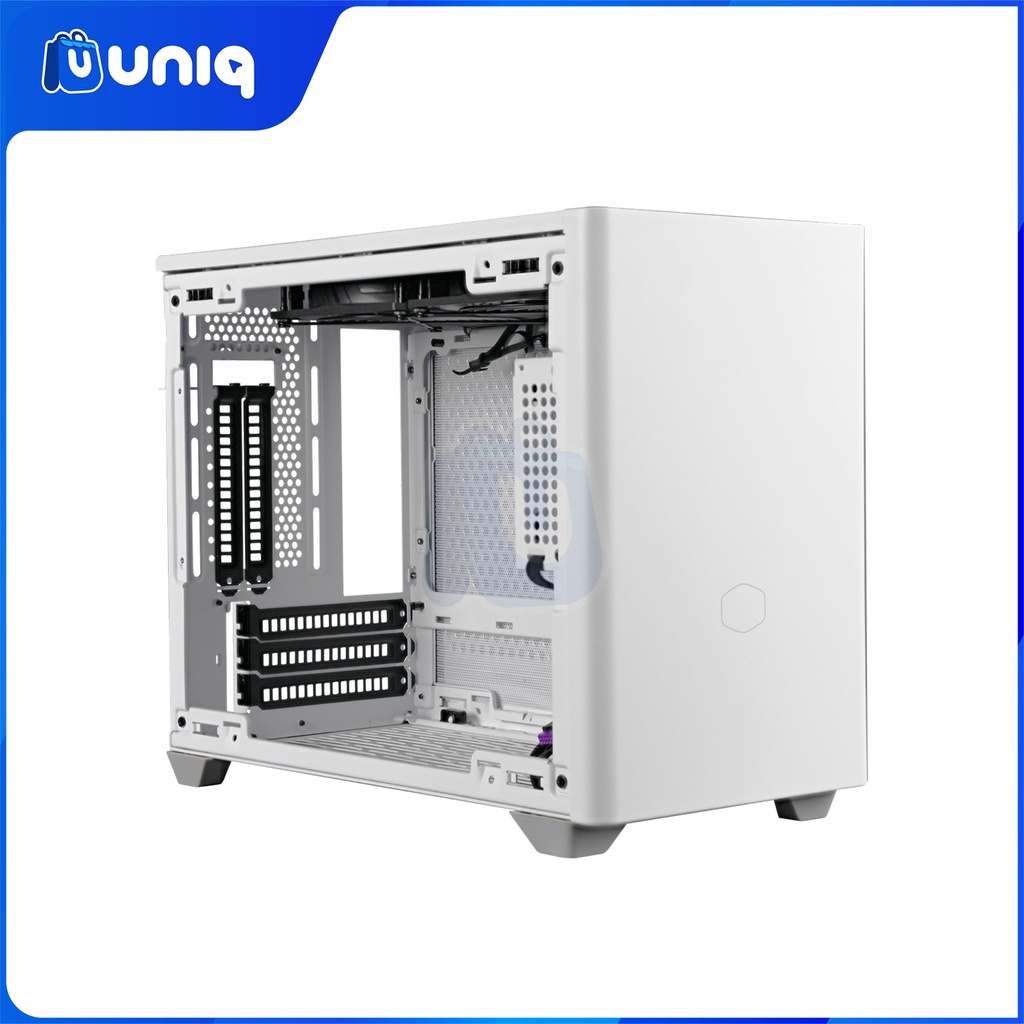

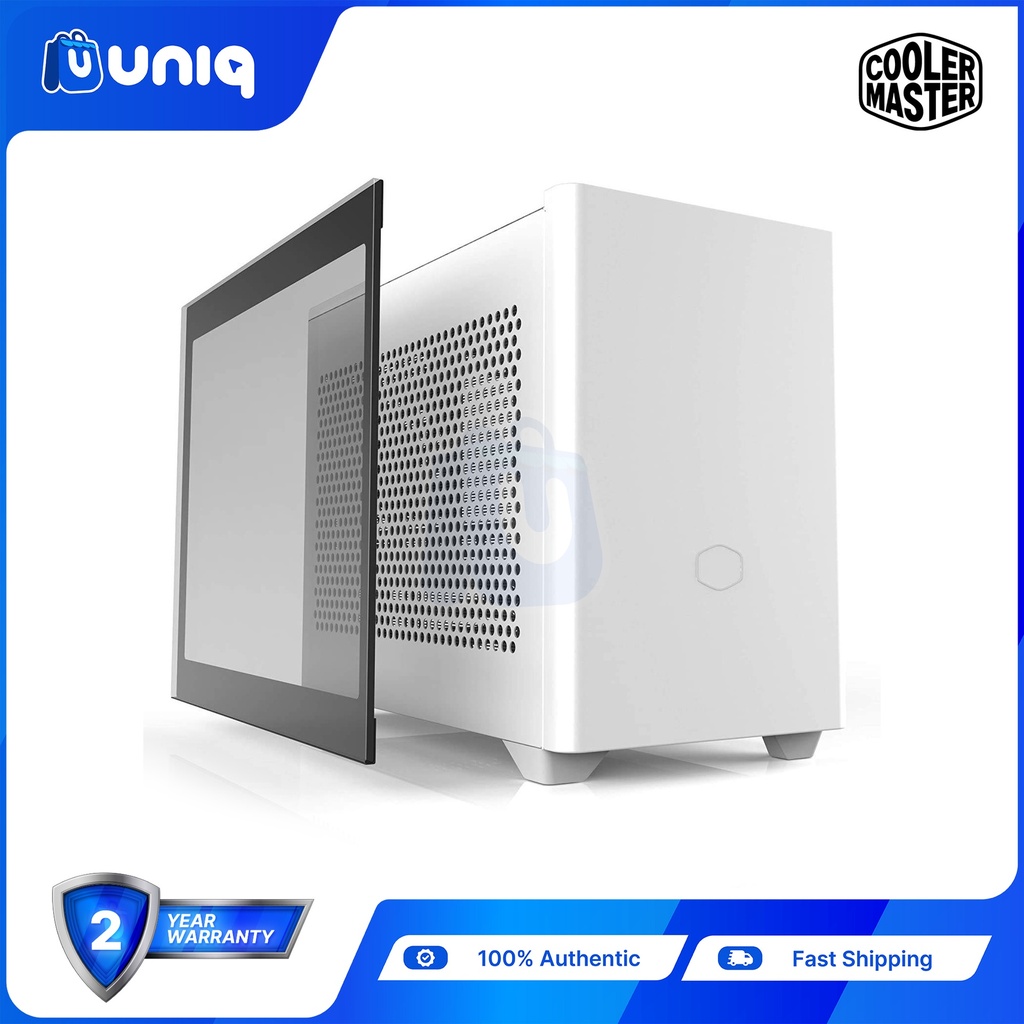

Materials - Left Side
Panel
|
Tempered Glass x1, Steel
x1
|
|
Dimensions (L x W x H)
|
376 x 185 x 292mm (incl.
Protrusions), 360 x 185 x 274mm (excl. Protrusions)
|
|
Volume
|
18.25L (exlc. Protrusions)
|
|

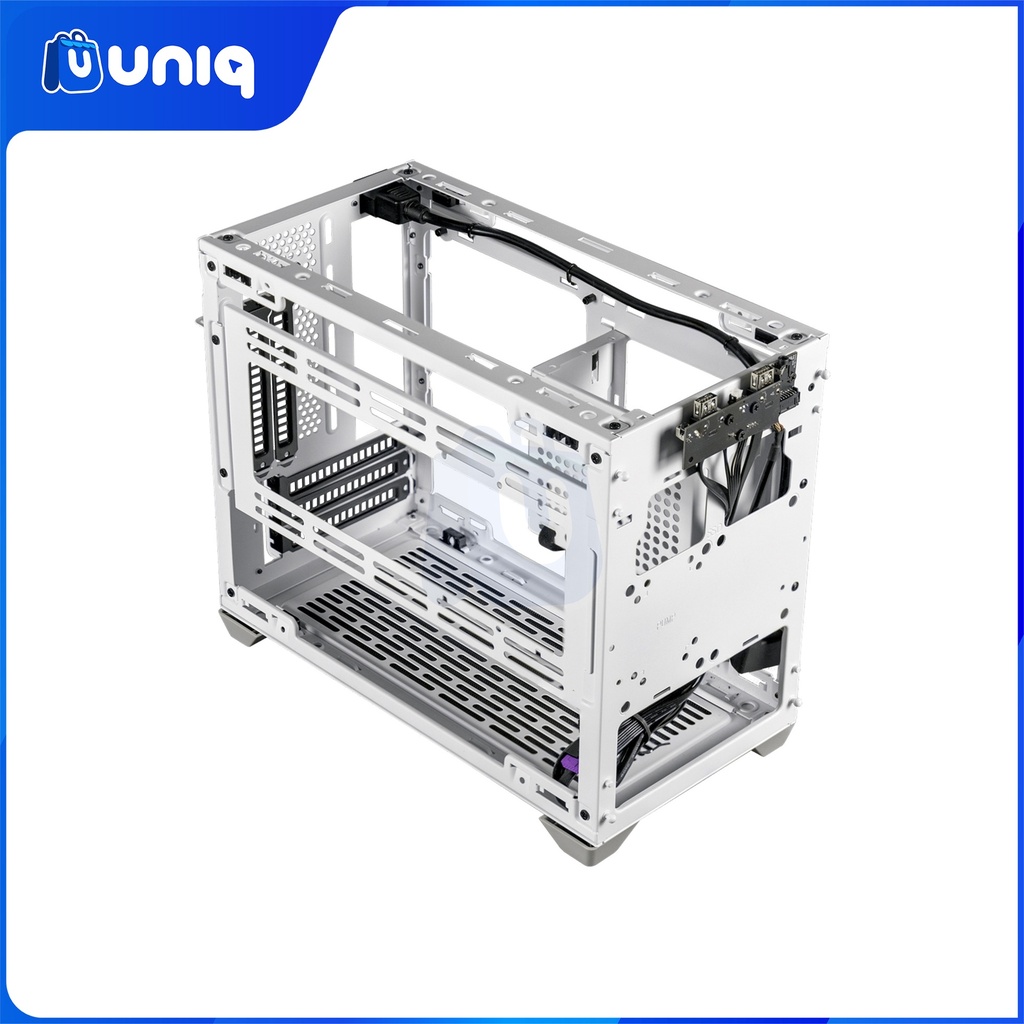

Motherboard Support
|
Mini-ITX, Mini-DTX, Max.
size: 244 x 226mm
|
|
Expansion Slots
|
3
|
|
5.25" Drive Bays
|
0
|
|
3.5" Drive Bays
|
1 (Max. 2)
|
|
2.5" / 3.5"
Drive Bays (Combo)
|
1
|
|
2.5" Drive Bays
|
2 (Max. 3)
|
|
I/O Panel - USB Ports
|
2x USB 3.2 Gen 1 (USB 3.0)
|
|
I/O Panel - Audio In / Out
|
1x 3.5mm Headset Jack
(Audio+Mic)
|
|
Accessories
|
1x PCIe 3.0 x16 riser
cable
|
|
Pre-installed Fans - Top
|
2x 120mm 650-1800RPM PWM
(SickleFlow)
|
|
Pre-installed Fans - Front
|
N/A
|
|
Pre-installed Fans - Rear
|
N/A
|
|
Pre-installed Fans -
Bottom
|
N/A
|
|
Fan Support - Top
|
2x 120mm
|
|
Fan Support - Side
|
2x 120/140mm
|
|
Fan Support - Rear
|
1x 92mm
|
|
Fan Support - Bottom
|
2x 120mm (recommended slim
fans for GPUs wider than 2.5 PCI slots)
|
|
Radiator Support - Top
|
N/A
|
|
Radiator Support - Left
side
|
120 / 140 / 240 / 280mm
(not compatible with vertical GPU installation)
|
|
Radiator Support - Rear
|
92mm (Not Compatible with
Vertical GPU Installation)
|
|
Radiator Support - Bottom
|
120/240mm (recommended
only for single slot water-cooled GPUs or vertically mounted GPUs)
|
|
Clearance - CPU Cooler
|
155mm (vented steel side
panel), 153mm (tempered glass side panel), 76mm (GPU in vertical position)
|
|
Clearance - PSU
|
130mm
|
|
Clearance - GFX
|
L: 330mm (incl. power
connector), H: 156mm (incl. power connector), W: 60mm (triple slot)
|
|
Dust Filters
|
Bottom, Left, Right, Top
Panels
|
|
Power Supply Support
|
SFX, SFX-L
|
|
Warranty
|
2 years
|
|
Size
|
Mini ITX
|
|
Series
|
MasterBox Series
|
|
Note
|
This product is only
compatible for devices that support the PCI-E 3.0 specification. If you use
this product with a motherboard that supports PCI-E 4.0, please enter into
BIOS option and select PCI-E 3.0 before installation.
|
|
Note
|
Single slot water-cooler GPUs or vertically mounted GPUs are recommended
when using bottom radiator position
|
