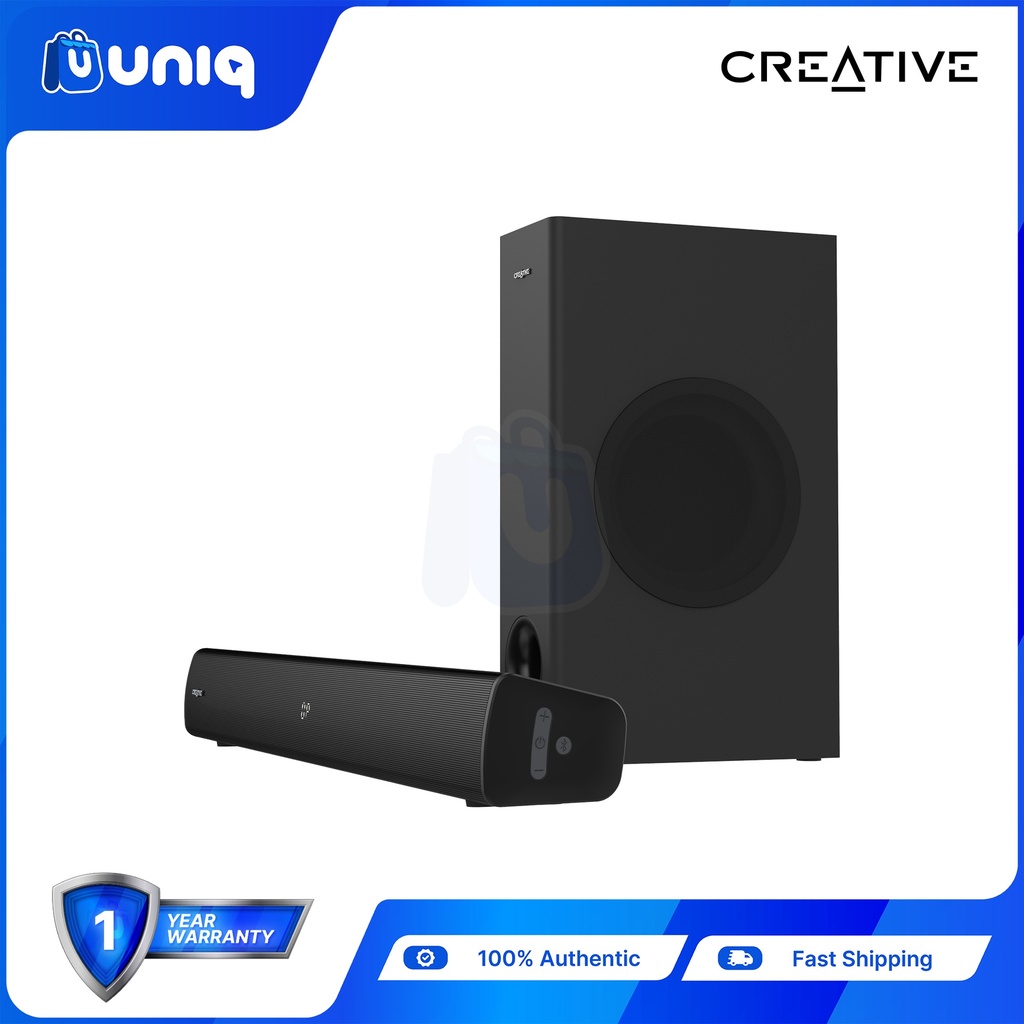

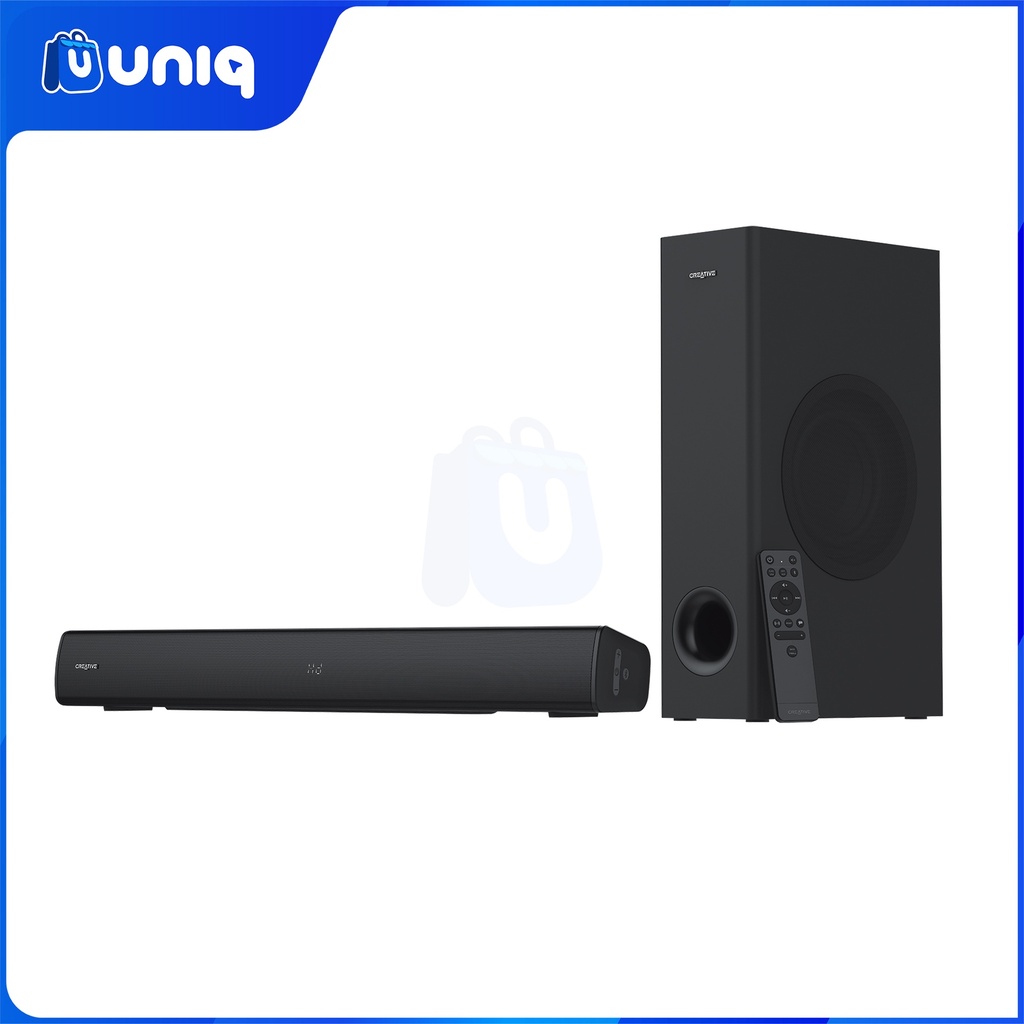

Speaker Configuration
|
2.1 system, Soundbar, Speakers with Subwoofer
|
|
Connector Type
|
TV (ARC), USB-in, Optical-in (TOSLINK), Bluetooth®, Aux-in, AC Wall
Plug
|
|
Operating Temperature
|
0—45°C
|
|
Recommended Usage
|
Movies / Music
|
|

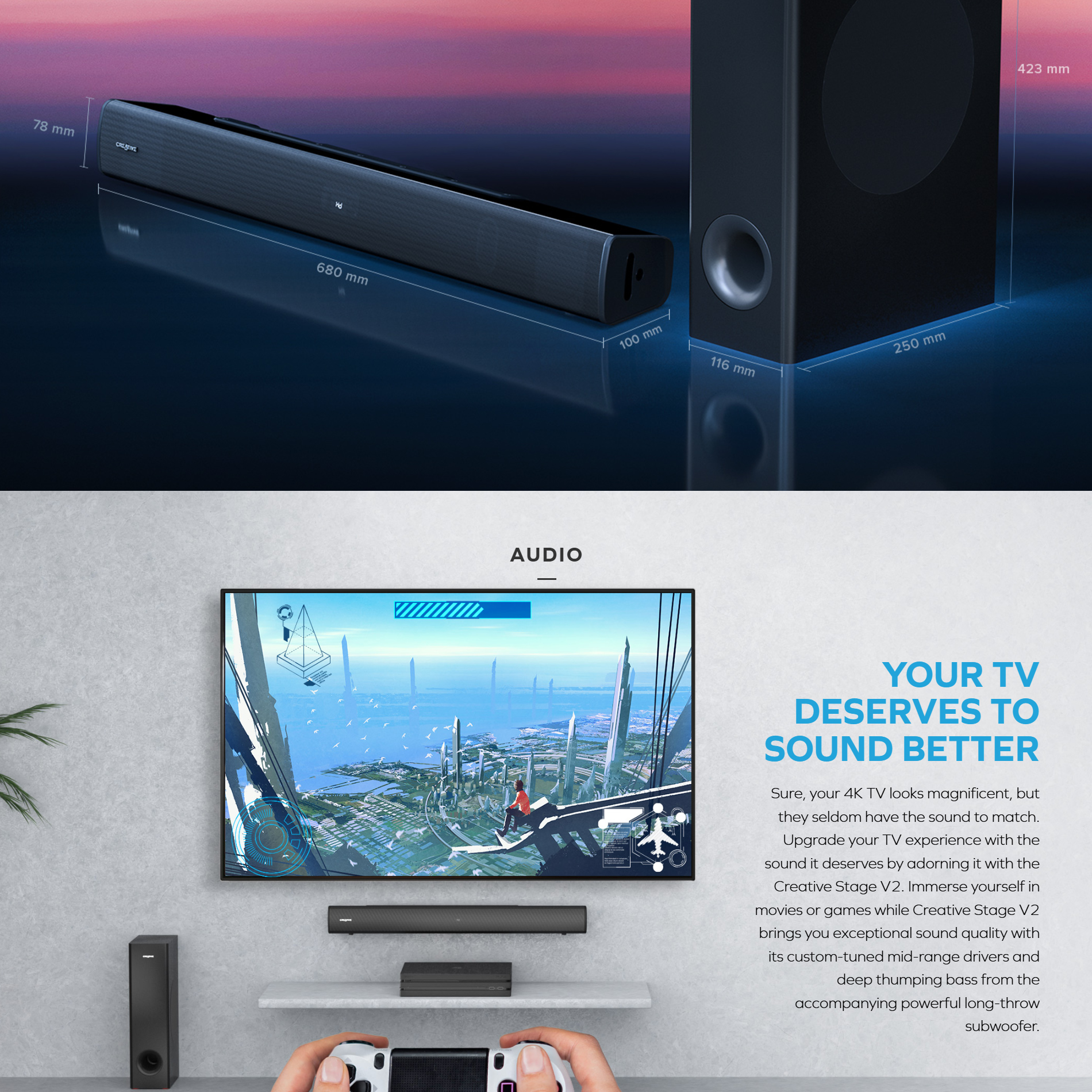

Dimensions
|
680 x 100 x 78 mm / 26.8 x 3.9 x 3.1 inches, 116 x 250 x 423 mm / 4.6
x 9.9 x 16.7 inches
|
|
Weight
|
Soundbar: 2.0 kg / 4.4 lbs, Subwoofer: 3.3 kg / 7.3 lbs
|
|
Cable Length (End-to-end)
|
3.5 mm AUX-in Cable: 1.2m (47 inches), Power Cable: 1.5m (59 inches),
Subwoofer Cable: Approx 2m; tethered to subwoofer, Optical Cable: 1.5m / 4.92
ft
|
|
Drivers Configuration
|

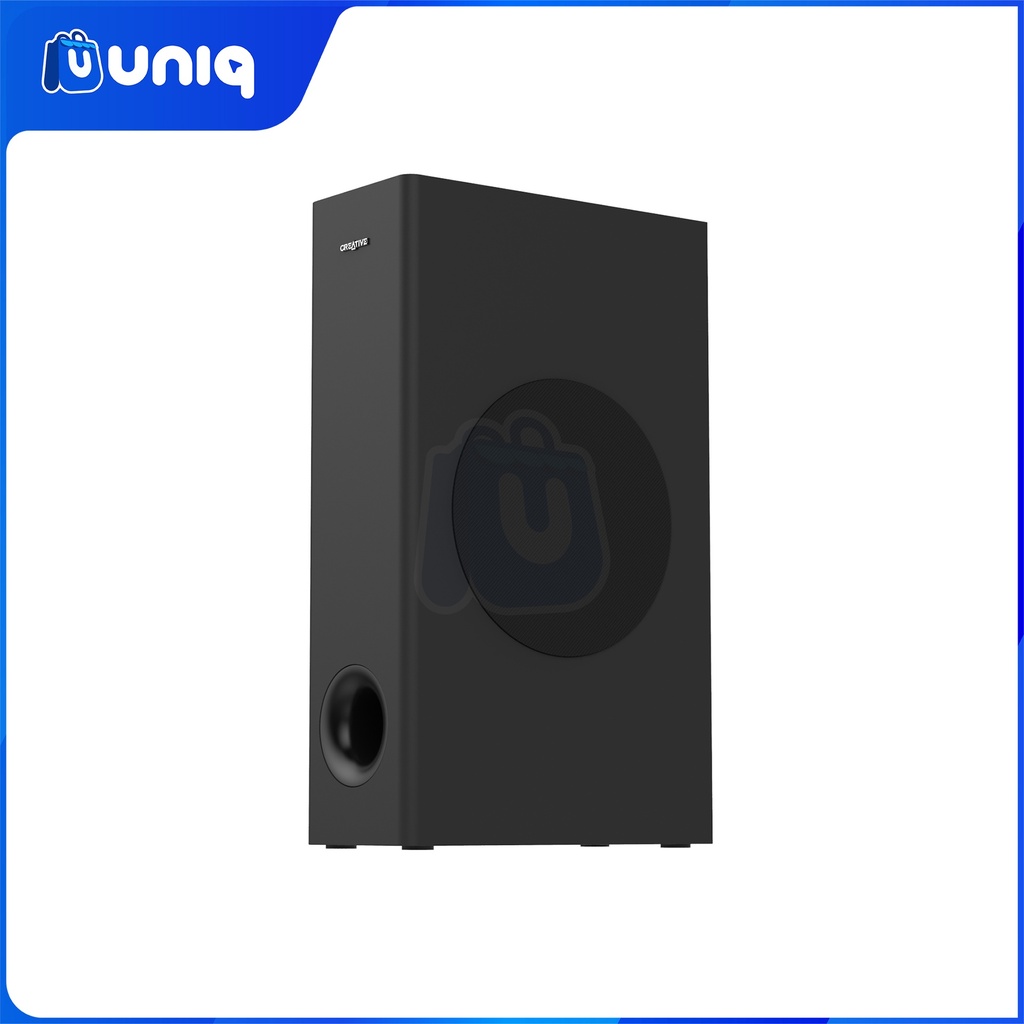

2 x 2.25″ Drivers, 1 x 5.25″ Subwoofer Driver
|
|
Frequency Response
|
55–20,000 Hz
|
|
Signal-to-Noise Ratio (SNR)
|
≥ 75 dB
|
|
Power Output
|
Satellites: 2 x 20W RMS, Total System Power: Up to 80W RMS, Peak
Power: 160W, Subwoofer: 1 x 40W RMS
|
|
Bluetooth® Version
|
5.0
|
|
Profiles
|
*Stereo Bluetooth or A2DP profile enables wireless transmission of
full stereo sound to other Bluetooth devices. To determine whether your
device (notebook, PC, or mobile device) is equipped with A2DP-enabled
Bluetooth technology, refer to your device manufacturer's documentation /
website for more information., (AVRCP) Audio / Video Remote Control Profile,
(A2DP) Advanced Audio Distribution Profile
|
|
Operating Frequency
|
2402–2480 MHz
|
|
Operating Range
|
Up to 10m / 33 ft*, *Measured in open space. Walls and structures may
affect range of device.
|
|
Wireless Codecs
|
SBC
|
|
Technology
|
Clear Dialog and Surround, Powered by Sound Blaster
|
|

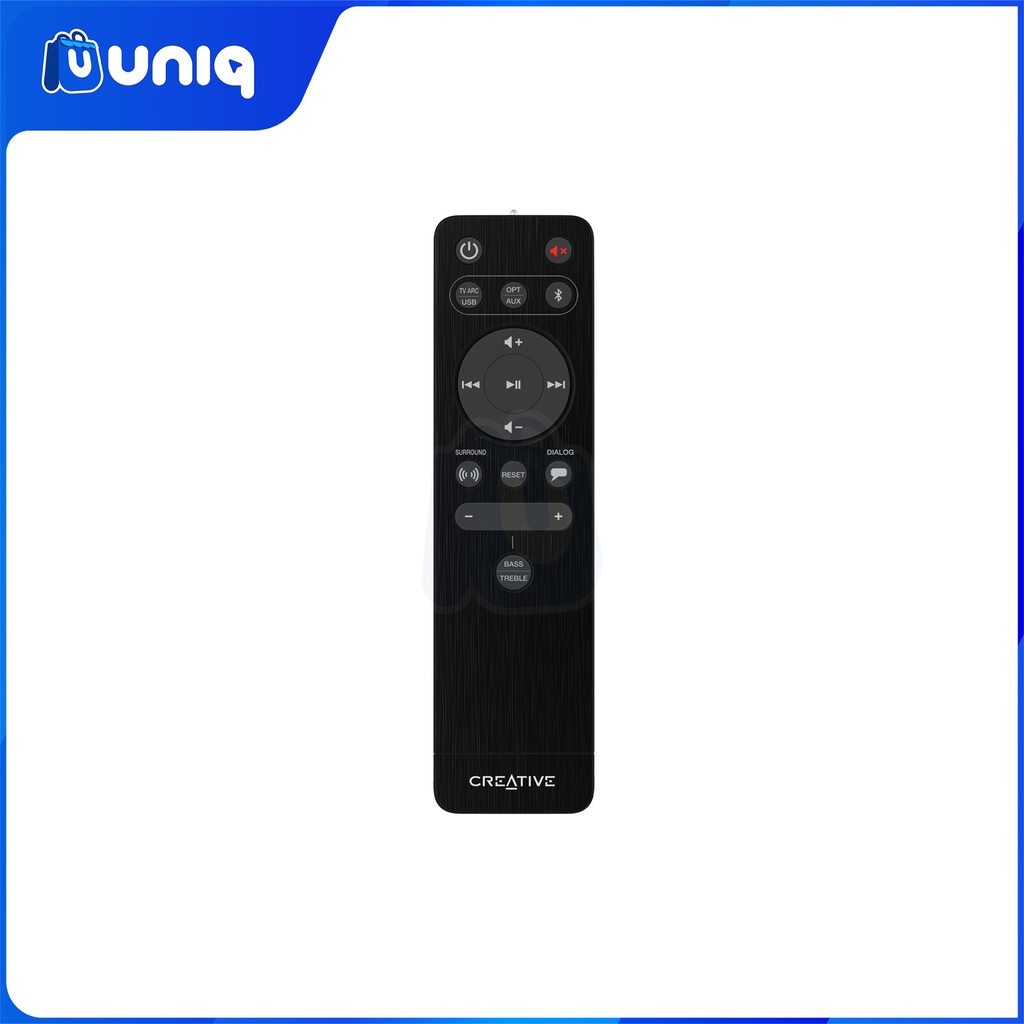

Controls
|
Volume: Yes
|
|
Color
|
Black
|
|
Supported Platforms
|
TV, PS5, PS4 Series, Xbox Series, Nintendo Switch, Mobile (via
Bluetooth®)
|
System Requirements
|
|
|
Windows
|
Intel® i3 or AMD® equivalent processor
Intel, AMD or 100% compatible motherboard
Microsoft® Windows 11, Windows 10 32/64 bit, Windows 8.1/8.0 32/64 bit
1 GB RAM, >600 MB of free hard disk space
Available USB port
|
|
Macintosh
|
Macintosh running MacOS 10.12 or higher
1 GB RAM, >600 MB of free hard disk space
Available USB port
|
|
TV
|
3.5mm stereo jack
Bluetooth with A2DP stereo support
TV (ARC) port
Optical output
|
