General | |
Product Dimension (W × H × D) | 248.40 mm × 154.80 mm × 213.34 mm (9.78"× 6.09"× 8.40") |
Package Dimension (W × H × D) | 306 mm × 290 mm × 59 mm (12.05"× 11.42"× 2.32") |
Net Weight | 0.222 kg (0.489 lb) |
Packing List | Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1 |
Packing Method | Single pack |
Working Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
Working Humidity | 10% to 90% RH non-condensing |
Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
Storage Humidity | 5% to 90% RH non-condensing |
Installation Mode | Desktop installation |
Max. Power Consumption | ≤ 9 W |
Gross Weight | 0.722 kg (1.592 lb) |
Wireless Parameter | |
Data Rate | ≤ 1167 Mbps
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps |
Wireless Standard | IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz |
Working Frequency Band | 2.4 GHz，5 GHz |
Transmitting Power | CE:
<20 dBm(2.4G)
<23 dBm(5G) |
Wireless Performance | 4 × 4 MU-MIMO supported
Beamforming supported |
Receiving Sensitivity | 58 ± 2 dB@AC80 -MCS9
84 ± 2 dB@AC80 -MCS0 |
Antenna | 4 high gain antennas |
Operating Frequency | 2.4 GHz: US/2412-2472 MHz(CH1-CH13)
5 GHz: US/5180-5240 MHz(CH36-CH48)
5 GHz: US/5740-5805 MHz(CH149-CH161) |
EIRP Power(Max.) | 2.4 GHz: 19.86 dBm
5 GHz: 22.96 dBm |
Hardware Parameter | |

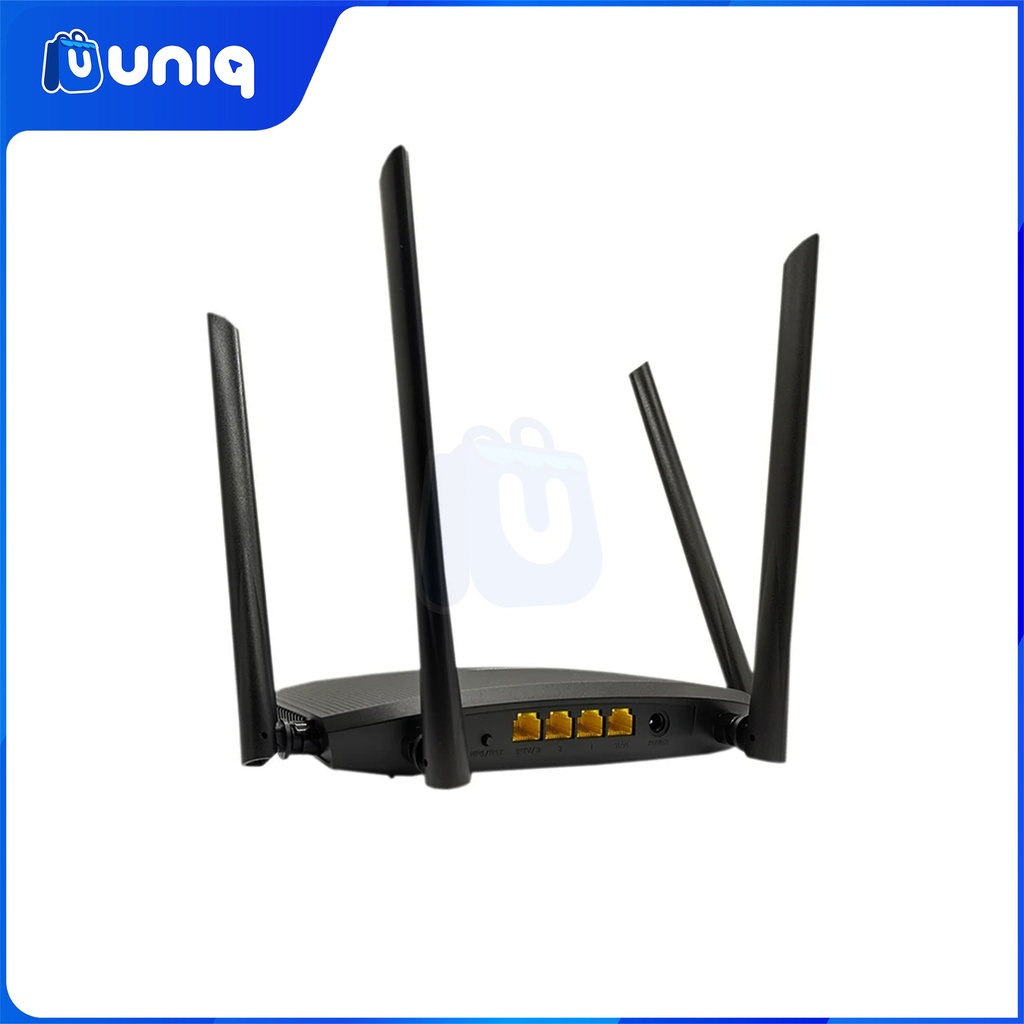

Network Interface | 1*10/100Mbps WAN port 3*10/100Mbps LAN ports |
LED Indicator | LED indicator |
Reset | Reset button |
Power Supply Method | 9 VDC, 1 A power adapter power supply |
Power Specifications | 9 VDC, 1 A |
Software Function | |
Application function | Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
DHCP Server supported
Guest Network Configuration supported
Signal Adjustment supported
WiFi Schedule supported |
Security Mode | WPA-PSK, WPA2-PSK, WPA and WPA2 supported |
Security Mechanism | Hide SSID |
Management Method | Web |
Upgrade | Web Update and Upgrade |
System Log | System log |
