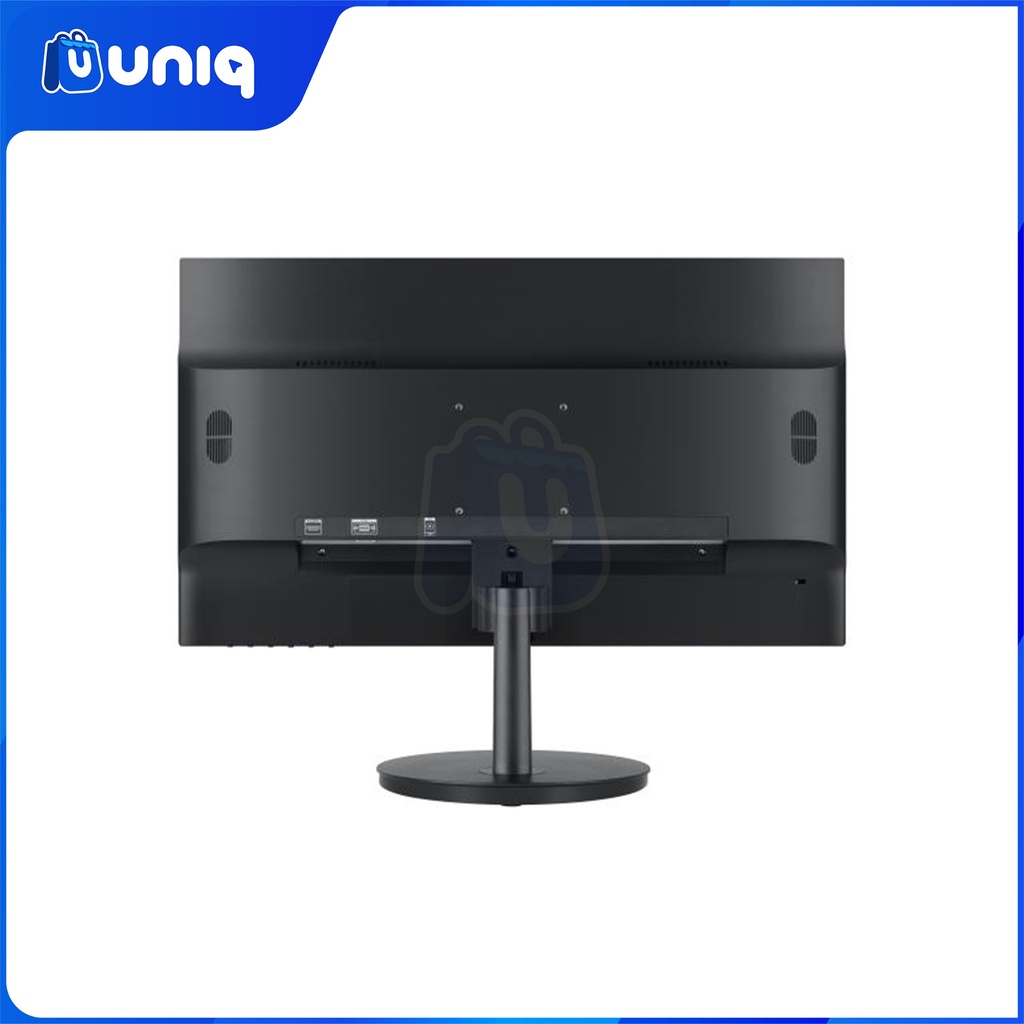

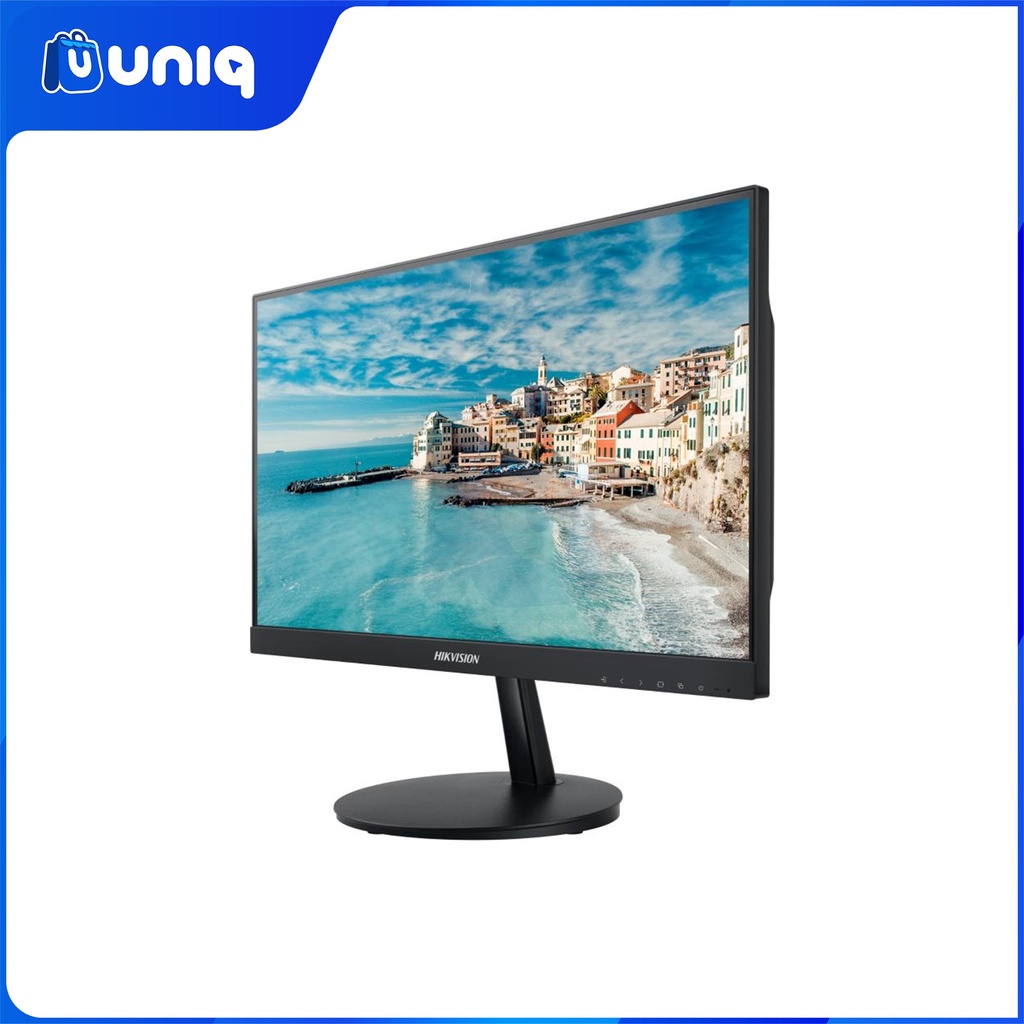

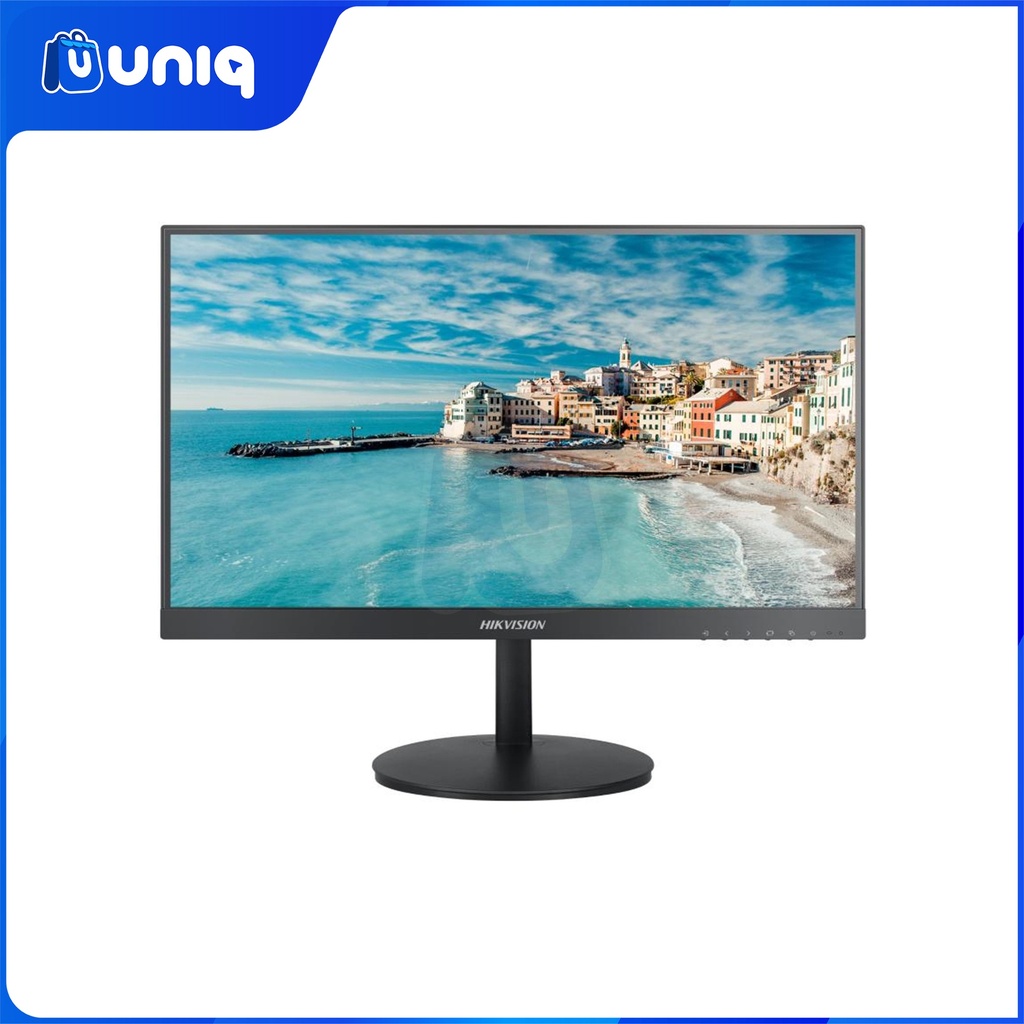

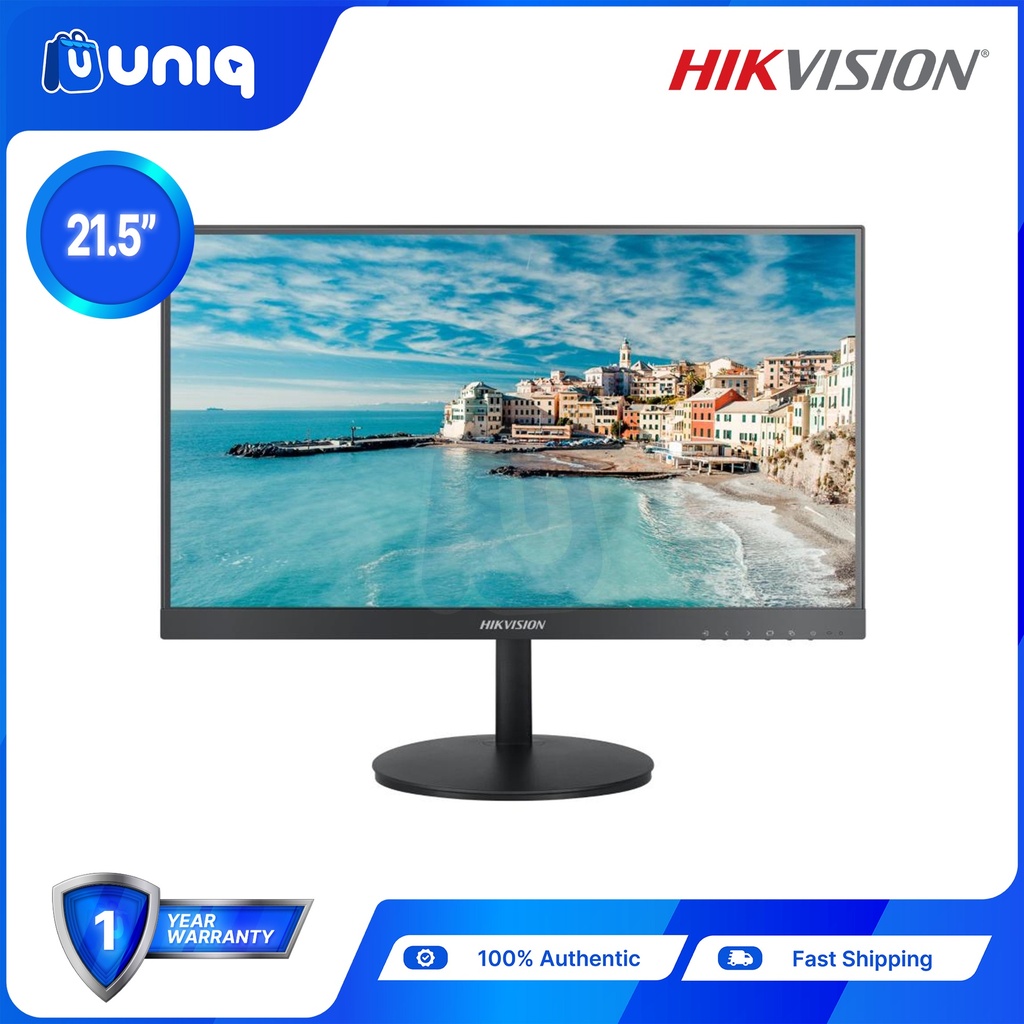

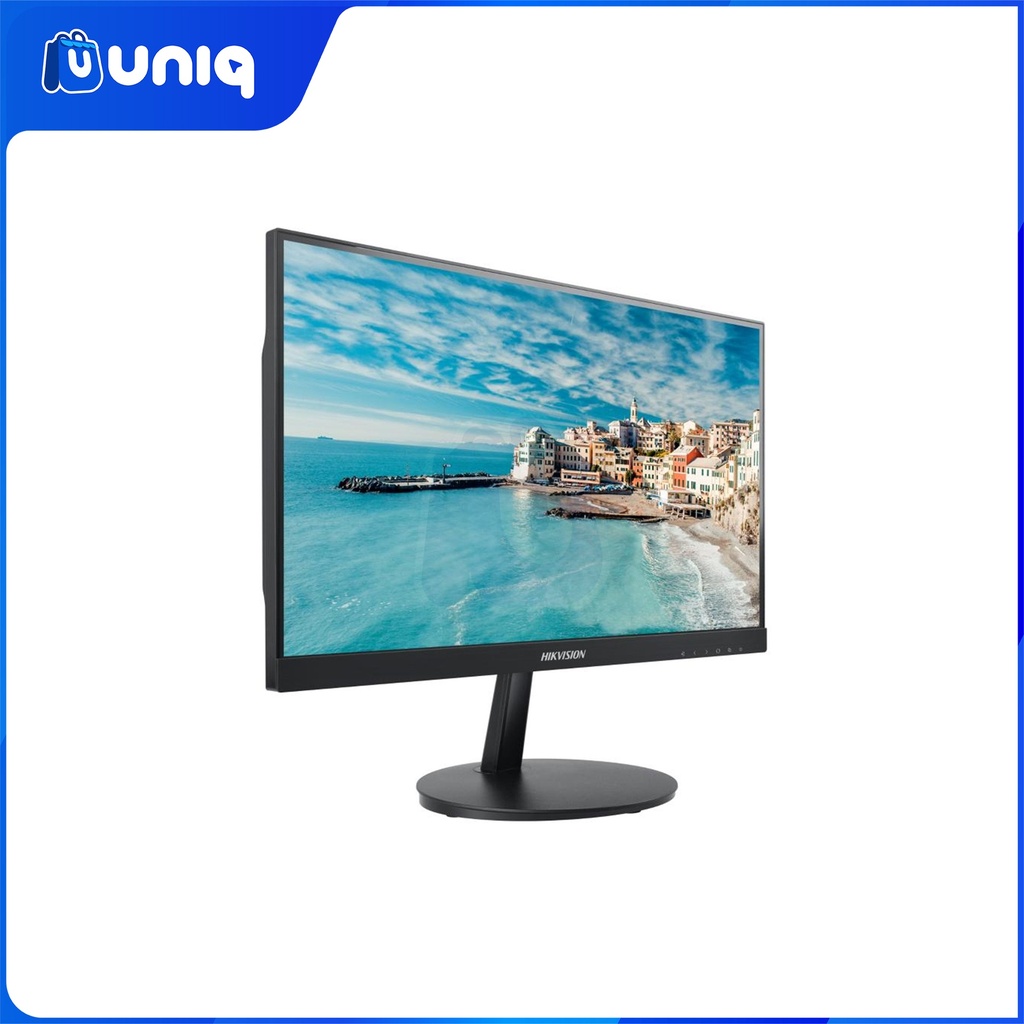

HikVision 21.5" Full HD Borderless Monitor (DS-D5022FN00)

https://shop.uniq.com.ph/web/image/product.template/3970/image_1920?unique=a19678c
(0 review)

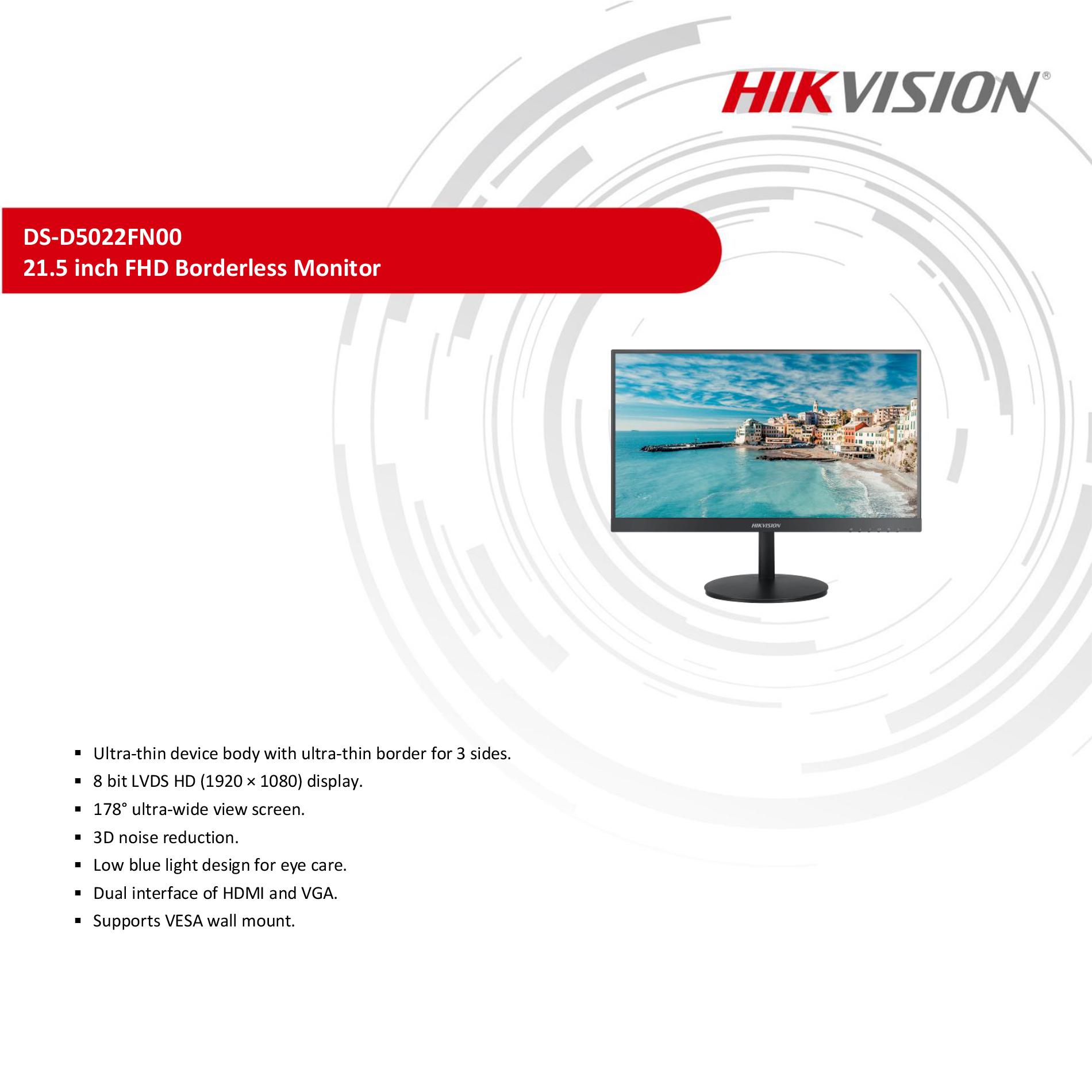

Key Features

  • Ultra-thin device body with ultra-thin border for 3 sides.
  • 8 bit LVDS HD (1920 × 1080) display.
  • 178° ultra-wide view screen.
  • 3D noise reduction.
  • Low blue light design for eye care.
  • Dual interface of HDMI and VGA.
  • Support VESA wall mount.

PRODUCT DETAILS

₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days











Display



Screen Size

21.5 inch

Active Display Area

478.656 mm × 260.280 mm

Resolution

1920 × 1080@60 Hz

Backlight

E-LED

Pixel Pitch

0.0831 mm (H) × 0.241 mm (V)

Brightness

250 cd/m²

Viewing Angle

178° (H) / 178° (V)

Color Depth

8 bit

Contrast Ratio

3000 : 1

Response Time

6.5 ms

Refresh Rate

Max. 75Hz , Typ. 60 Hz

Haze

Haze 25%, 3H

Reliability

7 × 16 H

Color Gamut

72% NTSC

Interface



Video & Audio Input

HDMI 1.4 × 1, VGA × 1

Video & Audio Output

None

Data Transmission Interface

None

Control Interface

None

Power



Power Supply

DC 12V, 2.0A

Power Consumption

≤ 24 W

Standby Consumption

≤ 0.5 W

Working Environment



Working Temperature

0℃ to 40 ℃ (32 ℉ to 104 ℉)

Working Humidity

10% to 90% RH (Non-Condensing)

Storage Temperature

-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

Storage Humidity

0% to 90% RH

General



Casing Material

Plastic

VESA

75 mm × 75 mm (4 - M4 × 6 mm)

Bezel Width

6.85 mm (top/left/right), 21.55 mm (bottom)

Product Dimensions (W × H × D)

492.4mm（W）× 390.1mm（H）× 200.2mm（D）mm

Package Dimensions (W × H × D)

599mm（W）x 393mm（H）x 109 mm（D）

Net Weight

2.08 ± 0.5 kg

Gross Weight

3.4 ± 0.5 kg

Remarks

If the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff.





  • What's in the box: 1x HikVision 21.5" Full HD Borderless Monitor (DS-D5022FN00)
  • Warranty: 1 Year Warranty

  • Output power (W): 4.2
  • Dynamic frequency response range (Hz): 90 Hz – 20 kHz
  • Dimensions (in): 3.7 x 3.0 x 1.7
  • Weight (kgs): 0.19
  • Bluetooth profiles: A2DP V1.4, AVRCP V1.6
  • Bluetooth frequency: 2400 MHz – 2483.5 MHz
  • Bluetooth transmitted modulation: GFSK, π/4 DQPSK
  • Bluetooth transmitter power: ≤ 9 dBm (EIRP)
  • Bluetooth version: 5.3
  • Charging time (hrs): 3
  • Maximum music playing time (hrs): 7
  • Bluetooth: Yes
  • Charging cable: Yes
  • JBL PartyBoost: Yes
  • Waterproof: Yes
  • Wireless: Yes
  • Multi-Point Connection: Yes
  • Rechargable battery: Yes
  • IP Code: IP67
  • Dustproof: Yes
  • What's in the box: 1x JBL Go 4, 1x Type-C cable, 1x Quick Start Guide, 1x Warranty Card and Safety Sheet
  • Warranty: 1 Year Warranty

  • Output power (W): 4.2
  • Dynamic frequency response range (Hz): 90 Hz – 20 kHz
  • Dimensions (in): 3.7 x 3.0 x 1.7
  • Weight (kgs): 0.19
  • Bluetooth profiles: A2DP V1.4, AVRCP V1.6
  • Bluetooth frequency: 2400 MHz – 2483.5 MHz
  • Bluetooth transmitted modulation: GFSK, π/4 DQPSK
  • Bluetooth transmitter power: ≤ 9 dBm (EIRP)
  • Bluetooth version: 5.3
  • Charging time (hrs): 3
  • Maximum music playing time (hrs): 7
  • Bluetooth: Yes
  • Charging cable: Yes
  • JBL PartyBoost: Yes
  • Waterproof: Yes
  • Wireless: Yes
  • Multi-Point Connection: Yes
  • Rechargable battery: Yes
  • IP Code: IP67
  • Dustproof: Yes
  • What's in the box: 1x JBL Go 4, 1x Type-C cable, 1x Quick Start Guide, 1x Warranty Card and Safety Sheet
  • Warranty: 1 Year Warranty
