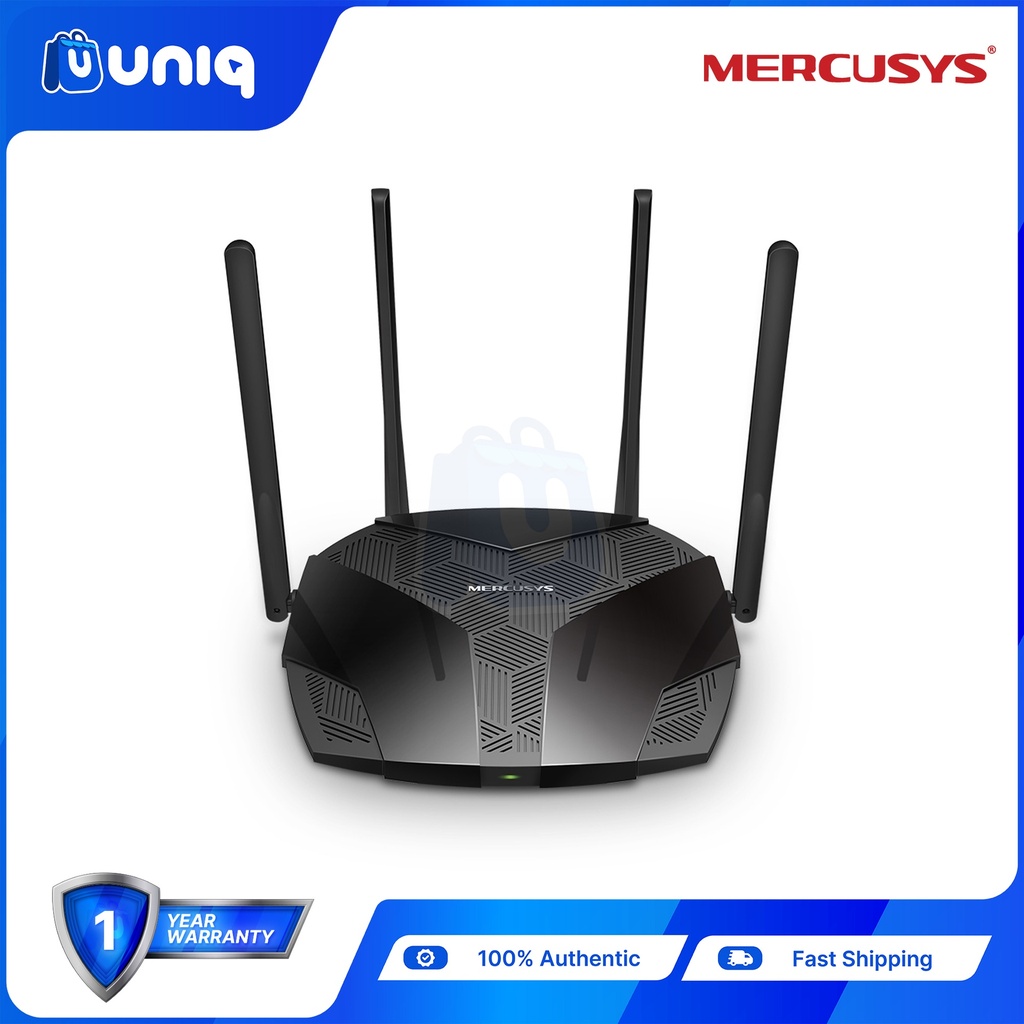

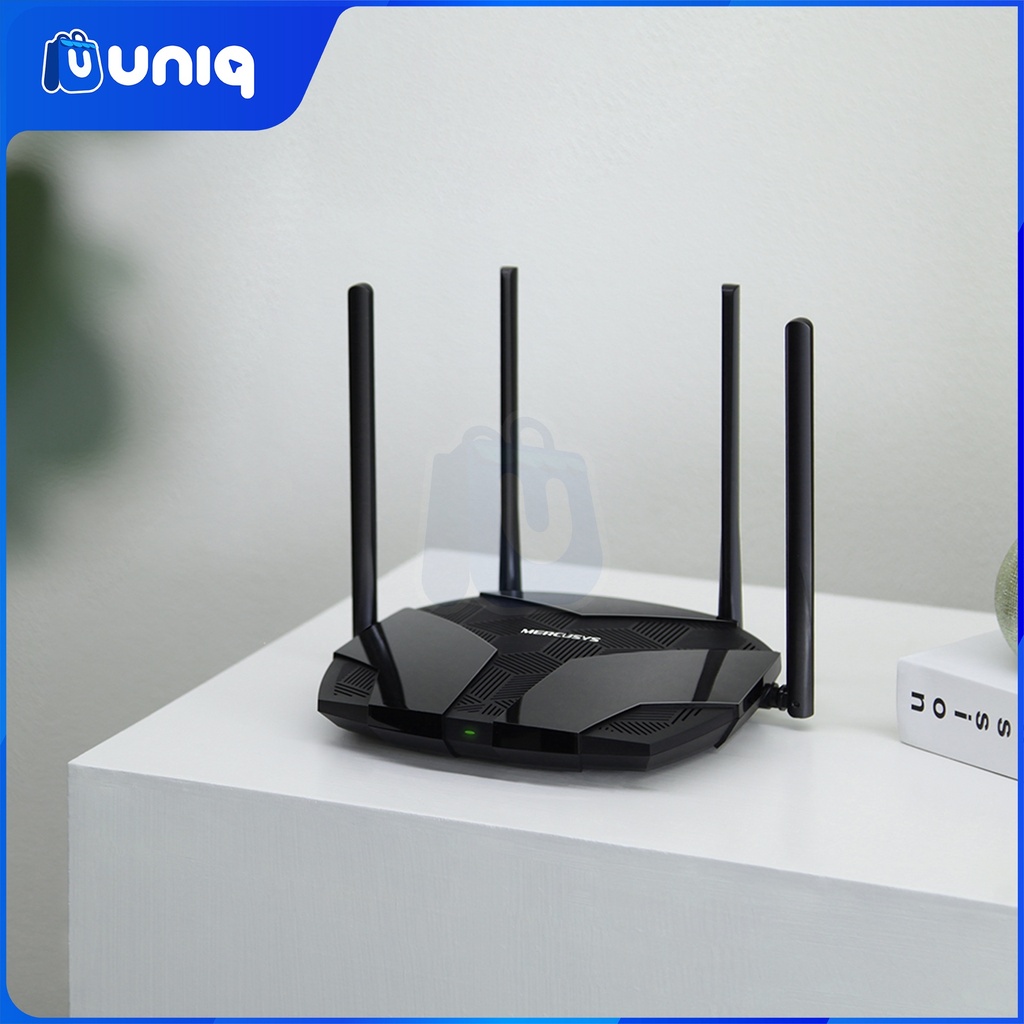

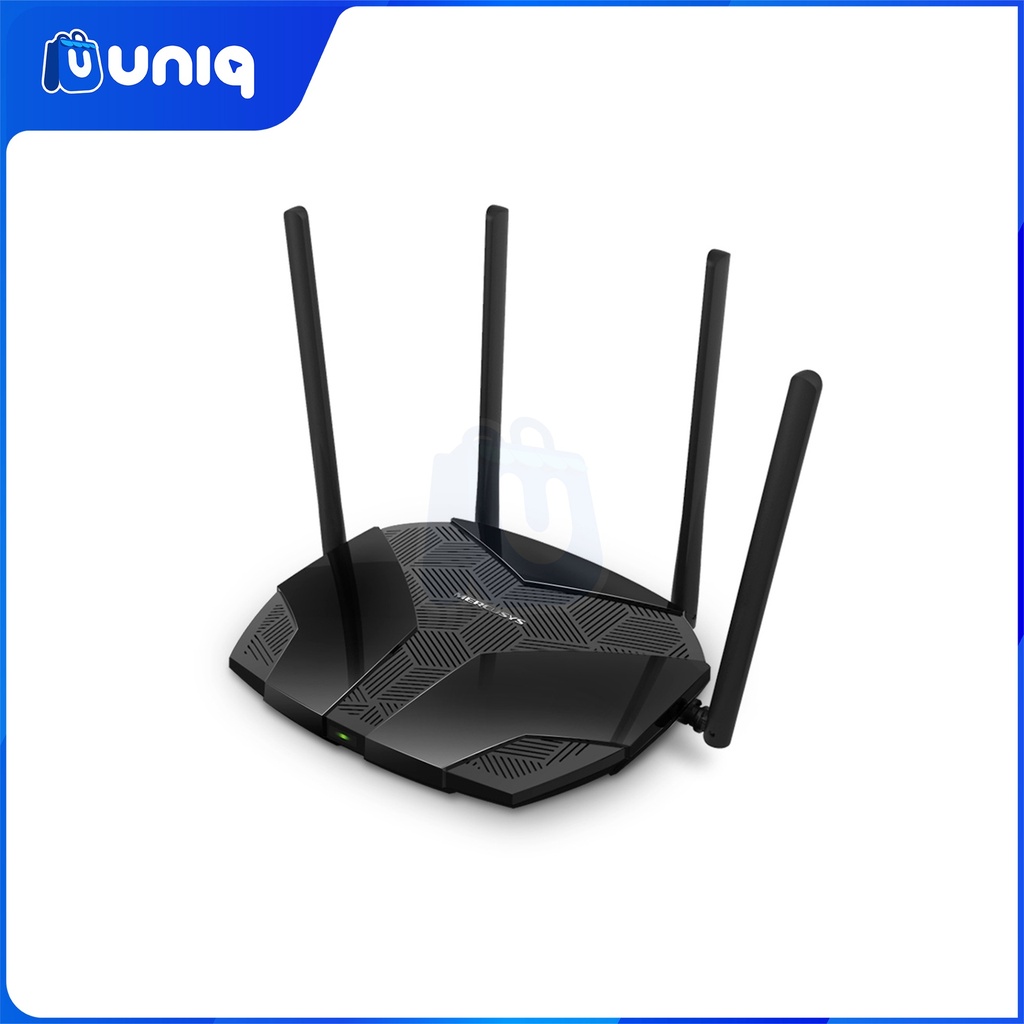

Mercusys MR80X AX3000 Dual-Band Wi-Fi 6 Router

https://shop.uniq.com.ph/web/image/product.template/647/image_1920?unique=948f4c1
(0 review)

Key Features

  • Optimal WiFi 6

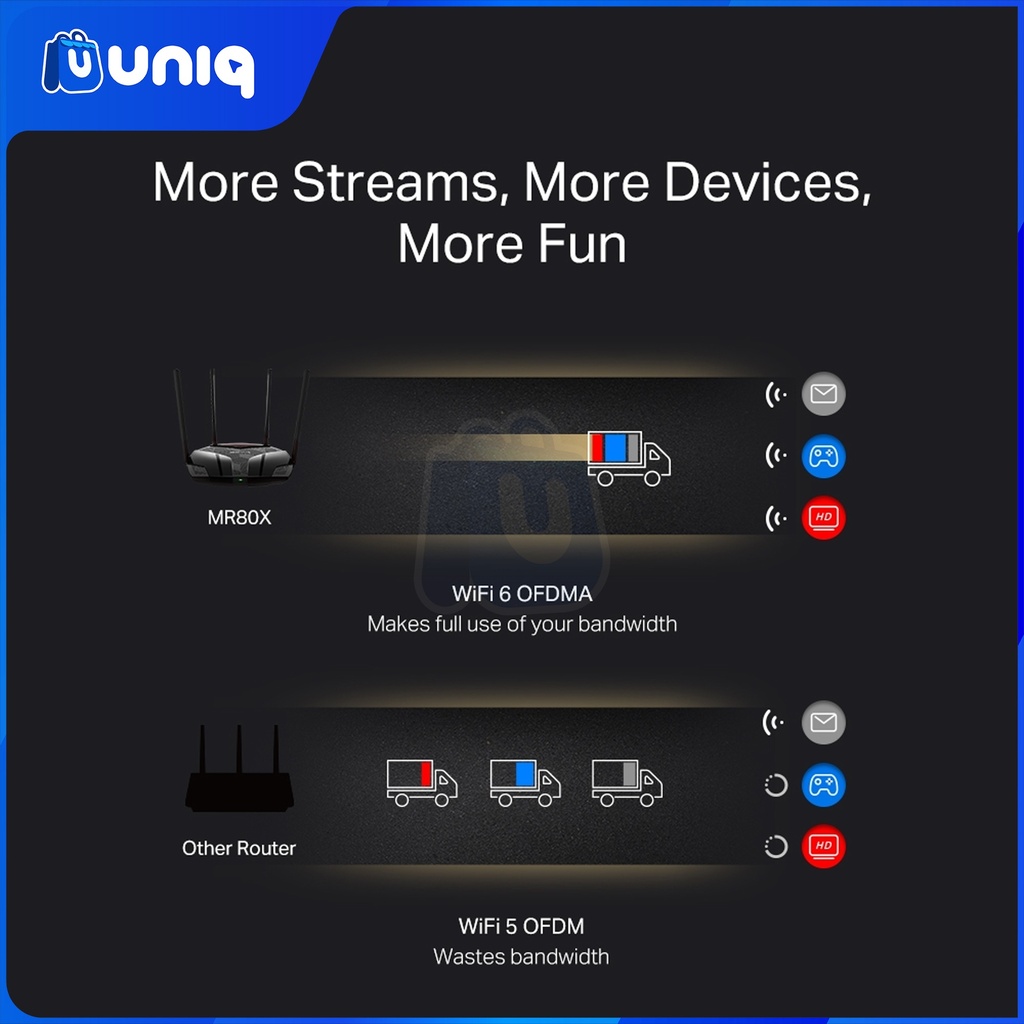

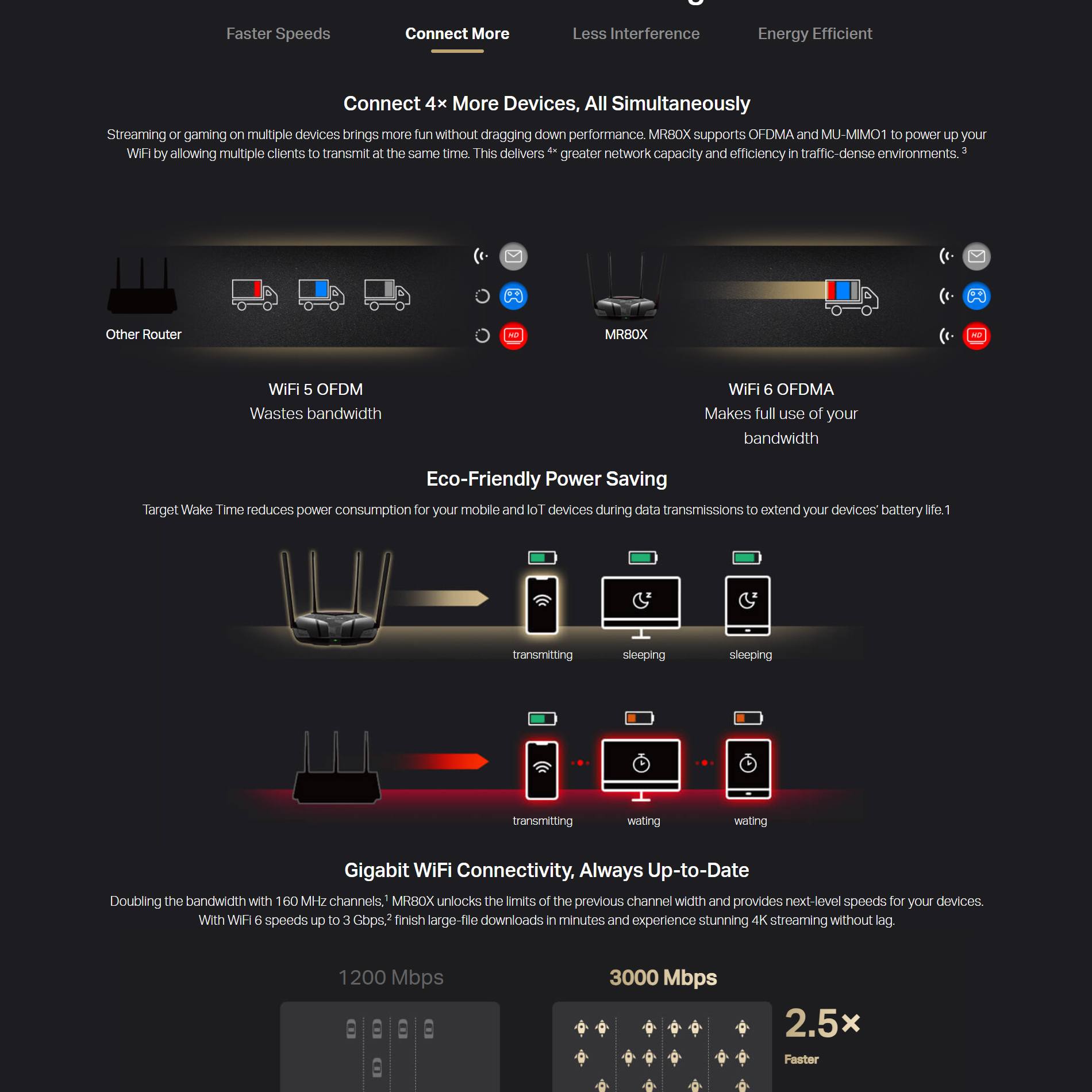

  • Supports MU-MIMO and OFDMA
  • 4× multi-directional high-gain antennas
  • WPA3

Product Details



₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days






Wireless



Wireless Standards

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

 WiFi Speeds

2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

 Reception Sensitivity

11g 6Mbps: -97dBm

11g 54Mbps: -79dBm

11n HT40 MCS7:-74dBm

11n HT20 MCS7:-77dBm

11a 6Mbps: -97dBm

11a 54Mbps: -79dBm

11ac VHT20 MCS8:-75dBm

11ac VHT40 MCS9:-71dBm

11ac VHT80 MCS9:-67dBm

11ax VHT20 MCS11:-67dBm

11ax VHT40 MCS11:-64dBm

11ax VHT80 MCS11:-61dBm

 Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (band1、 band2)

5 GHz < 30dBm (band3)

 Wireless Security

WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal

 Wireless Functions

Enable/Disable Wireless Radio, WMM

Software



WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

 Management

Access Control

Local Management

Remote Management

 DHCP

Server, DHCP Client List

 NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ

 Firewall Security

SPI Firewall, IP and MAC Address Binding

 Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network

 VPN Sever

OpenVPN, PPTP supported

Hardware



Dimensions

8.2 × 6.8 × 1.6 in

(208.8 × 171.6 × 41.7 mm)

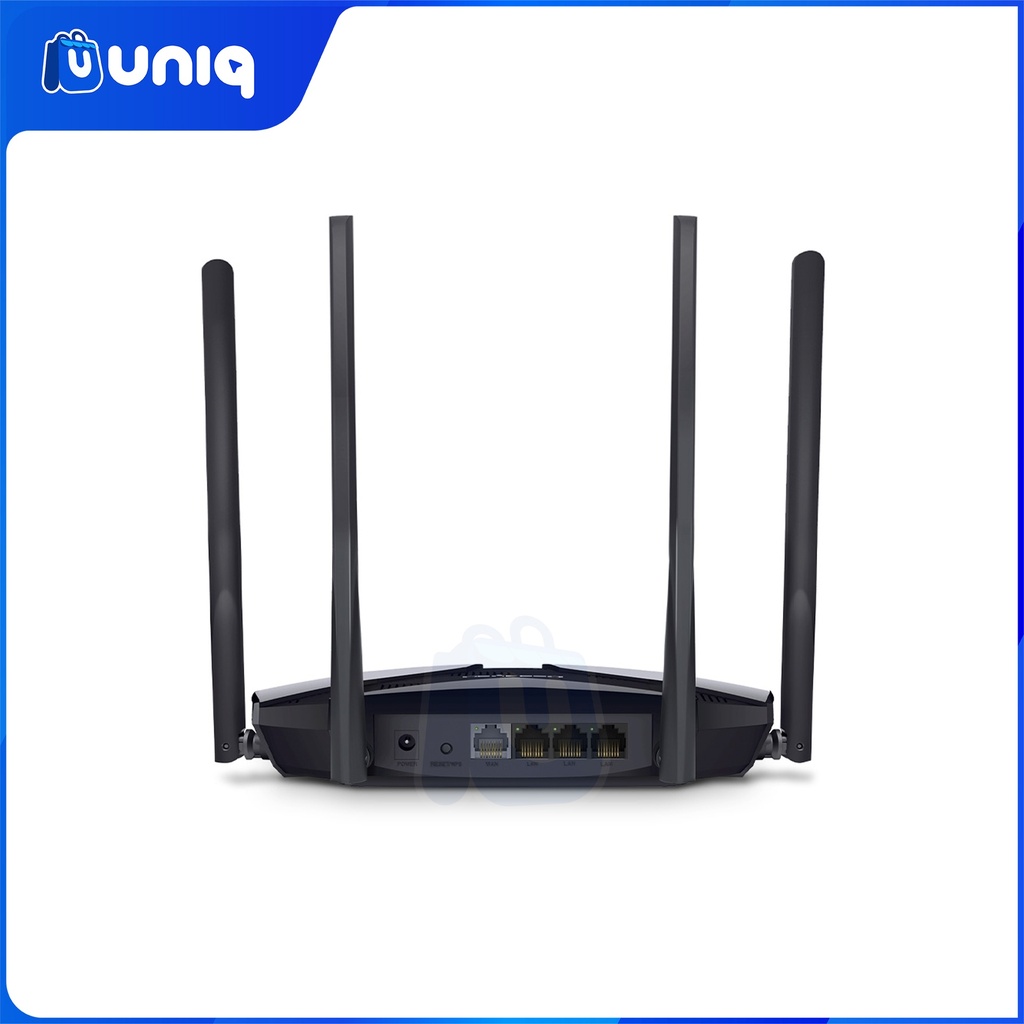

 Interfaces

1× Gigabit WAN Port + 3× Gigabit LAN Ports

 Button

Reset/WPS Button

 Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas







  • What's in the box:
    AX3000 Wi-Fi 6 Router MR80X
    Power Adapter
    Quick Installation Guide
    RJ45 Ethernet Cable
  • Warranty: 1 Year Warranty
