Picture/Display
|
|
|
Panel Size
|
27
inch / 68.6 cm
|
|
Aspect ratio
|
16:9
|
|
LCD panel type
|
IPS
technology
|
|
Backlight type
|
W-LED
system
|
|
Pixel pitch
|
0.3114
x 0.3114 mm
|
|
Brightness
|
300
cd/m²
|
|
Display colors
|
16.7
M
|
|
Color gamut (typical)
|
NTSC
106.2%*, sRGB 122.8%*
|
|
Contrast ratio (typical)
|
1000:1
|
|
SmartContrast
|
Mega
Infinity DCR
|
|
Response time (typical)
|
4
ms (Gray to Gray)*
|
|
Viewing angle
|
178º
(H) / 178º (V)
@ C/R > 10
|
|
Picture enhancement
|
SmartImage
game
|
|
Maximum resolution
|
1920
x 1080 @ 75 Hz*
|
|
Effective viewing area
|
597.888
(H) x 336.312 (V)
|
|
Scanning Frequency
|
30
- 85 kHz (H) / 48 - 75 Hz (V)
|
|
sRGB
|
Yes
|
|
Flicker-free
|
Yes
|
|
Pixel Density
|
81.59
PPI
|
|
LowBlue Mode
|
Yes
|
|
Display Screen Coating
|
Anti-Glare,
3H, Haze 25%
|
|
MPRT
|
1
ms
|
|
EasyRead
|
Yes
|
|
AMD FreeSync™ technology
|
Yes
|
|

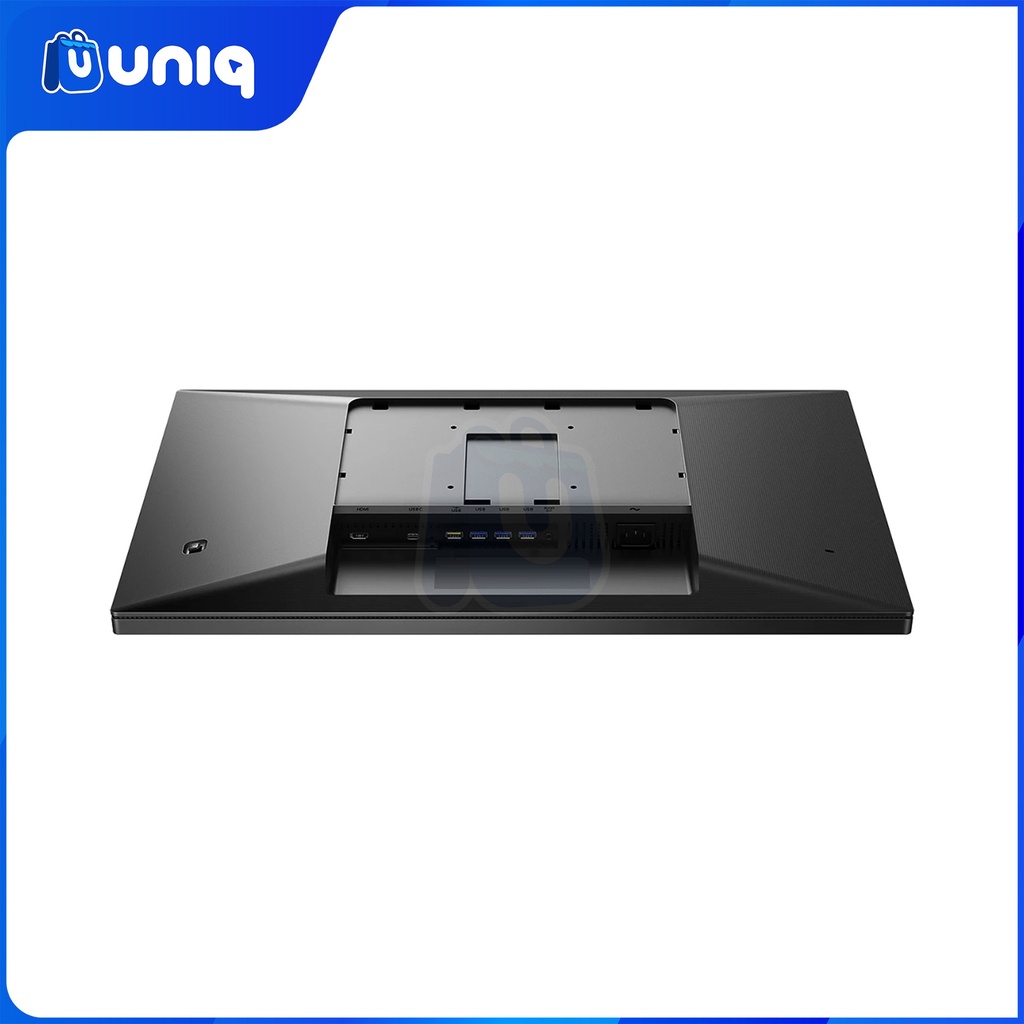

Connectivity
|
|
|
Signal Input
|
HDMI
1.4 x 1, USB-C 3.2 Gen 1 x 1 (upstream, Power Delivery up to 65W)
|
|
Sync Input
|
Separate
Sync
|
|
Audio (In/Out)
|
Audio
out
|
|
USB:
|
USB
3.2 x 4 (downstream with 1 fast charge B.C 1.2)
|
|
USB
|
|
|
Power delivery
|
USB
PD version 3.0
|
|
Super speed
|
Data
and Video transfer
|
|
DP
|
Built-in
Display Port Alt mode
|
|
USB-C max. power delivery
|
Up
to 65W (5V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A)
|
|
USB-C
|
Reversible
plug connector
|
|
Convenience
|
|
|
Built-in Speakers
|
3
W x 2
|
|
Plug & Play Compatibility
|
DDC/CI
Mac OS X
sRGB
Windows 10 / 8.1 / 8 / 7
|
|
User convenience
|
Power
On/Off
Menu
Volume
Input
SmartImage Game
|
|
OSD Languages
|
Brazil
Portuguese
|
|
Other
convenience
|
Kensington
lock
VESA mount (100x100mm)
|
|
Stand
|
|
|
Tilt
|
-5/20
degree
|
|
Power
|
|
|
Power supply
|
Internal
100-240VAC, 50-60Hz
|
|
Off mode
|
0.3
W (typ.)
|
|
On mode
|
25.1
W (typ.)
|
|
Standby mode
|
0.5
W (typ.)
|
|
Power LED indicator
|
Operation
– White
Standby mode- White (blinking)
|
|
Dimensions
|
|
|
Packaging in mm (WxHxD)
|
780
x 525 x 186 mm
|
|
Product without stand (mm)
|
612
x 365 x 55 mm
|
|
Product with stand(max height)
|
612
x 456 x 197 mm
|
|
Weight
|
|
|
Product with packaging (kg)
|
10.14
kg
|
|
Product with stand (kg)
|
6.06
kg
|
|
Product without stand (kg)
|
4.20
kg
|
|
Operating conditions
|
|
|
Altitude
|
Operation:
+12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
|
|
Temperature range (operation)
|
0
to 40 °C
|
|
MTBF
|
50,000
hrs (excluding backlight) hour(s)
|
|
Relative humidity
|
20%-80
%
|
|
Temperature range (storage)
|
-20
to 60 °C
|
|
Sustainability
|
|
|
Environmental and energy
|
RoHS
|
|
Recyclable packaging material
|
100
%
|
|
Specific Substances
|
Mercury
free
PVC / BFR free housing
|
|
Compliance and standards
|
|
|
Regulatory Approvals
|
CB
CE Mark
CU-EAC
EAEU RoHS
FCC Class B
ICES-003
TUV/ISO9241-307
TUV-BAUART
PSB
|
|
Cabinet
|
|
|
Color
|
Black
|
|
Finish
|
Textured
|
