Picture/Display
|
|
|
Panel Size
|
21.5
inch / 54.6 cm
|
|
Aspect ratio
|
16:9
|
|
LCD panel type
|
TFT-LCD
(TN)
|
|
Backlight type
|
W-LED
system
|
|
Pixel pitch
|
0.248
x 0.248 mm
|
|
Optimum resolution
|
1920
x 1080 @ 60Hz
|
|
Brightness
|
250
cd/m²
|
|
Display colors
|
16.7
M
|
|
Color gamut (typical)
|
NTSC
72% (CIE 1931)
|
|
Contrast ratio (typical)
|
1000:1
|
|
SmartContrast
|
50,000,000:1
|
|
Response time (typical)
|
1
ms (Gray to Gray)*
|
|
Viewing angle
|
170º
(H) / 160º (V)
@ C/R > 10
|
|
Picture enhancement
|
SmartImage
|
|
Effective viewing area
|
476.64
(H) x 268.11 (V)
|
|
Scanning Frequency
|
30
- 85 kHz (H) / 48 - 75 Hz (V)
|
|
sRGB
|
Yes
|
|
Flicker-free
|
Yes
|
|
Pixel Density
|
102
PPI
|
|
LowBlue Mode
|
Yes
|
|
EasyRead
|
Yes
|
|
Touch
|
|
|
Ingress protection
|
IP65
- front only
|
|
Operating system
|
Windows
10 / 8.1 / 8 / 7; Android 7.1 / 7.0 / 6.0 / 5.0 / 4.4; certain Linux
versions*
|
|
Sealability
|
Touchscreen
sealed to bezel; Touchscreen sealed to LCD
|
|
Touch active area
|
476.64
mm (H) x 268.11 mm (V)
|
|
Touch glass hardness
|
7
H
|
|
Touch interface
|
USB
|
|
Touch method
|
Stylus,
Finger, Glove*
|
|
Touch points
|
10
point
|
|
Touch technology
|
Projected
capacitive
|
|
Palm rejection area
|
>=
30 x 30 mm
|
|
Touch glass coating
|
Glare
|
|
Connectivity
|
|
|
Signal Input
|
VGA
(Analog )
DVI-D (digital, HDCP)
DisplayPort 1.2
HDMI 1.4
|
|
USB
|
USB
3.1x2 (1 w/fast charging)*
|
|
Sync Input
|
Separate
Sync
Sync on Green
|
|
Audio (In/Out)
|
PC
audio-in
Headphone out
|
|
HDCP
|
HDCP:
HDCP 1.4 (HDMI / DP / DVI)
|
|
Convenience
|
|
|
Built-in Speakers
|
2
W x 2
|
|
Plug & Play Compatibility
|
DDC/CI
sRGB
Windows 10 / 8.1 / 8 / 7
|
|
User convenience
|
SmartImage
Input
Brightness
Menu
Power On/Off
|
|
OSD Languages
|
Brazil
Portuguese
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified
Chinese
Spanish
Swedish
Traditional
Chinese
Turkish
Ukrainian
|
|
Other
convenience
|
Kensington
lock

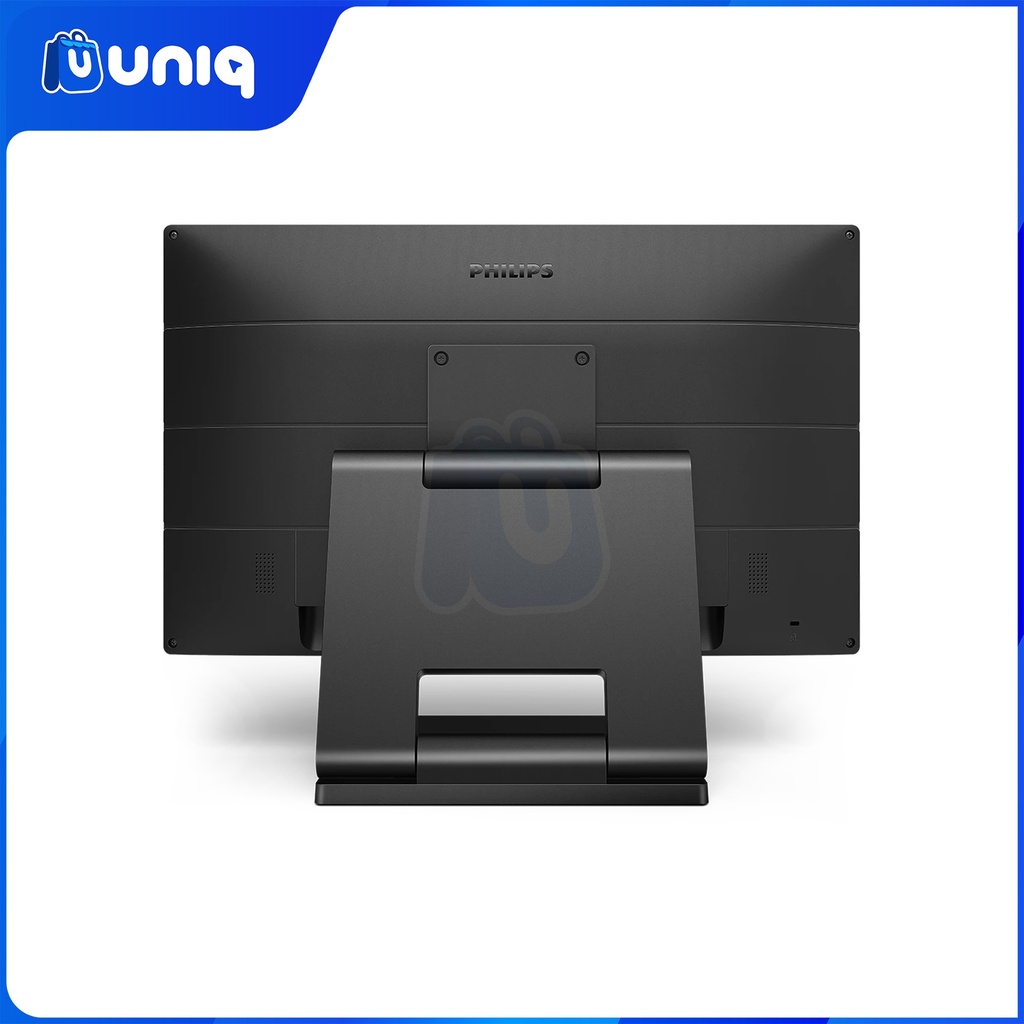

VESA mount (100x100mm)
|
|
Control
software
|
SmartControl
|
|

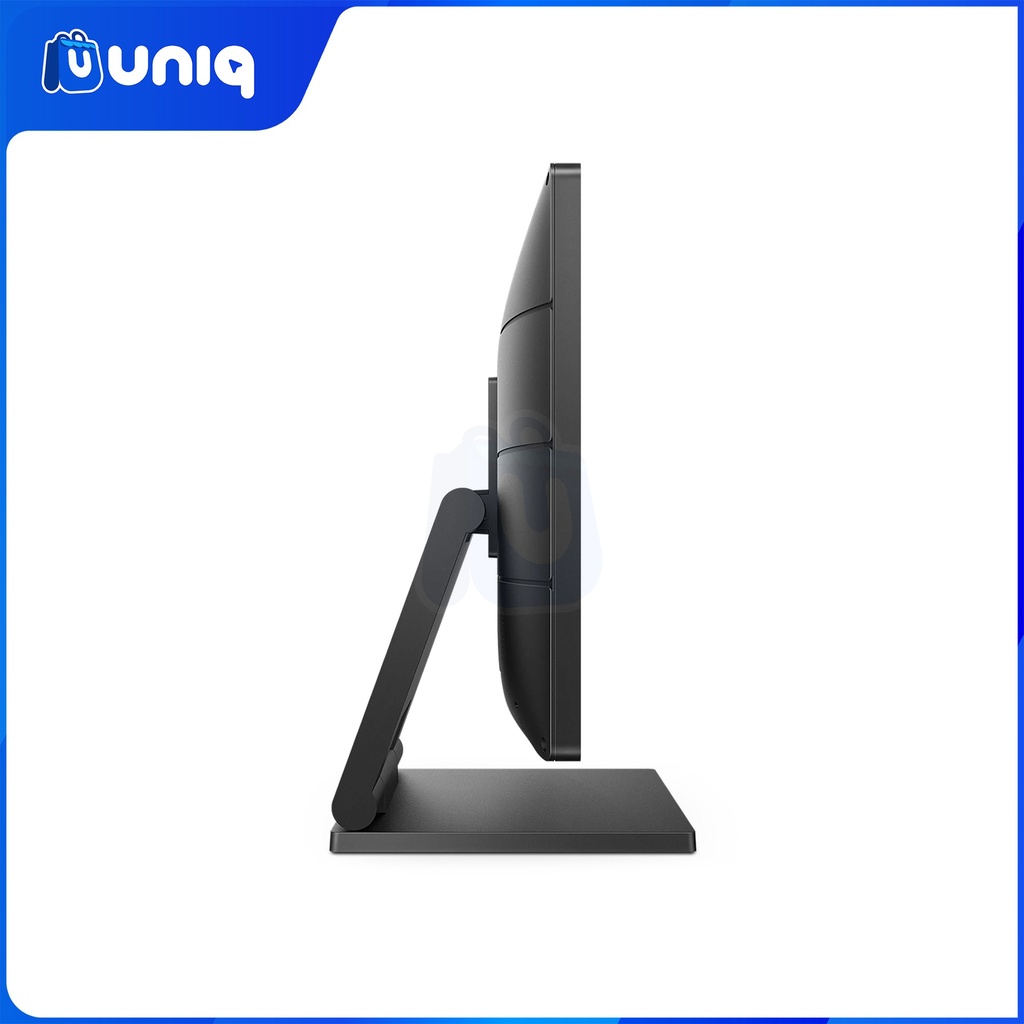

Stand
|
|
|
Height adjustment
|
184
(Horizontal), 76 (Vertical) mm
|
|
Tilt
|
-5
~ 90 degree
|
|
Folding angle
|
0
~ 70 degree
|
|
Power
|
|
|
ECO mode
|
10.3
W (typ.)
|
|
Power supply
|
External
100-240VAC, 50-60Hz
|
|
Off mode
|
<
0.3 W (typ.)
|
|
On mode
|
11.92
W (typ.) (EnergyStar test method)
|
|
Standby mode
|
<
0.5 W (typ.)
|
|
Power LED indicator
|
Operation
– White
Standby mode- White (blinking)
|
|
Dimensions
|
|
|
Packaging in mm (WxHxD)
|
575
x 420 x 161 mm
|
|
Product without stand (mm)
|
515
x 317 x 45 mm
|
|
Product with stand(max height)
|
515
x 394 x 227 mm
|
|
Weight
|
|
|
Product with packaging (kg)
|
9.91
kg
|
|
Product with stand (kg)
|
7.46
kg
|
|
Product without stand (kg)
|
4.17
kg
|
|
Operating conditions
|
|
|
Altitude
|
Operation:
+12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
|
|
Temperature range (operation)
|
0°C
to 40°C °C
|
|
Relative humidity
|
20%-80
%
|
|
Temperature range (storage)
|
-20°C
to 60°C °C
|
|
MTBF (demonstrated)
|
70,000
hrs (excluded backlight)
|
|
Sustainability
|
|
|
Environmental and energy
|
EnergyStar
8.0
EPEAT*
TCO Certified
RoHS
WEEE
|
|
Recyclable packaging material
|
100
%
|
|
Specific Substances
|
PVC
/ BFR free housing
Mercury free
|
|
Compliance and standards
|
|
|
Regulatory Approvals
|
CB
CE Mark
FCC Class B
SEMKO
ICES-003
TUV/GS
TUV Ergo
CU-EAC
EAEU RoHS
PSB
cETLus
|
|
Cabinet
|
|
|
Finish
|
Texture
|
|
Foot
|
Black
|
|
Front bezel
|
Black
|
|
Rear cover
|
Black
|
