Picture/Display
|
|
|
Panel Size
|
42.51
inch / 108 cm
|
|
Aspect ratio
|
16:9
|
|
LCD panel type
|
IPS
technology
|
|
Backlight type
|
W-LED
system
|
|
Pixel pitch
|
0.2451
x 0.2451 mm
|
|
Brightness
|
400
cd/m²
|
|
Display colors
|
Color
support 1.07 billion colors
|
|
Color gamut (typical)
|
NTSC
88%*, sRGB 102%*
|
|
Contrast ratio (typical)
|
1200:1
|
|
SmartContrast
|
50,000,000:1
|
|
Response time (typical)
|
5
ms (Gray to Gray)*
|
|
Viewing angle
|
178º
(H) / 178º (V)
@ C/R > 10
|
|
Picture enhancement
|
SmartImage
|
|
Maximum resolution
|
3840
x 2160 @ 60 Hz*
|
|
Effective viewing area
|
941.184
(H) x 529.416 (V) mm
|
|
Scanning Frequency
|
30
- 140 kHz (H) / 23 - 75 Hz (V)
|
|
sRGB
|
Yes
|
|
Delta E
|
3
|
|
Flicker-free
|
Yes
|
|
Pixel Density
|
103.46
PPI
|
|
Display Screen Coating
|
3H,
Haze 1%
|
|
SmartUniformity
|
96
~ 105%
|
|
Connectivity
|
|
|
Signal Input
|
VGA
(Analog )
DisplayPort 1.2 x 2
HDMI 2.0 x 2
|
|
Sync Input
|
Separate
Sync
Sync on Green
|
|
Audio (In/Out)
|
PC
audio-in
Audio out
|
|
USB:
|
USB-B
x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)
|
|
HDCP
|
HDCP
2.2 (HDMI / DP)
|
|
Convenience
|
|
|
Built-in Speakers
|
5
W x 2
|
|
Plug & Play Compatibility
|
DDC/CI
Mac OS X
sRGB
Windows 10 / 8.1 / 8 / 7
|
|
User convenience
|
SmartImage
Input
User
Menu
Power On/Off
|
|
OSD Languages
|
Brazil
Portuguese
Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified
Chinese
Spanish
Swedish
Traditional
Chinese
Turkish
Ukrainian
|
|
Other
convenience
|
Kensington
lock

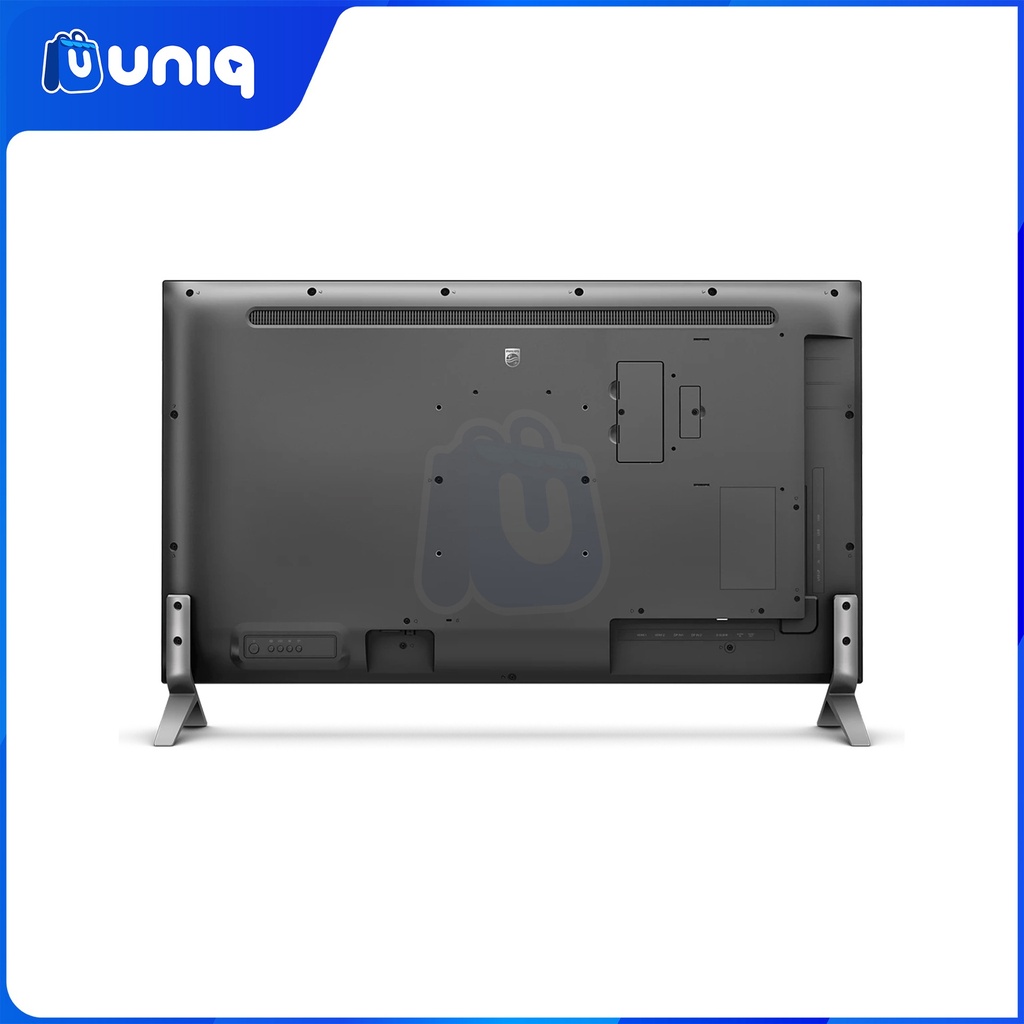

VESA mount (200x200mm)
|
|
Control
software
|
SmartControl
|
|
MultiView
|
PIP
(2x devices)
PBP (4x devices)
|
|
Power
|
|
|
ECO mode
|
53.3
W (typ.)
|
|
Power supply
|
Built-in
100-240VAC, 50-60Hz
|
|
Off mode
|
Zero
watts with Zero switch
|
|
On mode
|
100
W (typ.)
|
|
Standby mode
|
0.3
W
|
|
Power LED indicator
|
Operation
– White
Standby mode- White (blinking)
|
|
Dimensions
|
|
|
Packaging in mm (WxHxD)
|
1070
x 680 x 186 mm
|
|
Product without stand (mm)
|
973
x 561 x 64 mm
|
|
Product with stand(max height)
|
973
x 633 x 259 mm
|
|
Weight
|
|
|
Product with packaging (kg)
|
14.74
kg
|
|
Product with stand (kg)
|
11.78
kg
|
|
Product without stand (kg)
|
11.06
kg
|
|
Operating conditions
|
|
|
Altitude
|
Operation:
+12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
|
|
Temperature range (operation)
|
0°C
to 40°C °C
|
|
Relative humidity
|
20%-80
%
|
|
Temperature range (storage)
|
-20°C
to 60°C °C
|
|
MTBF (demonstrated)
|
70,000
hrs (excluded backlight)
|
|
Sustainability
|
|
|
Environmental and energy
|
RoHS
|
|
Recyclable packaging material
|
100
%
|
|
Specific Substances
|
PVC
/ BFR free housing
Mercury free
|
|
Compliance and standards
|
|
|
Regulatory Approvals
|
CB
SEMKO
CE Mark
PSB
|
|
Cabinet
|
|
|
Finish
|
Texture
|
|
Foot
|
Dark
Grey
|
|
Front bezel
|
Black
|
|
Rear cover
|
Black
|
