Picture/Display | |
Panel Size | 23.8 inch / 60.5 cm |
Aspect ratio | 16:9 |
LCD panel type | IPS technology |
Backlight type | W-LED system |
Pixel pitch |
0.2745 x 0.2745 mm
|
Brightness | 250 cd/m² |
Display colors | 16.7 M |
Color gamut (typical) | NTSC 80.5%*, sRGB 99.9%*, Adobe RGB 90.4%* |
Color gamut (min.) |
DCI-P3 94.1%*
|
Contrast ratio (typical) | 1100:1 |
SmartContrast | Mega Infinity DCR |
Response time (typical) | 4 ms (Gray to Gray)* |
Viewing angle | 178º (H) / 178º (V) @ C/R > 10 |
Picture enhancement | SmartImage game |
Maximum resolution | 1920 x 1080 @ 165 Hz* |
Effective viewing area | 527.04 (H) x 296.46 (V) |
Scanning Frequency | 30 - 200 kHz (H) / 48 - 165 Hz (V) |
sRGB | Yes |
Flicker-free | Yes |
Pixel Density | 92.56 PPI |
LowBlue Mode | Yes |
Display Screen Coating | Anti-Glare, 3H, Haze 25% |
MPRT | 1 ms |
Low Input Lag | Yes |
EasyRead | Yes |
AMD FreeSync™ technology | Premium |
Connectivity | |
Signal Input | HDMI x 2, DisplayPort x1 |
Sync Input | Separate Sync |
Audio (In/Out) | Audio out |
HDCP | HDCP 2.2 (HDMI / DisplayPort) |
Convenience | |
Plug & Play Compatibility | DDC/CI Mac OS X sRGB Windows 10 / 8.1 / 8 / 7 |
User convenience | Power On/Off Menu/OK Input/Up Game Settings/Down SmartImage game/Back |
OSD Languages | Brazil Portuguese Czech Dutch English Finnish French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Spanish Simplified Chinese Swedish Turkish Traditional Chinese Ukrainian |
Other convenience | Kensington lock VESA mount (100x100mm) |

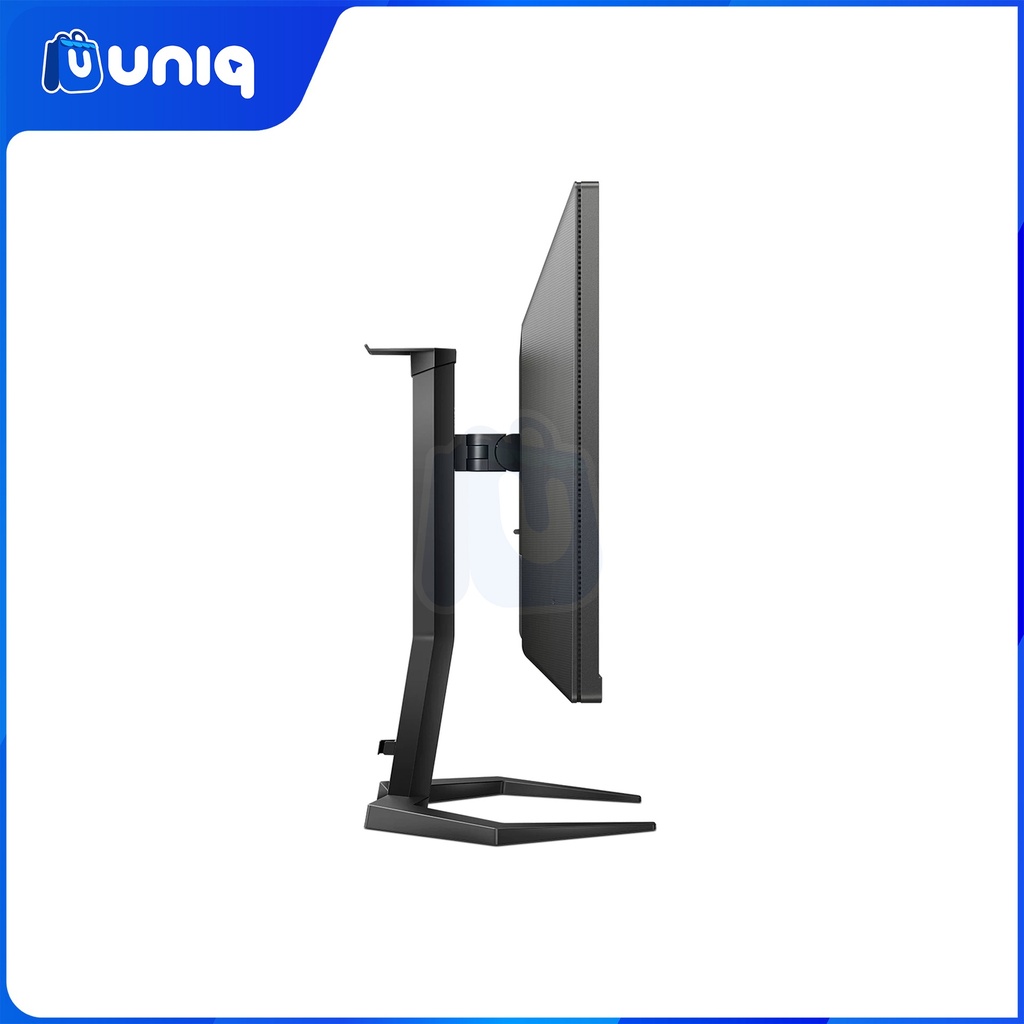

Stand | |
Height adjustment | 130 mm |
Pivot | -/+ 90 degree |
Swivel | -/+ 45 degree |
Tilt | -5/20 degree |
Power |
Power supply | External 100-240VAC, 50-60Hz |
Off mode | 0.3 W (typ.) |
On mode | 24 W (typ.) |
Standby mode | 0.5 W (typ.) |
Power LED indicator | Operation – White Standby mode- White (blinking) |
Dimensions | |
Packaging in mm (WxHxD) | 600 x 526 x 164 mm |
Product without stand (mm) | 540 x 321 x 43 mm |
Product with stand(max height) | 540 x 513 x 213 mm |
Weight | |
Product with packaging (kg) | 5.65 kg |
Product with stand (kg) | 3.70 kg |
Product without stand (kg) | 2.40 kg |
Operating conditions | |
Altitude | +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
Temperature range (operation) | 0°C to 40 °C |
MTBF | 50,000 (Excluded backlight) hour(s) |
Relative humidity | 20%-80 % |
Temperature range (storage) | -20°C to 60 °C |
Sustainability | |
Environmental and energy | RoHS |
Recyclable packaging material | 100 % |
Specific Substances | Mercury free PVC / BFR free housing |
Compliance and standards | |
Regulatory Approvals | CB TUV/ISO9241-307 TUV-BAUART CU-EAC EAEU RoHS PSB CE Mark FCC Class B ICES-003 |
Cabinet | |
Color | Black |
Finish | Textured |
