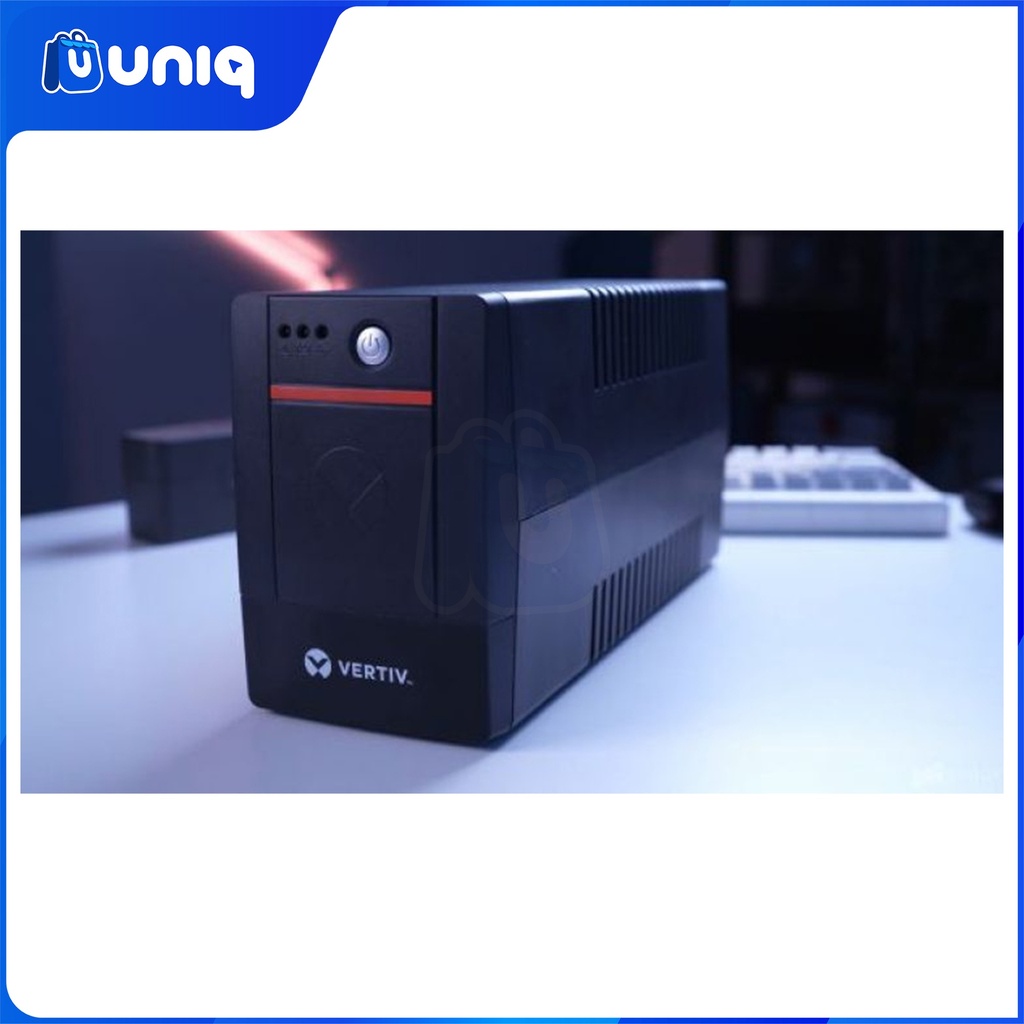

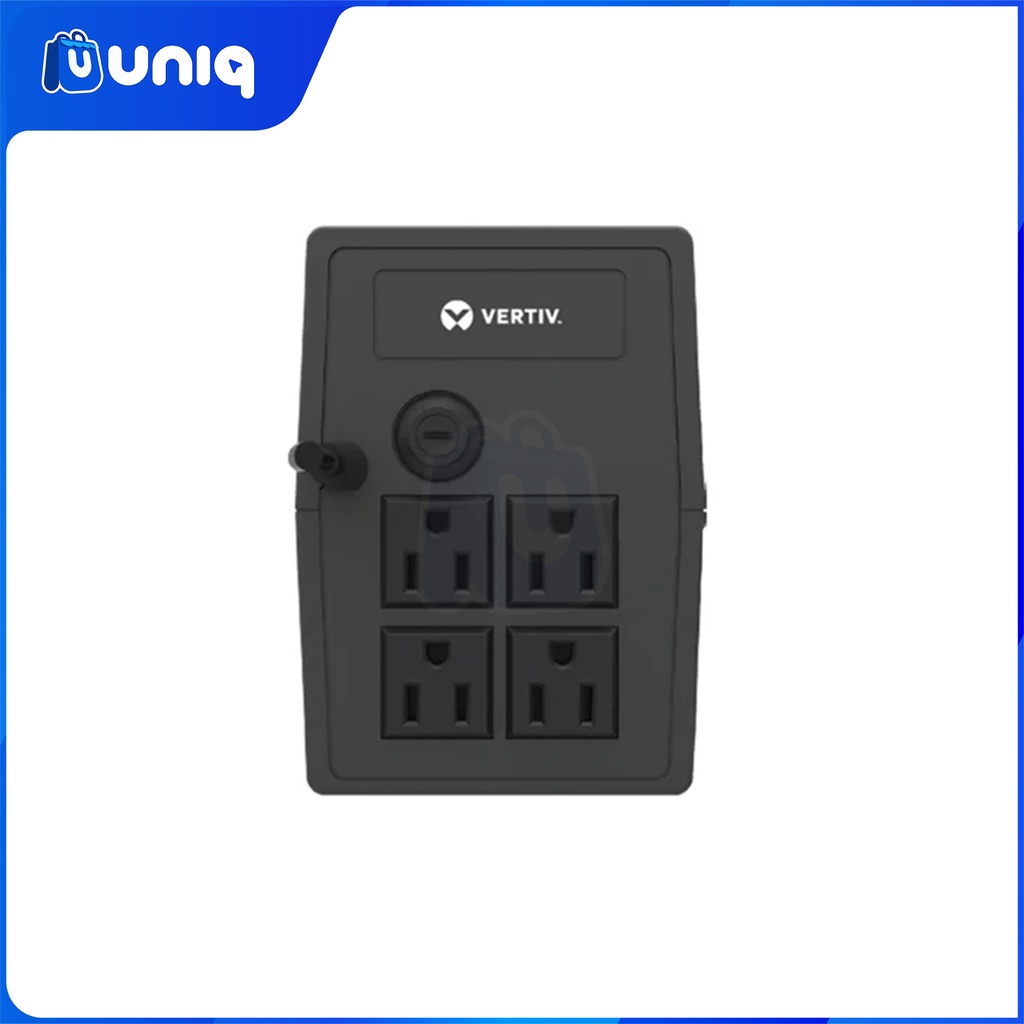

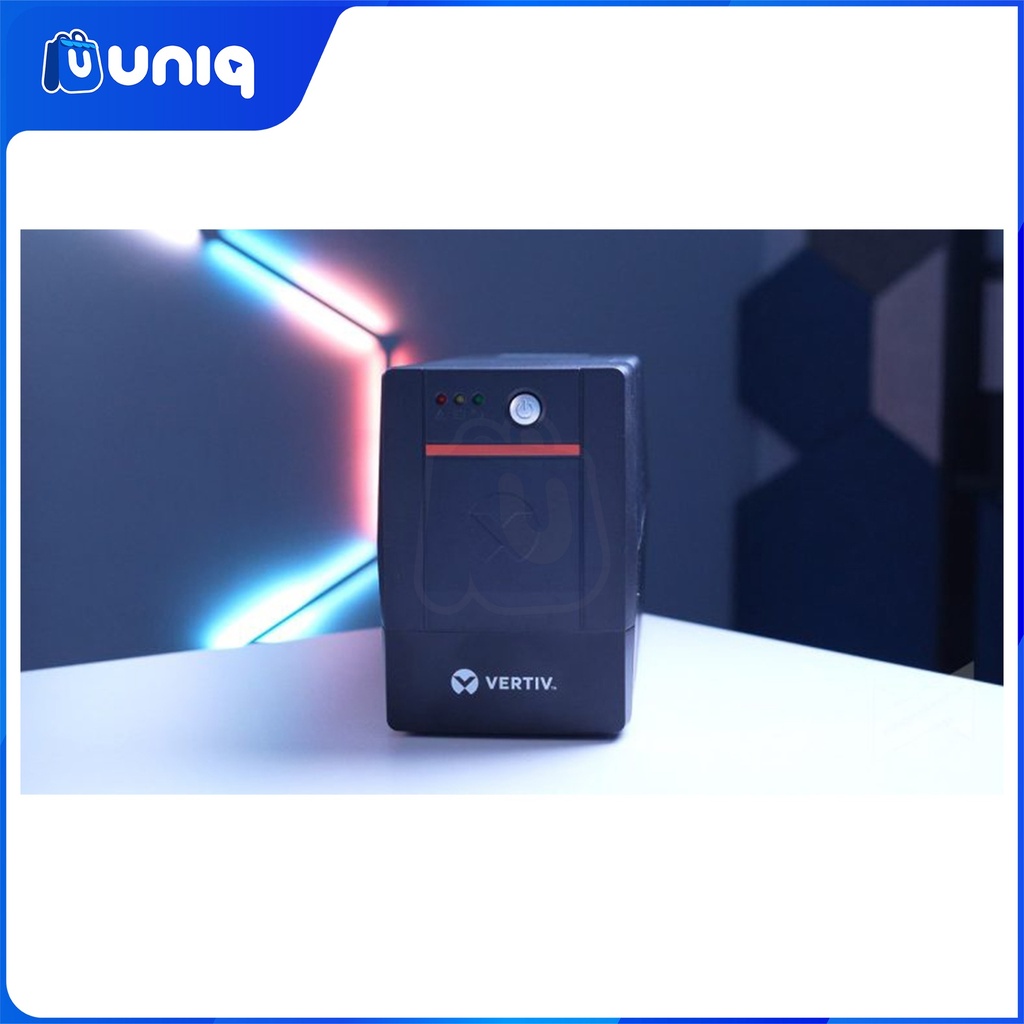

Model Number
|
PSA650-PH
|
|
Capacity (VA/W)
|
650/360
|
|
Physical
|
|
|
Unit Weight, kg. (lb.)
|
3.8 (8.4)
|
|
Unit Dimensions, W × D × H mm (in.)
|
101 × 280 × 142 (4.0 × 11.0 × 5.6)
|
|
Shipping Weight, kg. (lb.)
|
4.3 (9.5)
|
|
Shipping Dimension, W × D × H mm (in.)
|
142 × 326 × 213 (5.6 × 12.8 × 8.4)
|
|
Input
|
|
|
Voltage
|
230VAC
|
|
Input Voltage Range
|
170–280VAC, Single Phase
|
|
Input Frequency
|
50/60 Hz (Auto Sensing)
|
|
Online Frequency Range (50Hz/60Hz)
|
45~55Hz ± 1Hz/ 55~65Hz ± 1Hz
|
|
Output
|
|
|
Output Voltage (Utility Power Normal)
|
230VAC, Single Phase
|
|
Output Voltage (Battery Operation)
|
230 ± 10%
|
|
Transfer Time
|
Typical 4-8ms, 10ms max
|
|
On-Battery Wave Form
|
Stepped Sinewave
|
|
Output Frequency Battery Mode
|
50Hz / 60Hz ± 1Hz
|
|
Battery
|
|
|
Battery Type, VDC × Ah × Quantity
|
12V × 7 Ah × 1
|
|
Typical Recharge Time
|
6~8 Hours to 90%
|
|
Operating Environment
|
|
|
Operating Temperature, °C
|
0 to 40
|
|
Storage Temperature, °C
|
-20 to 50
|
|
Operating/Storage Relative Humidity
|
0~90%, Non-condensing
|
|
Noise Level
|
Less than 45dB
|
|
Protection
|
|
|
Full Protection
|
Surge, Short Circuit, Overload, Overcharge,
and Over Discharge Protection
|
|
Indicators
|
|
|
LED Display (LED version)
|
AC Mode (green), Battery Mode (yellow), Fault (red)
|
|
Alarm
|
|
|
Battery Mode
|
Sounding every 10 seconds
|
|
Low Battery
|
Sounding every 1 second
|
|
Overload (at Normal Mode)
|
Sounding every 0.5 second
|
|
Overload (at Battery Mode)
|
UPS shuts down immediately
|
|
Fault
|
Continuously sounding
|
