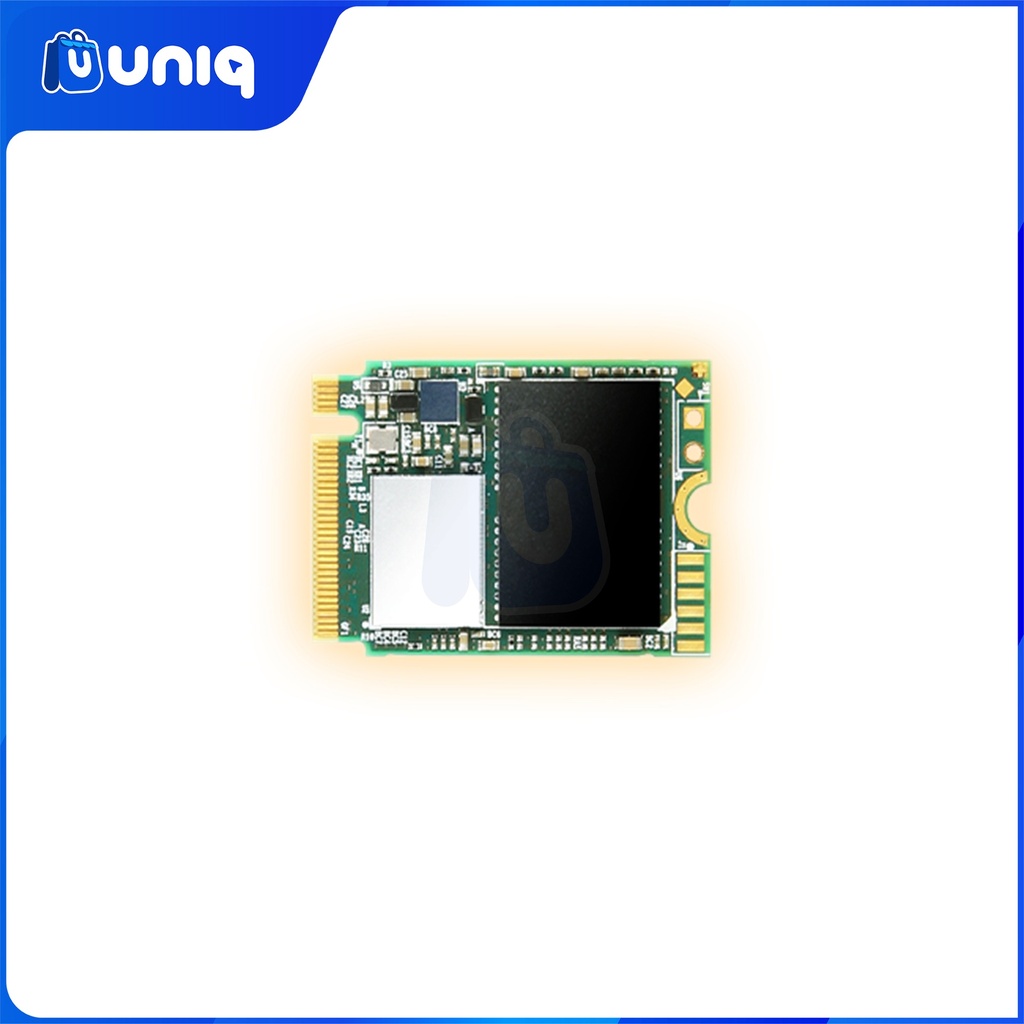

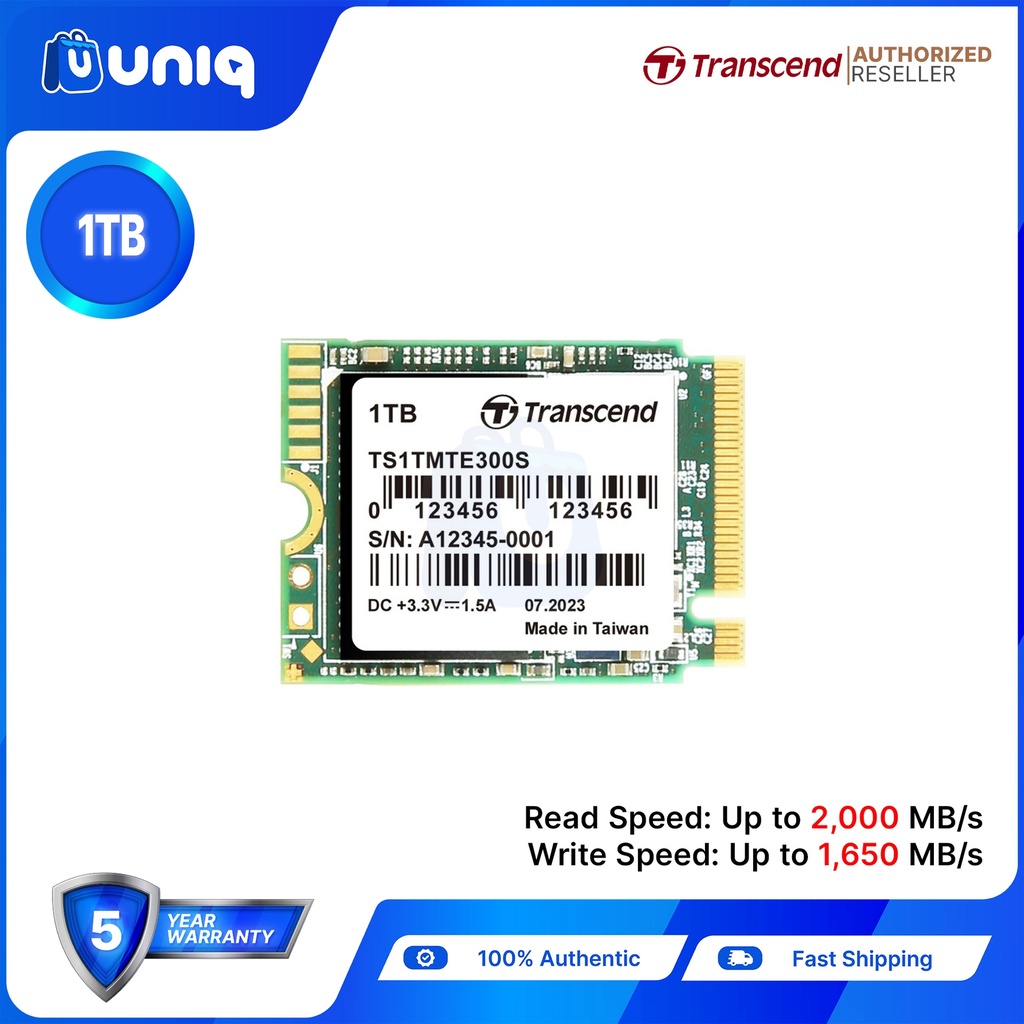

Transcend 300S 1TB NVMe PCIe M.2 SSD (TS1TMTE300S)

https://shop.uniq.com.ph/web/image/product.template/977/image_1920?unique=a19678c
(0 review)

Key Features

  • ​3D NAND flash
  • Space-saving M.2 Type 2230 form factor
  • PCIe Gen3 x4 interface and meets NVMe 1.3 standard
  • Built-in SLC caching technology for exceptional transfer speeds


Product Details

₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

  • Storage Capacity

This combination does not exist.

Contact Us
Storage Capacity: 1TB

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Appearance



Type

M.2 2230

Dimensions

Single-sided 30.0 mm x 22.0 mm x 2.23 mm (1.18" x 0.87" x 0.09")

Weight

4 g (0.14 oz)

Interface



Bus Interface

NVMe PCIe Gen3 x4

Storage



Flash Type

3D NAND flash

Capacity

256 GB/512 GB/1 TB

Operating Environment



Operating Temperature

0°C (32°F) ~ 70°C (158°F)

Operating Voltage

3.3V±5%

Performance



Sequential Read/Write (CrystalDiskMark)

1 TBUp to 2,000/1,650 MB/s

512 GBUp to 2,000/1,100 MB/s

256 GBUp to 2,000/950 MB/s

4K Random Read/Write (IOmeter)

1 TBUp to 120,000/280,000 IOPS

512 GBUp to 90,000/190,000 IOPS

256 GBUp to 90,000/220,000 IOPS

Terabytes Written (TBW)

1 TB400 TBW

512 GB200 TBW

256 GB100 TBW

Mean Time Between Failures (MTBF)

2,000,000 hour(s)

Drive Writes Per Day (DWPD)

0.21 (5 yrs)

Note

Speed may vary due to host hardware, software, usage, and storage capacity.

The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Terabytes Written (TBW) expresses the endurance under the highest capacity.

Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.

System Requirement



Operating System

Microsoft Windows 7 or later

Linux Kernel 2.6.31 or later

Note

Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage. Please click here for more information.

Technology



S.M.A.R.T.

✓

Advanced Garbage Collection

✓

RAID Engine

-

LDPC Coding

✓

DRAM Cache

-








  • What's in the box: 1x Transcend 300S 1TB NVMe PCIe M.2 SSD
  • Warranty: 5 Years Warranty
