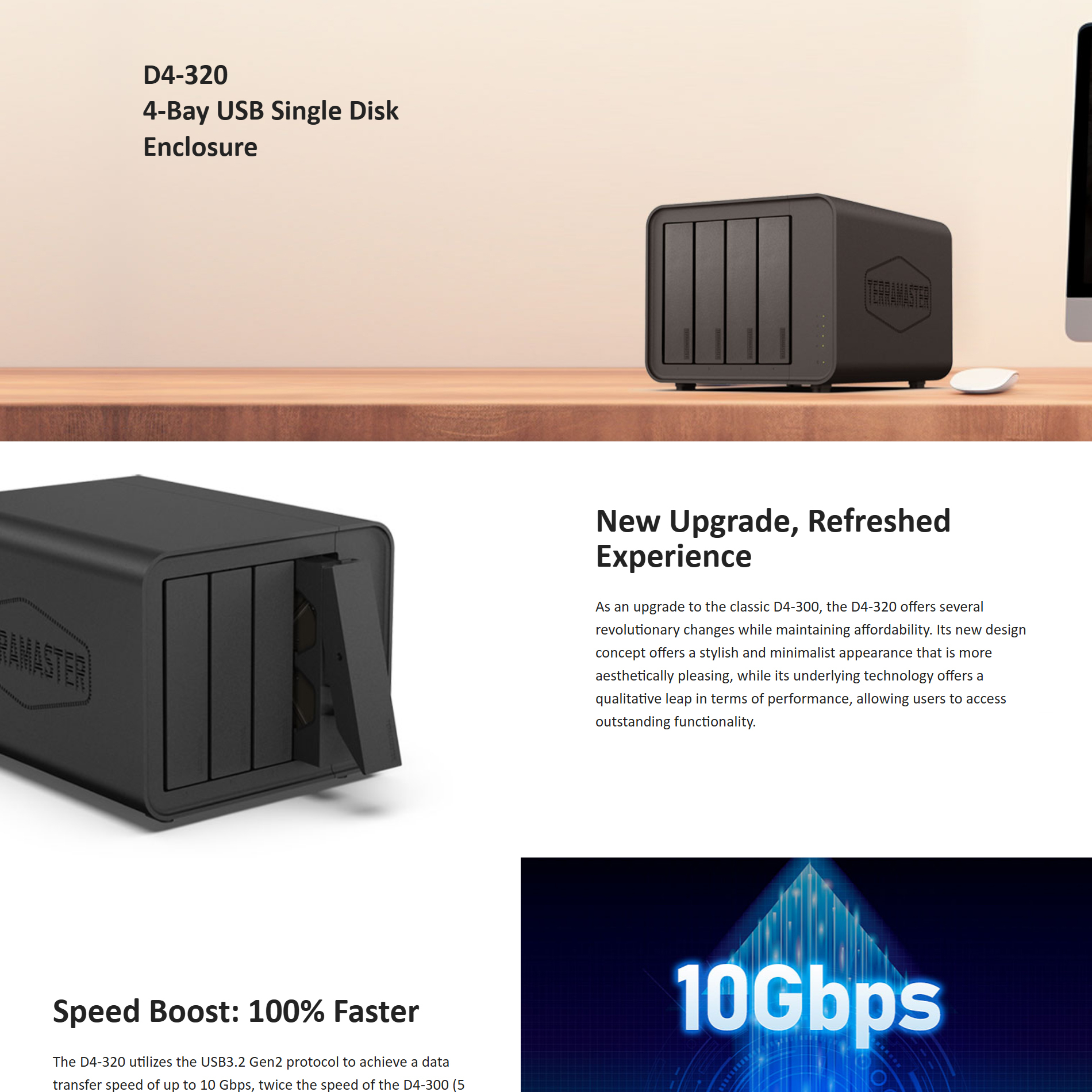

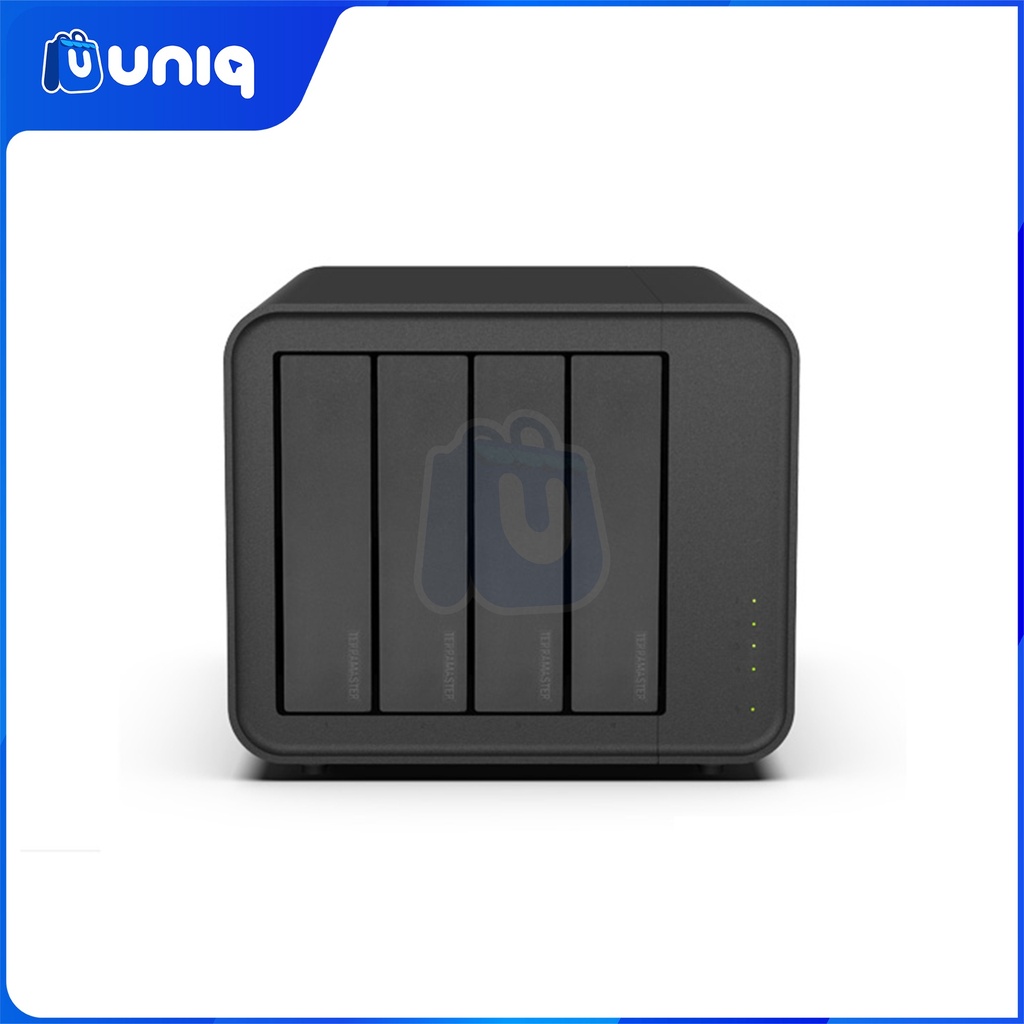

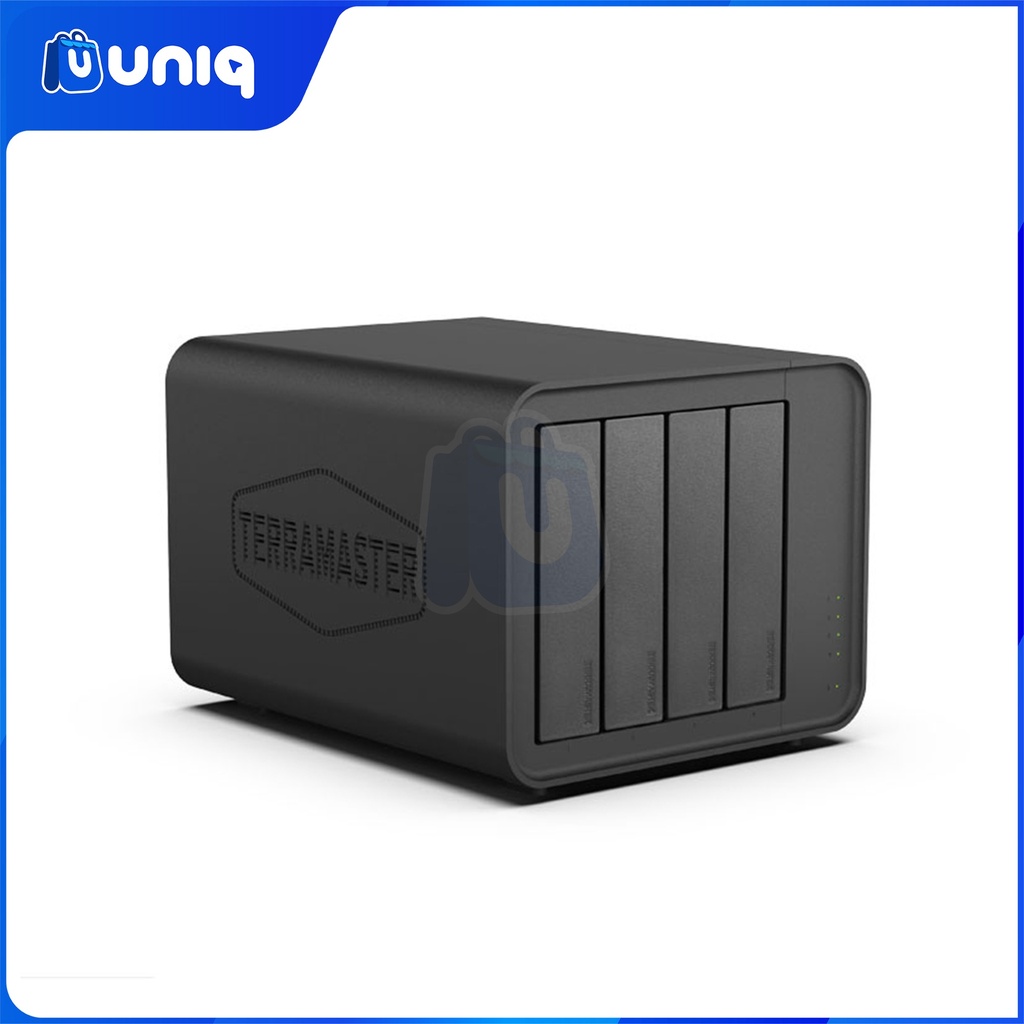

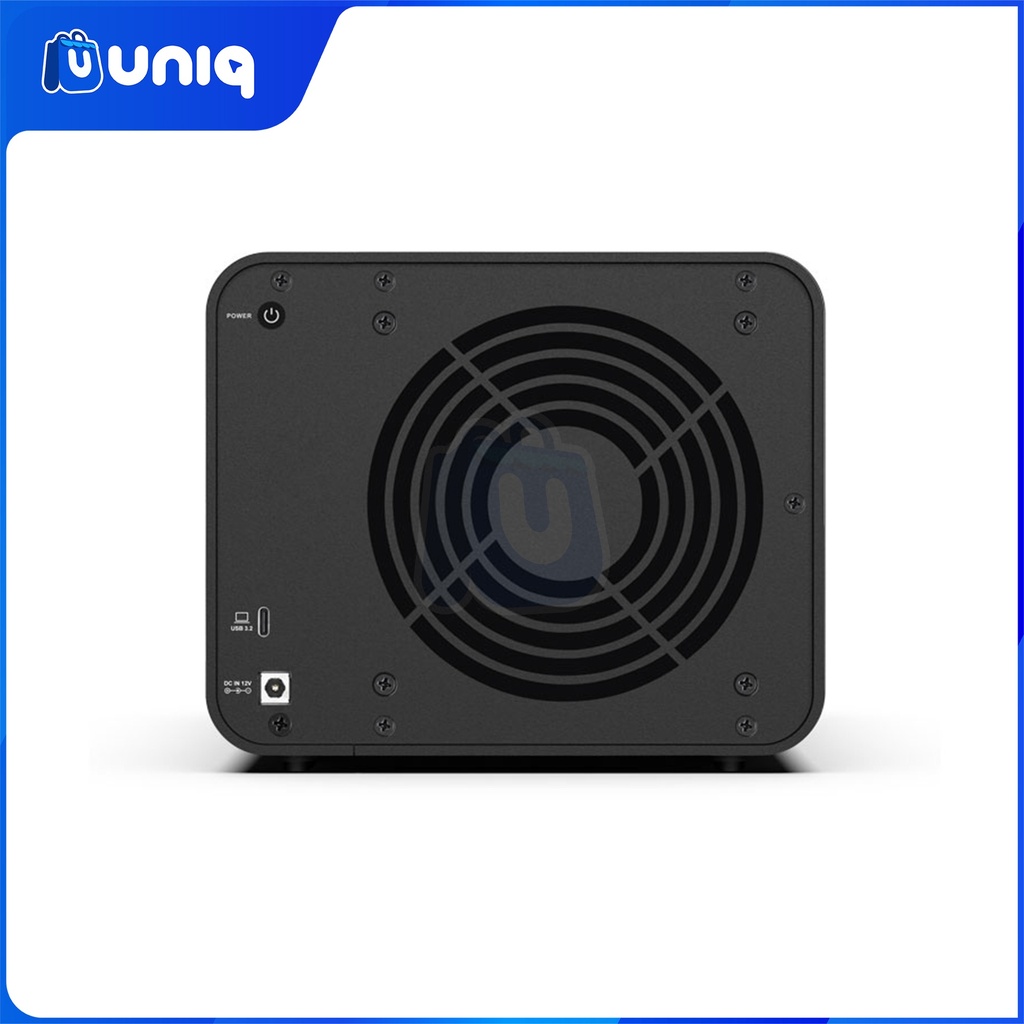

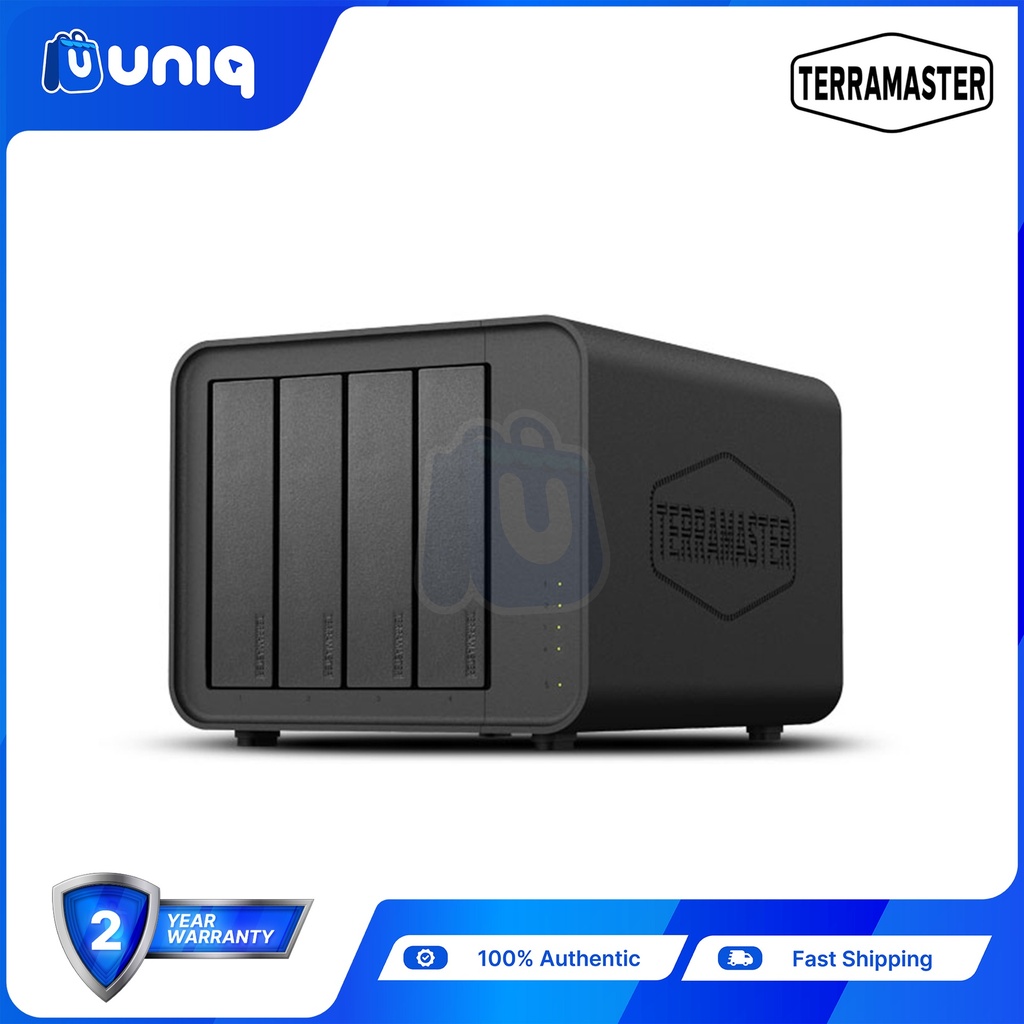

TerraMaster D4-320 4-Bay USB Single Disk Enclosure

https://shop.uniq.com.ph/web/image/product.template/558/image_1920?unique=df44d8f
(0 review)

Key Features

  • Transfer speed of up to 10 Gbps

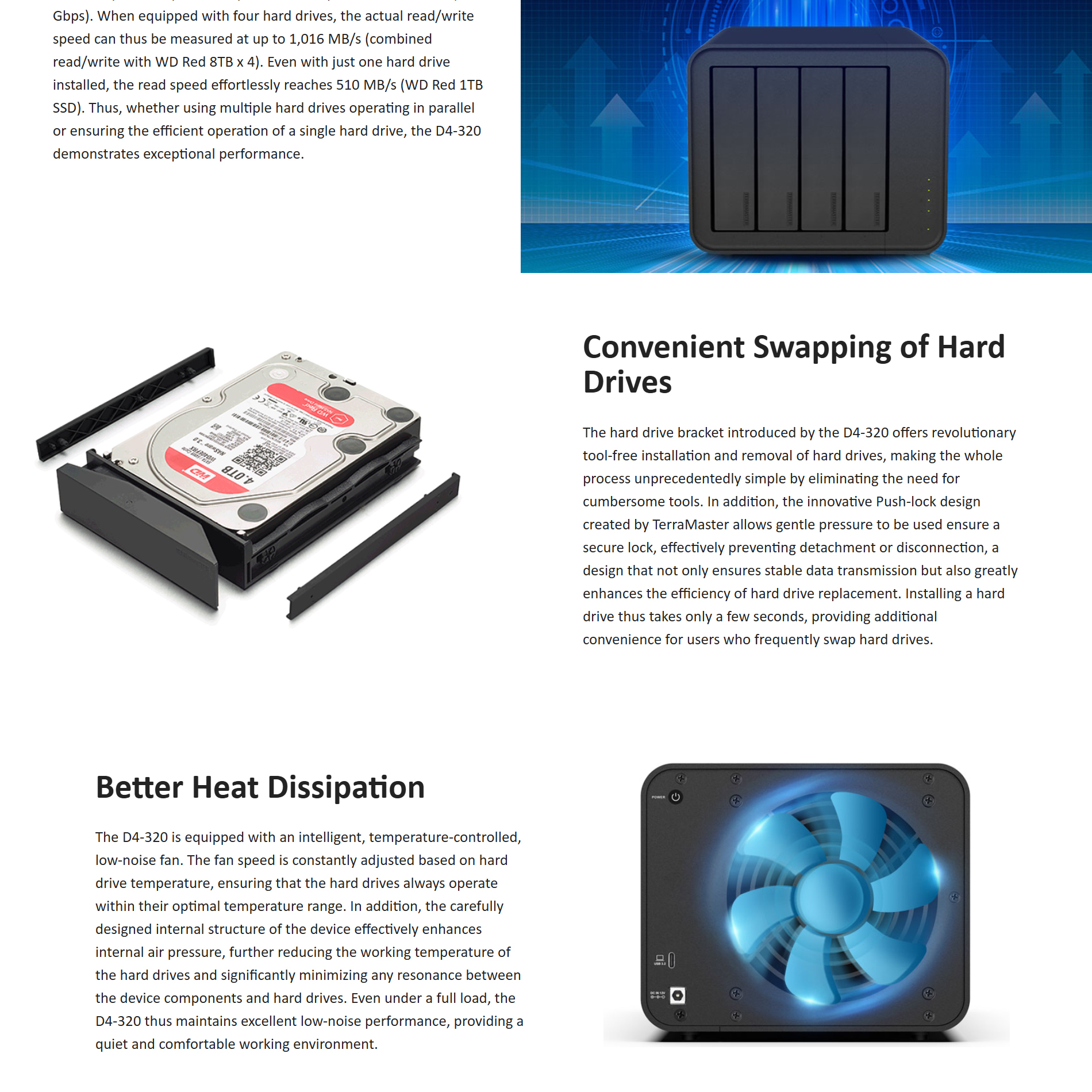

  • Convenient Swapping of Hard Drives
  • Intelligent, temperature-controlled, low-noise fan
  • Reduced Noise: 50% Quieter
  • 88TB Storage
  • Compatible with Various Hard Drives
  • Strong Interface Compatibility
  • Hot Swap
  • Driverless, Plug and Play

Product Details



₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us
Pre-Order (Ship in 7 Days)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days






Storage



Disk Slot Number

4

Compatible Disk Types

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

File System

NTFS, APFS, Mac OS,FAT32,EXT4,exFAT

Maximum Internal Raw Capacity

88 TB (22 TB drive x 4)

RAIDs Supported

SINGLE DISK

Hardware RAID

/

RAID Manager Software

/

RAID Manager Software Language

/

RAID Online Expansion

/

RAID Migration

/

RAID Auto-rebuilding

/

Drive Hot Swap

√

HDD Sleep

√

HDD S.M.A.R.T. Inspection

/

Sector Inspection and Parity Check

/

SSC Cache

/

Daisy Chain

/

HDD NCQ Technology

/

Alert Notice

/

Event Log

/

External Ports



USB

USB3.2 Type-C gen2  10Gbps

Thunderbolt

/

DP Interface

/

Network Interface

/

USB HOST Interface

/

Power Socket

DC IN 12V

Reading/writing Speed (max.)



Reading Speed (max.)

Read：560MB/s ( SSD* 1 ); Read：1016MB/s ( SSD* 4)；

Writing Speed (max.)

Write：520MB/s ( SSD*1 ); Write：960MB/s ( SSD*4 )；

 Appearance



Size (H*W*D)

222 x 179 x 154   mm

Packaging Size (H*W*D)

300 x 275 x 186  mm

Weight net weight:

1.9Kg

Gross Weight

3.1 Kg

Others



System fan

120 x 120 x 25mm  1PCS

Fan mode

Smart

Noise Level

21.0dB(A)

Power Supply



Power Supply

72 W

AC Input Voltage

100V to 240V AC

Current Frequency

50/60 HZ, Single Phase

Power Consumption

40.8 W(Access), 9.8 W (Hibernation)

Environment Temperature



Working Temperature

0°C  ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-5°F ~ 140°F)

Relative Humidity

5% ~ 95% RH

Supported OS

Windows OS、Mac OS、Linux

Certificate

CE, FCC, CCC, KC

Environment

RoHS compliance








  • What's in the box:
    TerraMaster D4-320 4-Bay USB Single Disk Enclosure
    Power cord
    USB Cable C to Type-C(10Gb)
    Quick Installation Guide
    Power adapter
    Screws (several)
    Limited Warranty Note
  • Warranty: 2 Years Warranty
