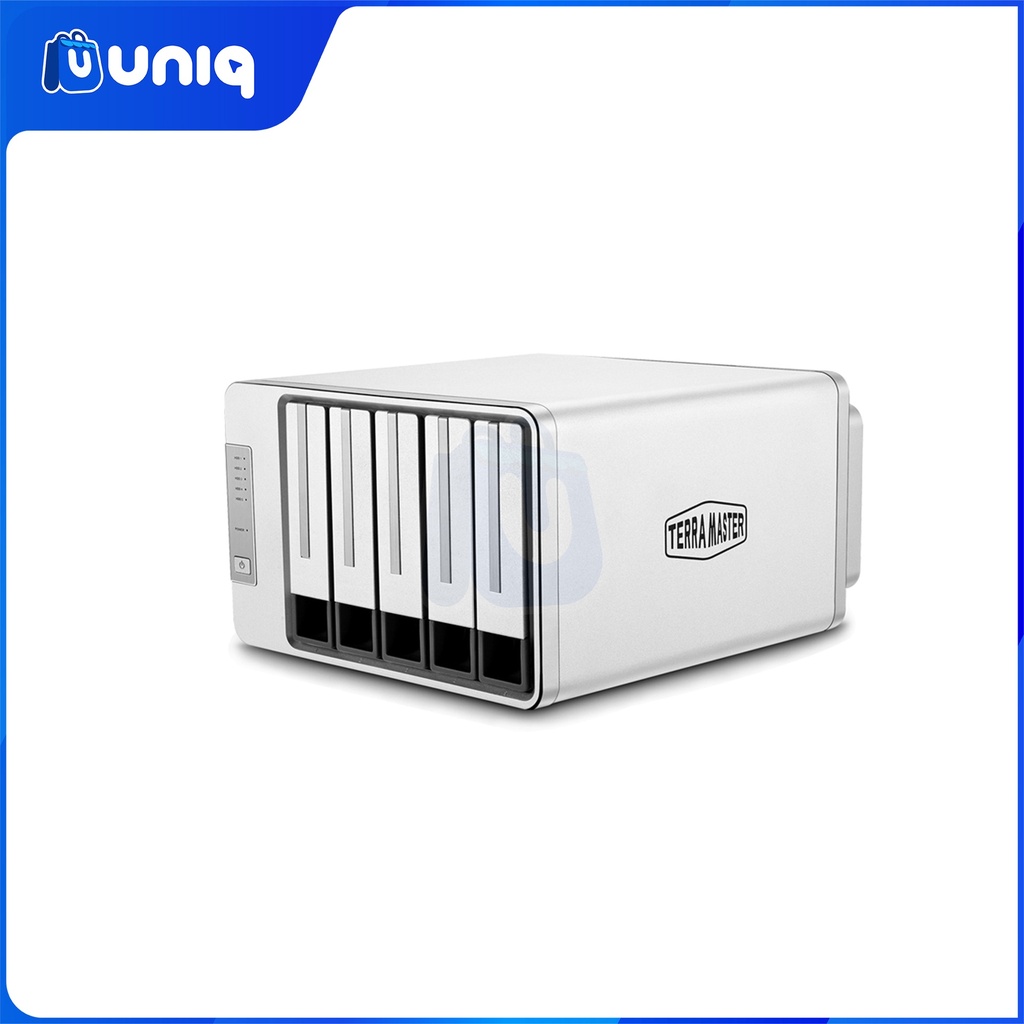

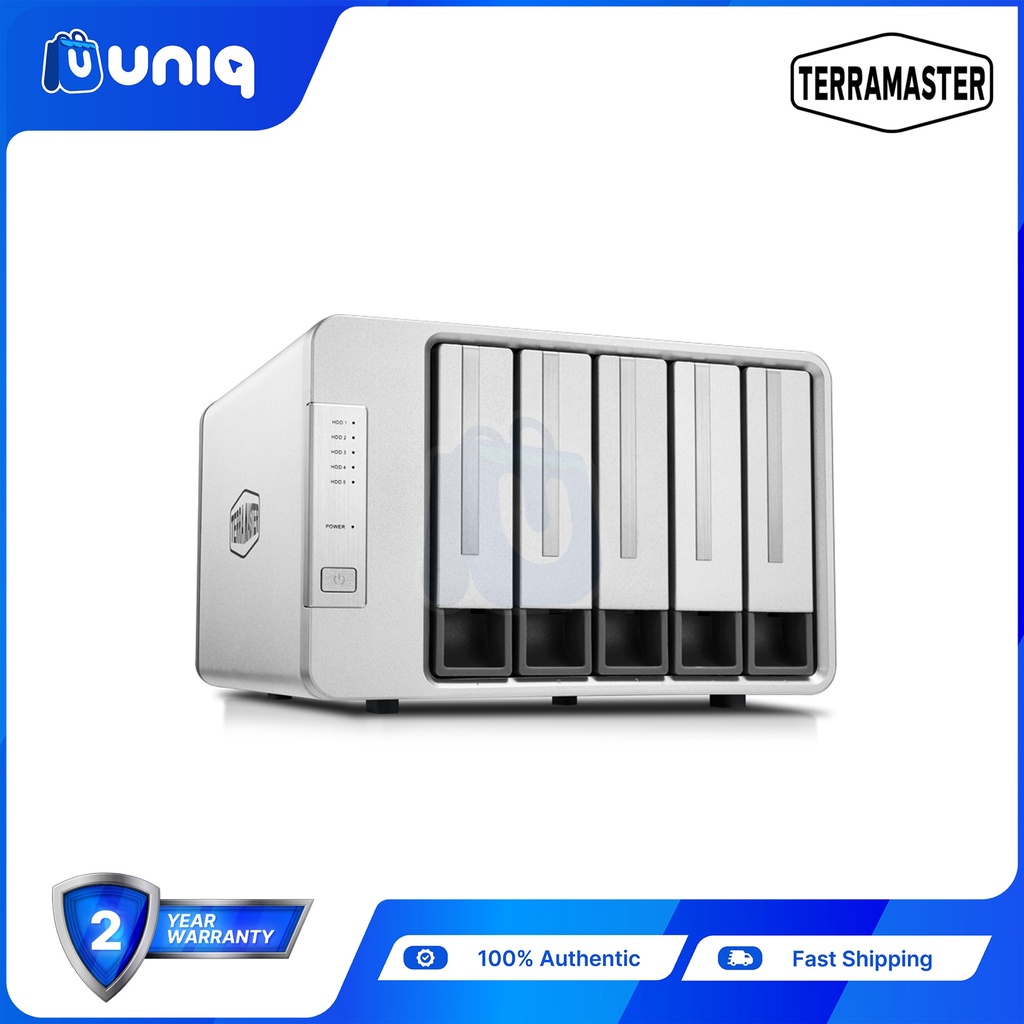

TerraMaster D5-300C USB 3.1 (Gen1) Type-C 5-Bay RAID Enclosure

Storage

Disk Slot Number

5

Compatible Disk Types

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

File System

NTFS, APFS, Mac OS,FAT32,EXT4,exFAT

Maximum Internal Raw Capacity

100TB (20 TB drive x 5) (Capacity will vary along with the RAID type)

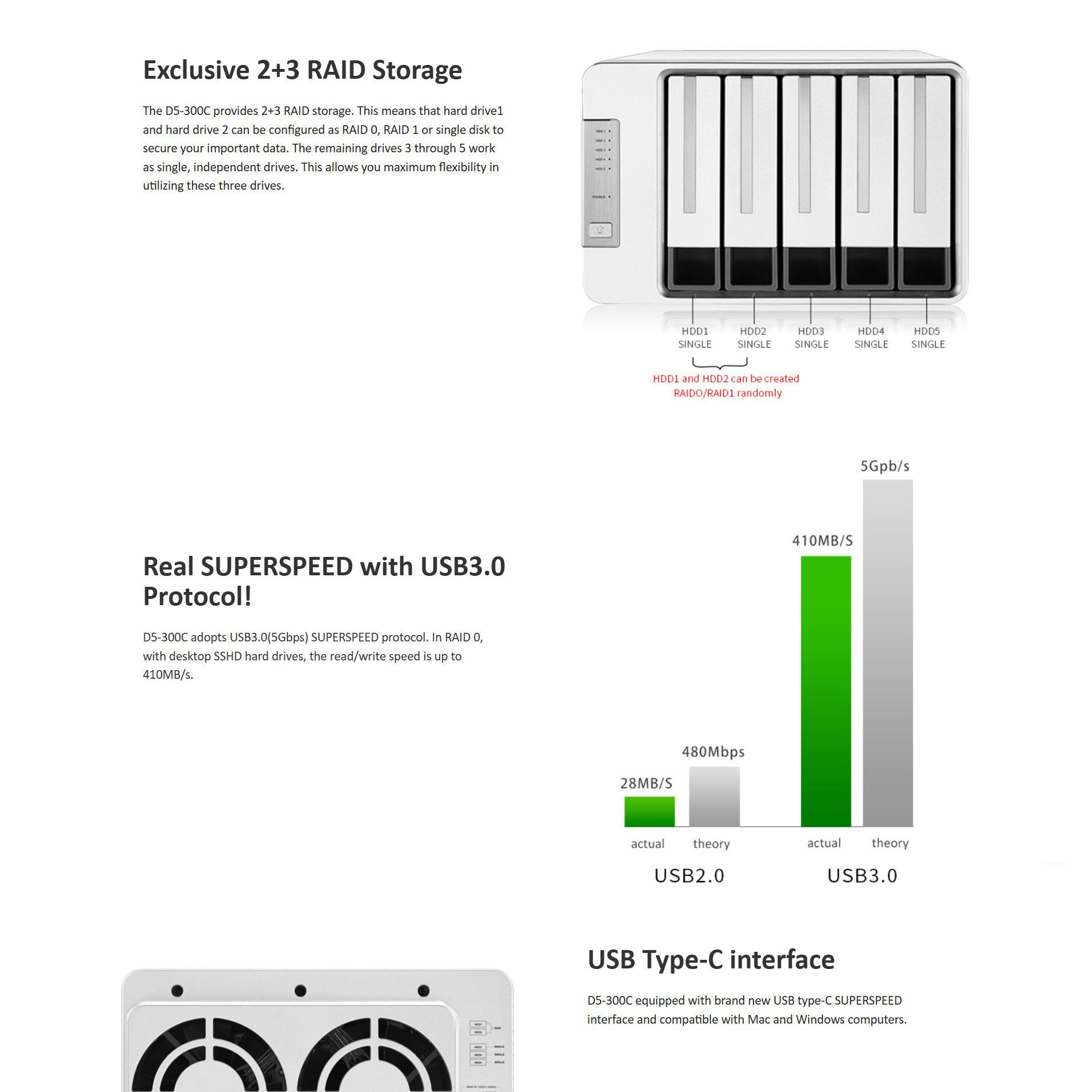

RAIDs Supported

SINGLE DISK,RAID 0,RAID 1

Hardware RAID

√

RAID Manager Software

/

RAID Manager Software Language

/

RAID Online Expansion

/

RAID Migration

/

RAID Auto-rebuilding

RAID 1

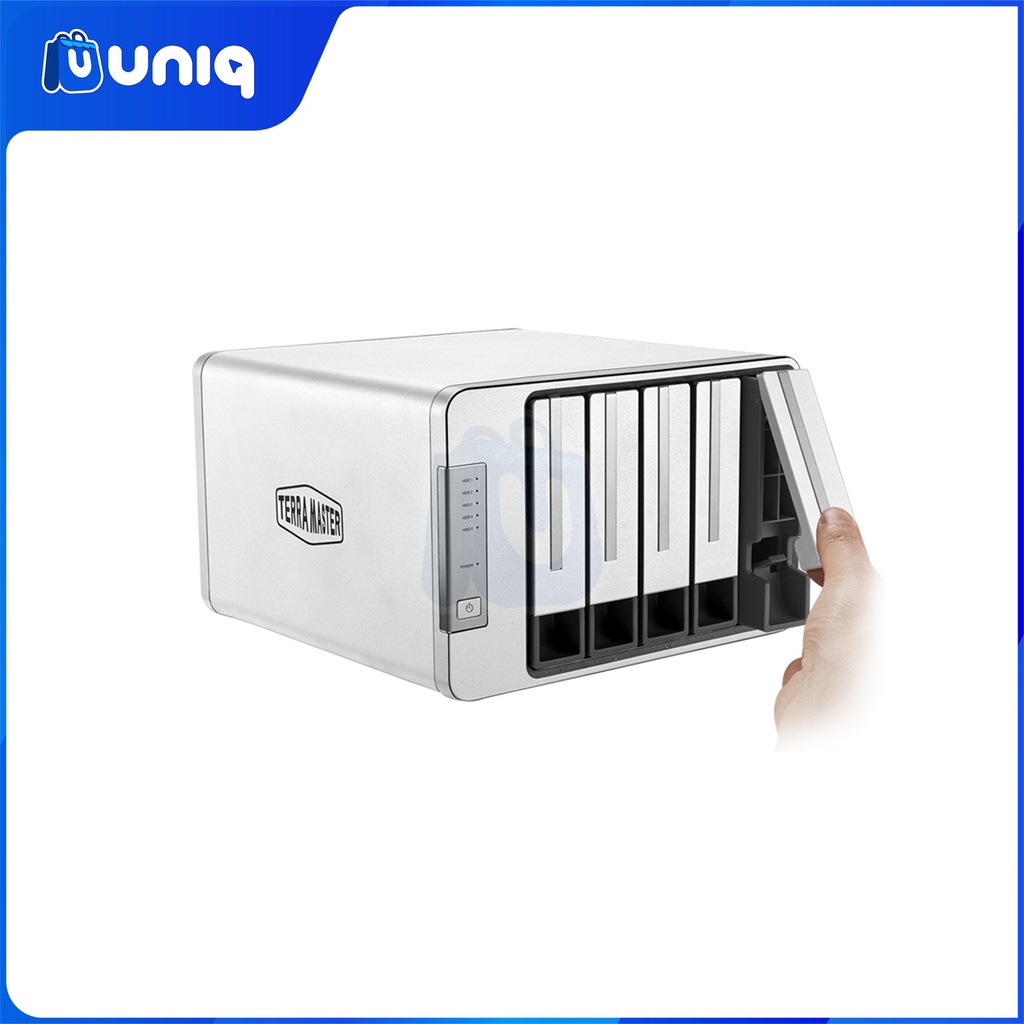

Drive Hot Swap

√

HDD Sleep

√

HDD S.M.A.R.T. Inspection

/

Sector Inspection and Parity Check

/

SSC Cache

/

Daisy Chain

/

HDD NCQ Technology

/

Alert Notice

/

Event Log

/

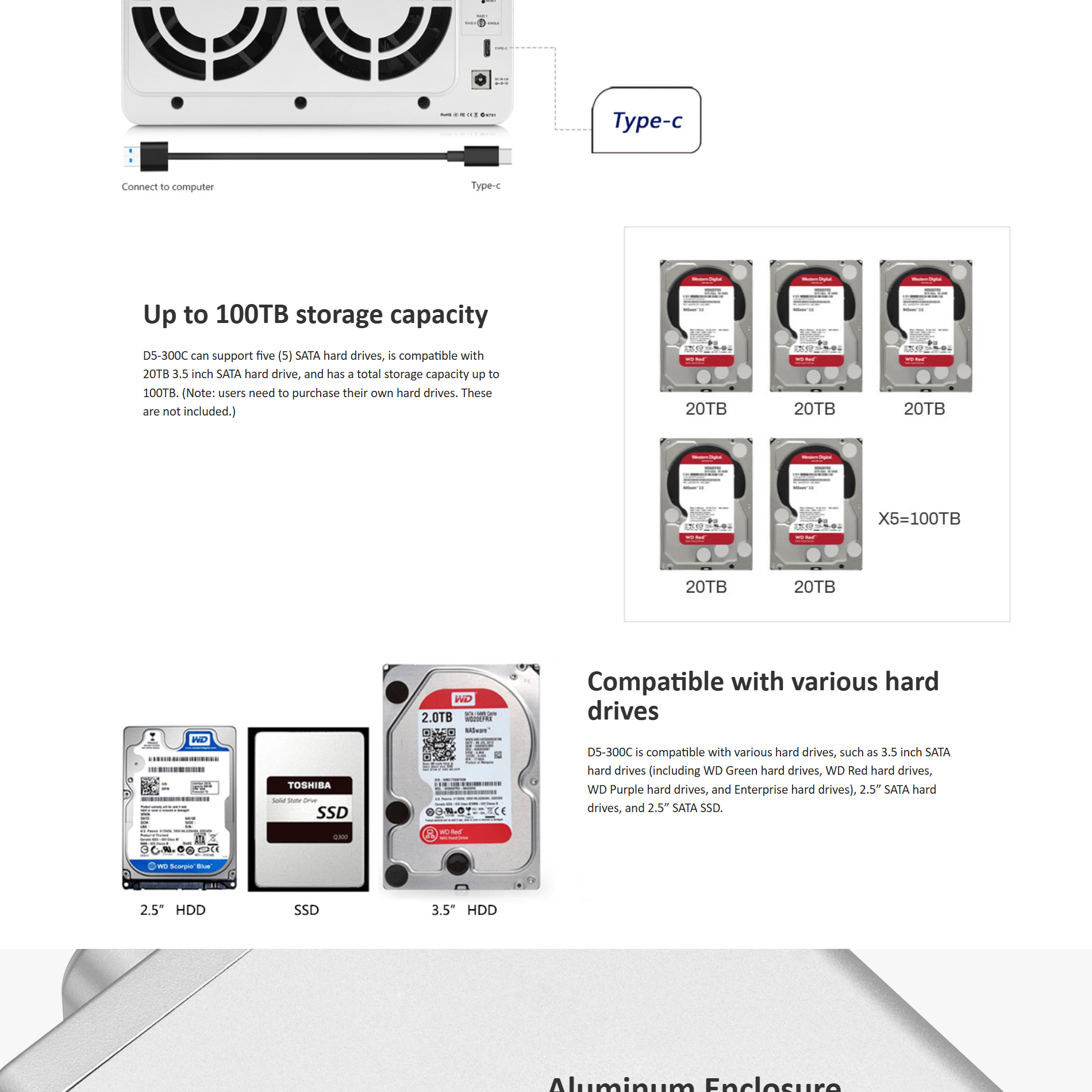

External Ports

USB

USB3.1 Type-C gen1 x 1

Thunderbolt

/

DP Interface

/

Power Socket

DC IN 12V

Reading/writing Speed (max.)

Reading Speed (max.)

Read：410MB/s (2 SSHD RAID0 mode)

Writing Speed (max.)

Write：400MB/s (2 SSHD RAID0 mode)

Appearance

Size (H*W*D)

227 x 225 x 136 mm

Packaging Size (H*W*D)

300 x 275 x 186 mm

Weight

Wet weight

2.1 Kg

Gross Weight

3.5Kg

Others

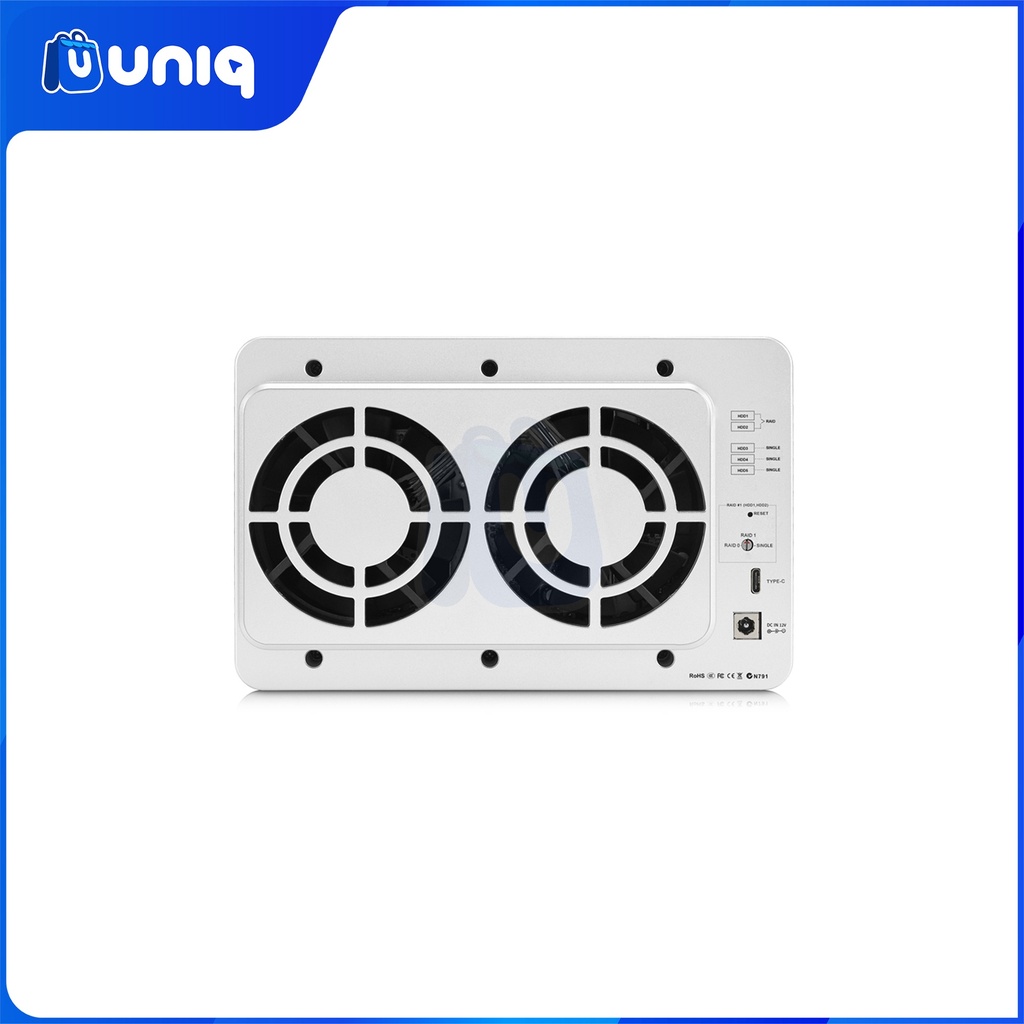

System fan

80 mm x 80 mm x25mm (x 2)

Fan mode

Smart

Noise Level

19.8dB(A)

Power Supply

Power Supply

90W

AC Input Voltage

100V to 240V AC

Current Frequency

50/60 HZ, Single Phase

Power Consumption

45.6W(Access)

Environment Temperature

Working Temperature

5°C  ~ 40°C (40°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-5°F ~ 140°F)

Relative Humidity

5% ~ 95% RH

Supported OS

Windows OS、Mac OS、Linux

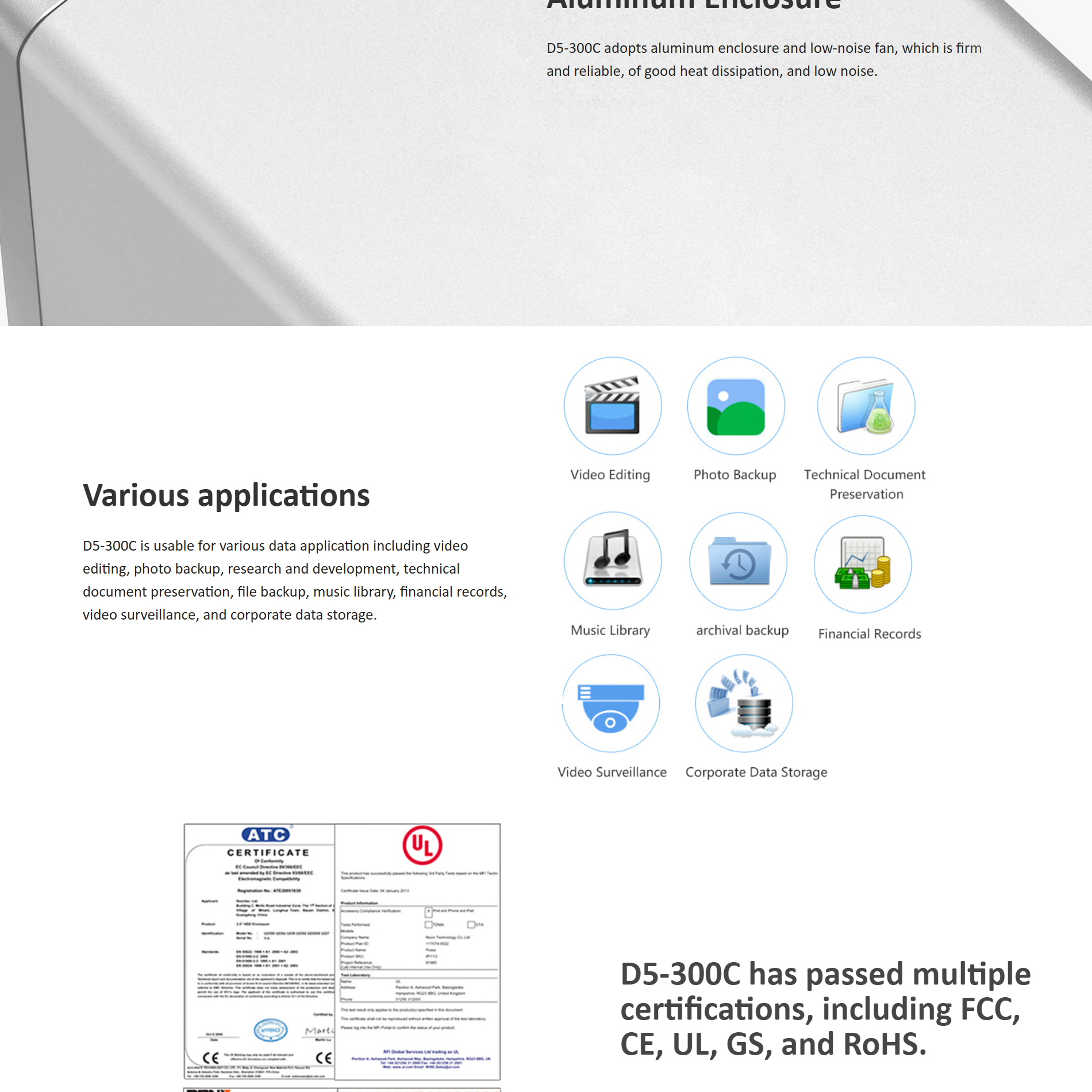

Certificate

CE, FCC, CCC, KC

Environment

RoHS compliance
