TerraMaster D5-320H (D5 Hybrid) 5-Bay Hybrid Disk Enclosure

https://shop.uniq.com.ph/web/image/product.template/550/image_1920?unique=dbea824
(0 review)

Key Features

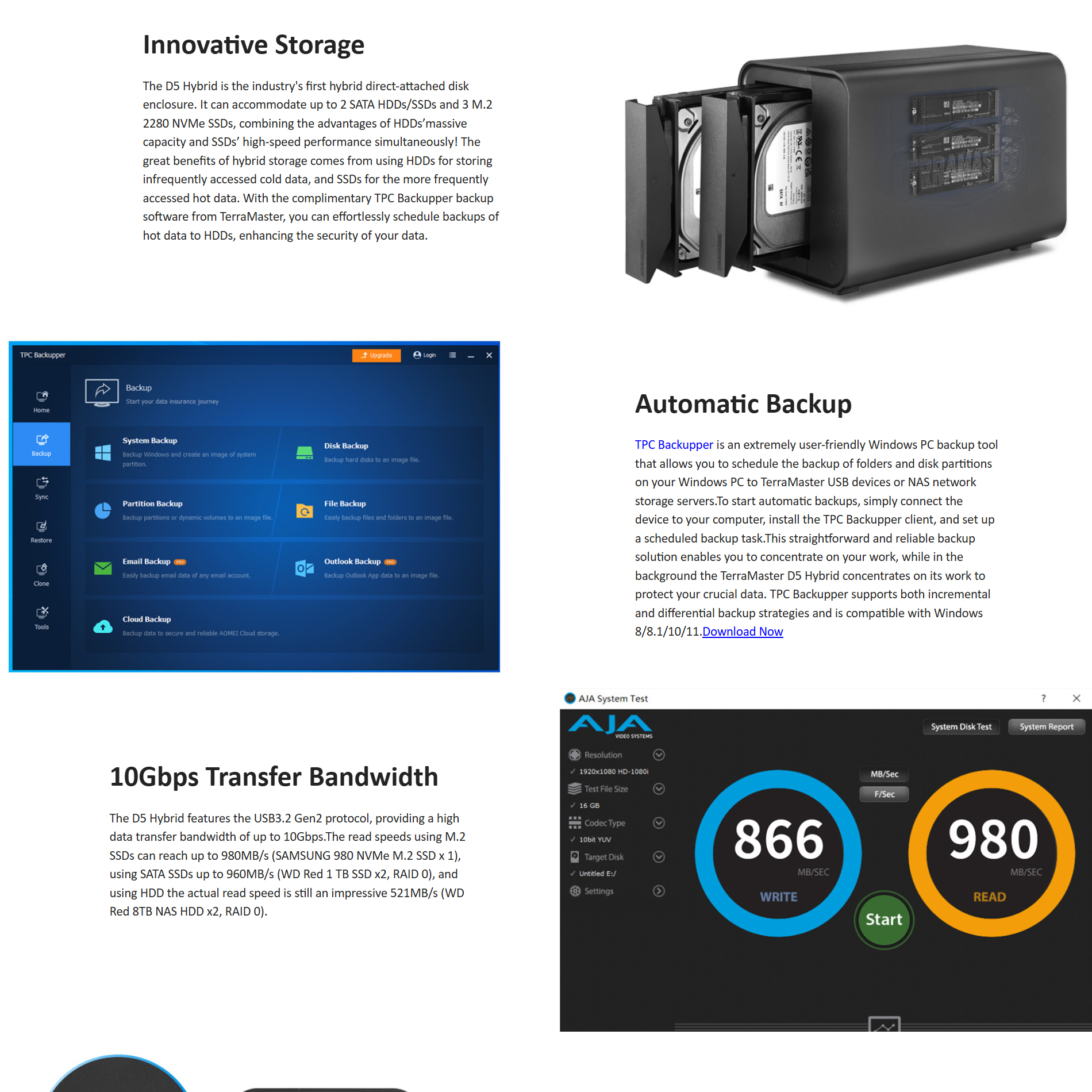

  • Innovative Storage
  • Automatic Backup
  • 10Gbps Transfer Bandwidth

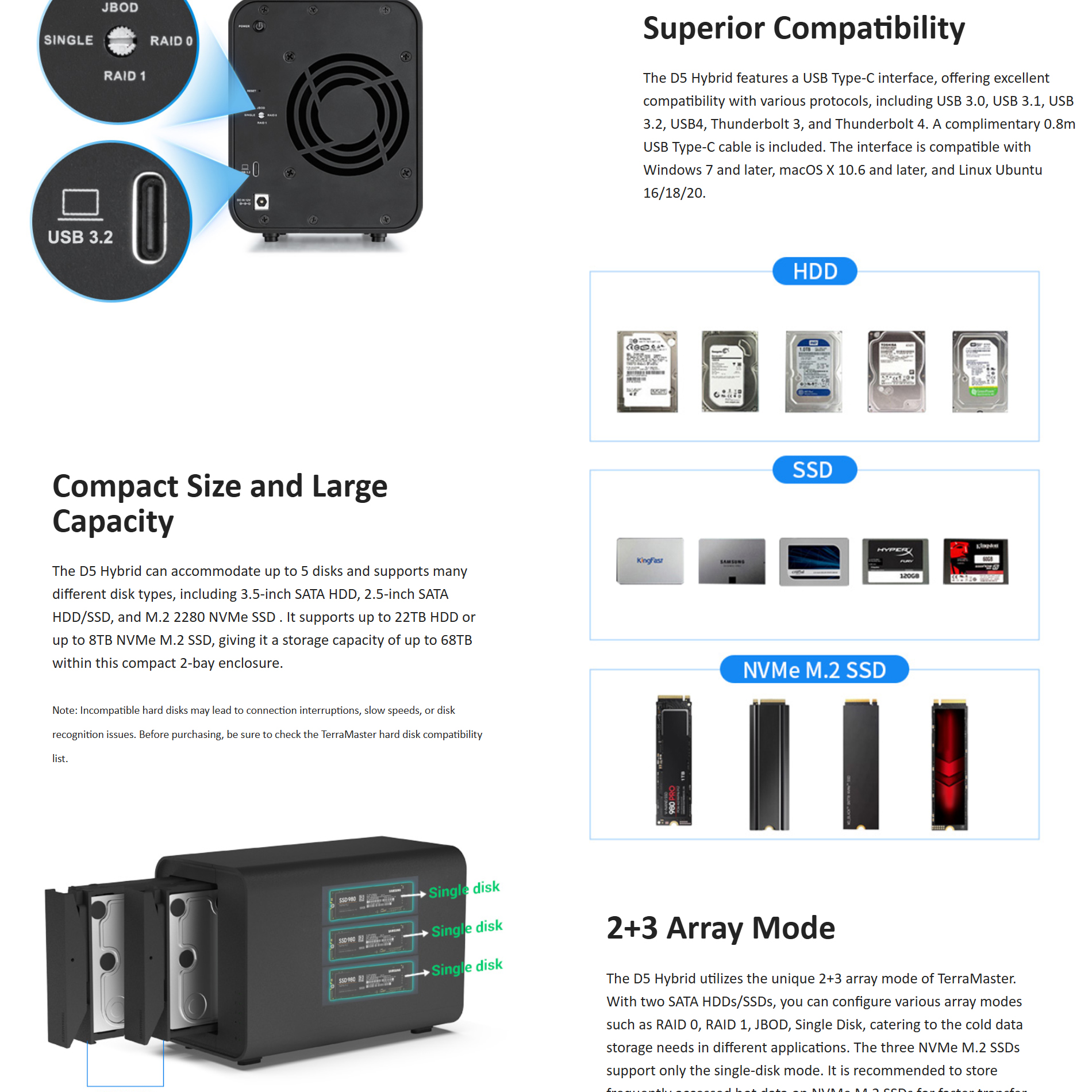

  • Superior Compatibility
  • Compact Size and Large Capacity
  • 2+3 Array Mode

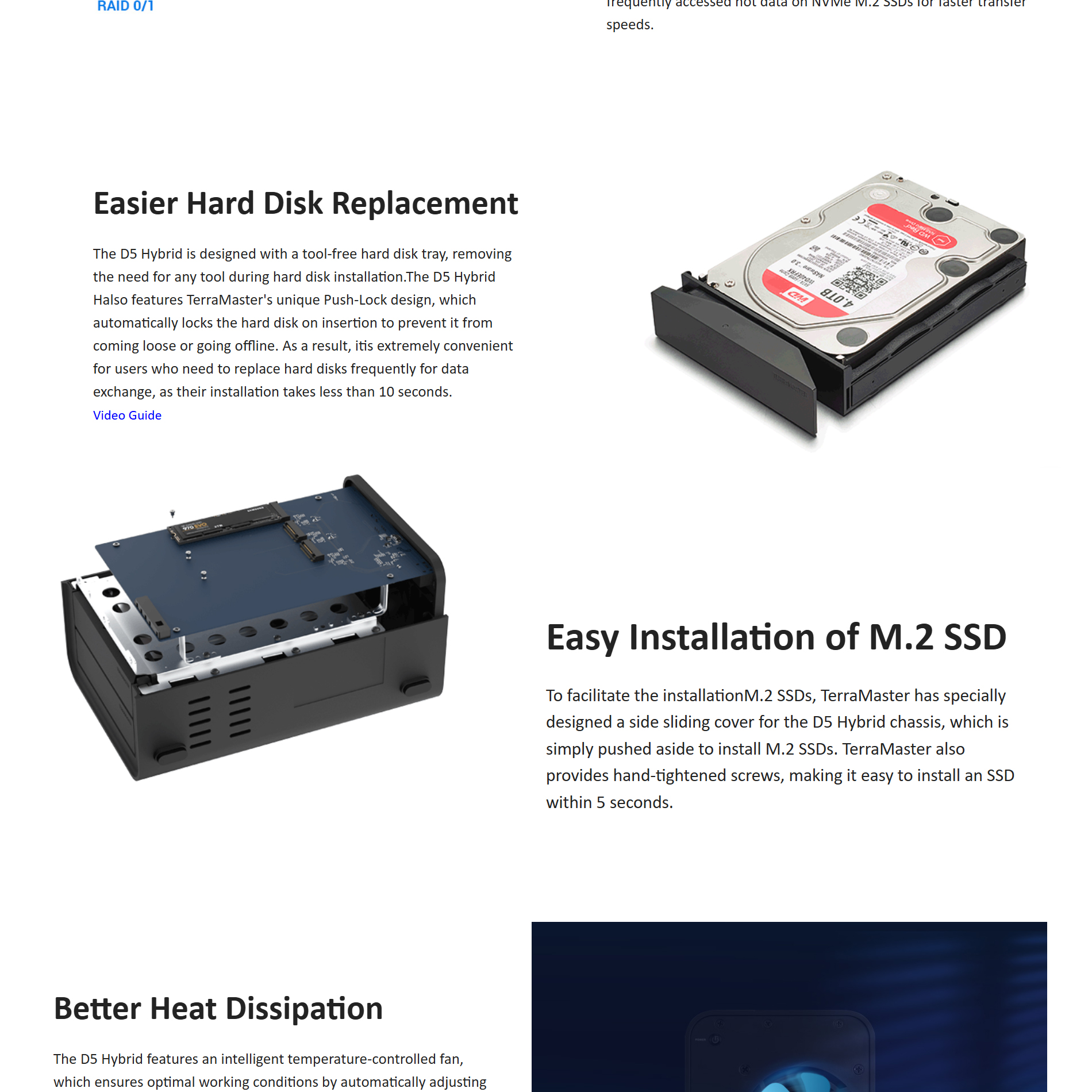

  • Easier Hard Disk Replacement
  • Easy Installation of M.2 SSD

Product Details



₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us
Pre-Order (Ship in 7 Days)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days












Storage



Disk Slot Number

2

Compatible Disk Types

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

M.2 2280 NVMe Slot

3(PCle3.0/4.0/5.0)

File System

NTFS, APFS, Mac OS,FAT32,EXT4,exFAT

Maximum Internal Raw Capacity

68 TB (22 TB drive x 2 + 8 TB drive x 3) (Capacity will vary along with the RAID type)

RAIDs Supported

SINGLE DISK,JBOD,RAID 0,RAID 1

Hardware RAID

√

RAID Manager Software

/

RAID Manager Software Language

/

RAID Online Expansion

/

RAID Migration

/

RAID Auto-rebuilding

√

Drive Hot Swap

/

HDD Sleep

√

HDD S.M.A.R.T. Inspection

/

Sector Inspection and Parity Check

/

SSD Cache

/

Daisy Chain

/

HDD NCQ Technology

/

Alert Notice

/

Event Log

/

External Ports



USB

USB3.2 Type-C gen2  10Gbps

Thunderbolt

/

DP Interface

/

Network Interface

/

USB HOST Interface

/

Power Socket

DC IN 12V

Reading/writing Speed (max.)



Reading Speed (max.)

Read：565MB/s ( HDD*2_RAID0 ); Read：960MB/s ( SSD*2_RAID0 )；

Reading Speed (max.)

Read：980MB/s (NVMe M.2 SSD*1 )

Writing Speed (max.)

Write：524MB/s ( HDD*2_RAID0); Write：956MB/s ( SSD*2_RAID0 )；

Writing Speed (max.)

Write：880MB/s (NVMe M.2 SSD *1 )

Appearance



Size

222 x 119 x 154 mm

Packaging Size

258 x 220 x 170  mm

Weight

Net weight: 1.3 Kg

Gross Weight: 2.1 Kg

Others

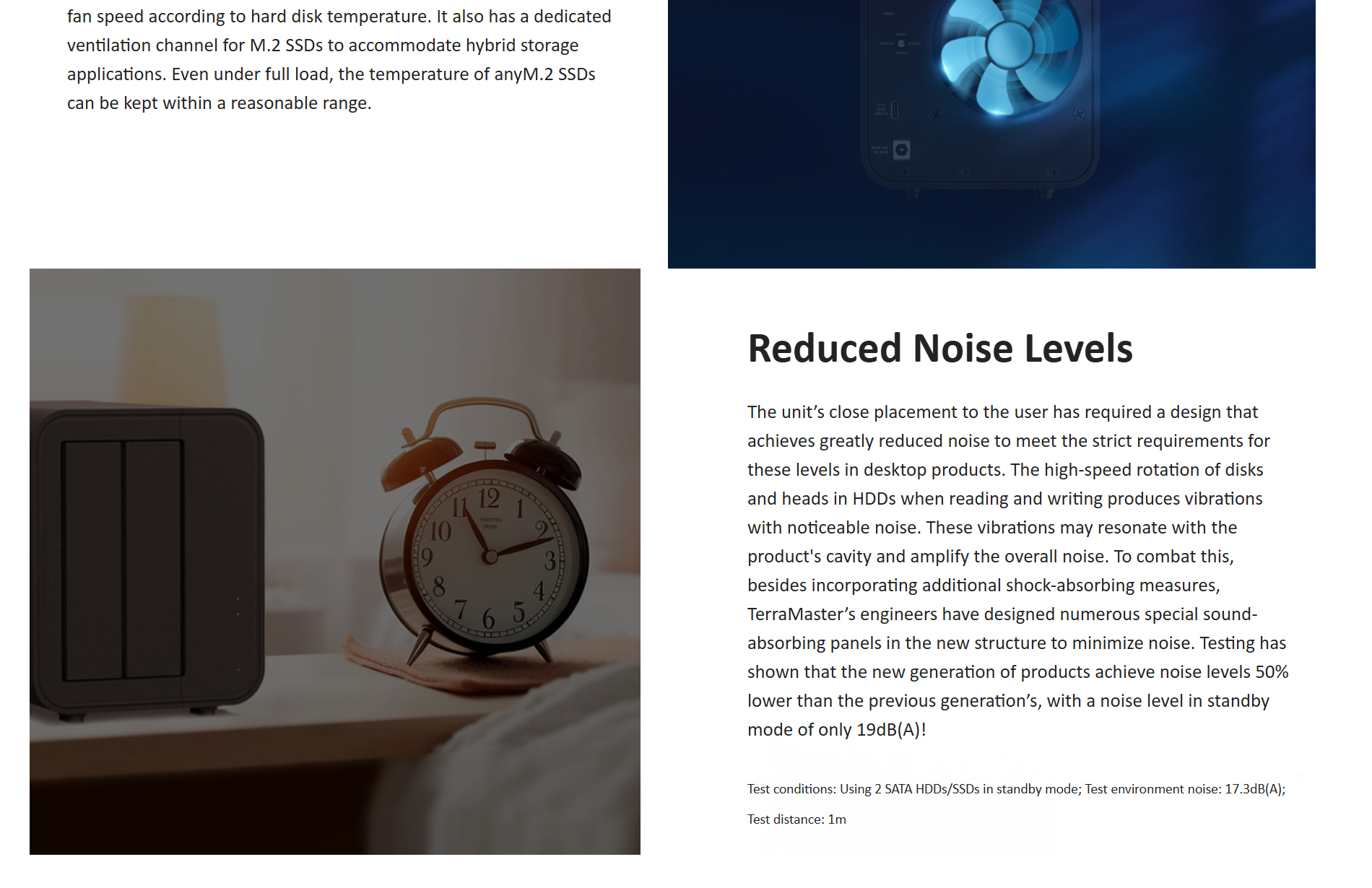

System fan

80 mm x 80 mm x25mm (x 1)

Fan mode

Smart

Noise Level

19.0 dB(A) ( Using 2 SATA HDDs/SSDs in standby mode)

The microphone is placed at a distance of 1 meter from the device.

Background noise: 17.3 dB(A)

Power Supply



Power Supply

40 W

AC Input Voltage

100V to 240V AC

Current Frequency

50/60 HZ, Single Phase

Power Consumption

30 W(Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD in read/write state )

8.1 W (Fully loaded Seagate 22TB ST22000NM001E hard drive(s) and SAMSUNG 980 NVMe M.2 SSD  in hibernation)

Environment Temperature



Working Temperature

0°C  ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-5°F ~ 140°F)

Relative Humidity

5% ~ 95% RH

Supported OS

Windows OS、Mac OS、Linux

Certificate

CE, FCC, CCC, KC

Environment

RoHS compliance








  • What's in the box:
    TerraMaster D5-320H (D5 Hybrid) 5-Bay Hybrid Disk Enclosure
    USB Cable C to Type-C (10Gb)
    Quick Installation Guide
    Power adapter
    Screws (several)
    Limited Warranty Note
  • Warranty: 2 Years Warranty
