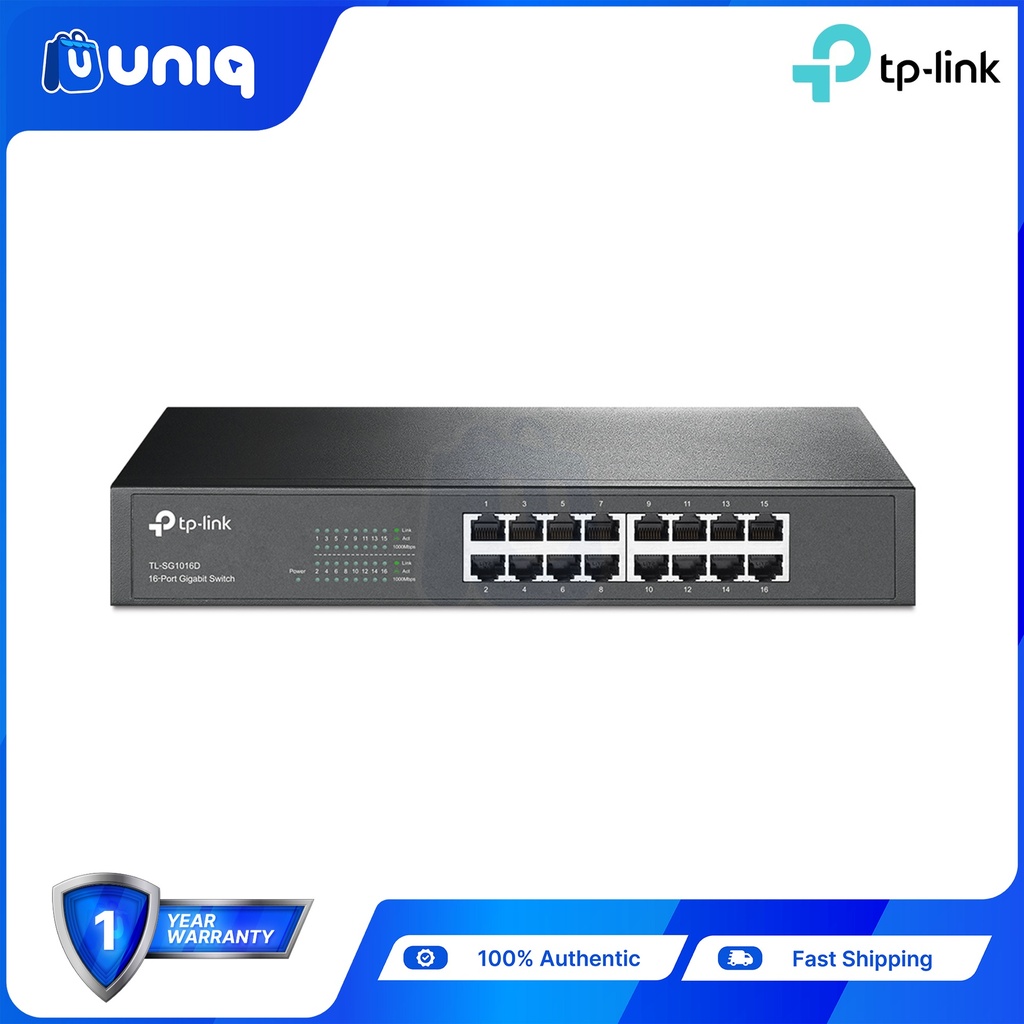

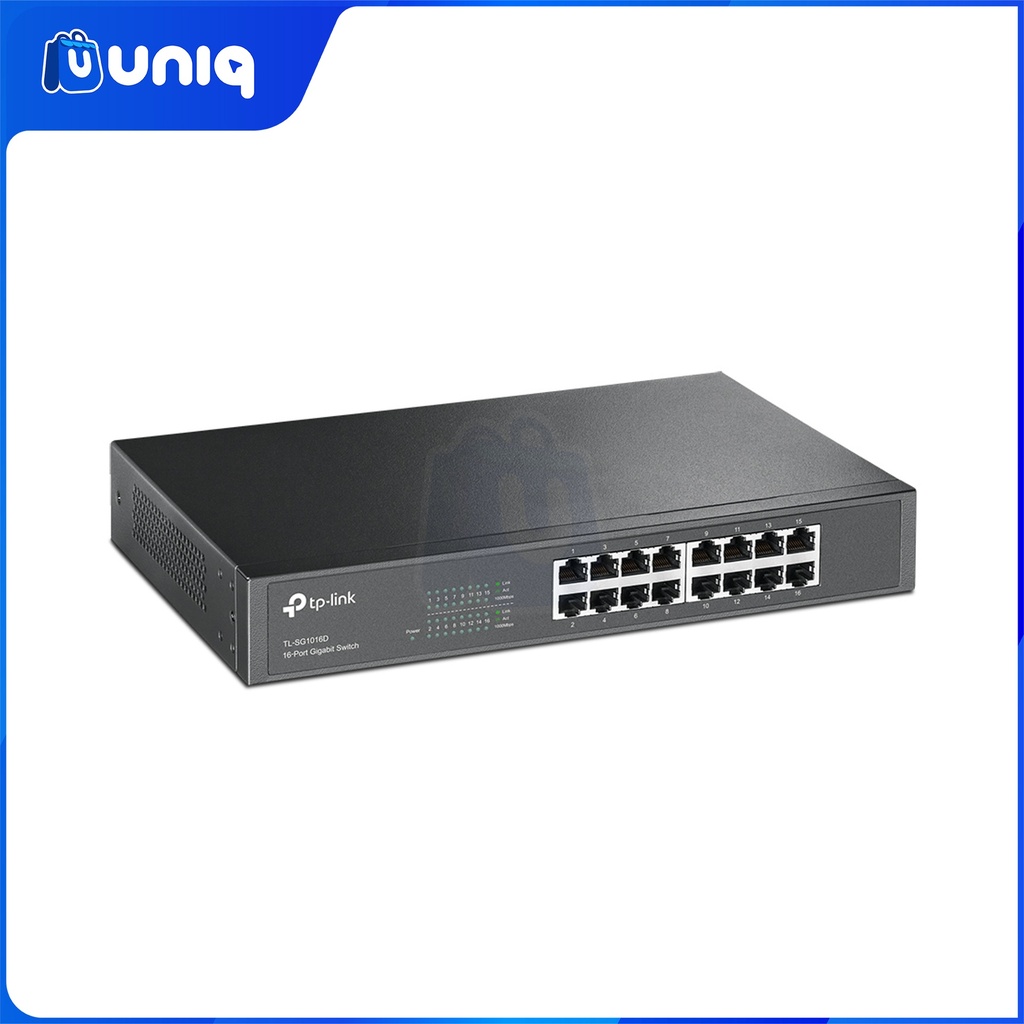

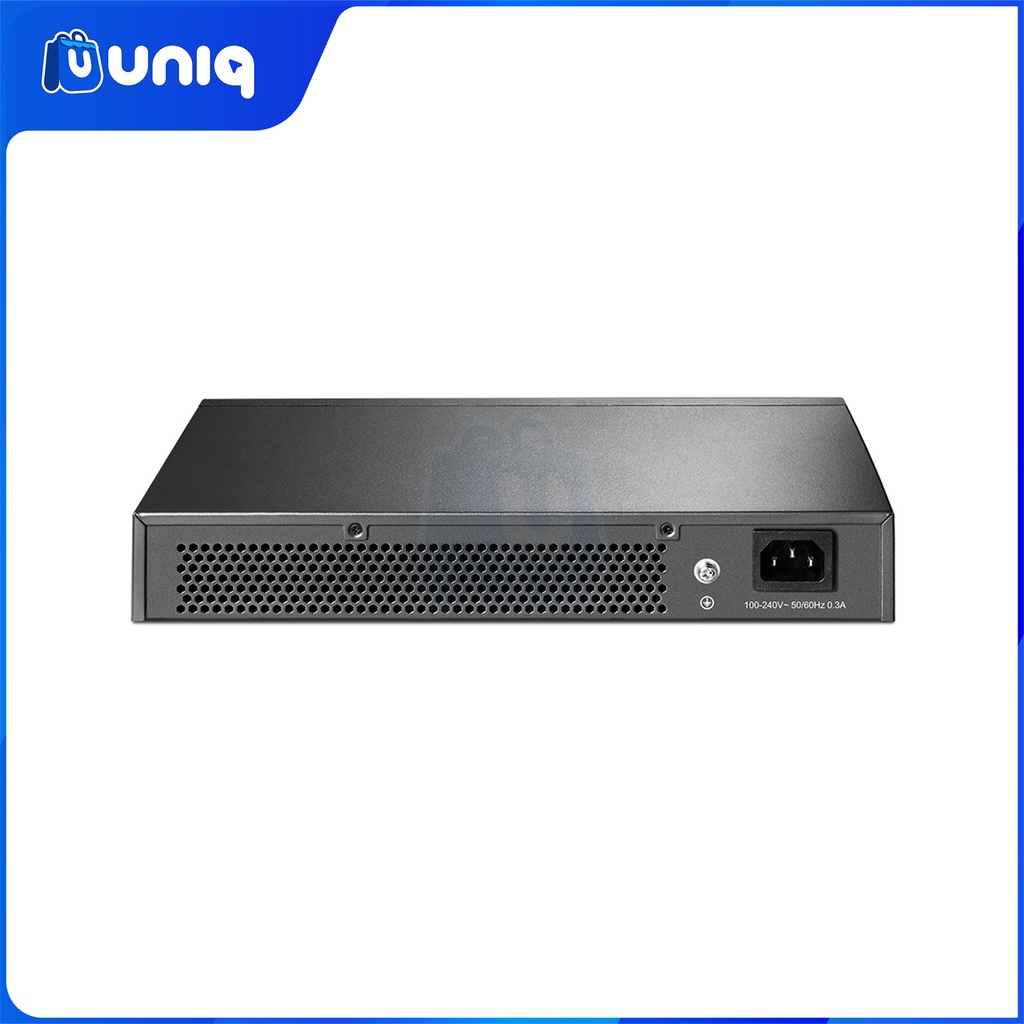

TP-Link TL-SG1016D 16-Port 10/100/1000Mbps Desktop/Rackmount Switch

https://shop.uniq.com.ph/web/image/product.template/1936/image_1920?unique=a19678c
(0 review)

Key Features

  • 16 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design

PRODUCT DETAILS

₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface

16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

No

Power Supply

100-240VAC, 50/60Hz

Power Consumption

Maximum: 9.26W (220V/50Hz)

Dimensions ( W x D x H )

11.6*7.1*1.7 in. (294*180*44 mm)

Max Power Consumption

9.95W(220V/50Hz)

Max Heat Dissipation

33.93BTU/h

PERFORMANCE

Switching Capacity

32Gbps

Packet Forwarding Rate

23.8Mpps

MAC Address Table

8K

Advanced Functions

Isolation Mode: Ports 1-14

Loop Prevention: Ports 1-16

Jumbo Frame

10KB

Green Technology

Yes

Transfer Method

Store-and-Forward

OTHERS

Certification

FCC, CE, RoHs

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.





  • What's in the box:
    16-Port Gigabit Desktop/Rackmount Switch
    Power Cord
    Installation Guide
    Rackmount Kits
    Rubber Feet
  • Warranty: 1 Year Warranty
