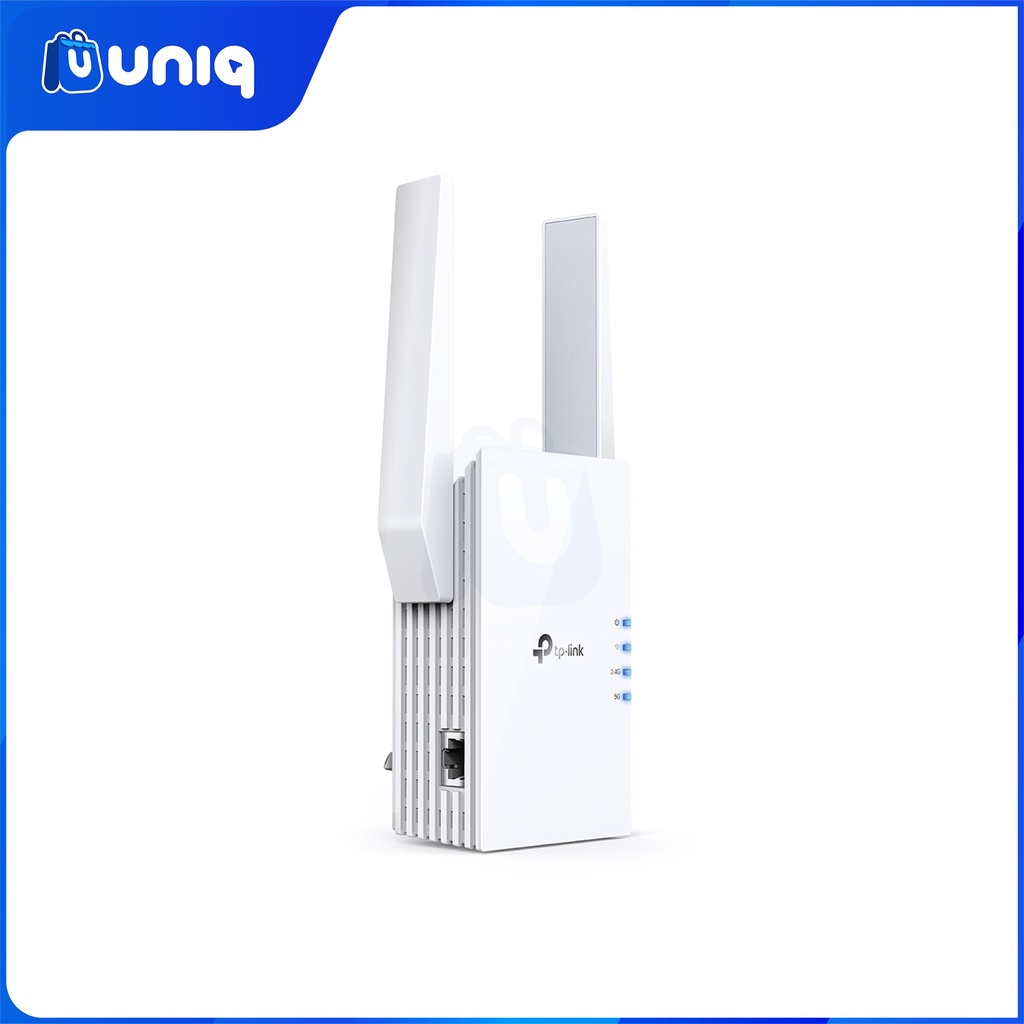

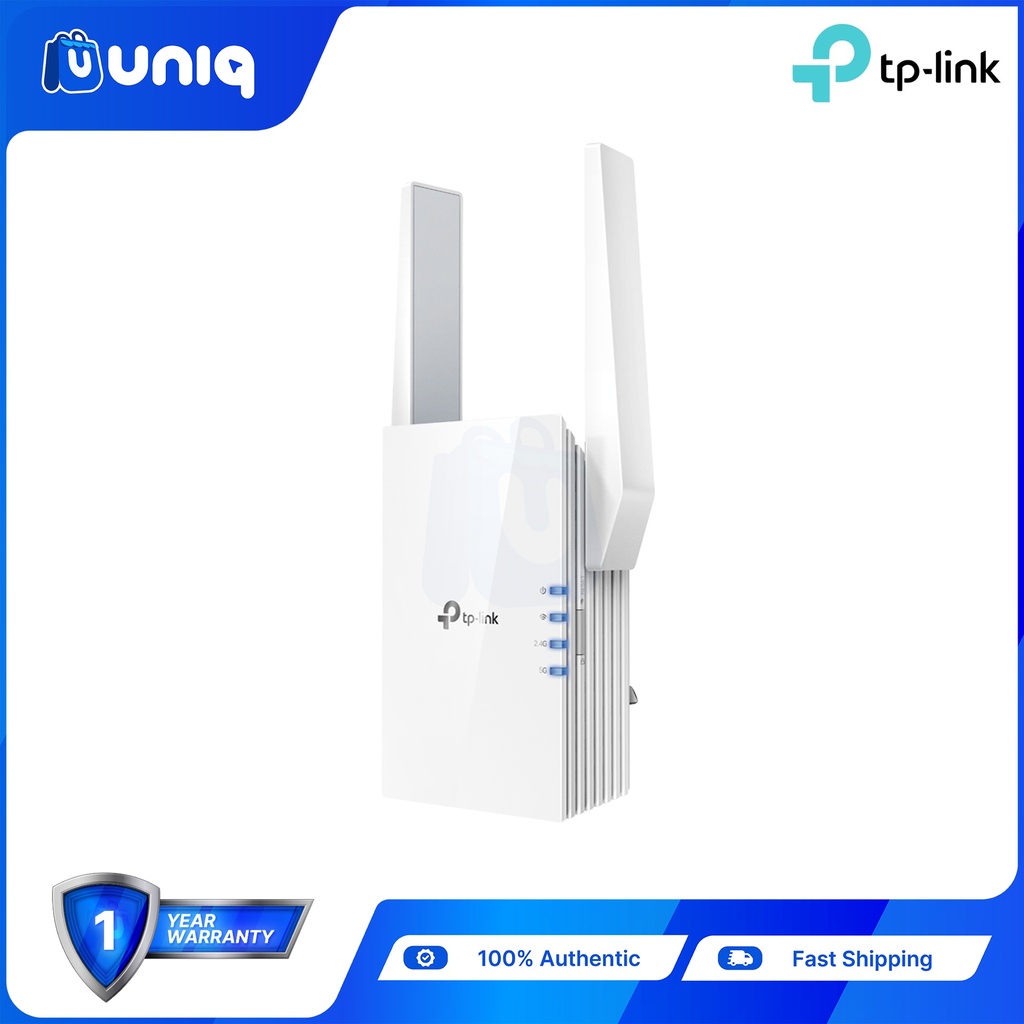

TP-LINK RE505X AX1500 Wi-Fi Range Extender

https://shop.uniq.com.ph/web/image/product.template/1675/image_1920?unique=a19678c
(0 review)

Key Features

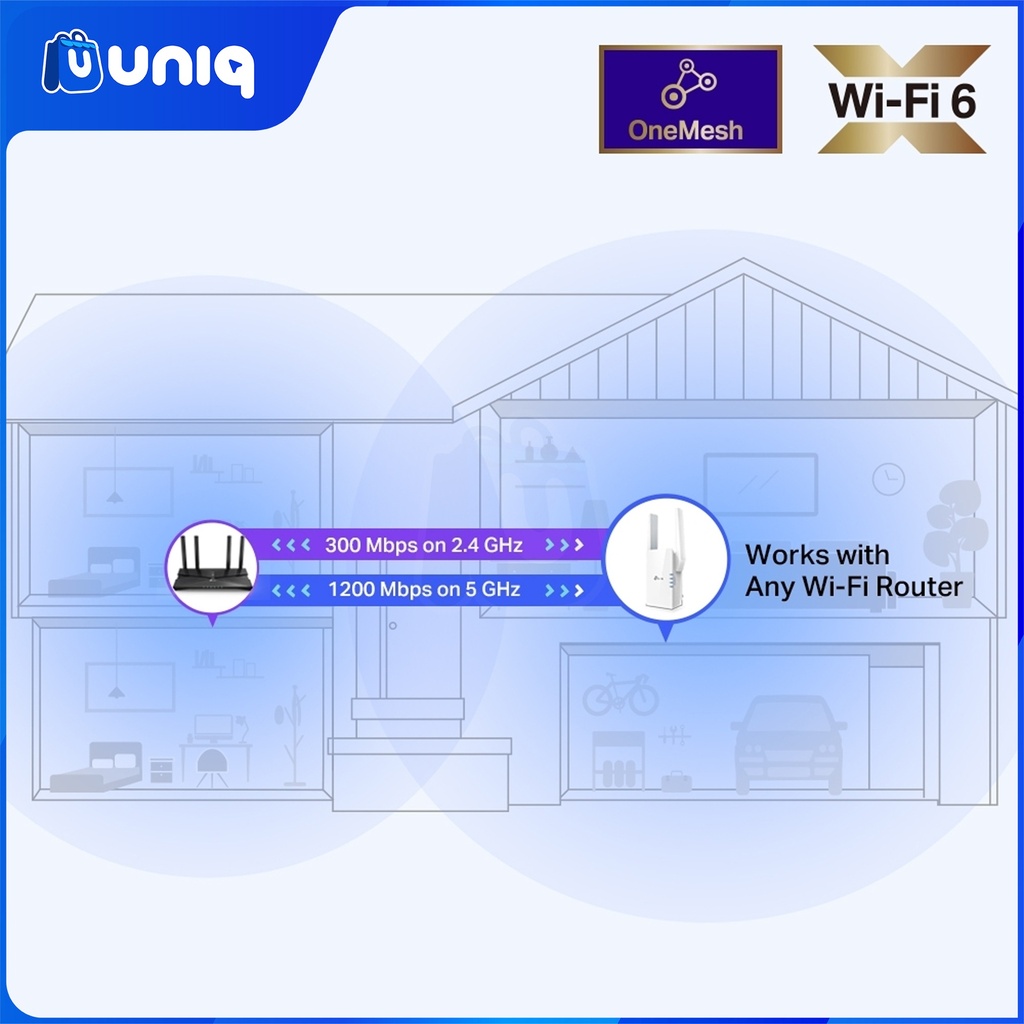

  • Extend WiFi Coverage
  • Wi-Fi 6 Speeds
  • Connect More Devices to Your Network
  • Gigabit Ethernet Port
  • TP-Link OneMesh™ Technology

PRODUCT DETAILS

₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days






WIRELESS

Working Modes

Range Extender/Access Point

HARDWARE FEATURES

Ports

1 Gigabit Ethernet Port

Button

WPS Button, Reset Button

Input Power

100-240V~50/60Hz

Power Consumption

10W

Dimensions ( W x D x H )

2.9×1.8×4.9 in. (74.0×46×124.8 mm)

Antenna

2 External Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency

2.4GHz and 5GHz

Signal Rate

300 Mbps at 2.4GHz, 1200 Mbps at 5GHz

Working Modes

Range Extender/Access Point

Reception Sensitivity

5GHz:

11a 6Mbps: -93dBm,

11a 54Mbps: -75dBm

11ac HT20 MCS0: -92dBm,

11ac HT20 MCS8: -70dBm

11ac HT40 MCS0: -90dBm,

11ac HT40 MCS9: -66dBm

11ac HT80 MCS0: -87dBm,

11ac HT80 MCS9: -62dBm

2.4GHz:

11g 54Mbps: -77dBm,

11n HT20 MCS7: -75dBm

11n HT40 MCS7: -72dBm

Wireless Functions

Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security

64/128-bit WEP, WPA/WPA2-PSK encryptions

Transmission Power

CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm

OTHERS

Certification

FCC, RoHS

System Requirements

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Certifications

FCC, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.








  • What's in the box: 1x TP-LINK RE505X AX1500 Wi-Fi Range Extender, Quick Installation Guide
  • Warranty: 1 Year Warranty

  • Output power (W): 4.2
  • Dynamic frequency response range (Hz): 90 Hz – 20 kHz
  • Dimensions (in): 3.7 x 3.0 x 1.7
  • Weight (kgs): 0.19
  • Bluetooth profiles: A2DP V1.4, AVRCP V1.6
  • Bluetooth frequency: 2400 MHz – 2483.5 MHz
  • Bluetooth transmitted modulation: GFSK, π/4 DQPSK
  • Bluetooth transmitter power: ≤ 9 dBm (EIRP)
  • Bluetooth version: 5.3
  • Charging time (hrs): 3
  • Maximum music playing time (hrs): 7
  • Bluetooth: Yes
  • Charging cable: Yes
  • JBL PartyBoost: Yes
  • Waterproof: Yes
  • Wireless: Yes
  • Multi-Point Connection: Yes
  • Rechargable battery: Yes
  • IP Code: IP67
  • Dustproof: Yes
  • What's in the box: 1x JBL Go 4, 1x Type-C cable, 1x Quick Start Guide, 1x Warranty Card and Safety Sheet
  • Warranty: 1 Year Warranty

  • Output power (W): 4.2
  • Dynamic frequency response range (Hz): 90 Hz – 20 kHz
  • Dimensions (in): 3.7 x 3.0 x 1.7
  • Weight (kgs): 0.19
  • Bluetooth profiles: A2DP V1.4, AVRCP V1.6
  • Bluetooth frequency: 2400 MHz – 2483.5 MHz
  • Bluetooth transmitted modulation: GFSK, π/4 DQPSK
  • Bluetooth transmitter power: ≤ 9 dBm (EIRP)
  • Bluetooth version: 5.3
  • Charging time (hrs): 3
  • Maximum music playing time (hrs): 7
  • Bluetooth: Yes
  • Charging cable: Yes
  • JBL PartyBoost: Yes
  • Waterproof: Yes
  • Wireless: Yes
  • Multi-Point Connection: Yes
  • Rechargable battery: Yes
  • IP Code: IP67
  • Dustproof: Yes
  • What's in the box: 1x JBL Go 4, 1x Type-C cable, 1x Quick Start Guide, 1x Warranty Card and Safety Sheet
  • Warranty: 1 Year Warranty
