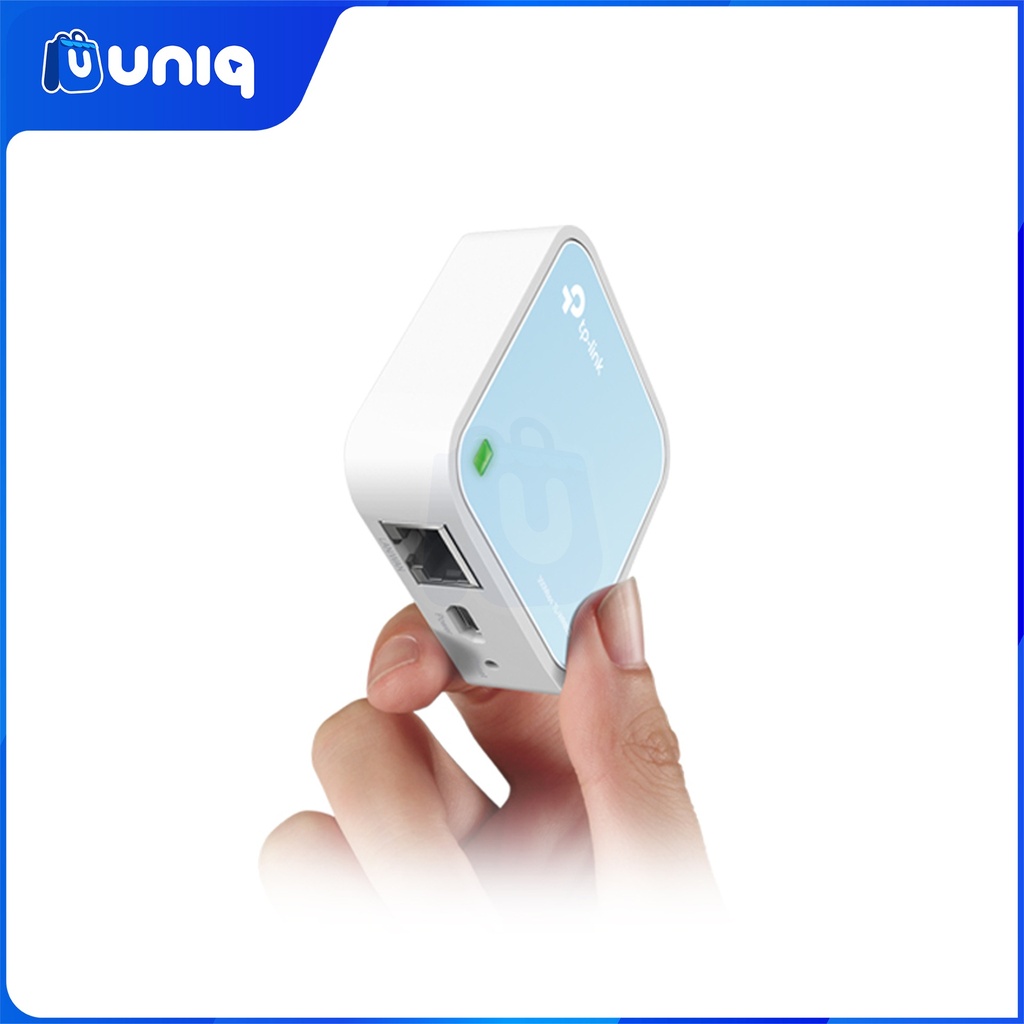

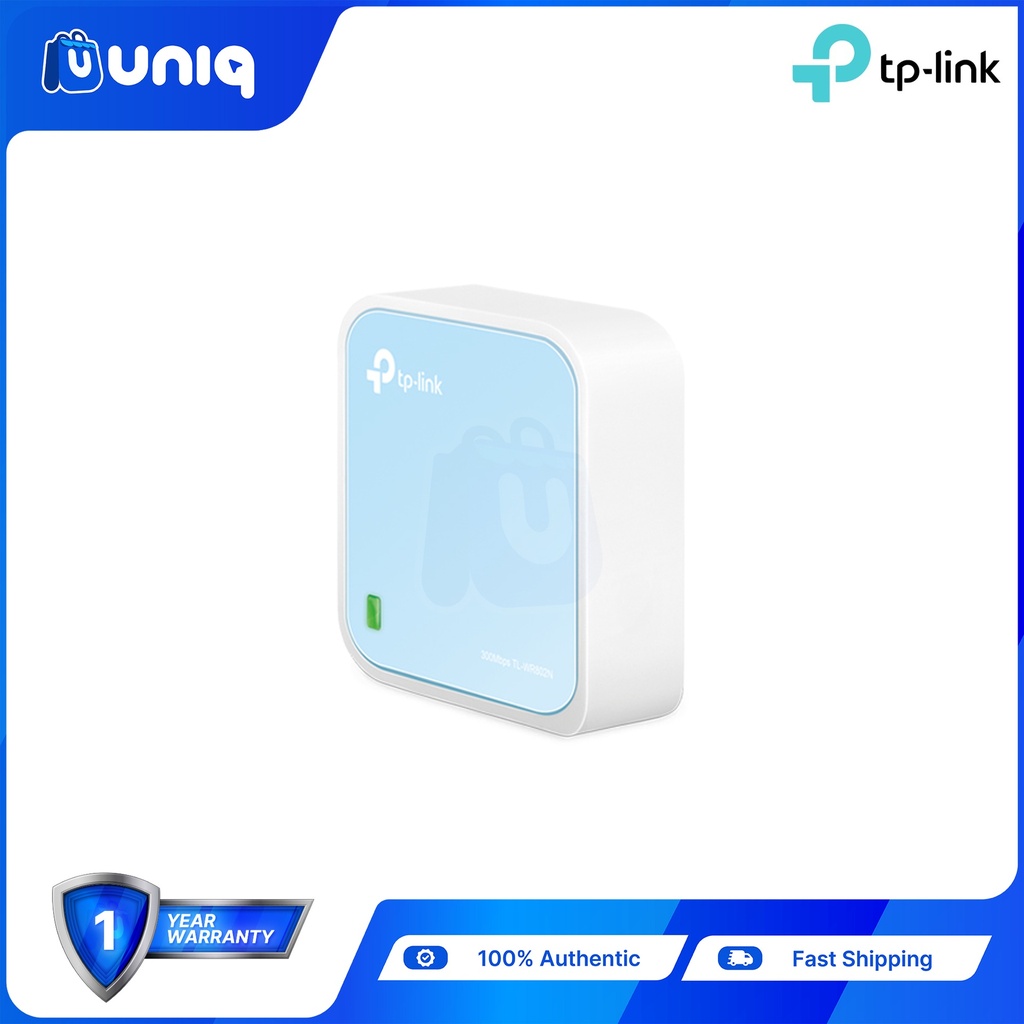

TP-Link TL-WR802N 300Mbps Pocket-size Wireless N Nano Router

WIRELESS

Standards

Wi-Fi 4

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

N300

2.4 GHz: 300 Mbps (802.11n)

WiFi Range

2 Bedroom Houses2× Fixed Antennas

WiFi Capacity

Legacy

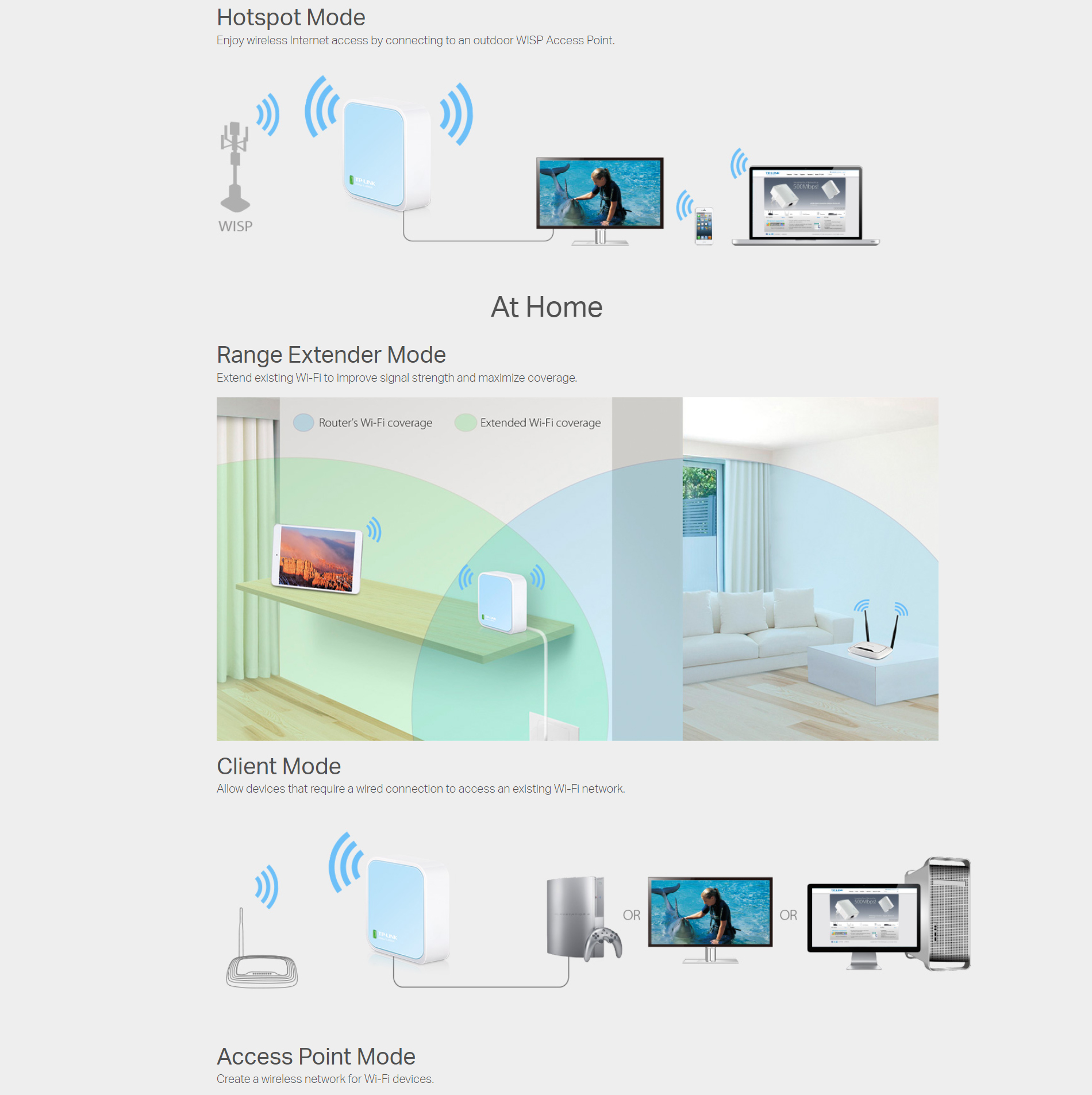

Working Modes

Router Mode

Access Point Mode

Range Extender Mode

Client Mode

Hotspot Mode (WISP Mode)

SECURITY

Network Security

SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway

Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption

WEP

WPA

WPA2

WPA/WPA2-Enterprise (802.1x)*

*Only Available in the Router and AP Modes.

HARDWARE

Processor

Single-Core CPU

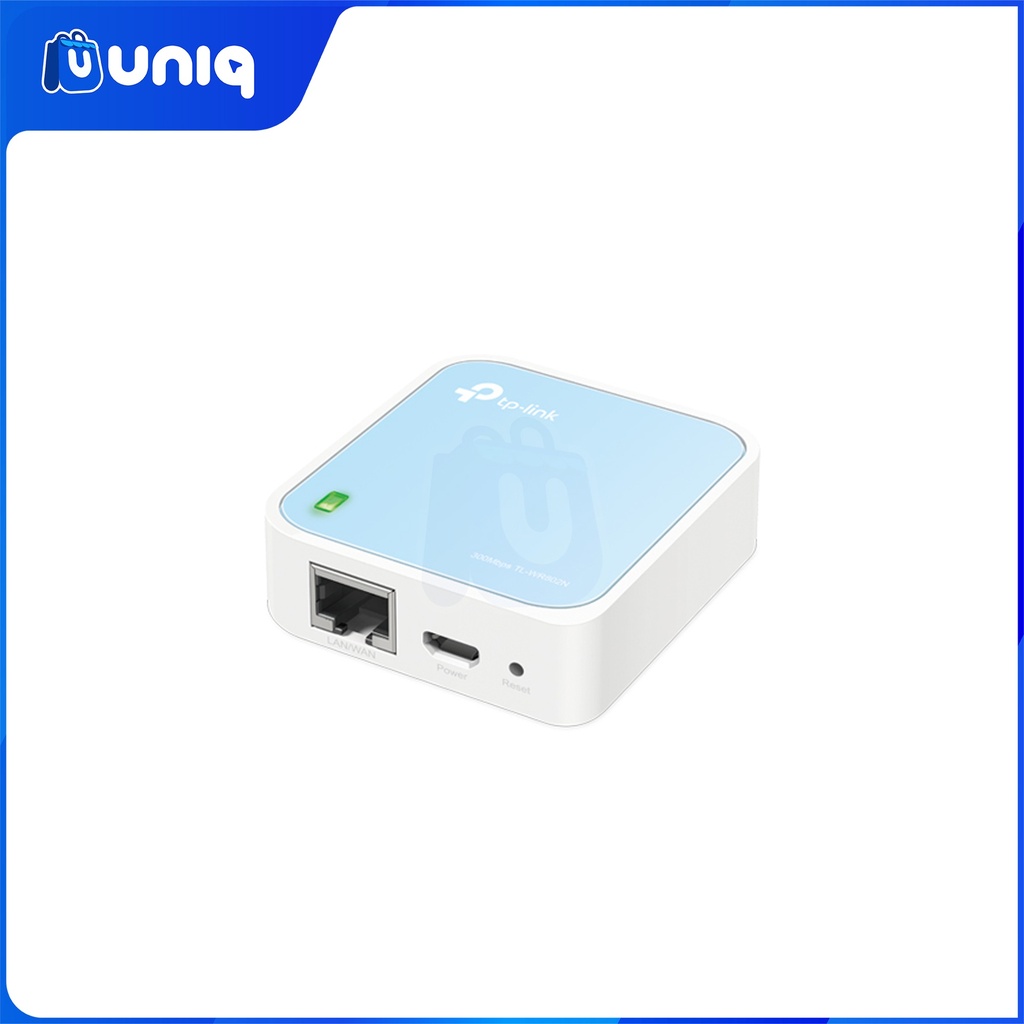

Ethernet Ports

1× 10/100 Mbps WAN/LAN Port

Buttons

Reset Button

Power

5 V ⎓ 1 A

SOFTWARE

Protocols

IPv4

IPv6

Parental Controls

URL Filtering

Time Controls

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

QoS by Device

NAT Forwarding

Virtual Server

Port Forwarding

Port Triggering

DMZ

UPnP

IPTV

IGMP Proxy

DHCP

Address Reservation

DHCP Client List

Server

DDNS

NO-IP

Comex

DynDNS

Management

Tether App

Webpage

Check Web Emulator>

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:

<20dBm(2.4GHz)

FCC:

<30dBm

WiFi Reception Sensitivity

270M: -70dBm@10% PER

130M: -75dBm@10% PER

108M: -88dBm@10% PER

54M: -78dBm@10% PER

11M: -100dBm@8% PER

6M: -92dBm@10% PER

1M: -100dBm@8% PER

PHYSICAL

Dimensions (W×D×H)

2.2 × 2.2 × 0.7 in

(57 × 57 ×18 mm)
