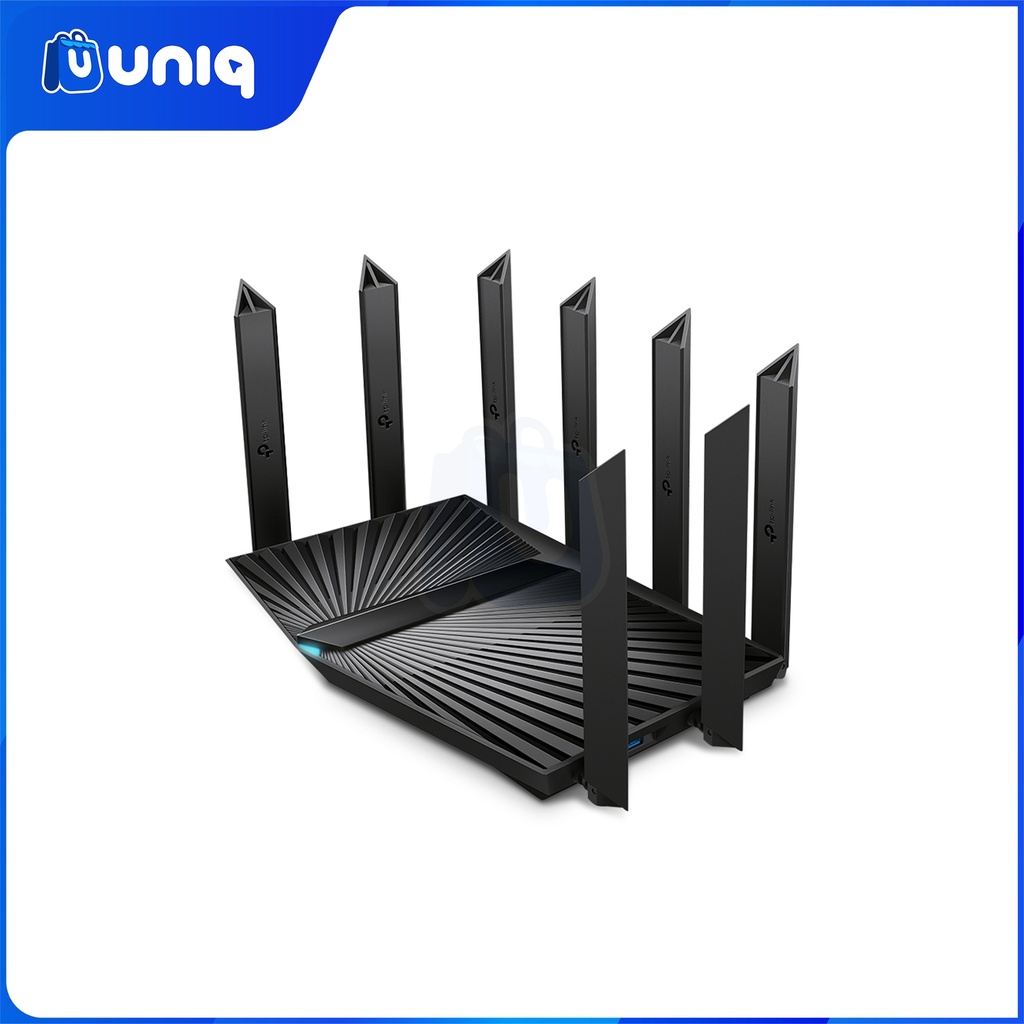

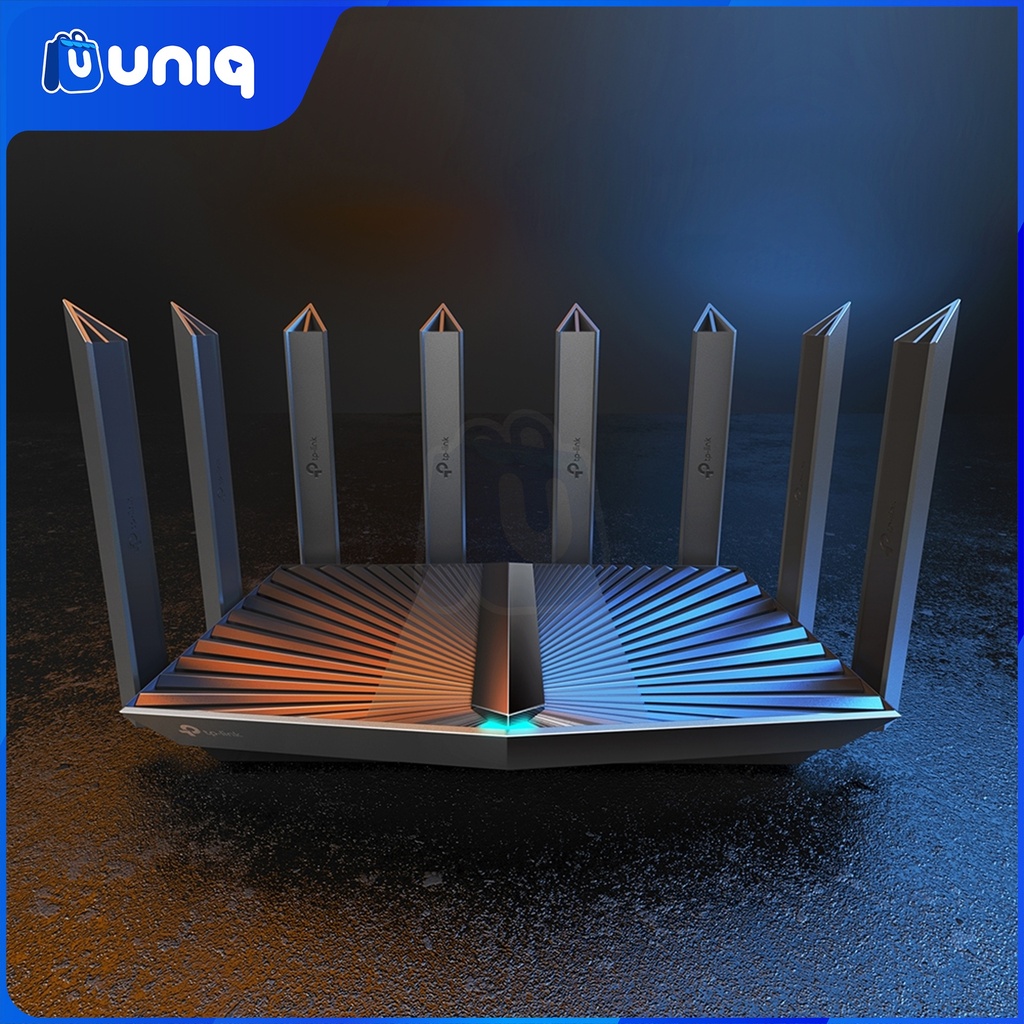

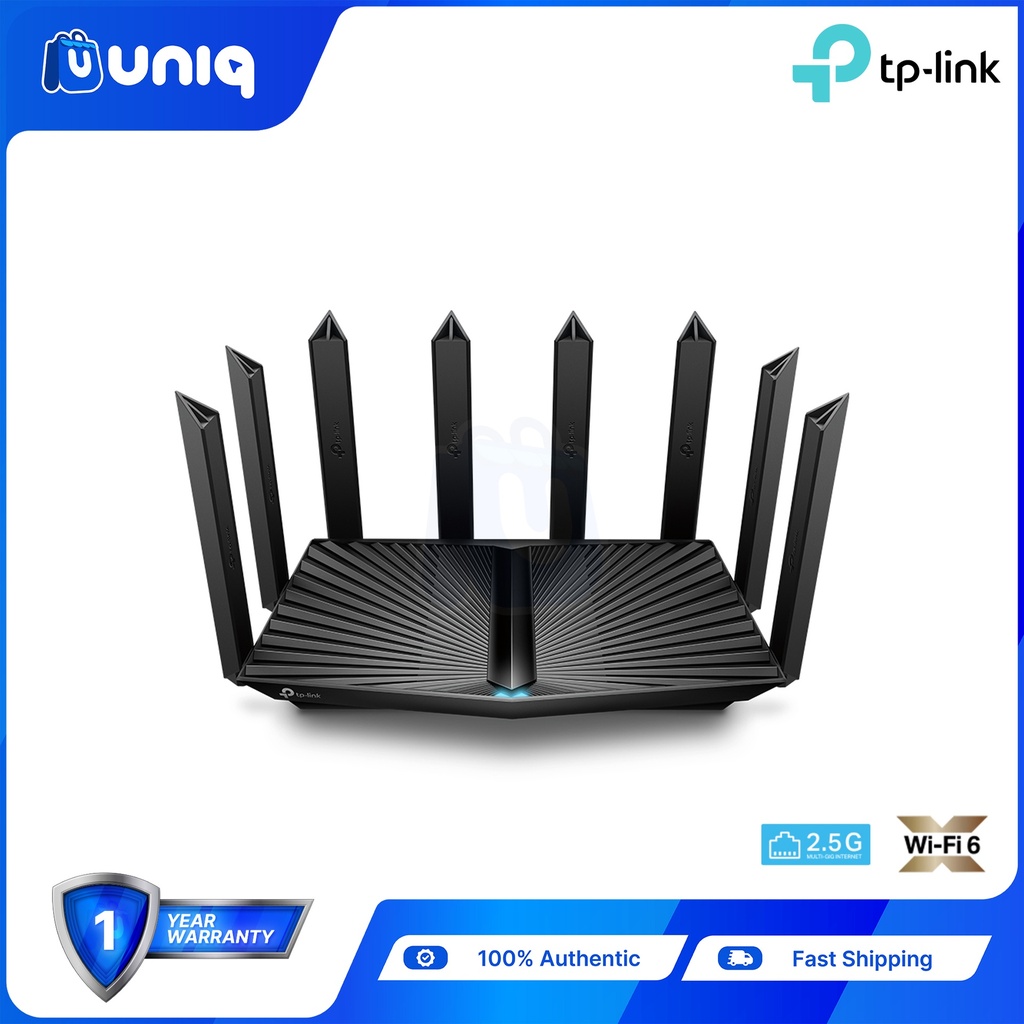

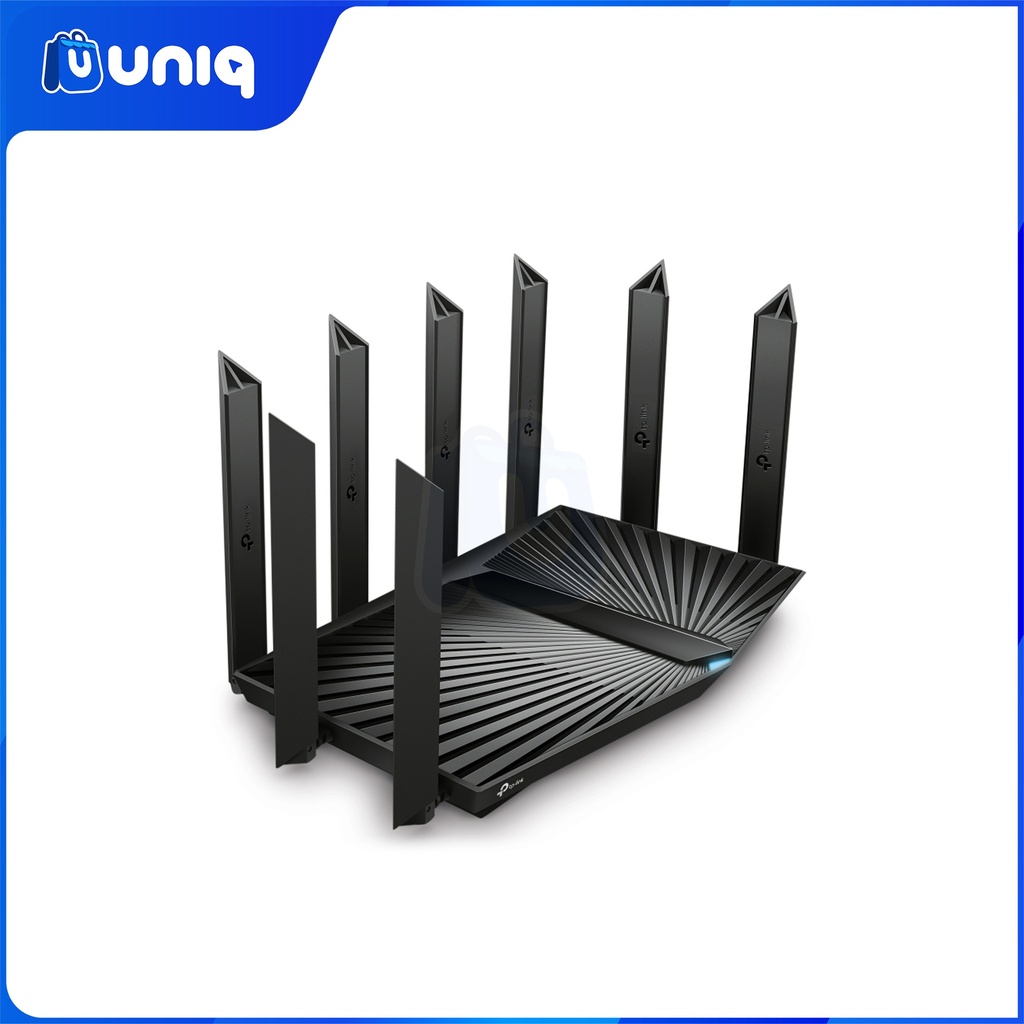

TP-Link Archer AX95 AX7800 Tri-Band 8-Stream Wi-Fi 6 Router

https://shop.uniq.com.ph/web/image/product.template/807/image_1920?unique=a19678c
(0 review)

Key Features

  • Faster Tri-Band AX7800 WiFi 6
  • Ultra Connectivity
  • Maximized Coverage
  • More Devices with Less Lag
  • Powerful CPU
  • OneMesh™
  • HomeShield

PRODUCT DETAILS

₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days





WIRELESS

StandardsWi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds•AX7800
• 5 GHz-1: 4804 Mbps (802.11ax, HE160)
• 5 GHz-2: 2402 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range4 Bedroom Houses8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi CapacityVery HighTri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth
Working Modes• Router Mode
• Access Point Mode

SECURITY

Network Security• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

• HomeShield SecurityReal-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network• 1× 5 GHz-1 Guest Network
• 1× 5 GHz-2 Guest Network
• 1× 2.4 GHz Guest Network
VPN Server• OpenVPN
• PPTP
• L2TP
VPN Client• OpenVPN
• PPTP
• L2TP
WiFi Encryption• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor1.7 GHz Quad-Core CPU

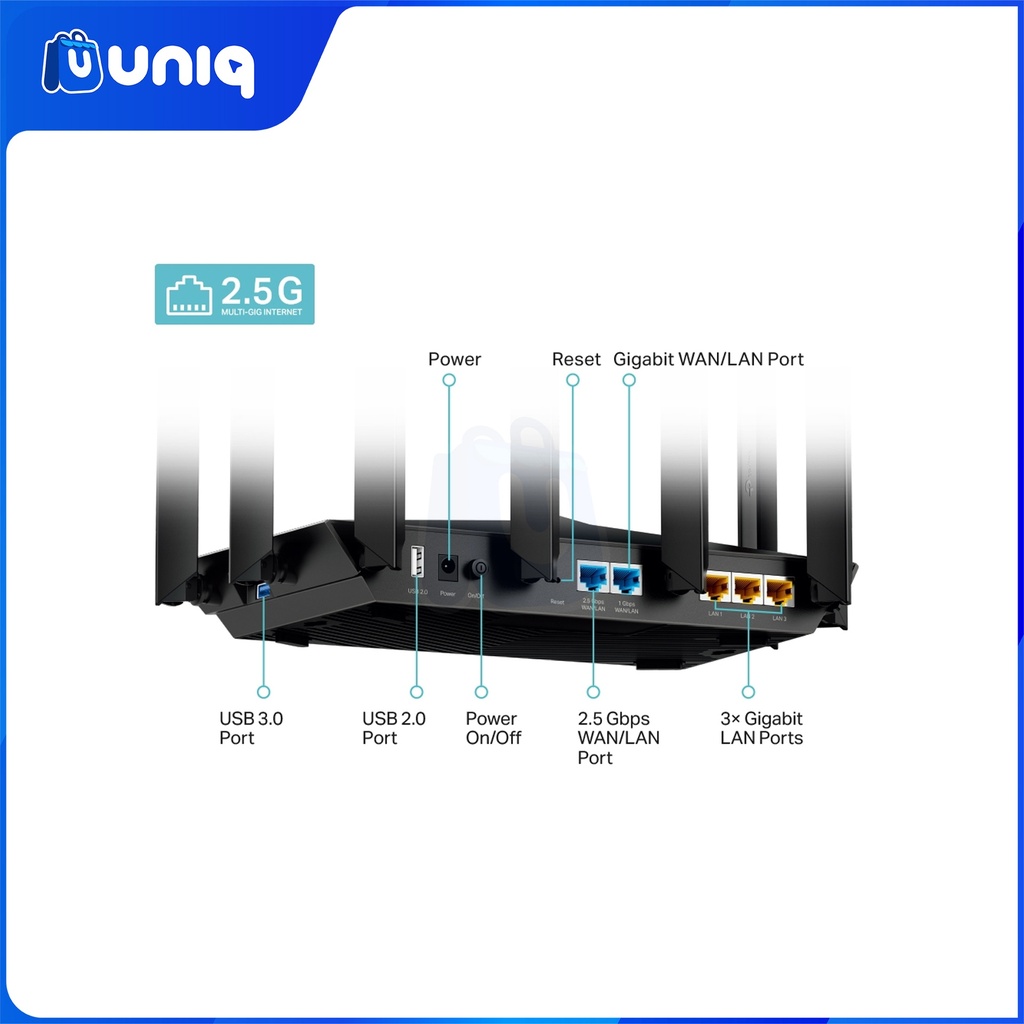

Ethernet Ports• 1× 2.5 Gbps WAN/LAN Port
• 1× 1 Gbps WAN/LAN Port
• 3× 1 Gbps LAN Ports
USB Support• 1× USB 3.0 Port
• 1× USB 2.0 Port

• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

• Supported Functions:
FTP Server
Media Server
Samba Server
Buttons• LED On/Off Button
• WPS Button
• Wi-Fi On/Off Button
• Power On/Off Button
• Reset Button
Power12 V ⎓ 3.3 A

SOFTWARE

Protocols• IPv4
• IPv6
Service KitsHomeShield
Learn More>
OneMesh™OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental ControlsHomeShield Parental ControlsCustom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of ServiceQoS by Device
Cloud ServiceAuto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding• Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP• Address Reservation
• DHCP Client List
• Server
DDNS• TP-Link
• NO-IP
• DynDNS
Management• Tether App
• Webpage

OTHER

System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
CertificationsFCC, CE, RoHS
Environment• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power• FCC:
≤30dBm (5.17GHz~5.25GHz);
≤23dBm (5.25GHz~5.35GHz);
≤23dBm (5.49GHz~5.725GHz);
≤28dBm (5.725GHz~5.825GHz);
≤28dBm (2.4GHz)

• CE:
≤23dBm EIRP (5.17GHz~5.35GHz);
≤30dBm EIRP (5.47GHz~5.725GHz);
≤20dBm EIRP (2.4GHz)
WiFi Reception Sensitivity• 2.4 GHz:
11ac VHT20 MCS0: -98dBm, 11ac VHT20 MCS11: -66dBm,
11ac VHT40 MCS0: -96dBm, 11ac VHT40 MCS11: -64dBm,
11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -62dBm

• 5 GHz:
11ac VHT20 MCS0: -94dBm, 11ac VHT20 MCS11: -63dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -61dBm,
11ac VHT80 MCS0: -89dBm, 11ac VHT80 MCS11: -58dBm,
11ac VHT160 MCS0: -84dBm, 11ac VHT160 MCS11: -53dBm,
11ax HE20 MCS0: -92dBm, 11ax HE20 MCS11: -60dBm,
11ax HE40 MCS0: -89dBm, 11ax HE40 MCS11: -58dBm,
11ax HE80 MCS0: -86dBm, 11ax HE80 MCS11: -55dBm,
11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm

PHYSICAL

Dimensions (W×D×H)10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)
Package Contents• Wi-Fi Router Archer AX95
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

For additional version information, please go to the support page.



  • What's in the box: TP-Link Archer AX95, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
  • Warranty: 1 Year Warranty
