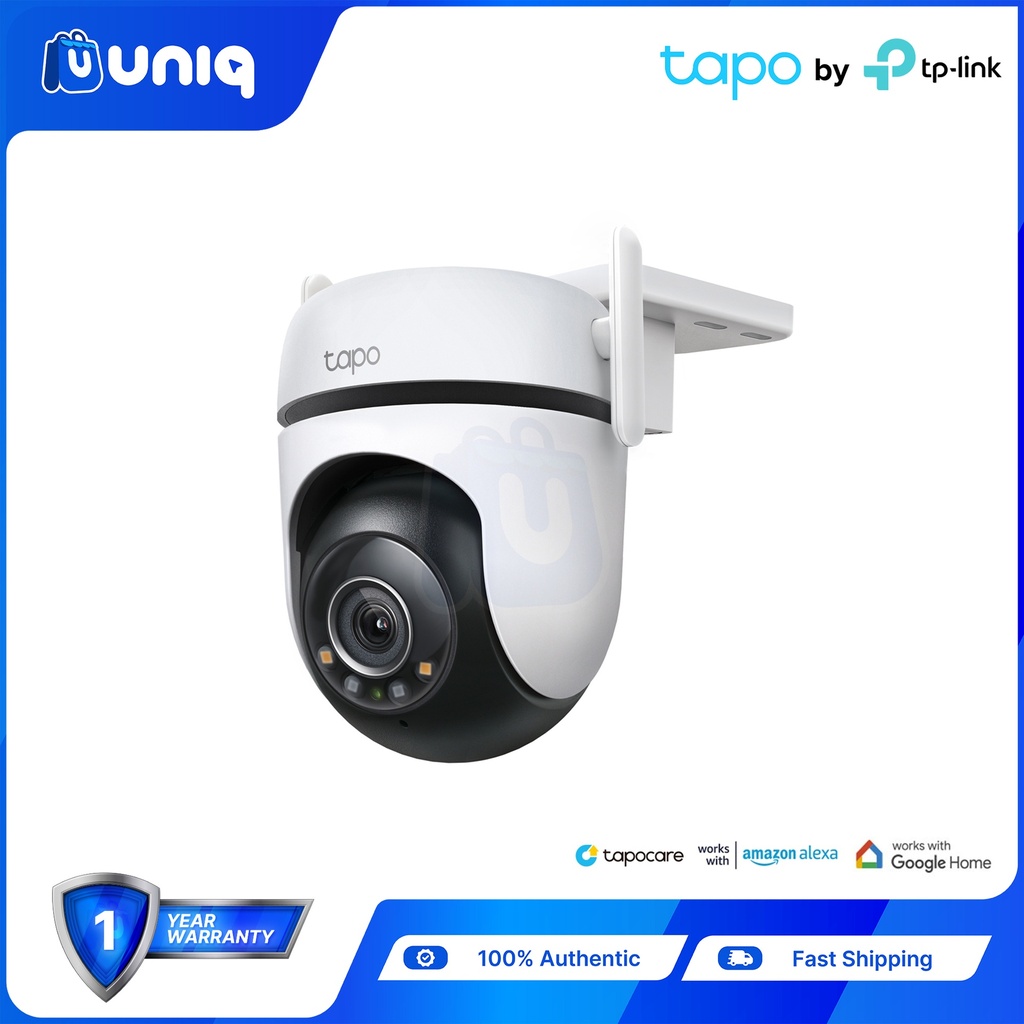

TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-F- Camera

https://shop.uniq.com.ph/web/image/product.template/973/image_1920?unique=bbdb2c1
(0 review)

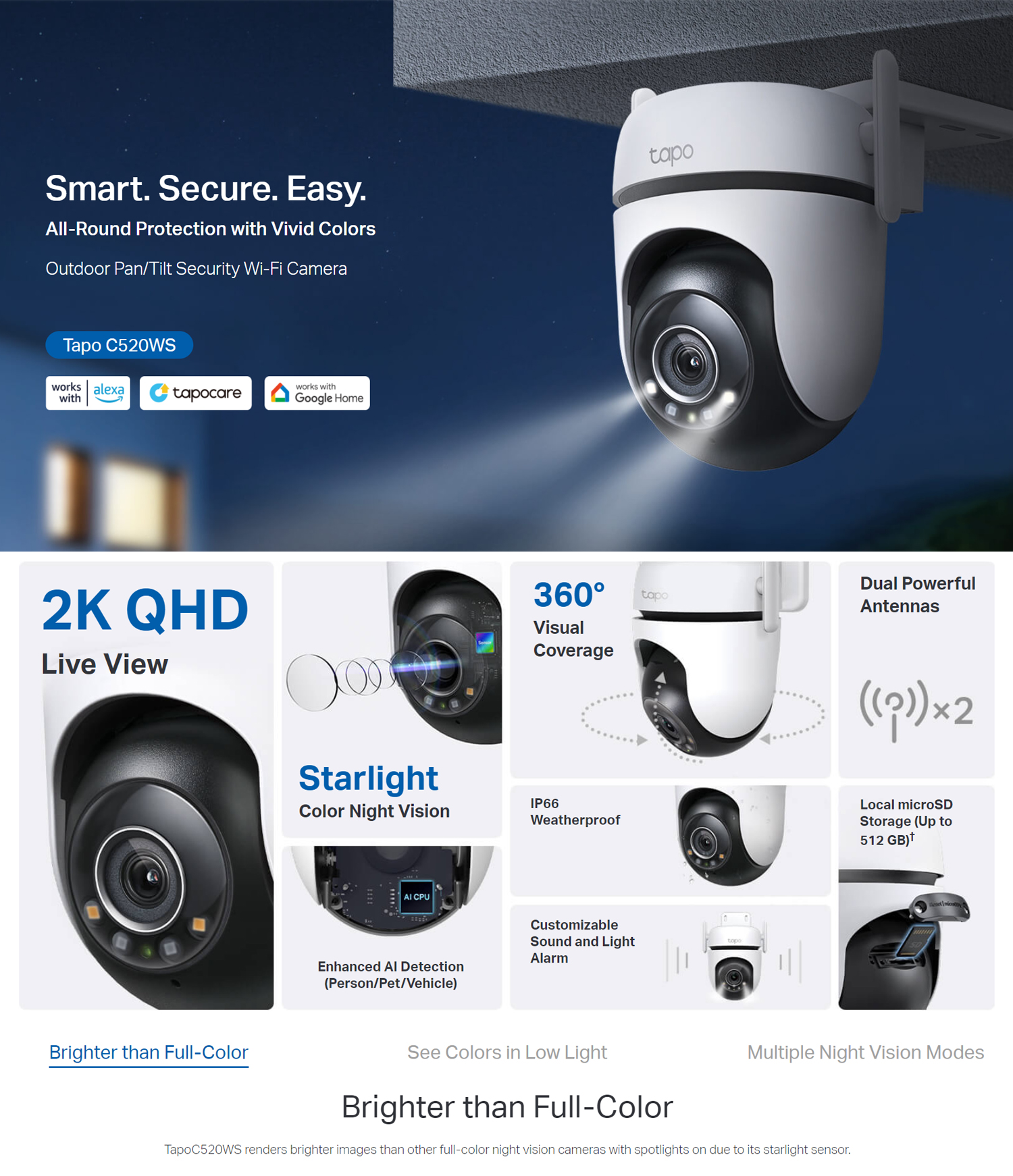

Key Features

  • 2K QHD Live View
  • Starlight Color Night Vision
  • 360° Visual Coverage
  • Free Person/Pet/Vehicle Detection

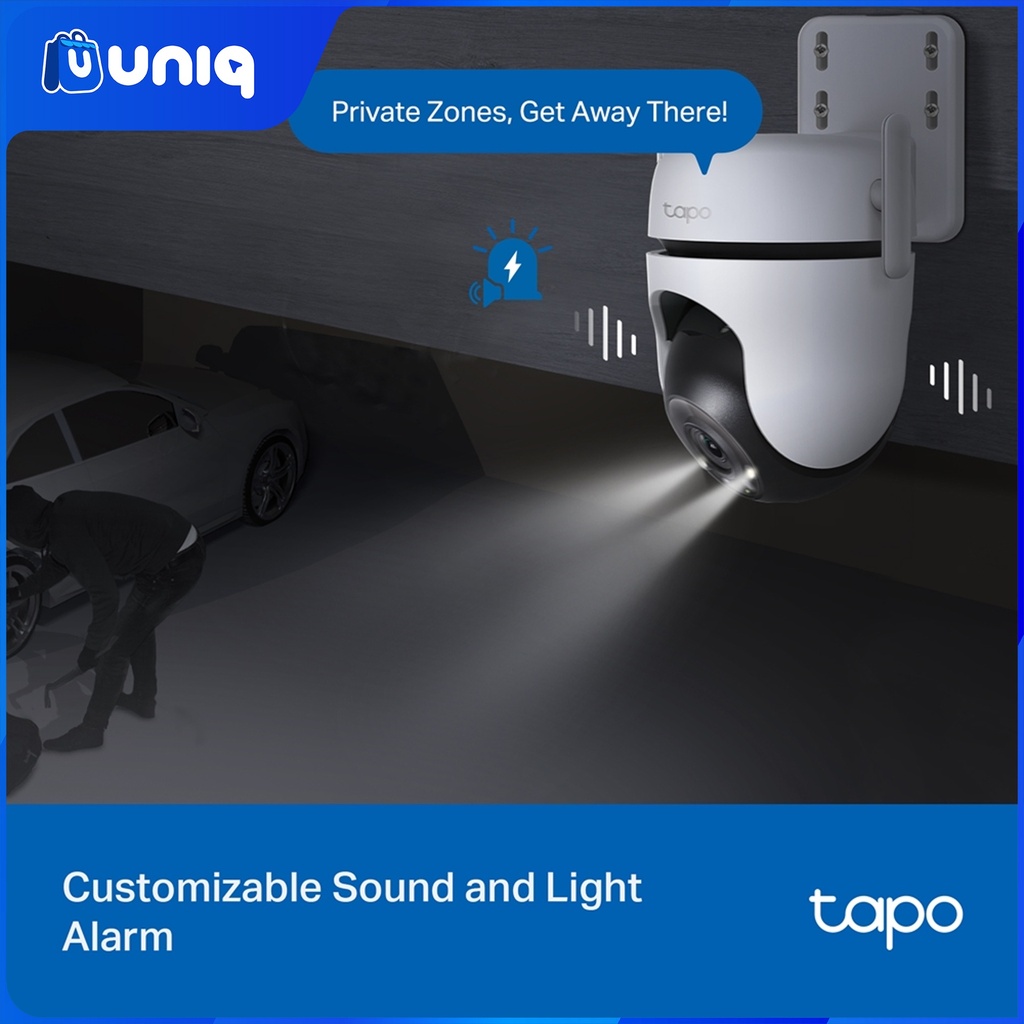

  • Customizable Sound and Light Alarm

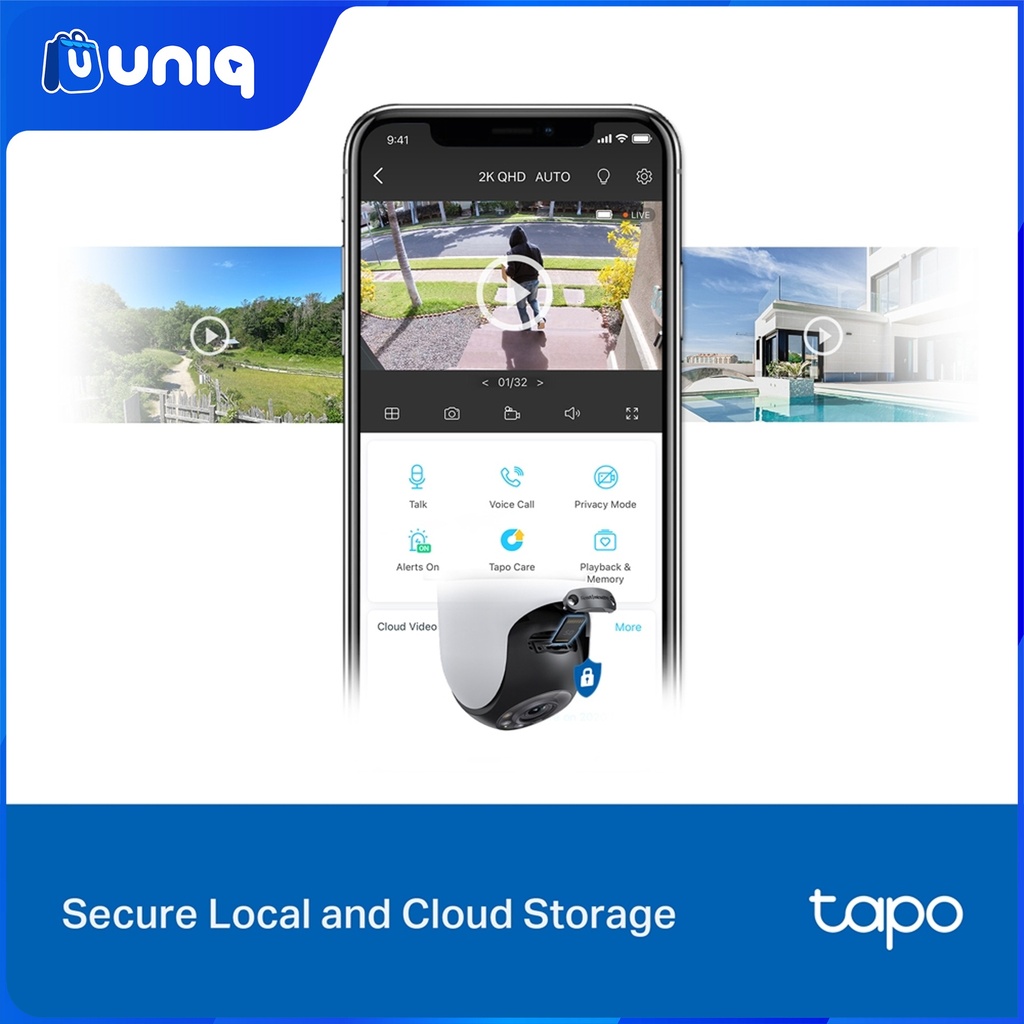

  • Secure Local & Cloud Storage

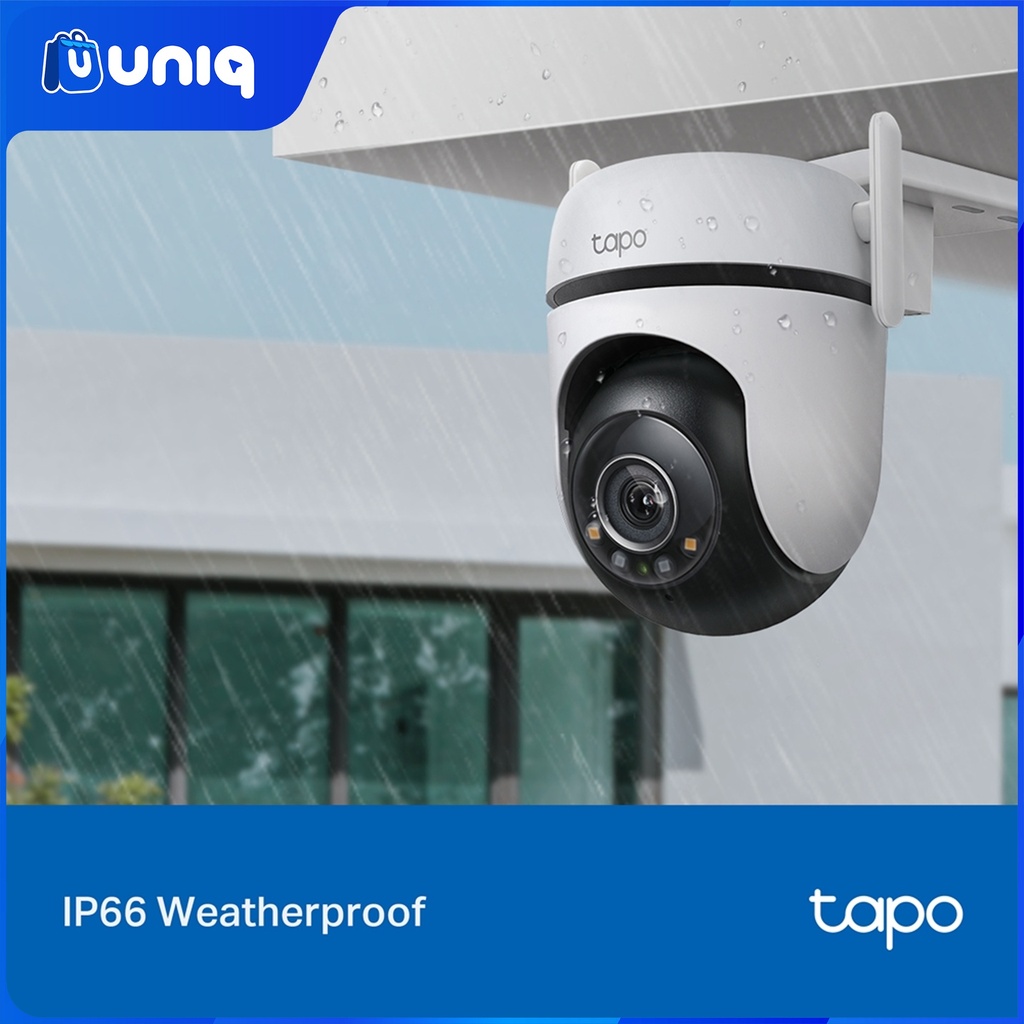

  • IP66 Weatherproof

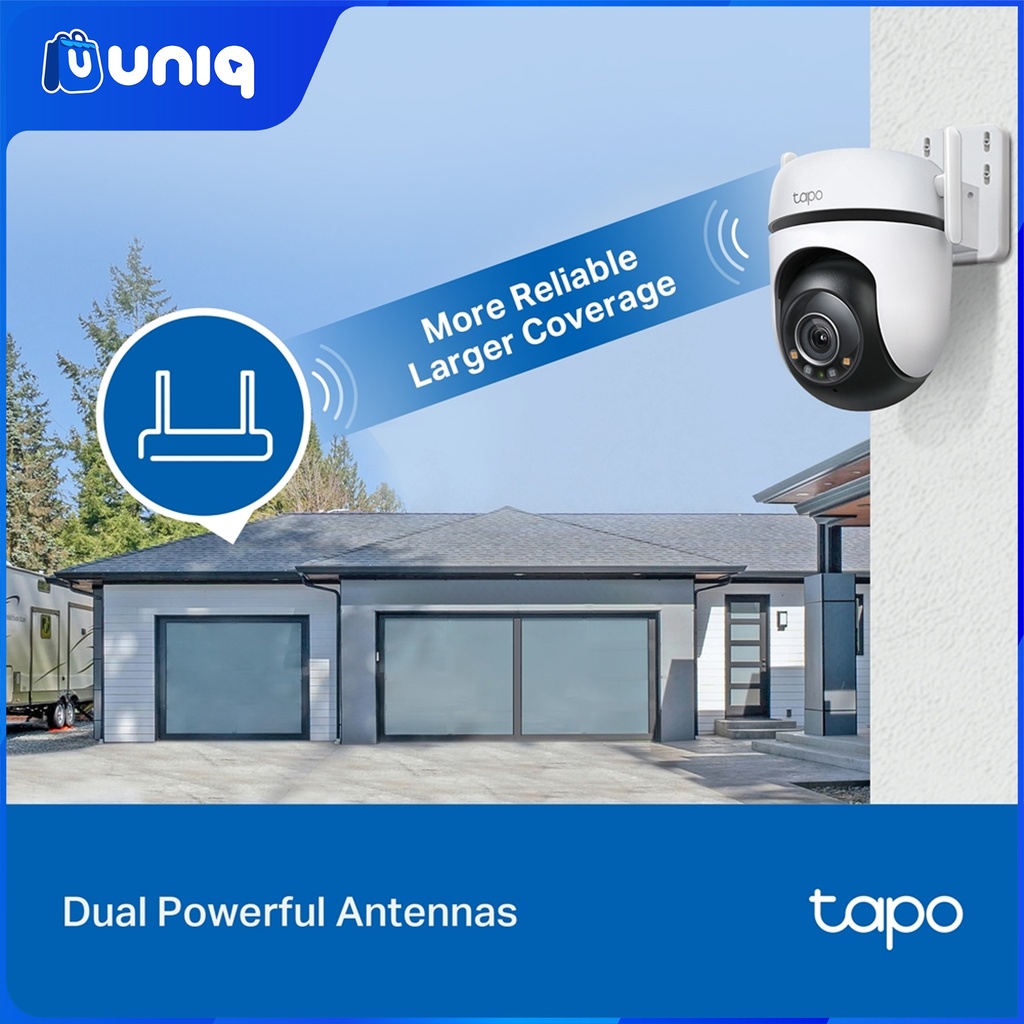

  • Wired/Wireless Networking

PRODUCT DETAILS



₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days




CAMERA

Image Sensor1/3‘’ CMOS
LensF/NO: 1.61±10%; Focal Length: 3.18mm±5%
Motion RangePan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 60° (130° Tilt Coverage)
Night Vision850 nm IR LED (up to 98 ft), Starlight Color Night Vision
Lighting2× Built-in Spotlights
Interface & Button1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)
Weatherproof RatingIP66
View Range360° horizontal and 130° vertical
Resolution2K QHD 4MP (2560 × 1440 px)

VIDEO & AUDIO

Maximum Resolution2K QHD 4MP (2560 × 1440 px)
Frame Rate15/20/25/30 fps (Default 15 fps)
Digital Zoom12x
Video CompressionH.264
Live ViewYes
Image Enhancement3D DNR
BLC
Audio Input & OutputBuilt-in Microphone and Speaker
Audio CommunicationTwo-Way Audio with Noise Cancellation
Siren Volume93 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local StorageMicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards >
Cloud StorageTapo Care Cloud Storage Services (Subscription required)

VIDEO

Frame RateUp to 25/30fps
Video Streaming2K QHD
Video CompressionH.264

DETECTION and NOTIFICATIONS

AI DetectionMotion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Tamper Detection
Activity ZonesYes
Output NotificationSystem Notification
System Notification with Snapshot (Tapo Care Services)

AUDIO

Audio CommunicationTwo-Way
Audio Input & Output:Built-in Microphone and Speaker

NETWORK

Network ConnectivityConnect via Wi-Fi or Ethernet
Wireless ConnectivityIEEE 802.11b/g/n, 2.4 GHz Wi-Fi
ProtocolTCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Ethernet Port1× 10/100 Mbps RJ45 Port on Camera
Wireless SecurityWPA/WPA2-PSK
RTSPYes
ONVIFYes
Standards and ProtocolsIEEE 802.11b/g/n
Security128 bit AES encryption with SSL/TLS
Frequency2.4GHz

SECURITY

SecurityOn-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

POWER

Power Source9V DC Power Adapter
Input Voltage100-240 V, 50/60 Hz
Output Voltage9 V, 0.85 A (DC Power)

ACTIVITY NOTIFICATIONS

Input TriggerMotion detection, Person detection, Pet detection, Vehicle detection, Line-Crossing detection
Output NotificationSnapshot(Tapo care), Clips(Tapo care)

ENVIRONMENT

Operating Temperature-30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F)
Storage Temperature-40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F)
Operating Humidity10%~90%RH, Non-condensing
Storage Humidity0~90%RH, Non-condensing

HARDWARE

ButtonRESET Button
Indicator LEDSystem LED
Adapter Input100-240V, 50/60Hz
Adapter Output9V, 0.85A (DC Power)
Product Dimensions (W x D x H)4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)

GENERAL

Smart IntegrationGoogle Assistant, Amazon Alexa
Weather ResistanceIP66
System RequirementsTapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting OptionsCeiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature-30℃~60℃
Storage Temperature-40℃~60℃
Operating Humidity10%~90% RH, Non-condensing
Storage Humidity0~90% RH, Non-condensing
Dimensions4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)

OTHERS

CertificationCE, FCC, RoHS, RCM

For additional version information, please go to the support page.






  • What's in the box: 1x TP-Link Tapo C520WS, Power Adapter (3.0m), Mounting Anchors, Mounting Screws, Bracket Screws,Mounting Template,Mounting Bracket,Waterproof Seal,Waterproof Cable Attachments,Quick Start Guide
  • Warranty: 1 Year Warranty
