Display
|
|
|
Display
Size (in.)
|
24
|
|
Viewable
Area (in.)
|
23.8
|
|
Panel
Type
|
IPS
Technology
|
|
Resolution
|
1920 x
1080
|
|
Resolution
Type
|
FHD
|
|
Static
Contrast Ratio
|
1,000:1
(typ)
|
|
Dynamic
Contrast Ratio
|
80M:1
|
|
Light
Source
|
LED
|
|
Brightness
|
250
cd/m² (typ)
|
|
Colors
|
16.7M
|
|
Color
Space Support
|
8 bit
(6 bit + FRC)
|
|
Aspect
Ratio
|
16:9
|
|
Response
Time (Typical GTG)
|
1ms
|
|
Viewing
Angles
|
178º
horizontal, 178º vertical
|
|
Backlight
Life (Hours)
|
30000
Hrs (Min)
|
|
Curvature
|
Flat
|
|
Refresh
Rate (Hz)
|
144
|
|
Variable
Refresh Rate Technology
|
FreeSync
|
|
Blue
Light Filter
|
Yes
|
|
Flicker-Free
|
Yes
|
|
Color
Gamut
|
NTSC:
85% size (Typ)sRGB: 120% size (Typ)
|
|
Pixel
Size
|
0.275
mm (H) x 0.275 mm (V)
|
|
Surface
Treatment
|
Anti-Glare,
Hard Coating (3H)
|
|
Compatibility
|
|
|
PC
Resolution (max)
|
1920x1080
|
|
Mac®
Resolution (max)
|
1920x1080
|
|
PC
Operating System
|
Windows
10 certified; macOS tested
|
|
Mac®
Resolution (min)
|
1920x1080
|
|
Connector
|
|
|
3.5mm
Audio Out
|
1
|
|
HDMI
1.4
|
2
|
|
DisplayPort
|
1
|
|
Power
in
|
3-pin
Socket (IEC C14 / CEE22)
|
|
Audio
|
|
|
Internal
Speakers
|
2Watts
x2
|
|
Power
|
|
|
Eco
Mode (Conserve)
|
12W
|
|
Eco
Mode (optimized)
|
14W
|
|
Consumption
(typical)
|
21W
|
|
Consumption
(max)
|
33W
|
|
Voltage
|
AC
100-240V, 50/60 Hz
|
|
Stand-by
|
0.5W
|
|
Power
Supply
|
Internal
|
|
Additional
Hardware
|
|
|
Kensington
Lock Slot
|
1
|
|
Cable
Organization
|
Yes
|
|
Controls
|
|
|
Physical
Controls
|
Key 1
(favorite), Key 2, Key 3, Key 4, Key 5 (power)
|
|
On
Screen Display
|
Input
Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
|
|
Operating
Conditions
|
|
|
Temperature
|
32°F to
104°F (0°C to 40°C)
|
|
Humidity
(non-condensing)
|
20% to
90%
|
|
Wall
Mount
|
|
|
VESA
Compatible
|
100 x
100 mm
|
|
Input
Signal
|
|
|
Frequency
Horizontal
|
30 ~
180KHz
|
|
Frequency
Vertical
|
48 ~
144Hz
|
|
Video
Input
|
|
|
Digital
Sync
|
TMDS -
HDMI (v1.4), PCI-E - DisplayPort (v1.2)
|
|

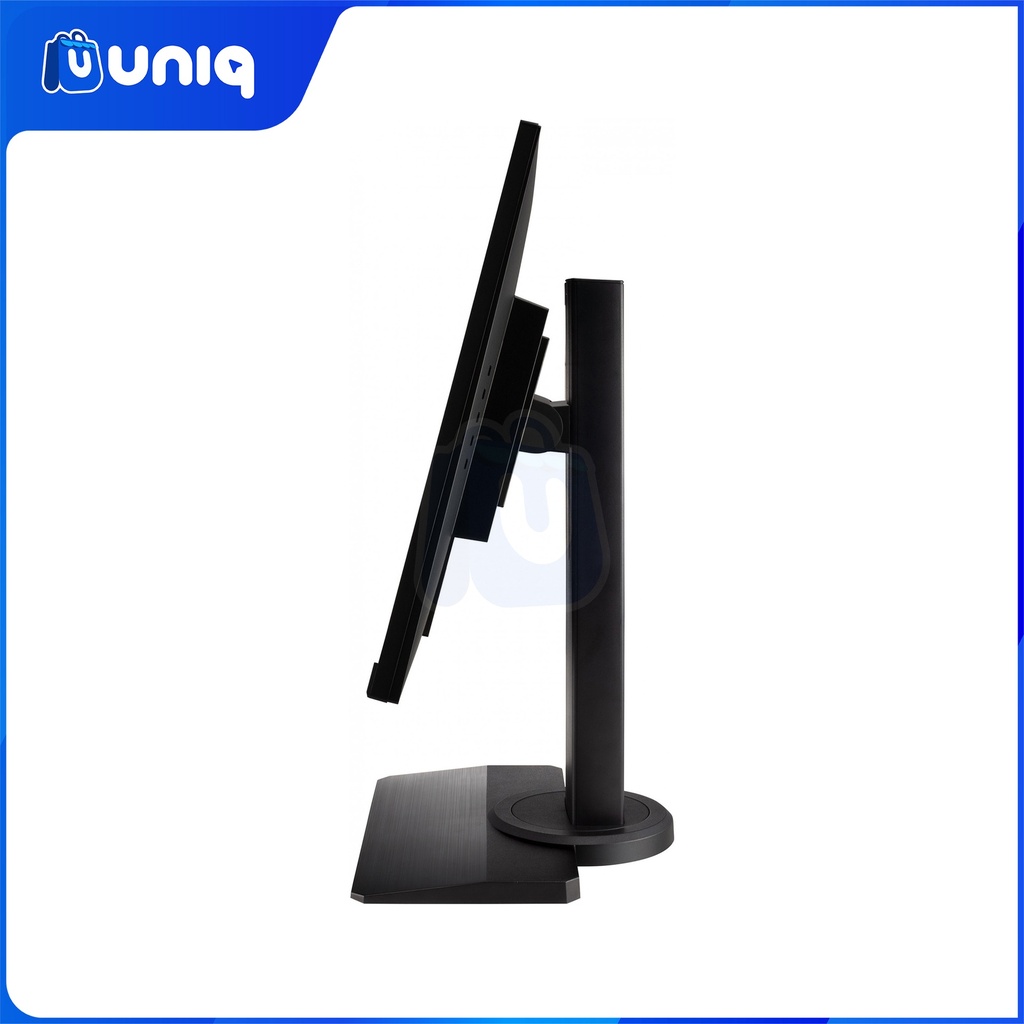

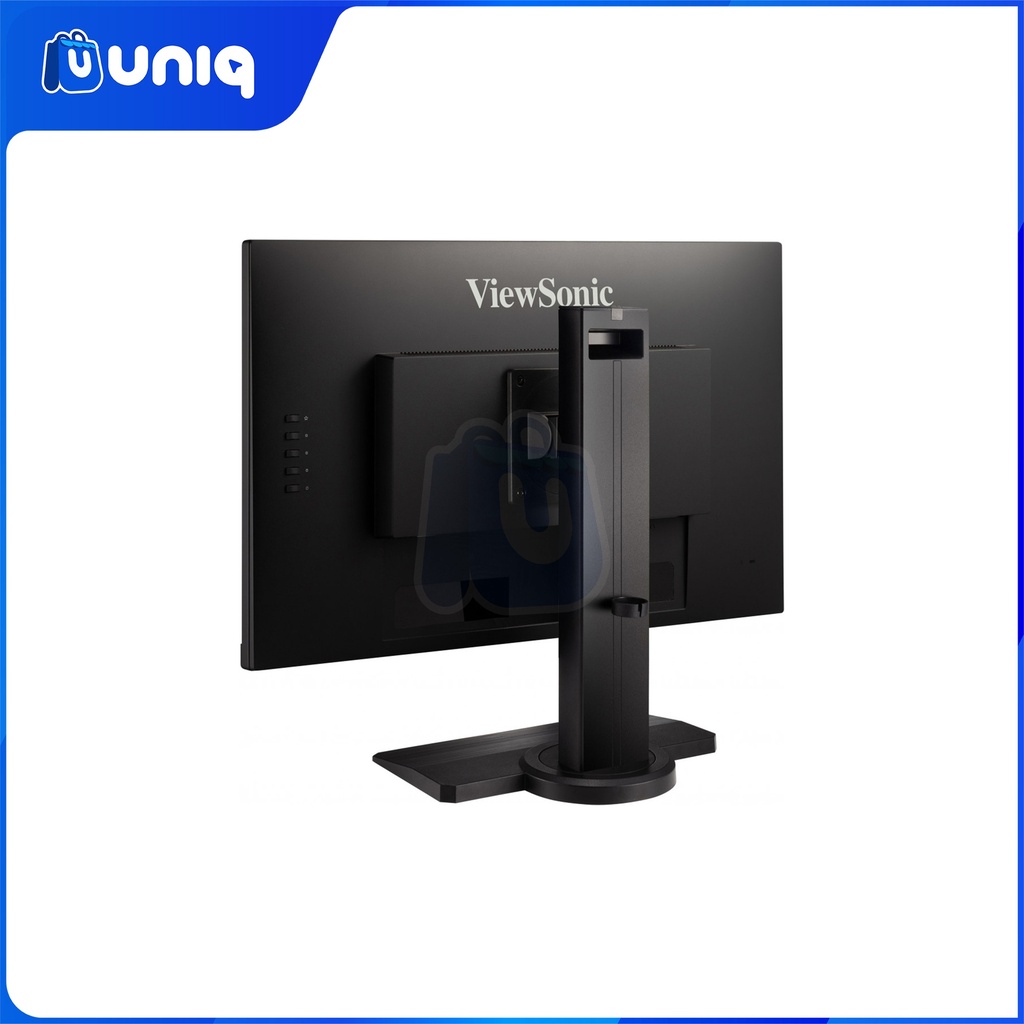

Ergonomics
|
|
|
Height
Adjust (mm)
|
120
|
|
Swivel
|
90º
|
|
Tilt
(Forward/Back)
|
-5º /
20º
|
|
Pivot
(Right/Left)
|
: 90º /
0º
|
|
Weight
(imperial)
|
|
|
Net
(lbs)
|
13.9
|
|
Net
Without Stand (lbs)
|
6.8
|
|
Gross
(lbs)
|
17.4
|
|
Weight
(metric)
|
|
|
Net
(kg)
|
6.3
|
|
Net
Without Stand (kg)
|
3.1
|
|
Gross
(kg)
|
7.9
|
|
Dimensions
(imperial)(wxhxd)
|
|
|
Packaging
(in.)
|
27.5 x
15.7 x 7.3
|
|
Physical
(in.)
|
21.2 x
17.08~20.49 x 9.4
|
|
Physical
Without Stand (in.)
|
21.2 x
12.7 x 1.9
|
|
Dimensions
(metric) (wxhxd)
|
|
|
Packaging
(mm)
|
698 x
400 x 186
|
|
Physical
(mm)
|
540 x
433.9~520.55 x 239
|
|
Physical
Without Stand (mm)
|
540 x
323 x 48
|
|
General
|
|
|
Regulations
|
cTUVus,
FCC-B, ICES003, CEC, TUV S-Mark, MX-CoC, Mexico Energy, REACH, WEEE, VCCI,
PSE, BIS
|
|
Recycle/Disposal
|
Please
dispose of in accordance with local, state or federal laws.
|
