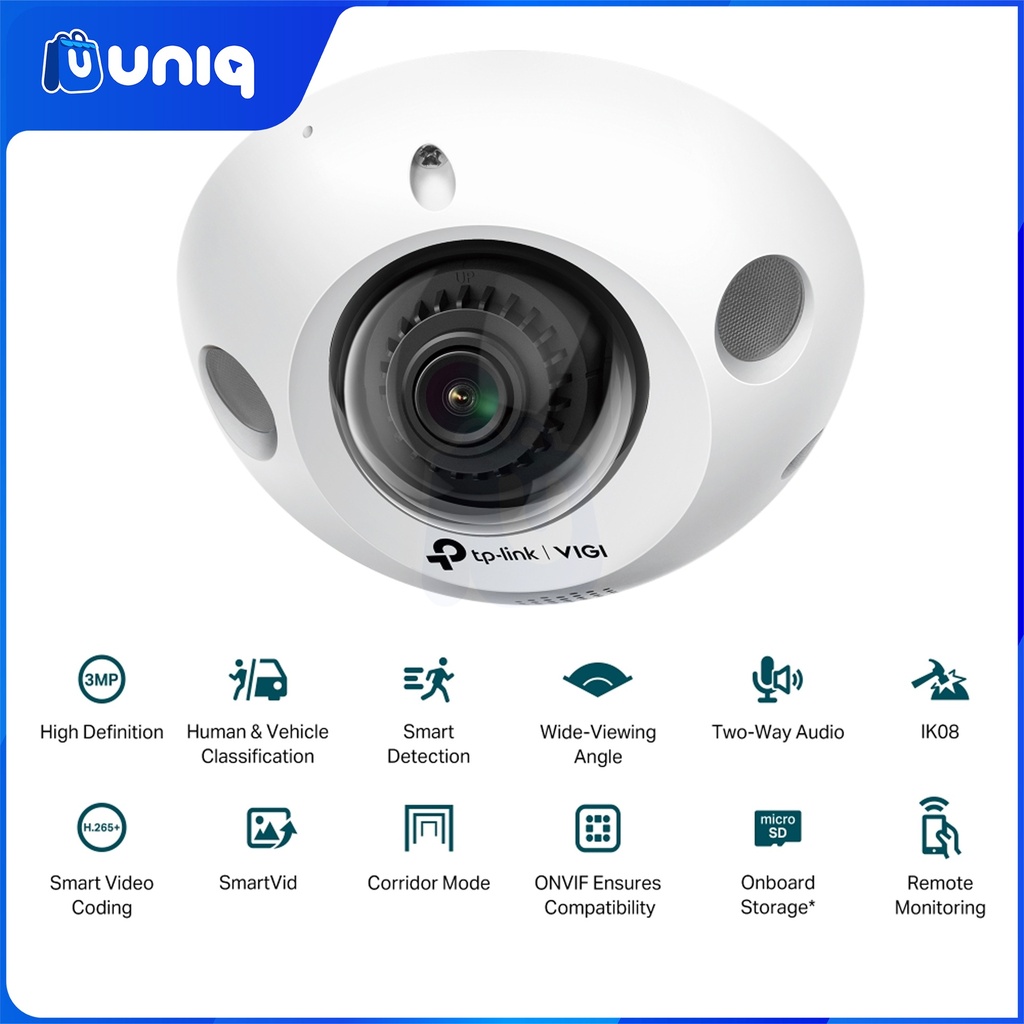

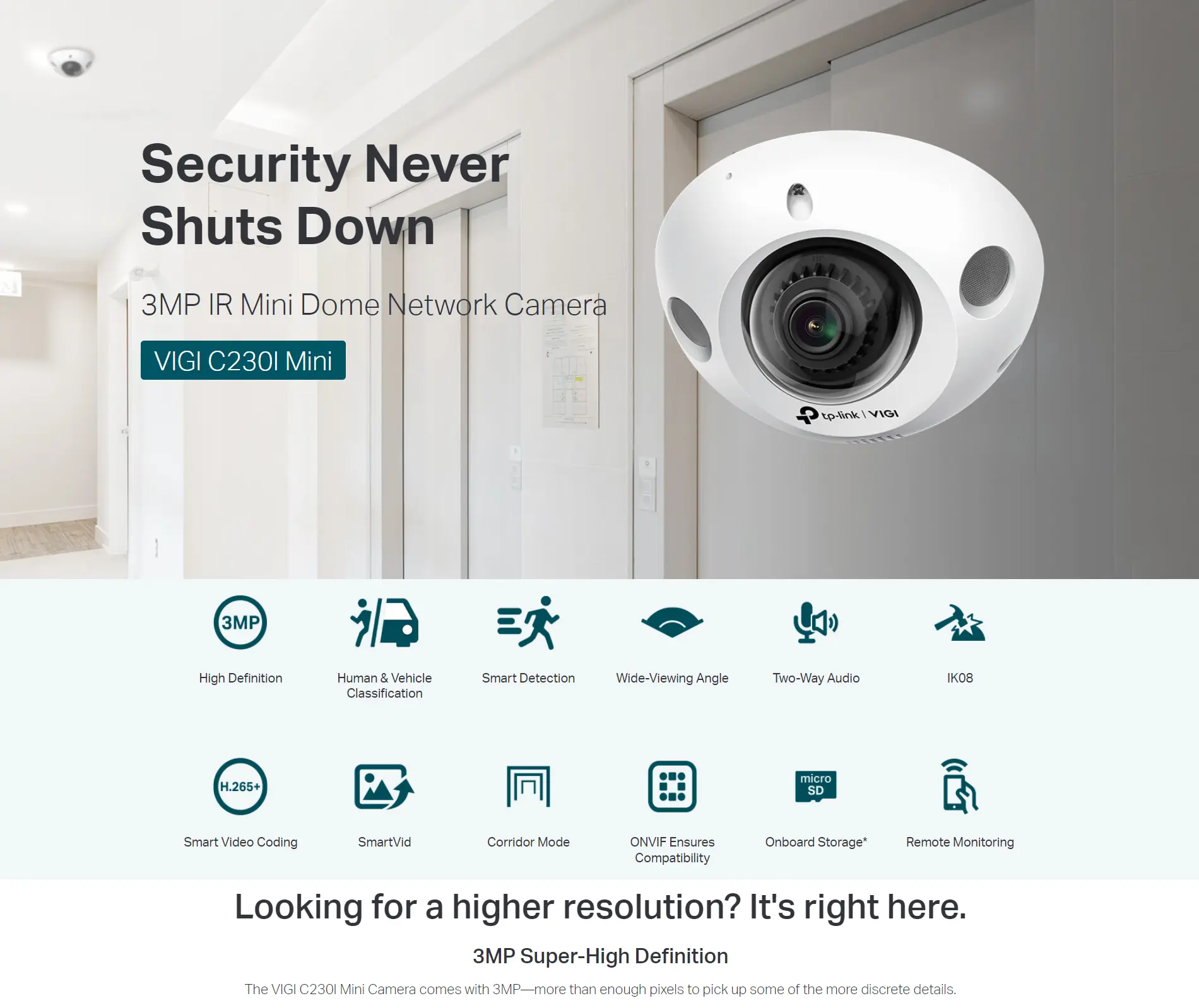

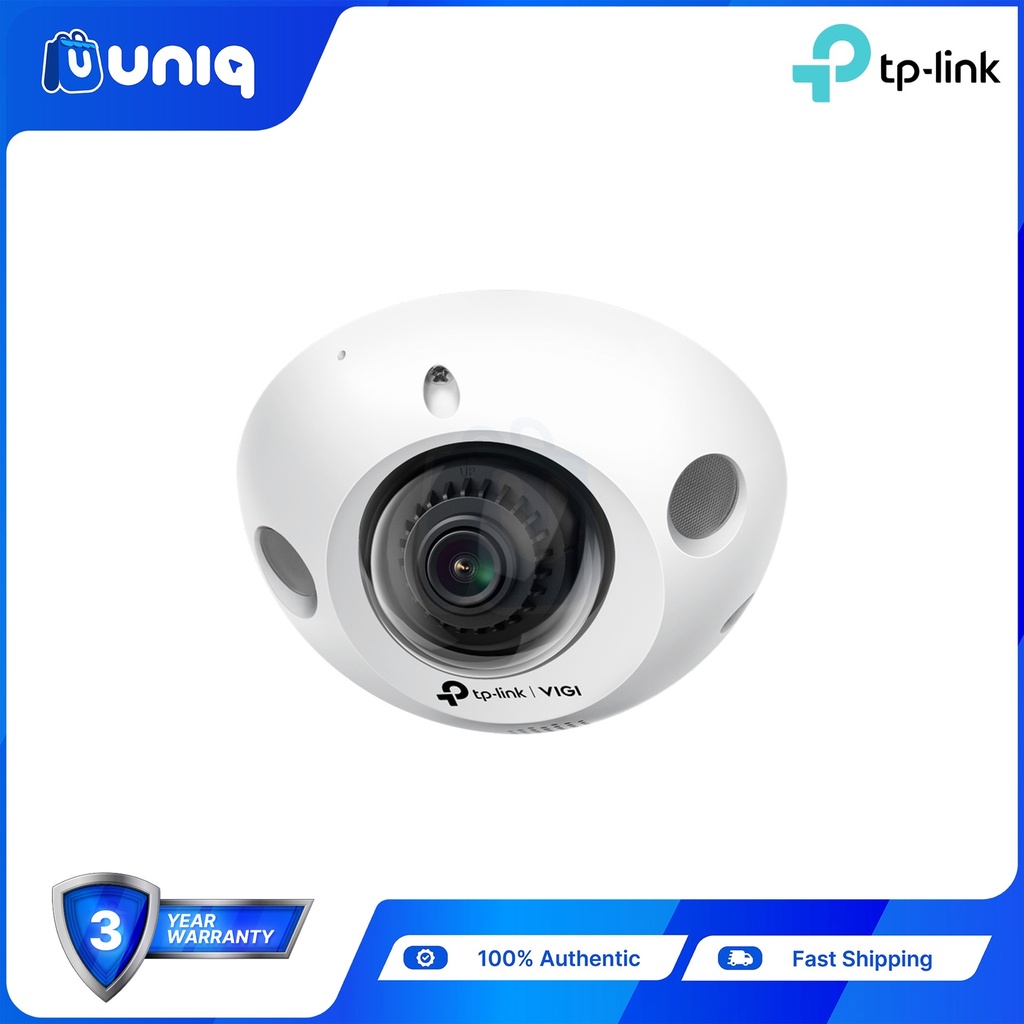

TP-Link VIGI C230I Mini (2.8mm) 3MP IR Mini Dome Network Camera

CAMERA

Image Sensor

1/2.8” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Aperture

F1.6

Lens

2.8 mm

Lens Mount

M12

Minimum Illumination

Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Digital Noise Reduction

3D DNR

WDR

DWDR

IR Working Distance

30m

Viewing Angle

Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°

LENS

Type

Fixed Focal Lens

Focal Length

2.8 mm

Aperture

F1.6

FOV

2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°

Lens Mount

M12

DORI Distance

2.8mm ;

Detect: 49 m (161 ft)

Observe: 20 m (67 ft)

Recognize: 10 m (32 ft)

Identify: 5 m (16 ft)

Angle Adjustment (Manual)

Range

Pan: -30° to 30°

Tilt: 0° to 85°

Rotate: -15° to 15°

ILLUMINATOR

IR LED

Quantity: 2

Range: 30m

Wavelength: 850nm

White LED

N/A

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution

2304 × 1296

Main Stream

Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080,1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream

Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control

CBR, VBR

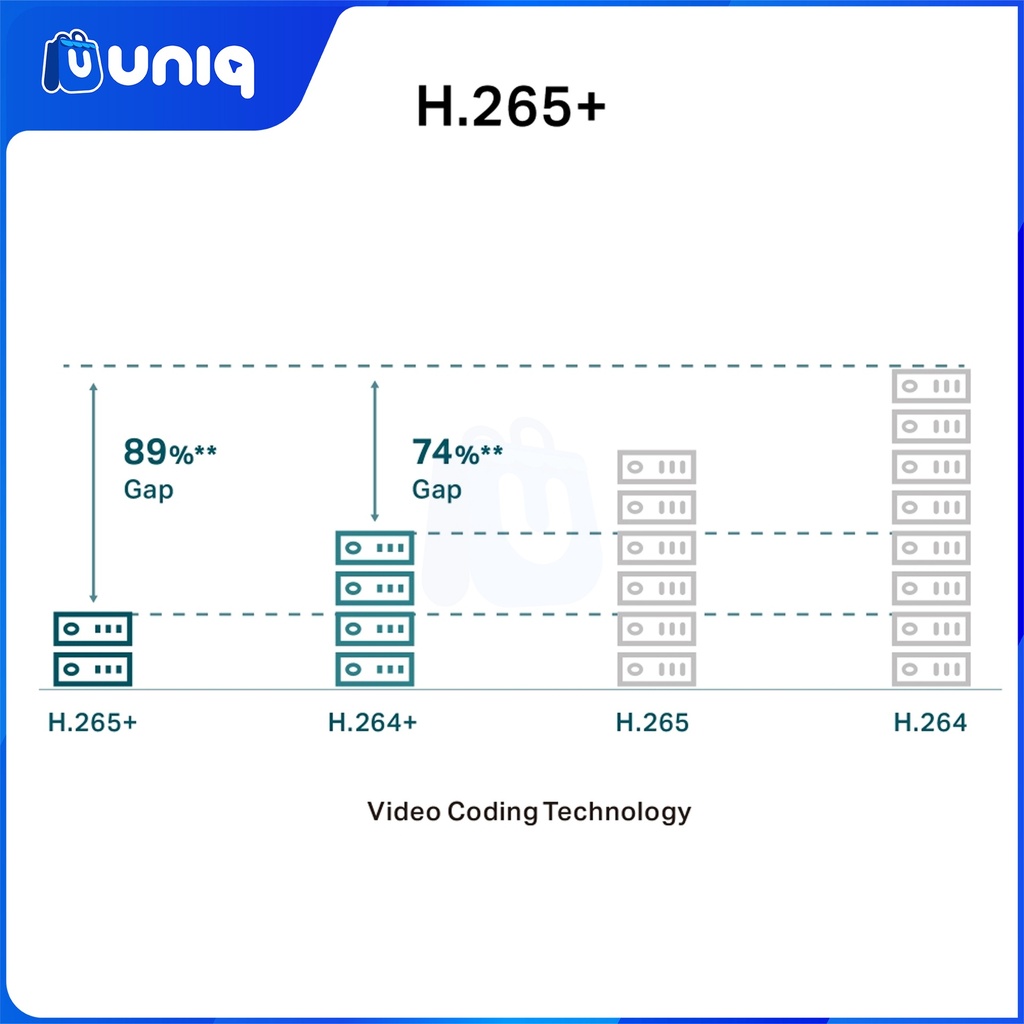

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

NETWORK

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,

RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF

Yes

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, VIGI NVR, Web

Web Browser

Open Network Video Interface (Profile S)

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event

Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage

Memory Card Video Recording, Message Push, Audible Warning

Linkage Method

N/A

Output Notification

Message Push

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Alarm

N/A

Reset Button

Yes

Power

DC Power Port

Button

Reset Button

Video Output

-

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone

Yes

Built-in Speaker

Yes

Audio

N/A

GENERAL

Operating Temperature

-30–60 °C

Storage Temperature

-40–60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Dimensions( H X W X D )

114 × 114 × 58 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Net Weight

0.23 kg

Gross Weight

0.41 kg

Power Consumption

12V DC: Max 7.5W

PoE: Class 0

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

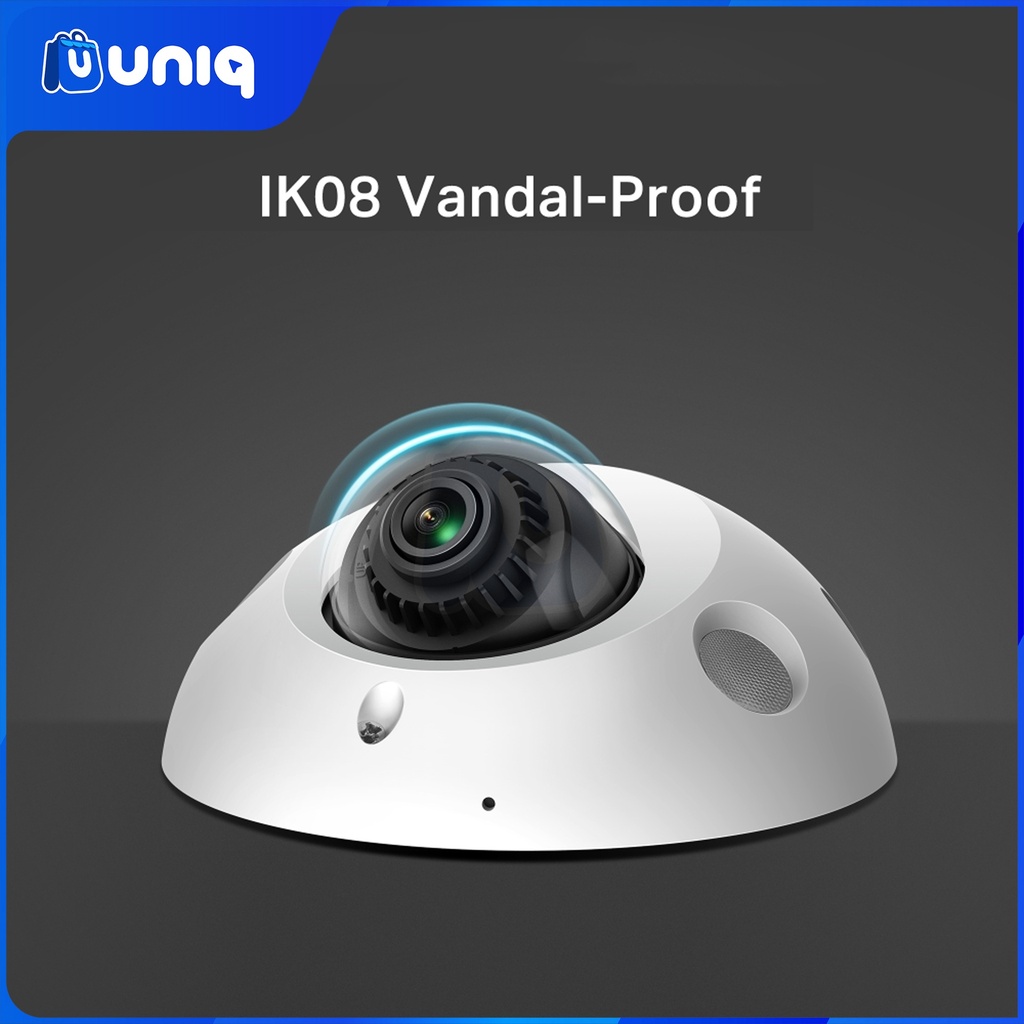

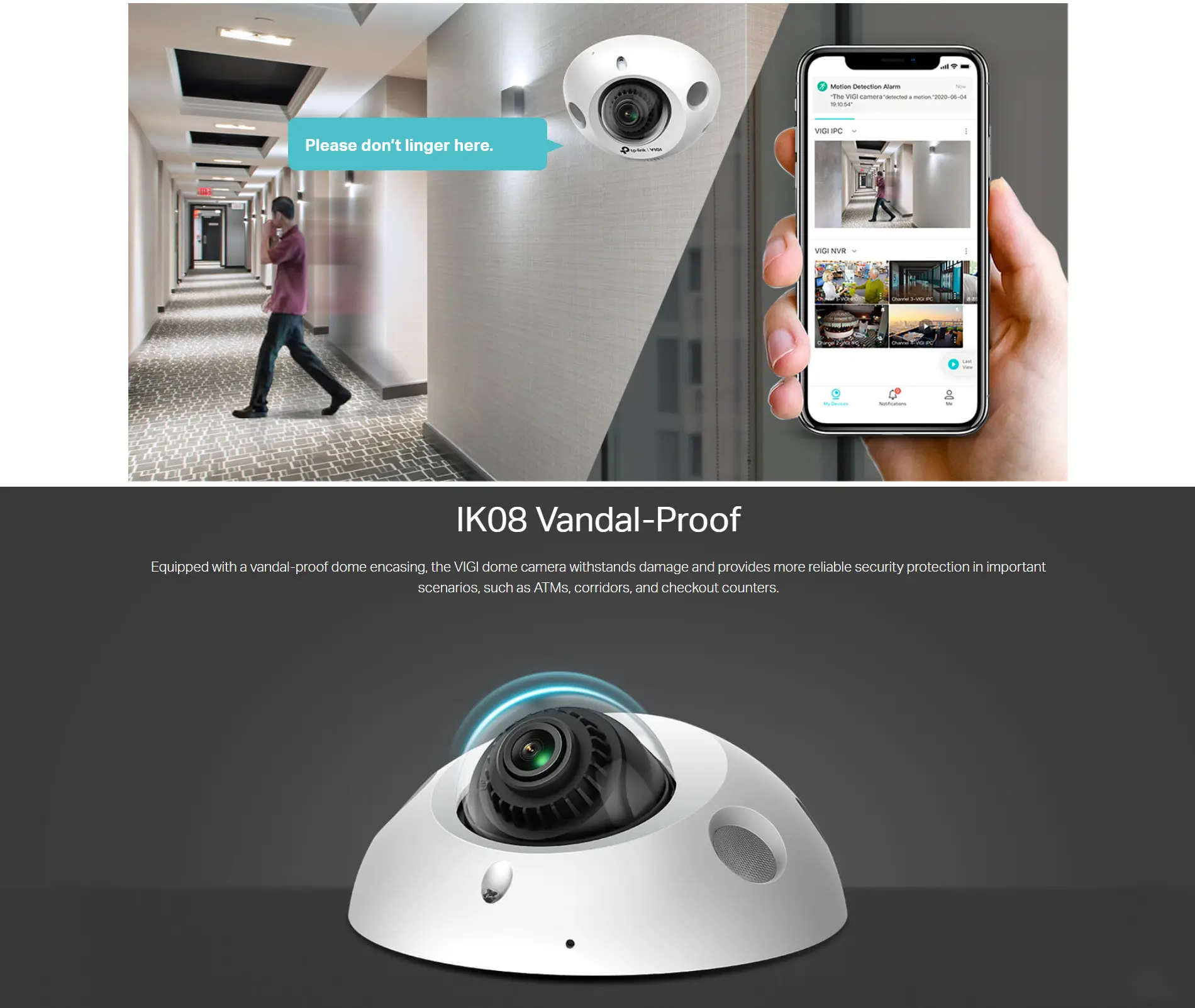

Vandal Resistant

IK08

Protection

IK08

Product Dimensions (L x W x H)

114× 58× 114 mm

Certifications

CE/VCCI/BSMI/KC/ONVIF

VIDEO/IMAGE

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream:

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 704x576, 640x480, 352x288, 320x240

Max. Resolution

3MP (2304 × 1296)

Video Streaming

3 Main Streams

3 Sub-Streams

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Video Bit Rate

64 Kbps to 4 Mbps

Day/Night Switch

Day/Night/Auto/Schedule

SMART FEATURE-SET

Smart Event

Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception (Illegal Login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region
