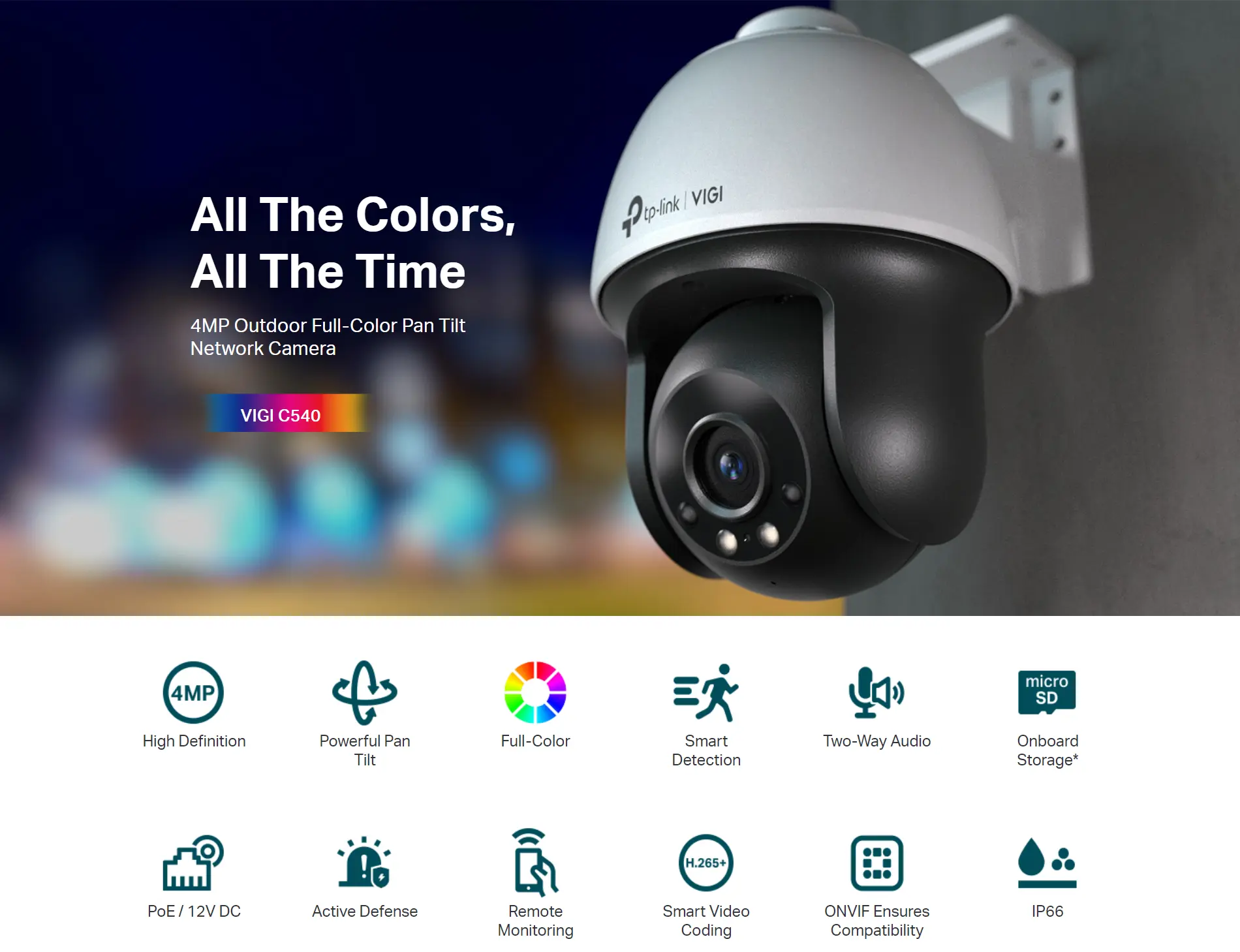

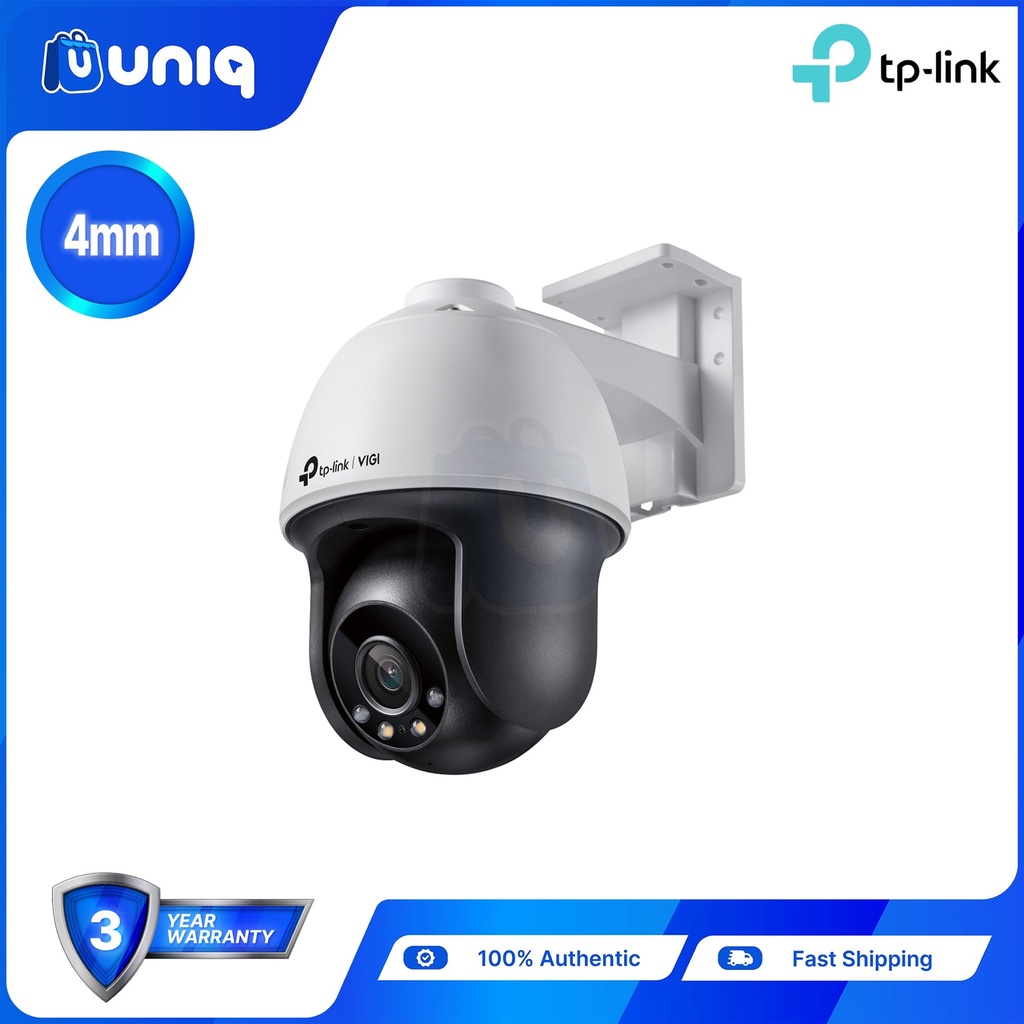

TP-Link VIGI C540 (4mm) 4MP Outdoor Full-Color Pan Tilt Network Camera

CAMERA

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Aperture

4 mm: F1.6

Lens

Fixed focal lens (2.8 mm / 4 mm / 6 mm)

Lens Mount

M12

Minimum Illumination

0 lux with IR/white Light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Digital Noise Reduction

3D DNR

WDR

DWDR

Weatherproof Rating

IP66

IR Working Distance

30m

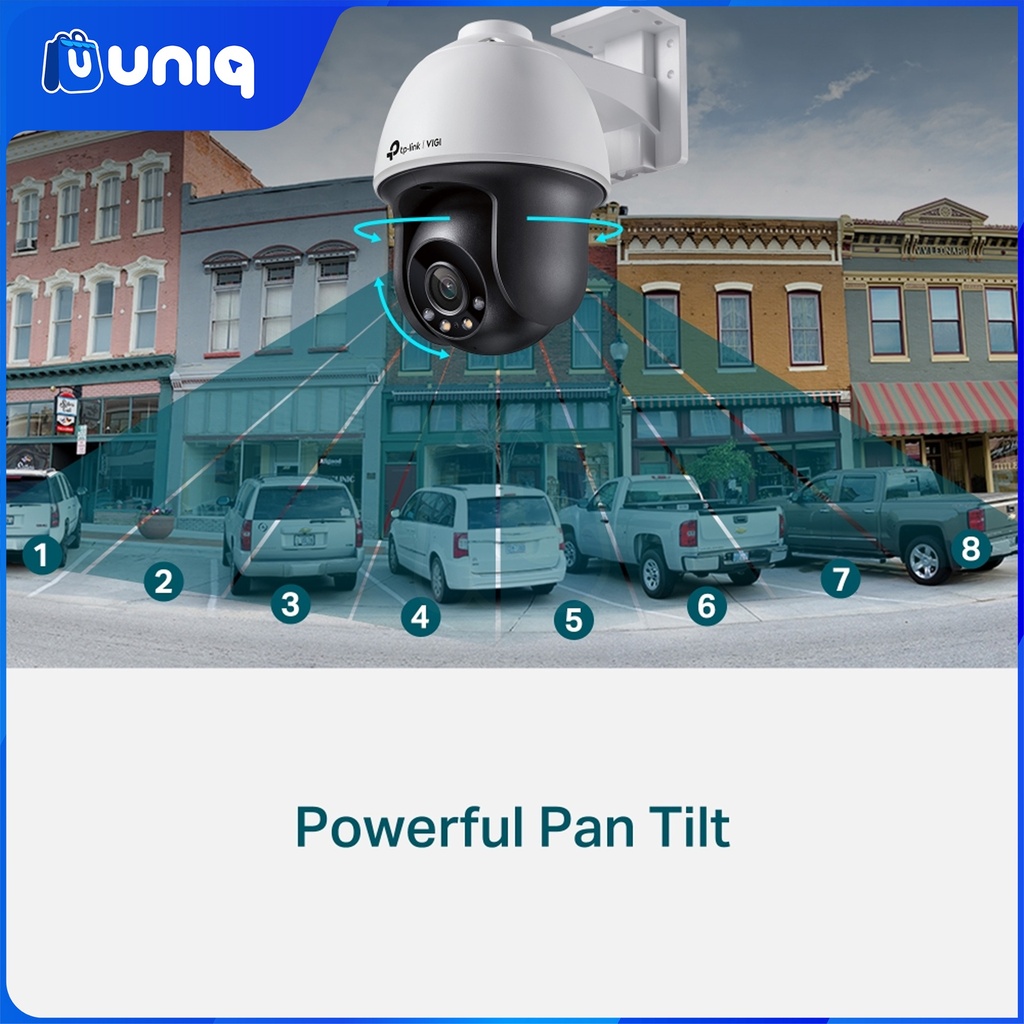

Pan/Tilt Range

Pan: 0° to 350°, Tilt: 0° to 120°

Illumination Distance

30 m

Viewing Angle

(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Digital Zoom

Yes

LENS

Type

Fixed Focal Lens

Focal Length

4 mm

Aperture

F1.6

FOV

4mm:

Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount

M12

DORI Distance

4 mm:

Detect: 80 m (262 ft)

Observe: 33 m (109 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)

PTZ

Pan/tilt Range

Pan: 0° to 350°, Tilt: 0° to 120°

Pan/tilt Speed

Pan Speed:

Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed:

Configurable from 1° to 40°/s, Preset Speed 40°/s

Manual Control Speed

Configurable from 8° to 35°/s

Presets

300

Patrol Scan

8 patrols, up to 8 presets for each patrol

Power-off Memory

Yes;

Auto restore to previous PTZ and lens status after power failure

Park Action

Yes;

Preset; Patrol Scan

3D Positioning

Yes

Angle Adjustment (Manual)

Range

Pan: 0° to 348°

Tilt: 0° to 120°

ILLUMINATOR

IR LED

Quantity: 2

Range: 30m

Wavelength: 850nm

White LED

Quantity: 2

Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

VIDEO

Max. Resolution

2560 X 1440

Main Stream

Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream

Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

640x480, 352x288, 320x240

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile

H.265+

Main Stream Supported

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

DWDR

SNR

≥ 52 dB

Image Parameters Switch

Yes

Privacy Mask

Up to 4 Masks

ROI

1 Region

OSD Setting

Yes

AUDIO

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

NETWORK

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

ONVIF

Yes

API

ONVIF

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Web Browser

Google Chrome® 57 and above

Firefox® 52 and above

Safari® 11 and above

Microsoft® Edge 91 and above

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event

Area Intrusion Detection, Line-Crossing Detection, People Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( Illegal Login)

Alarm Linkage

Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Linkage Method

N/A

Output Notification

Message Push

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Audio Input

Built-in Microphone

Audio Output

Built-in Speaker

Alarm

N/A

Reset Button

Yes

Power

DC Power Port

Button

Reset Button

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera

Built-in Speaker

Yes

Audio

N/A

GENERAL

Operating Temperature

-30–60 °C

Storage Temperature

-40–60 °C

Operating Humidity

95% or Less (Non-Condensing)

Storage Humidity

95% or Less (Non-Condensing)

Package Contents

VIGI Network Camera

Quick Start Guide

Waterproof Cable Attachments

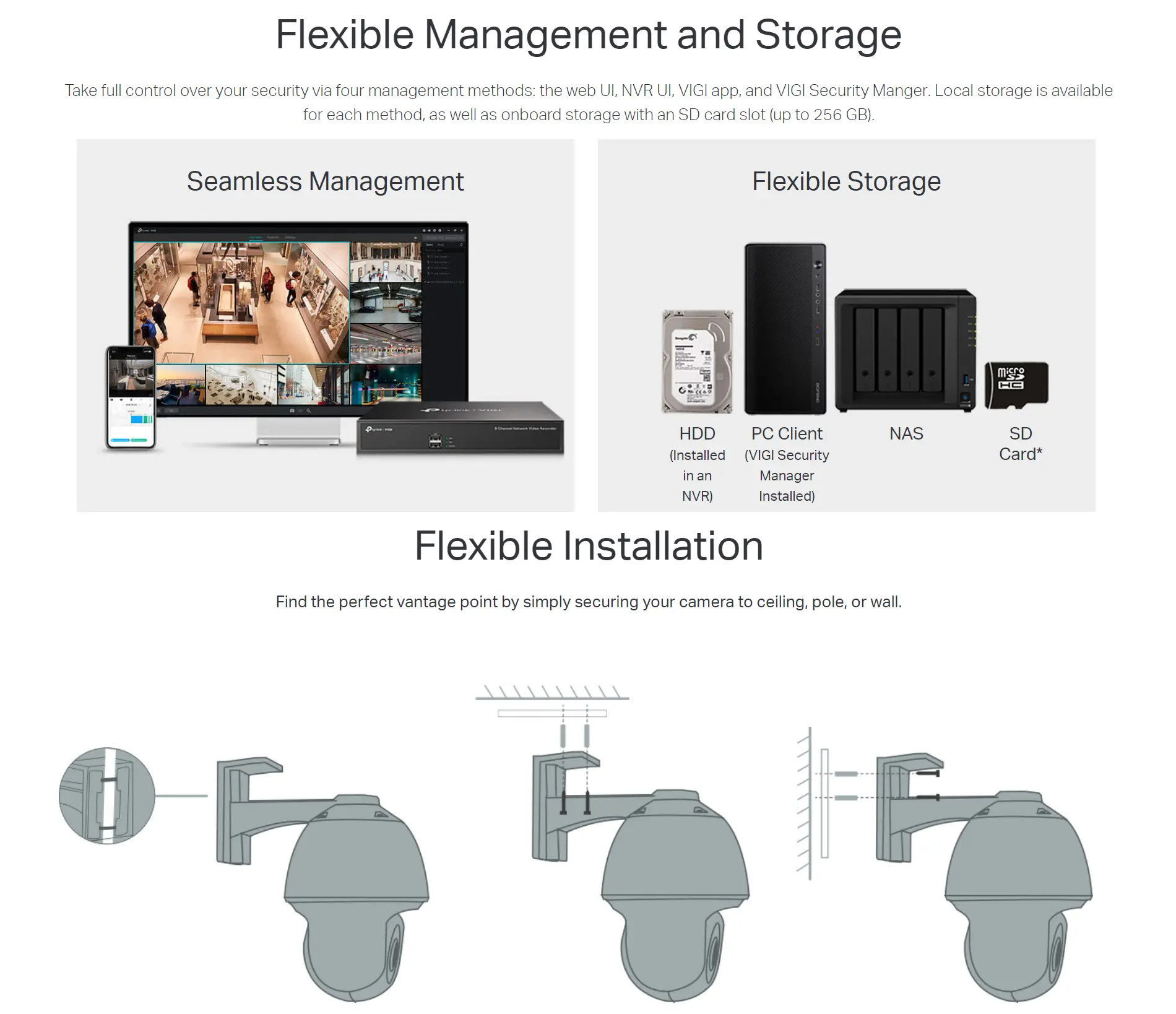

Mounting Accessories

Dimensions( H X W X D )

120 × 172 × 198 mm

Material

Plastic

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Net Weight

0.62 Kg

Gross Weight

0.98 Kg

Power Consumption

12V DC: Max 14W

PoE: Class 4

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug

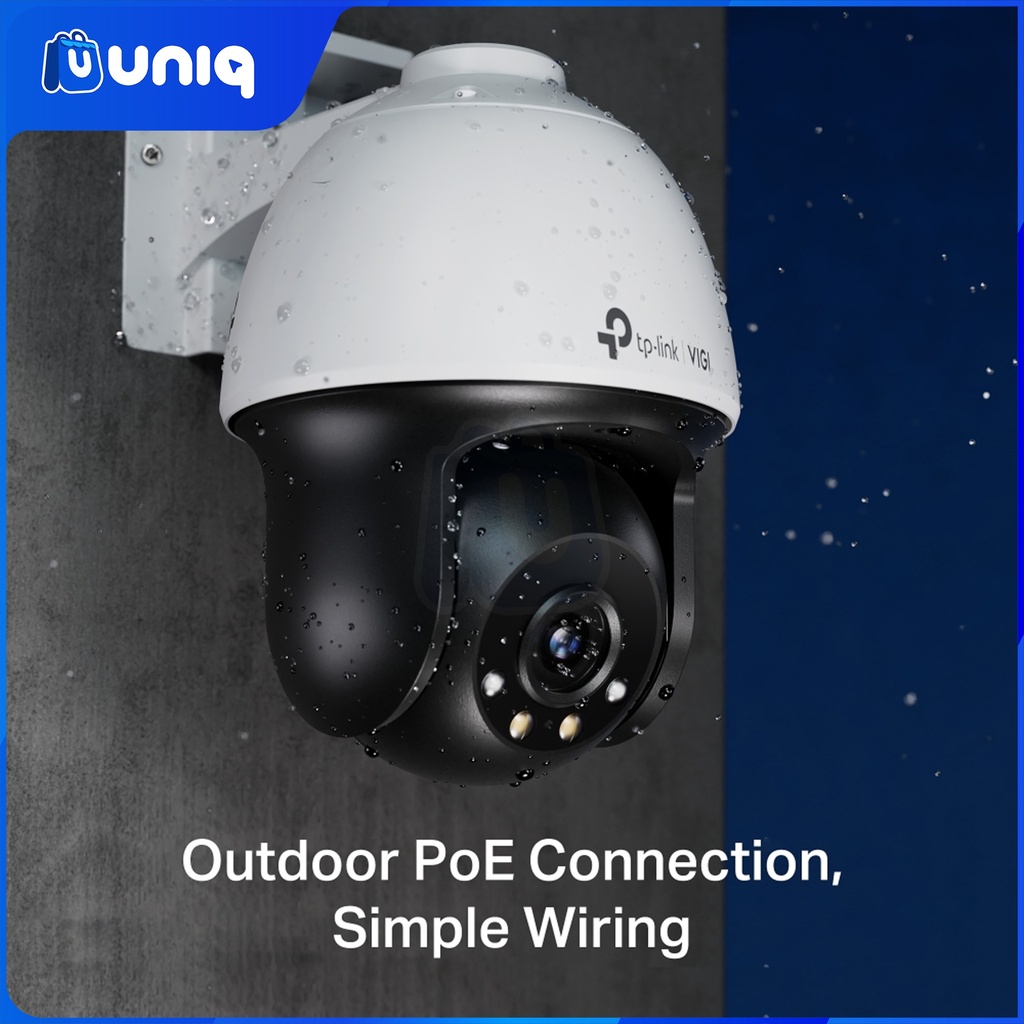

PoE (802.3af/at, class 4)

Protection

IP66

Product Dimensions (L x W x H)

120 × 172 × 198 mm

Certifications

CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

VIDEO/IMAGE

Video Compression

Main stream: H.265+/H.265/H.264+//H.264

Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Main Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 640x480, 352x288, 320x240

Video Streaming

Main Stream

Sub-Stream

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement

BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET

Smart Event

Area Intrusion Detection, Line-Crossing Detection, Human Detection

Basic Event

Motion Detection, Camera Tampering Detection, Exception ( illegal login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region
