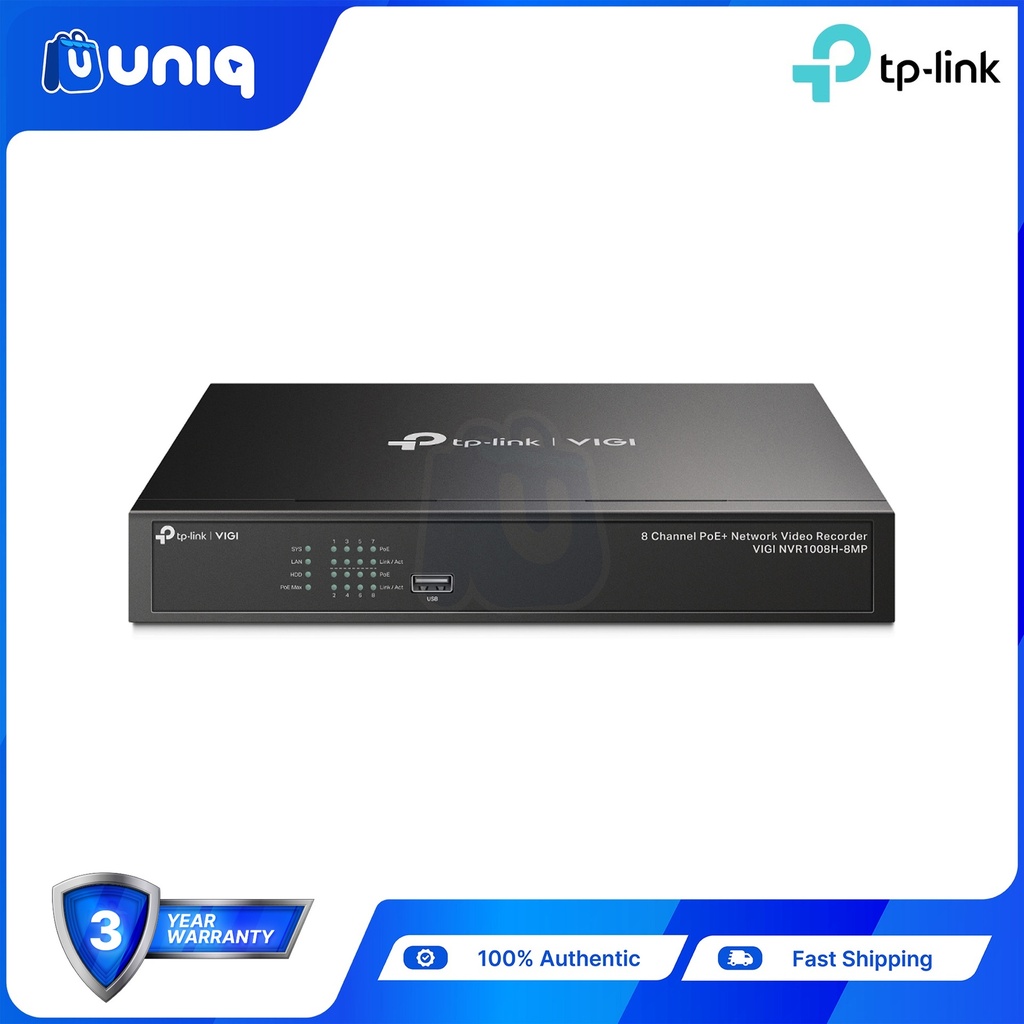

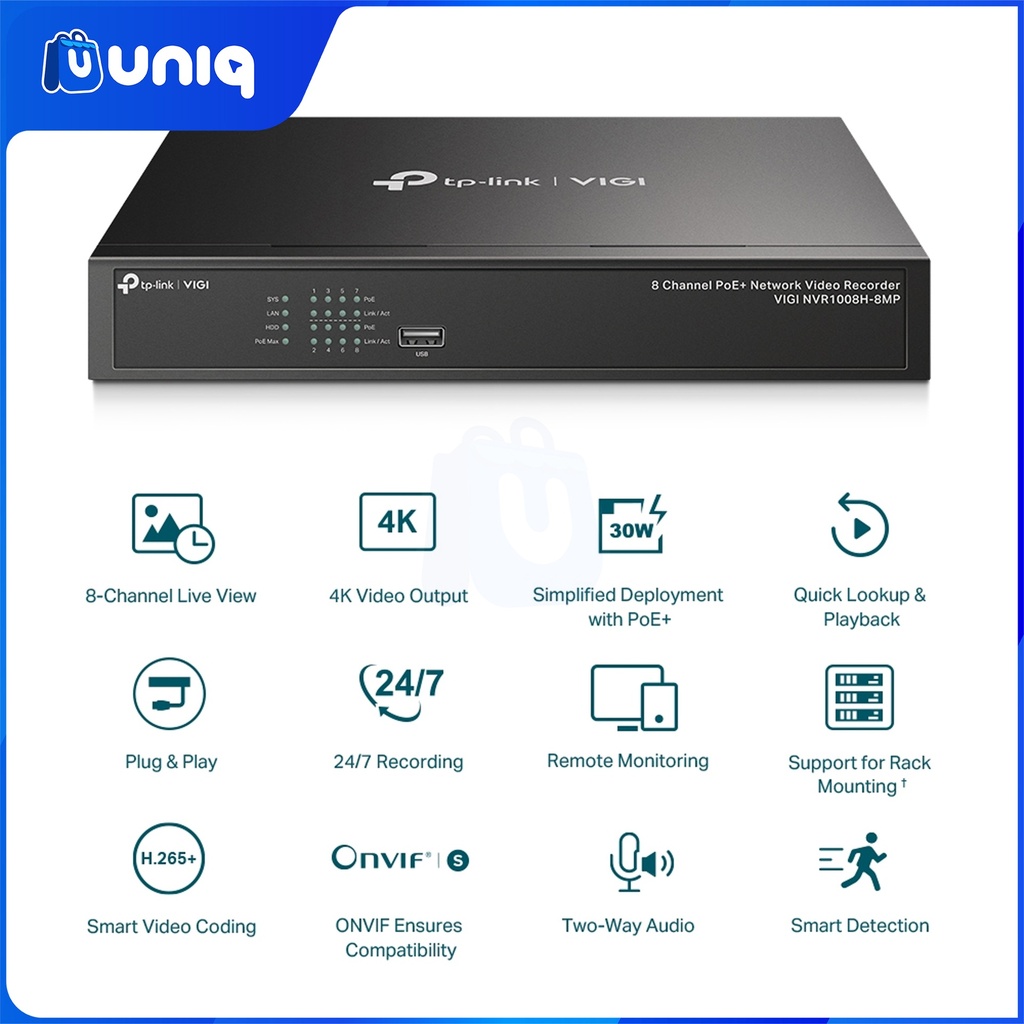

TP-Link VIGI NVR1008H-8MP 8 Channel PoE+ Network Video Recorder

Video and Audio

IP Video Input

8-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

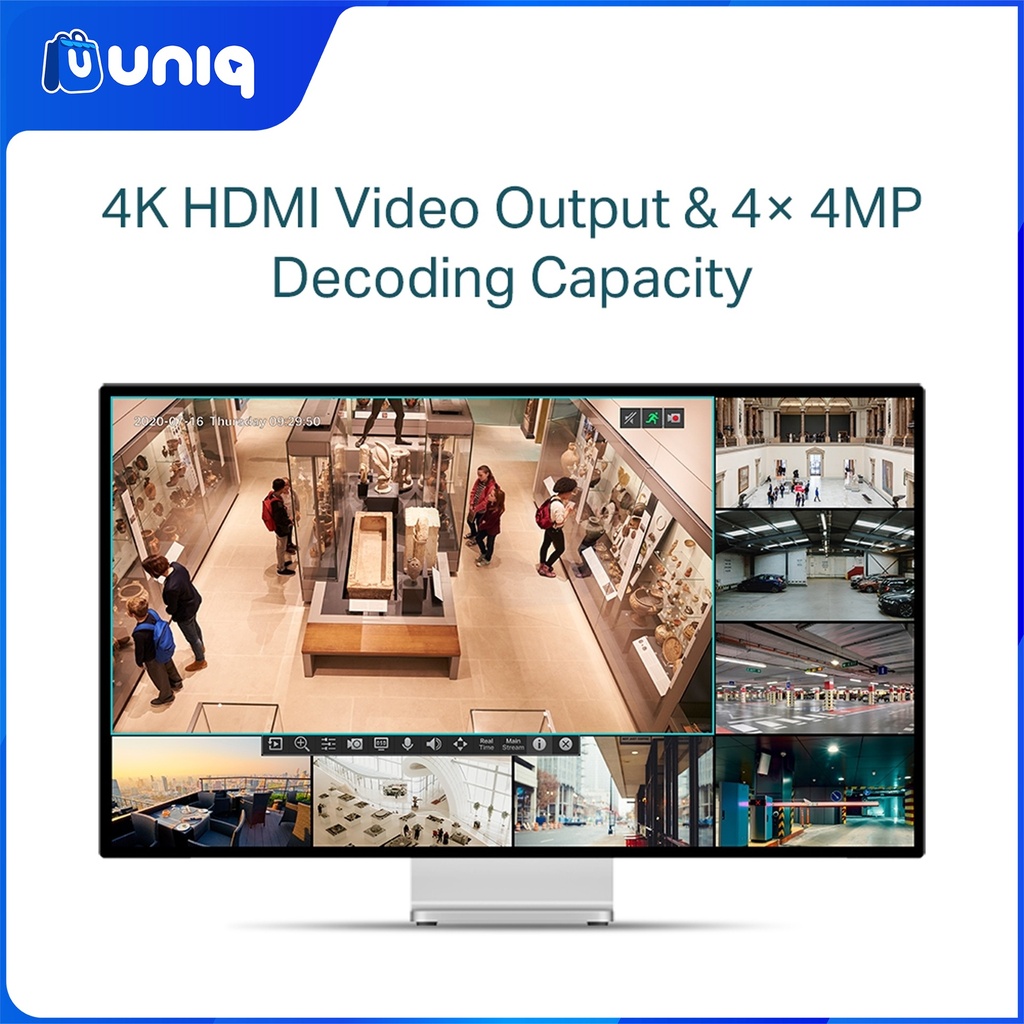

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4/6/8

DECODING

Audio Compression

G.711A/G.711U/G.726

Decoding Format

H.265+/H.265/ H.264+/H.264

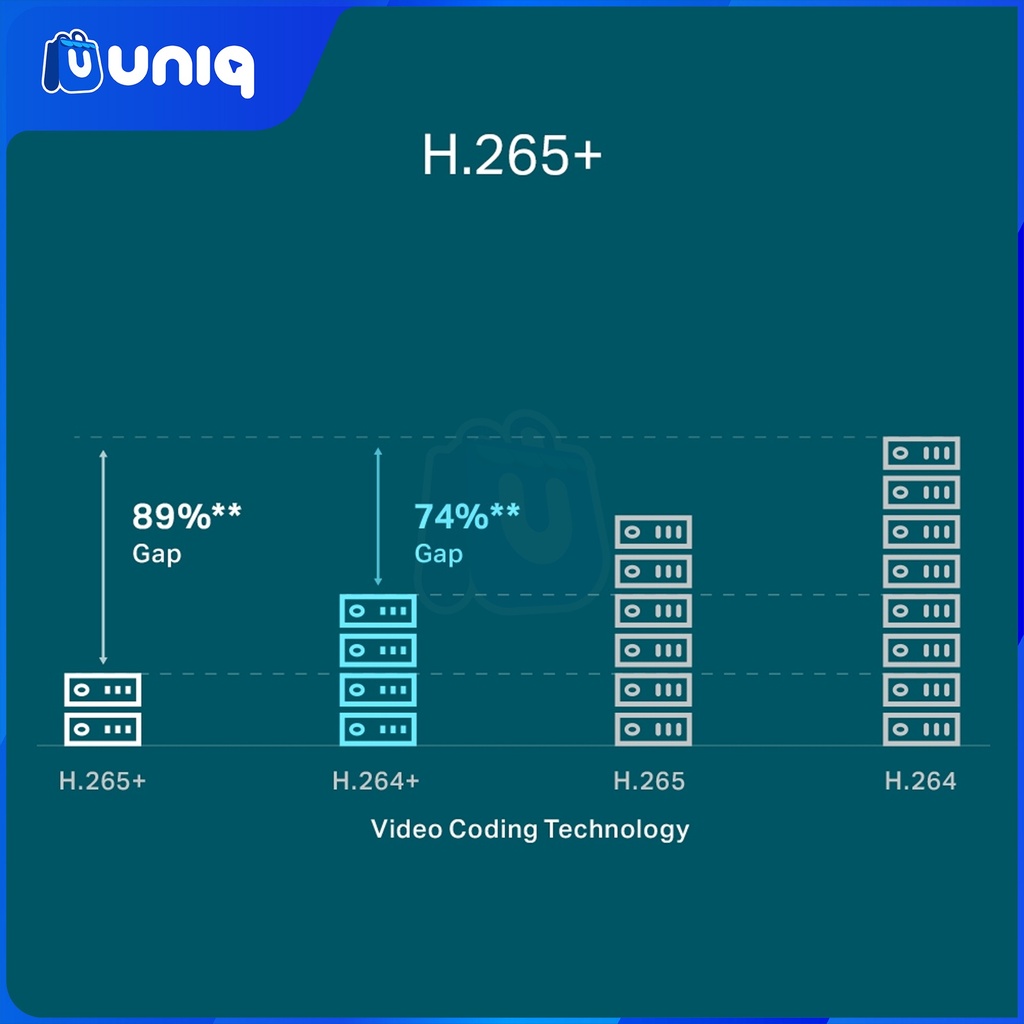

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/

DCIF/2CIF/CIF/QCIF

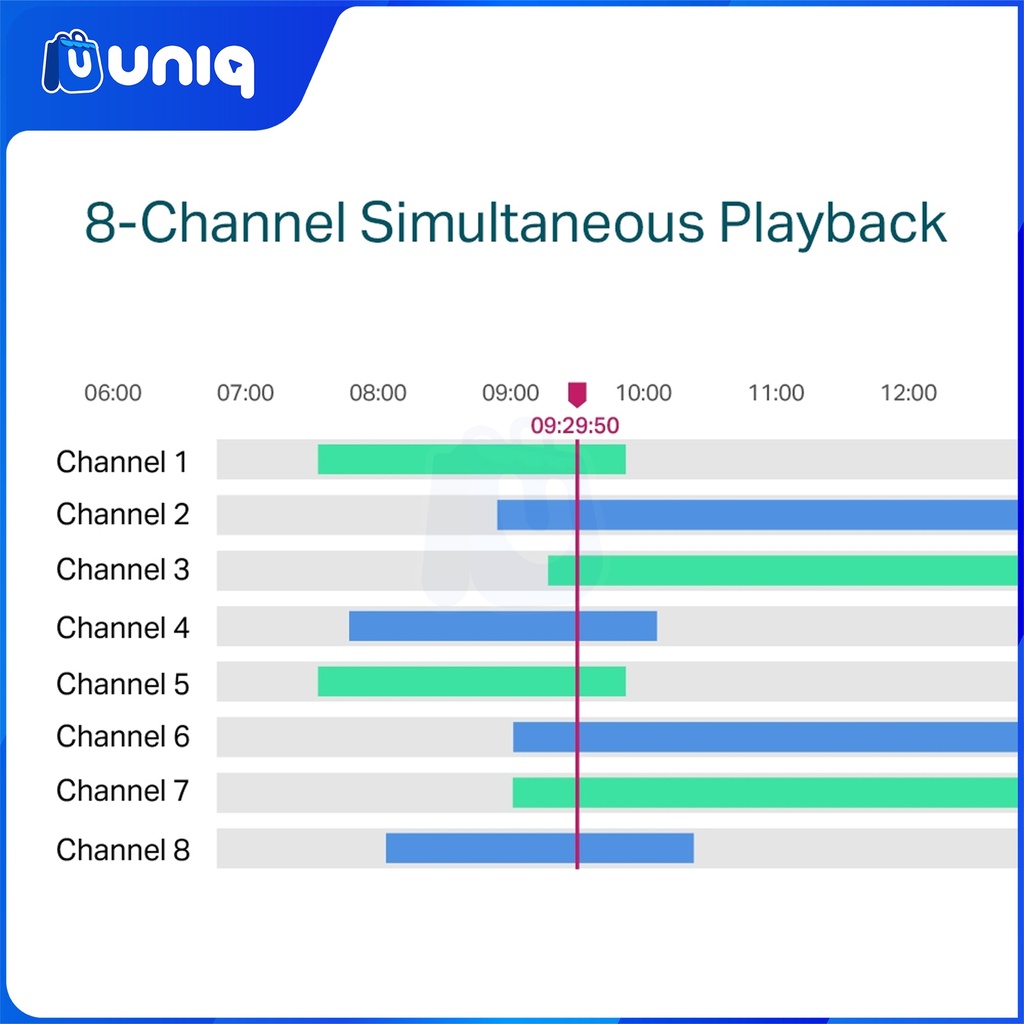

Synchronous Playback

8 Channel

Capability

2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Record Management

Record Mode

• Manual Recording

• Scheduling Recording

• Motion Detection Recording

Playback Mode

• Instant Playback

• Regular Playback

• Tag Playback

• Event Playback

Backup Mode

• Regular Backup

• Video Clip Backup

Playback Function

• Play

• Pause

• Stop

• Fast Forward

• Fast Backward

• Play By Frame

• Full Screen

• Video Clip

• Export Clip

• Digital Zoom

• Lock Recording

• Audio On/Off

NETWORK

Protocol

TCP/IP, DHCP, DNS, NTP, UPnP

Mobile Phone Access

Android, iOS

Incoming Bandwith

80 Mbps

Outgoing Bandwidth

60 Mbps

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

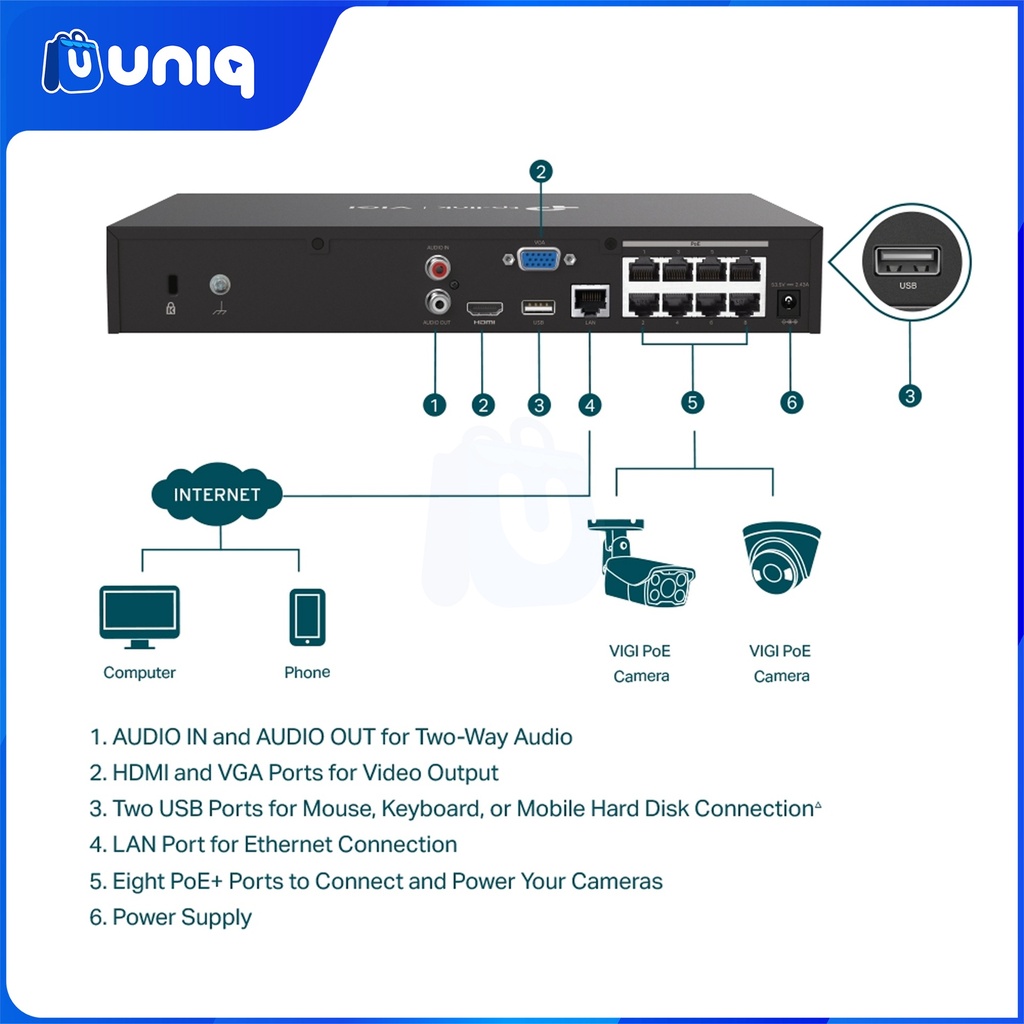

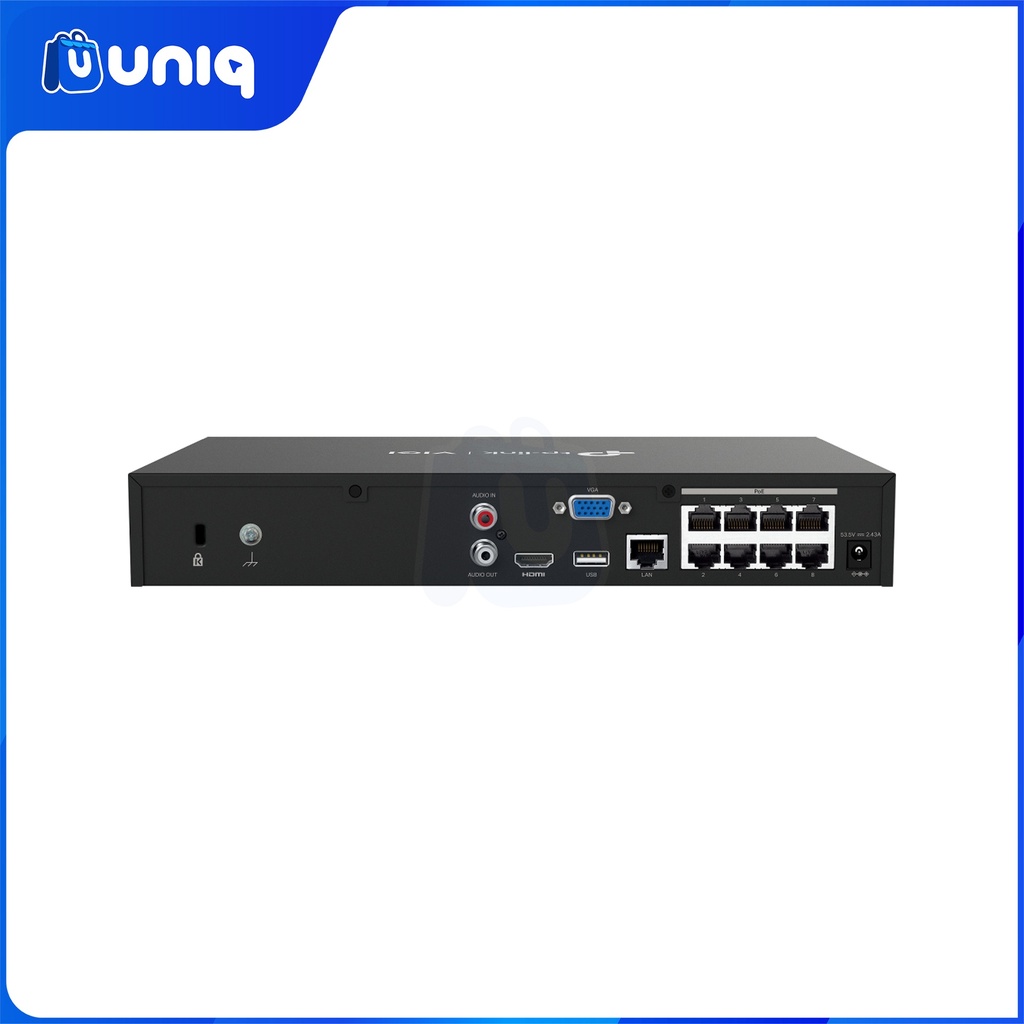

External Interface

Network Interface

1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2× USB 2.0

Audio Interface

1, Audio In; 1, Audio Out

Alarm In/Out

N/A

Serial Interface

N/A

Power

1× DC Jack

Reset Button

1

Speaker

N/A

eSATA

N/A

HDMI

1

VGA

1

HARD DISK

SATA

1 SATA Interface

Capacity

Up to 10 TB

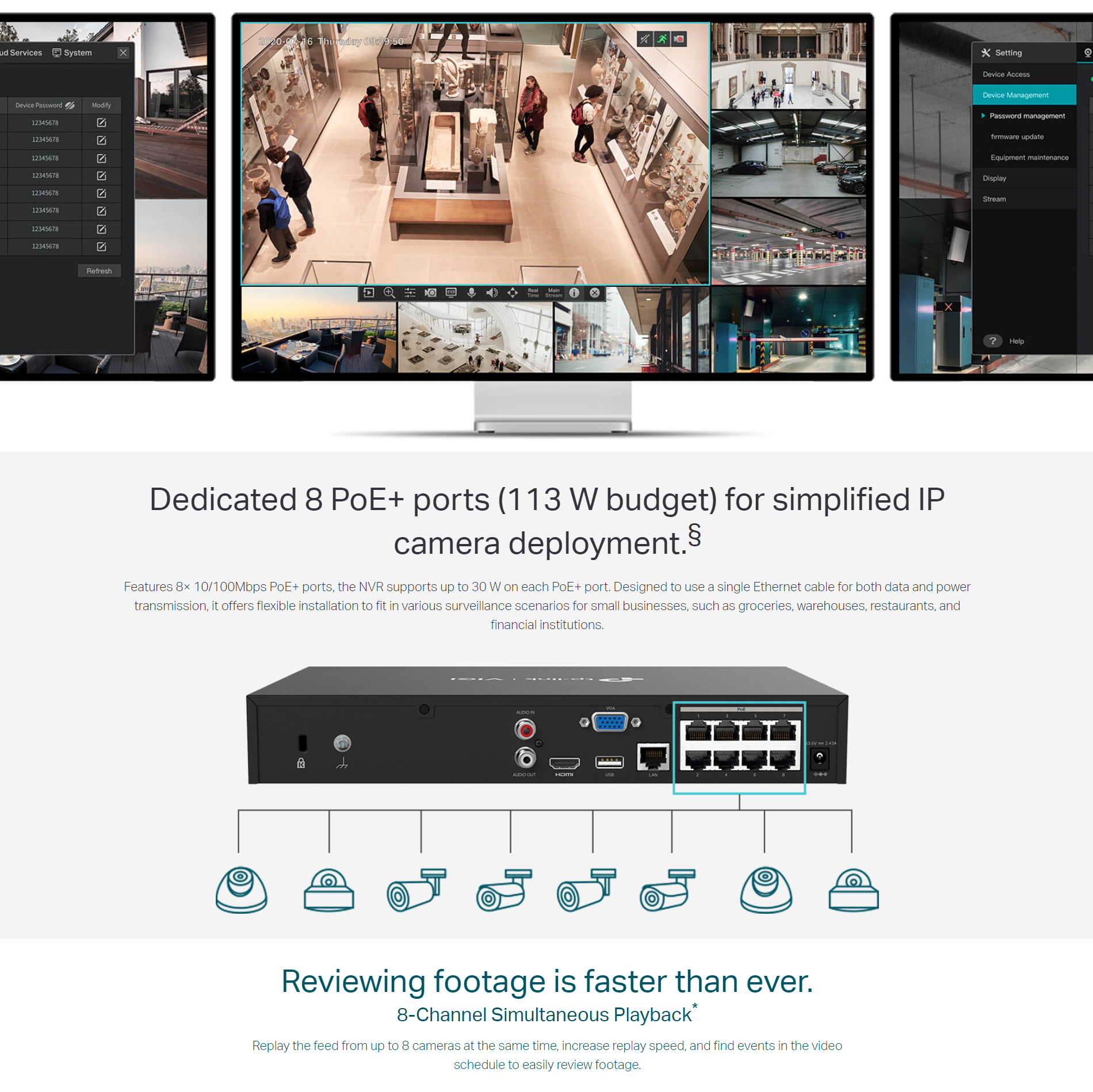

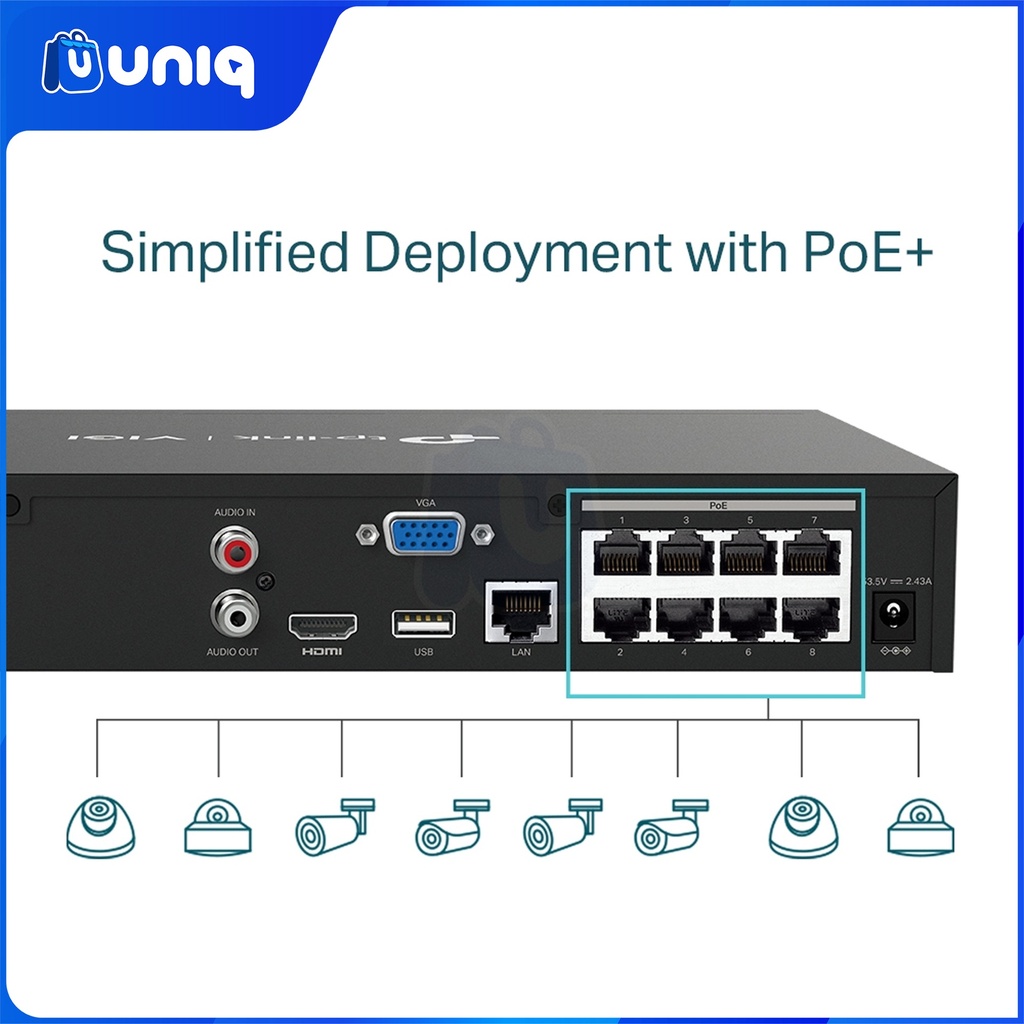

PoE

Standard

802.3at/af Compliant

PoE Budget

113 W Available for All PoE+ Ports, 30 W Max per Port

Capacity

1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

Alarm

General Alarm

• Motion Detection

• Video Tampering

• Line-Crossing Detection

• Intrusion Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned/Removal Detection

• Vehicle Detection

• Human Detection

• Smart Frame

Anomaly Alarm

• Video Loss

• Offline and IP Conflict

• Disk Exception

• Login Exception

Alarm Linkage

• Recording

• White Light Alarm

• Buzzer

• Log

• Audible Alarm

INTERFACES

Network Interface

1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2× USB 2.0

GENERAL

Operating Temperature

-10–55 °C

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Working Temperature

• NVR: -10–55 °C

• Power Adapter: 0–40 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions( W X D X H )

294 × 180 × 44 mm

PoE

Standard: 802.3af/at

PoE Ports: Ports 1-8

PoE Budget: 113 W

External Power Supply

53.5V DC/2.43 A

Net Weight

1.12 Kg

Gross Weight

2.2 Kg

Power Supply

53.5V DC/2.43 A

Power Consumption

4.82 W (without disk)

Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

VIDEO/IMAGE

Video Input

8-Channel IP Video Input, up to 8 MP Resolution

Recording Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz,

1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,

1024x768/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz,

1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,

1024x768/60Hz,
