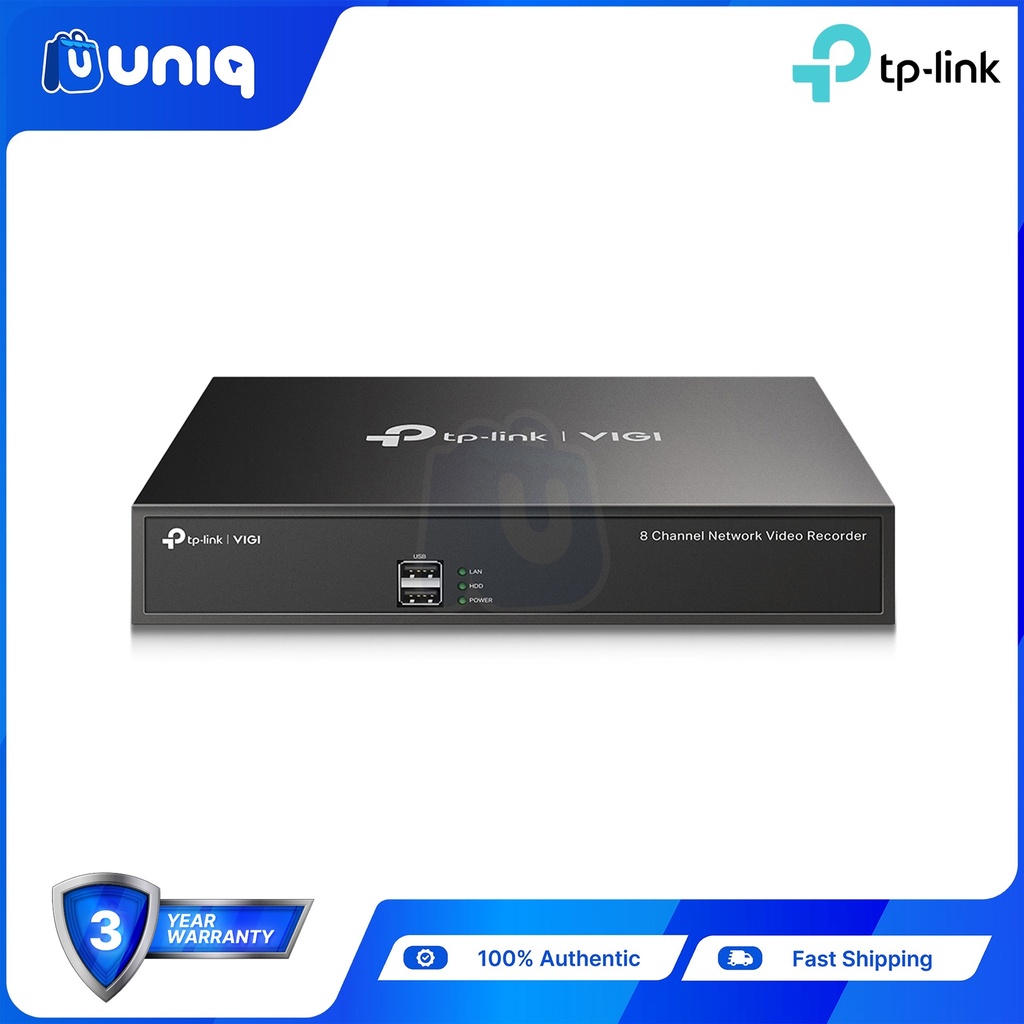

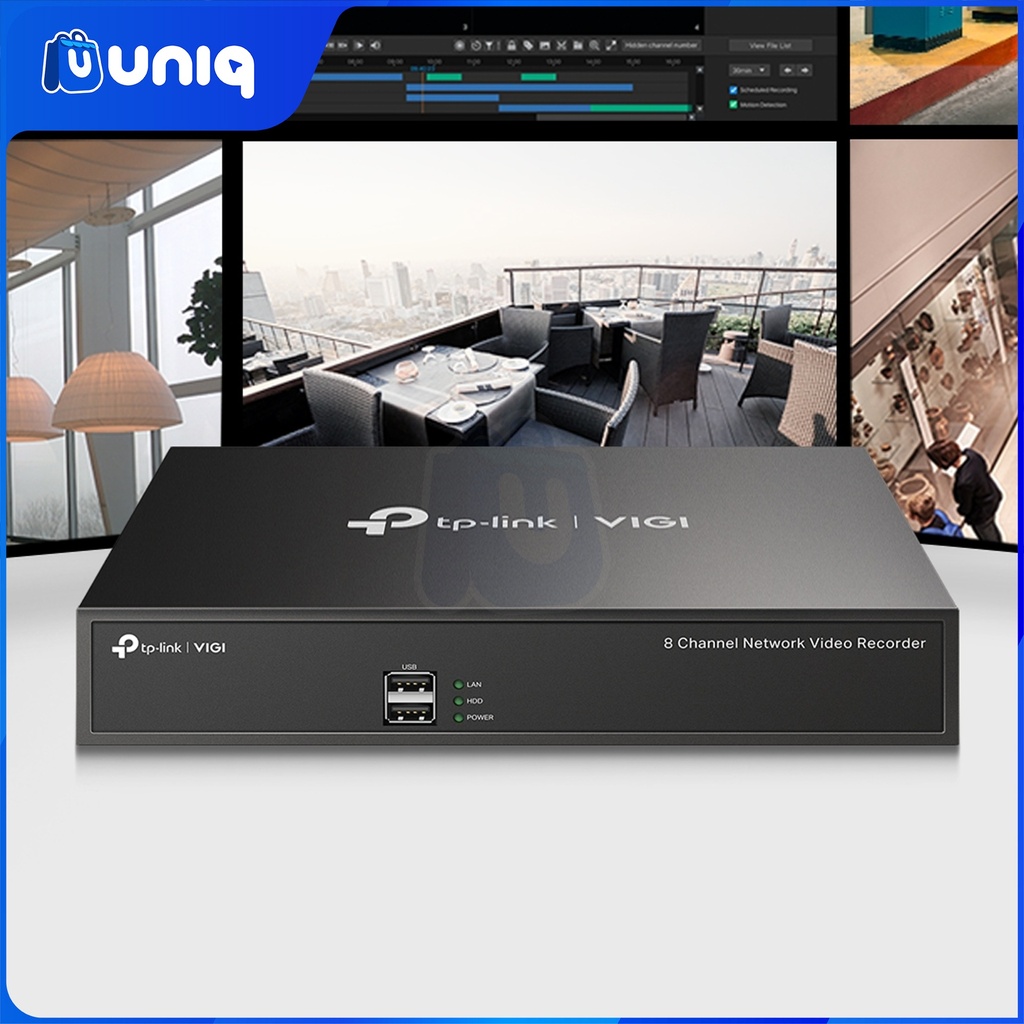

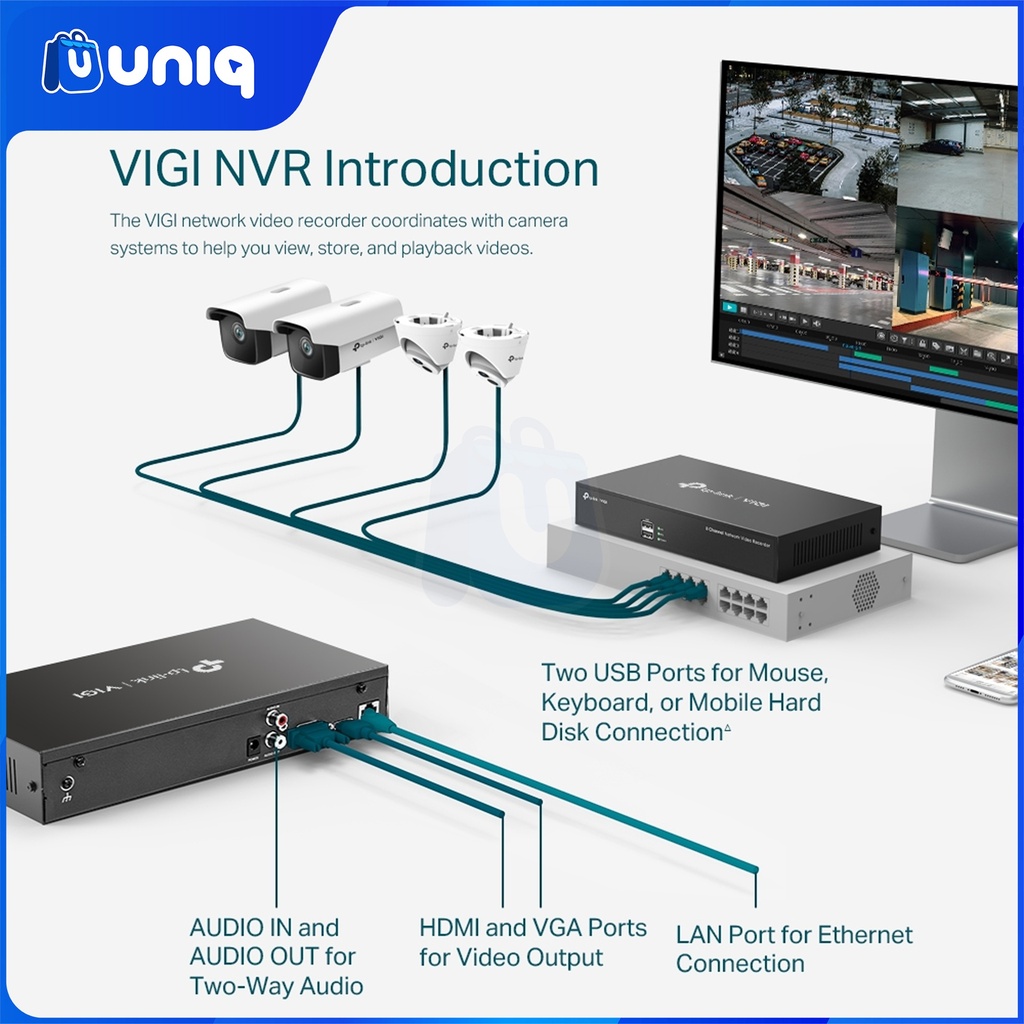

TP-Link VIGI NVR1008H 8 Channel Network Video Recorder

https://shop.uniq.com.ph/web/image/product.template/838/image_1920?unique=0ca0bf7
(0 review)

Key Features

  • 24/7 Continuous Recording
  • 8-Channel Real-Time Live View

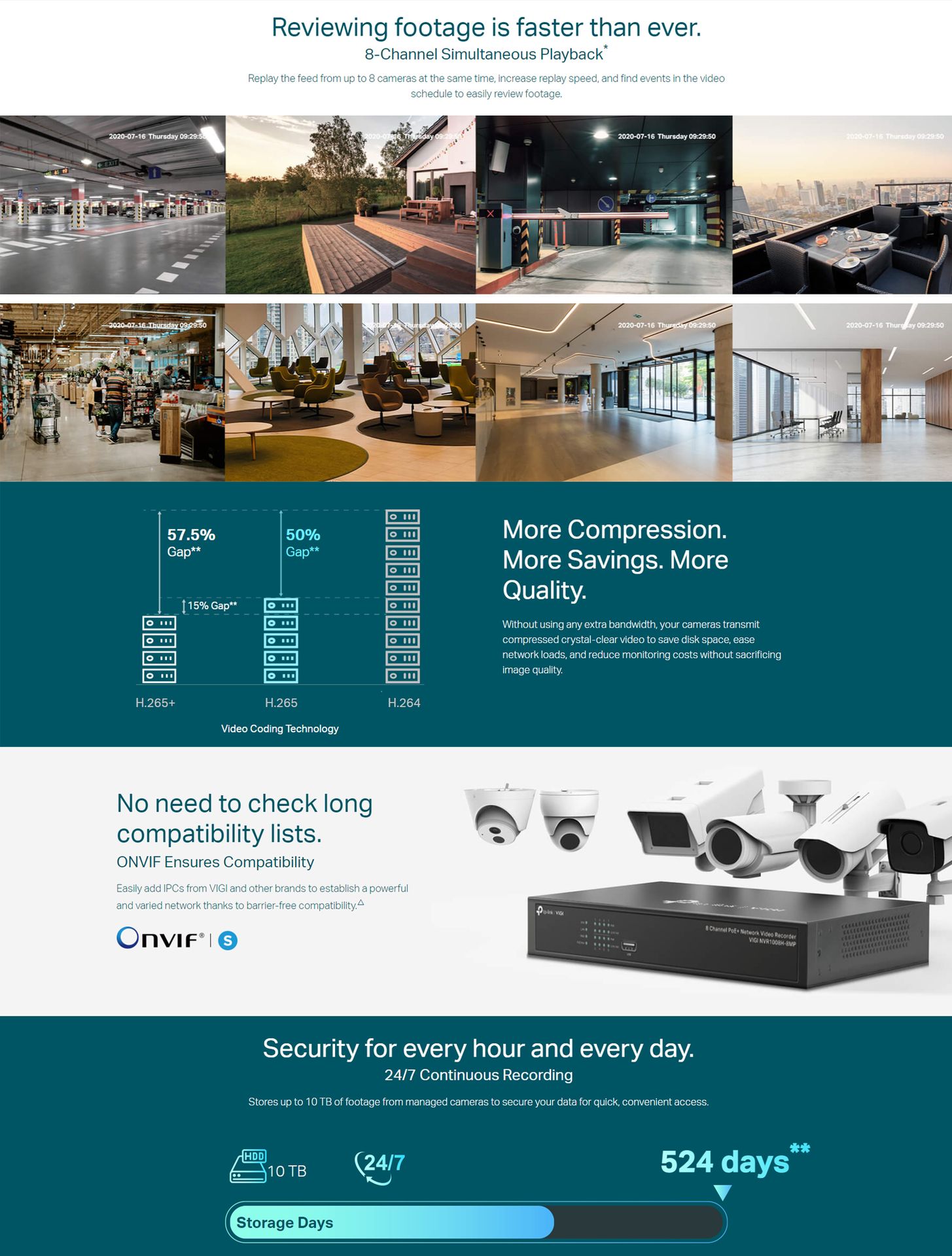

  • Simultaneous Playback

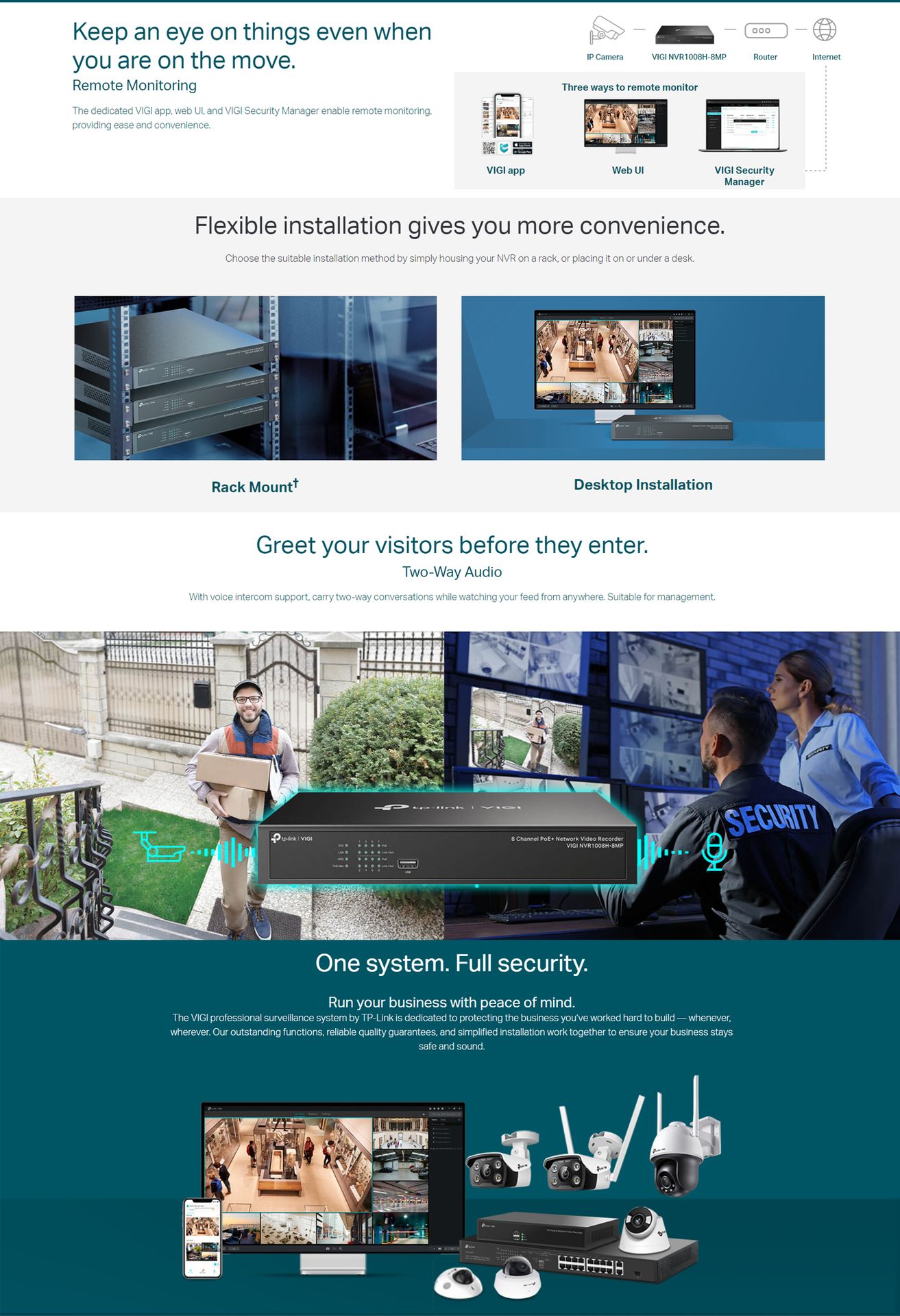

  • Remote Monitoring
  • H.265+ Smart Video Coding

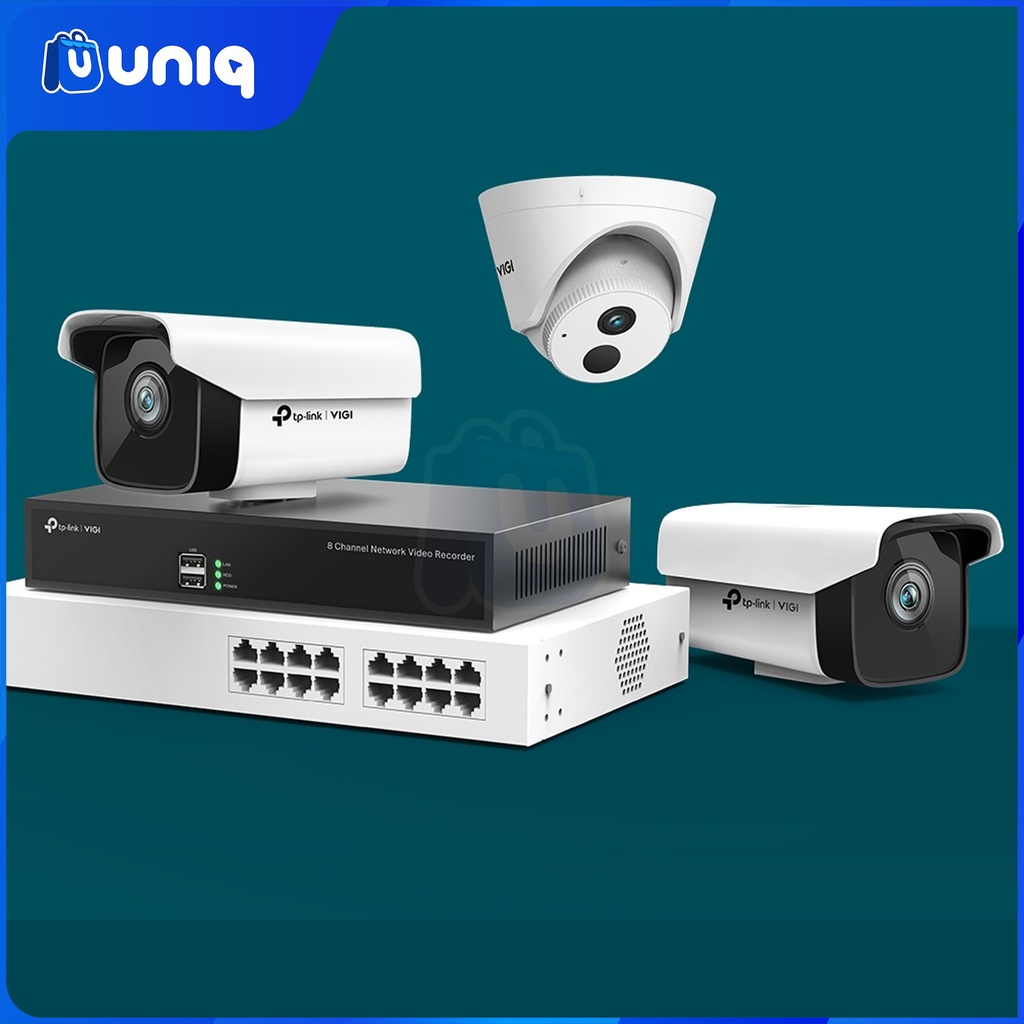

  • ONVIF Ensure Compatibility

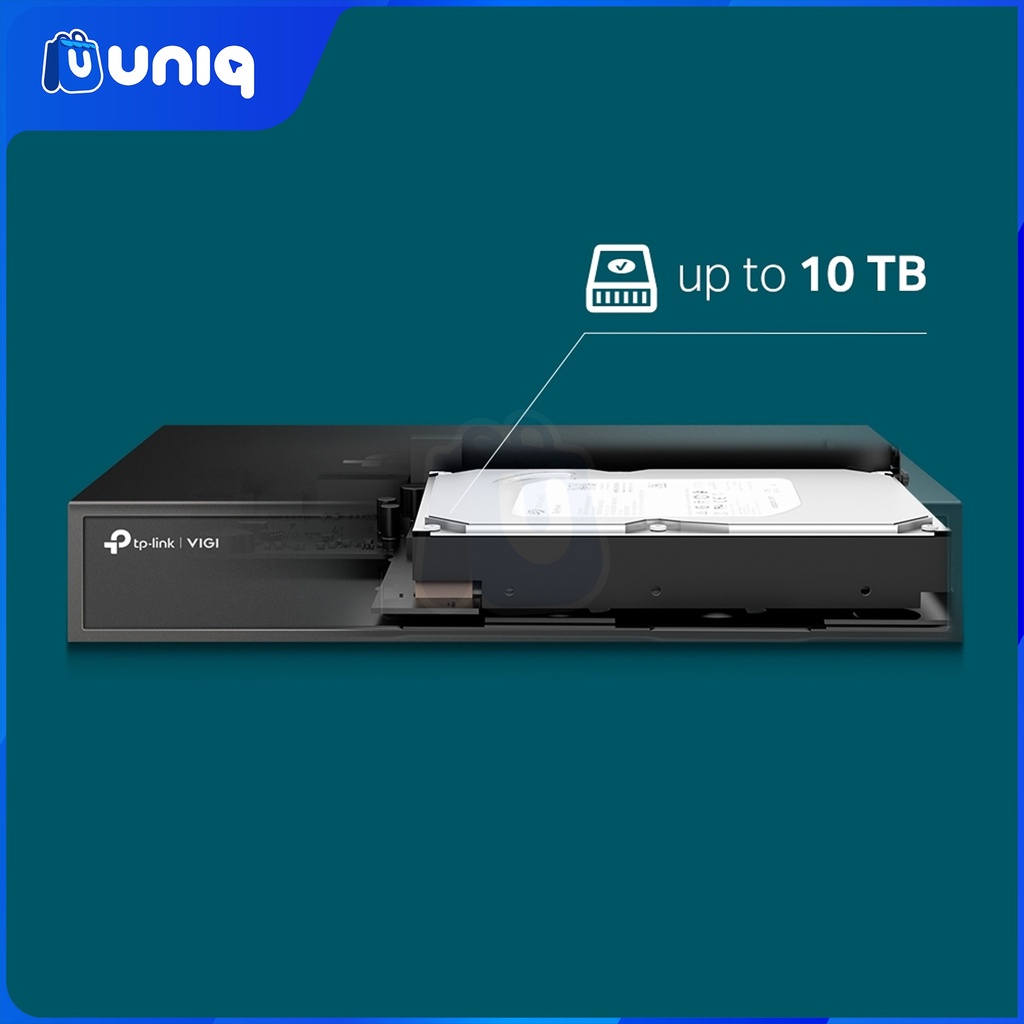

  • 1 HDD Interface (up to 10 TB)
  • Two-Way Audio
  • 80 Mbps Video Access Bandwidth

PRODUCT DETAILS

₱ 0.00 0.0 PH ₱ 0.00 VAT Included

₱ 0.00000 VAT Included

Not Available For Sale

This combination does not exist.

Contact Us
Pre-Order (Ship in 7 Days)

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days




 Video and Audio

IP Video Input8-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4/6/8

DECODING

Audio CompressionG.711A/G.711U/G.726
Decoding FormatH.265+/H.265/ H.264+/H.264
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Live View/Playback Resolution8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA
720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback4 Channel†
Capability2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

Record Management

Record Mode• Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode• Regular Backup
• Video Clip Backup
Playback Function• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

NETWORK

ProtocolTCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone AccessAndroid, iOS
Incoming Bandwith80 Mbps
Outgoing Bandwidth60 Mbps
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF, CGI

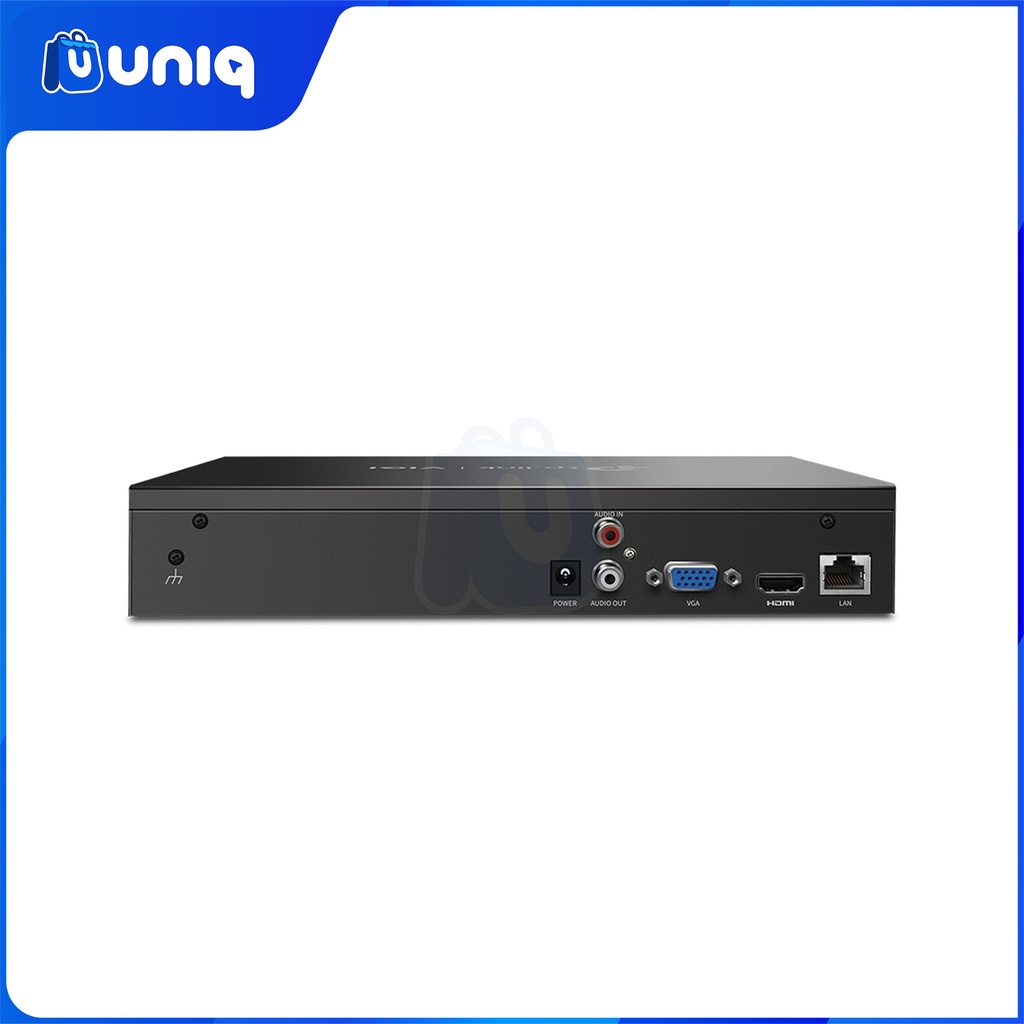

External Interface

Network Interface1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface2× USB 2.0
Audio Interface1, Audio In; 1, Audio Out
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATAN/A
HDMI1
VGA1

HARD DISK

SATA1 SATA Interface
CapacityUp to 10 TB

​Alarm

General Alarm• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
Anomaly Alarm• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

INTERFACES

Network Interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface2× USB 2.0

GENERAL

Operating Temperature-10–55 °C
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Weight578.5 g
Package ContentsVIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
Working Temperature• NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )246.2 × 148.2 × 45 mm
External Power SupplyDC 12V/1.5A
Net Weight0.59 Kg
Gross Weight0.95 Kg
Power Consumption4.25 W (without disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Video Input8-Channel IP Video Input, up to 8 MP Resolution
Recording ResolutionRecording Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA
720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
HDMI Output Resolution1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
