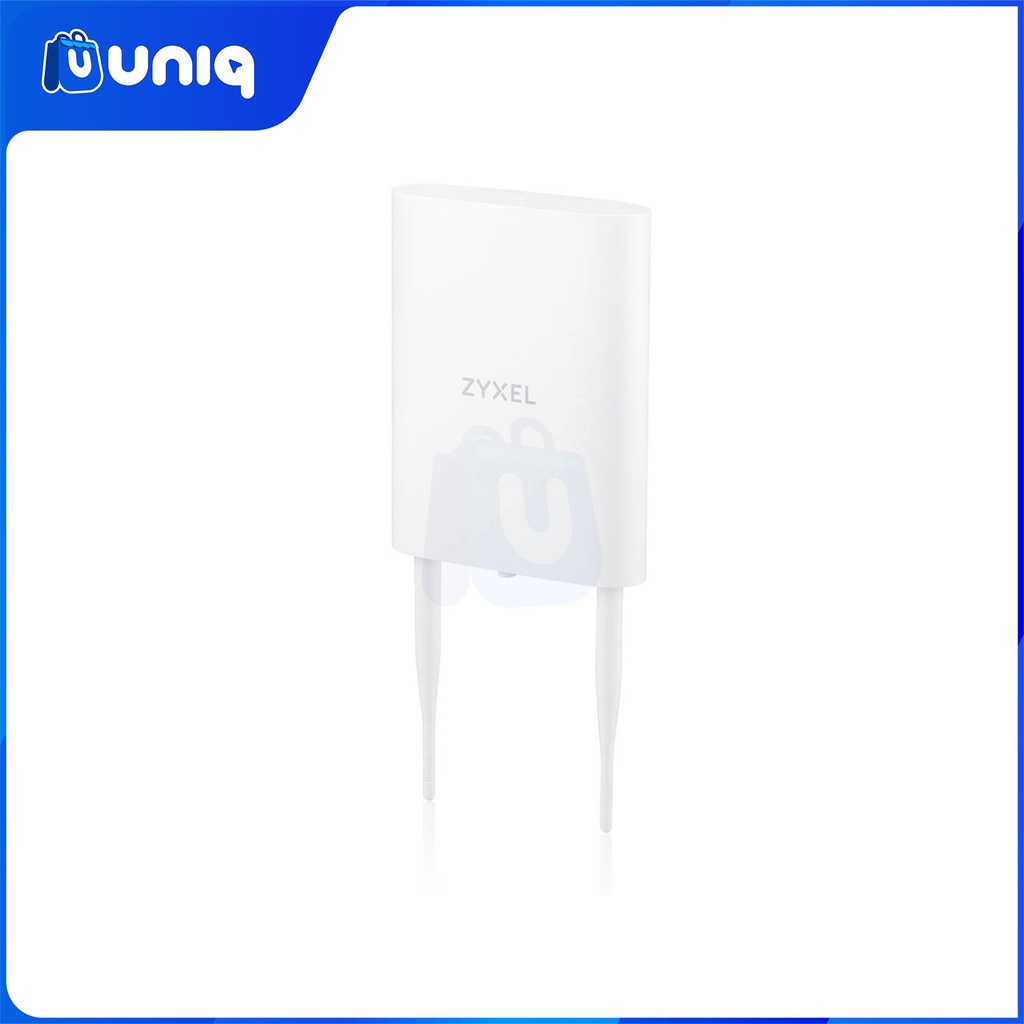

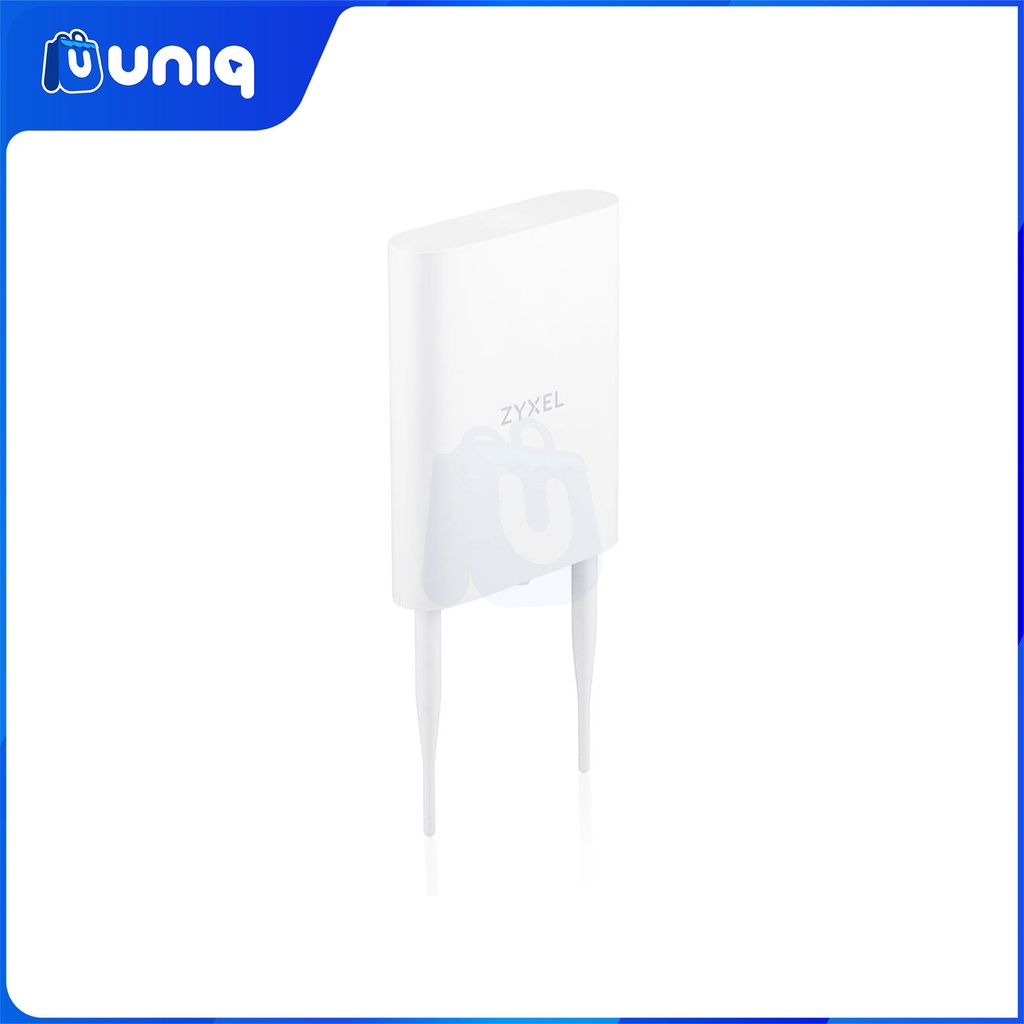

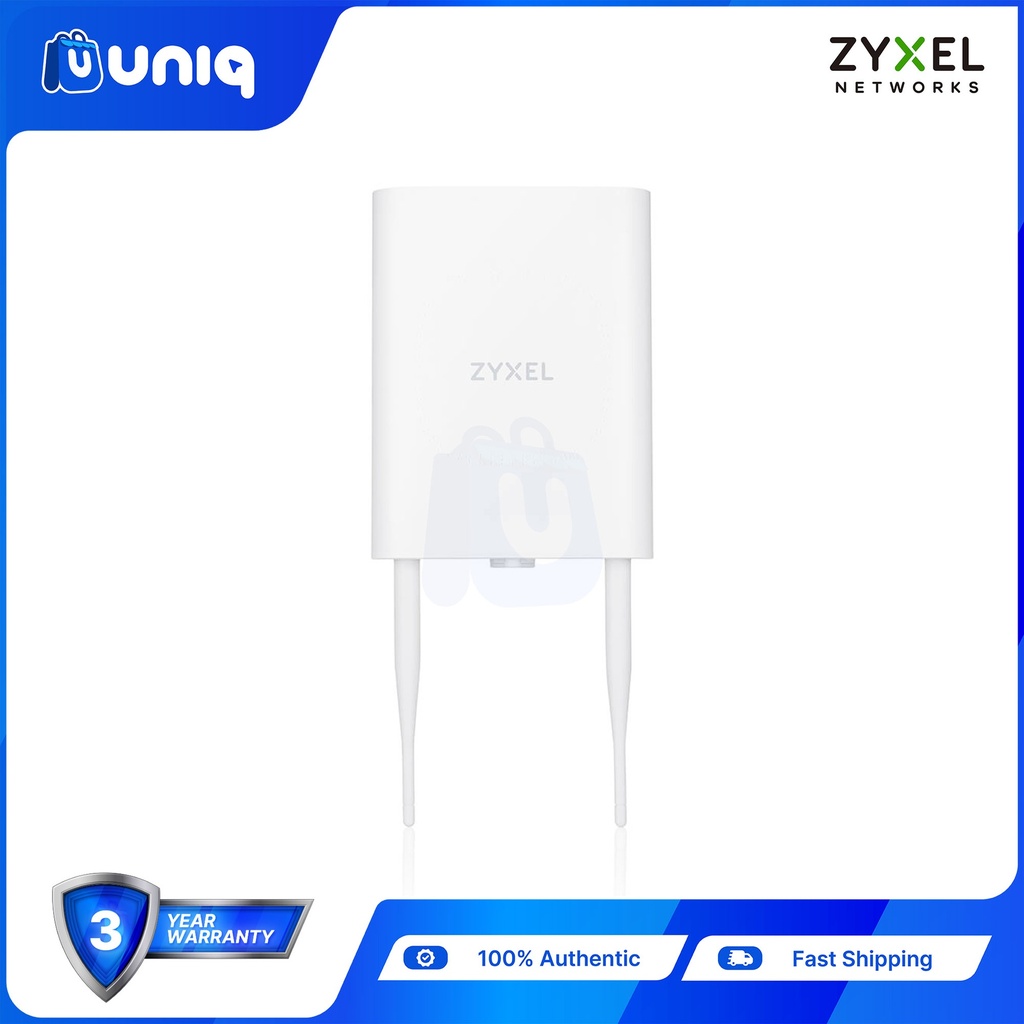

Zyxel NWA55AXE AX1800 WiFi 6 Dual-Radio NebulaFlex Outdoor Access Point

Wireless

Standard

IEEE802.11 ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 575 Mbps

5GHz: 1200 Mbps

Frequency band

2.4 GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5 GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- and 80-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz):

23/26 dBm

EU (2.4GHz/5GHz):

20/25 dBm

RF Design

Antenna type

2x2 External Antenna

Antenna gain

2.4GHz: 4 dBi

5GHz: 5 dBi

Minimum receive sensitivity

Min. Rx sensitivity up to -99 dBm

WLAN Feature

Band steering

Yes

WDS/Mesh*2

Yes

Fast roaming

Pre-authentication, PMK caching, and 802.11r/k/v

DCS

Yes

Load balancing

No

Advanced Cellular Coexistence

Yes

Security

Encryption

WPA Personal

WPA2 Personal

WPA3 Personal

Authentication

No

Access management

L2-isolation

MAC filtering

Rogue AP detection(V6.29)

Networking

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management

Operating mode

Nebula cloud managed

Standalone

ZON Utility

Discovery of Zyxel switches, APs and gateways

Centralized and batch configurations:

IP configuration

IP renew

Device reboot

Device locating

Web GUI access

Firmware upgrade

Password configuration

Web UI/CLI

Yes

SNMP

NO

Physical Specifications

Item

Dimensions (WxDxH)(mm/in.)

308 x 136.4 x 49.6 /12.13 x 5.37 x 1.95

Weight (g/lb.)

580/1.28

Packing

Dimensions (WxDxH)(mm/in.)

221 x 188 x 59 / 8.70 x 7.40 x 2.32

Weight (g/lb.)

887/1.96

MTBF (hr)

1,091,186

Physical Interfaces

Ethernet port

1x 10/100/1000M LAN

Power

PoE (802.3at): power draw 16 W

Environmental Specifications

Weather protection

IP55

Operating

Temperature

-20°C to 60°C/ -4°F to 140°F

Humidity

10% to 90% (non-condensing)

Storage

Temperature

-40°C to 70°C/-40°F to 158°F

Humidity

10% to 90% (non-condensing)
