System
Specifications
|
|
|
Wireless
Standard
|
802.11
b/g/n/ac 2.4 GHz, data rate 300 Mbps
802.11
a/n/ac 5 GHz, data rate 867 Mbps
|
|
Router/Bridge
Features
|
IEEE
802.1D transparent bridge & basic spanning tree
PPPoE
(RFC 2516)
PPPoA
(RFC 2364)
MAC
encapsulation routing/IPoE
Network
Address Translation (NAT)
NAT
virtual server (port forwarding)
DHCP
client/server/relay with DHCP option 43/60/61/125
DNS
proxy/dynamic DNS
Static/Policy
route
IGMP
v1, v2, v3
IPv4/IPv6
|
|
Wireless
|
Wireless
Protected Setup (WPS)
WMM
WPA2/WPA2-PSK
with TKIP & AES
Security
type
Multi
SSID: up to 4
MU-MIMO
support
|
|
VLAN/QoS
|
802.1Q
VLAN tagging/un-tagging
Support
flexible traffic classification
|
|
Firewall
& Security
|
Generic
packet filter
DoS
attack prevention
Parental
control
|
|
USB
|
File
sharing
3G back
up with external 3G USB dongle
|
|
Management
|
Web/HTTP:
3 level log-in via SSH or Telnet
Firmware
upgrade via Web/TFTP/FTP/TR-069 RPC method
Text
based configuration
Configuration
backup/update/restore default via Web
Configurable
access control for remote management (interface and/port number)

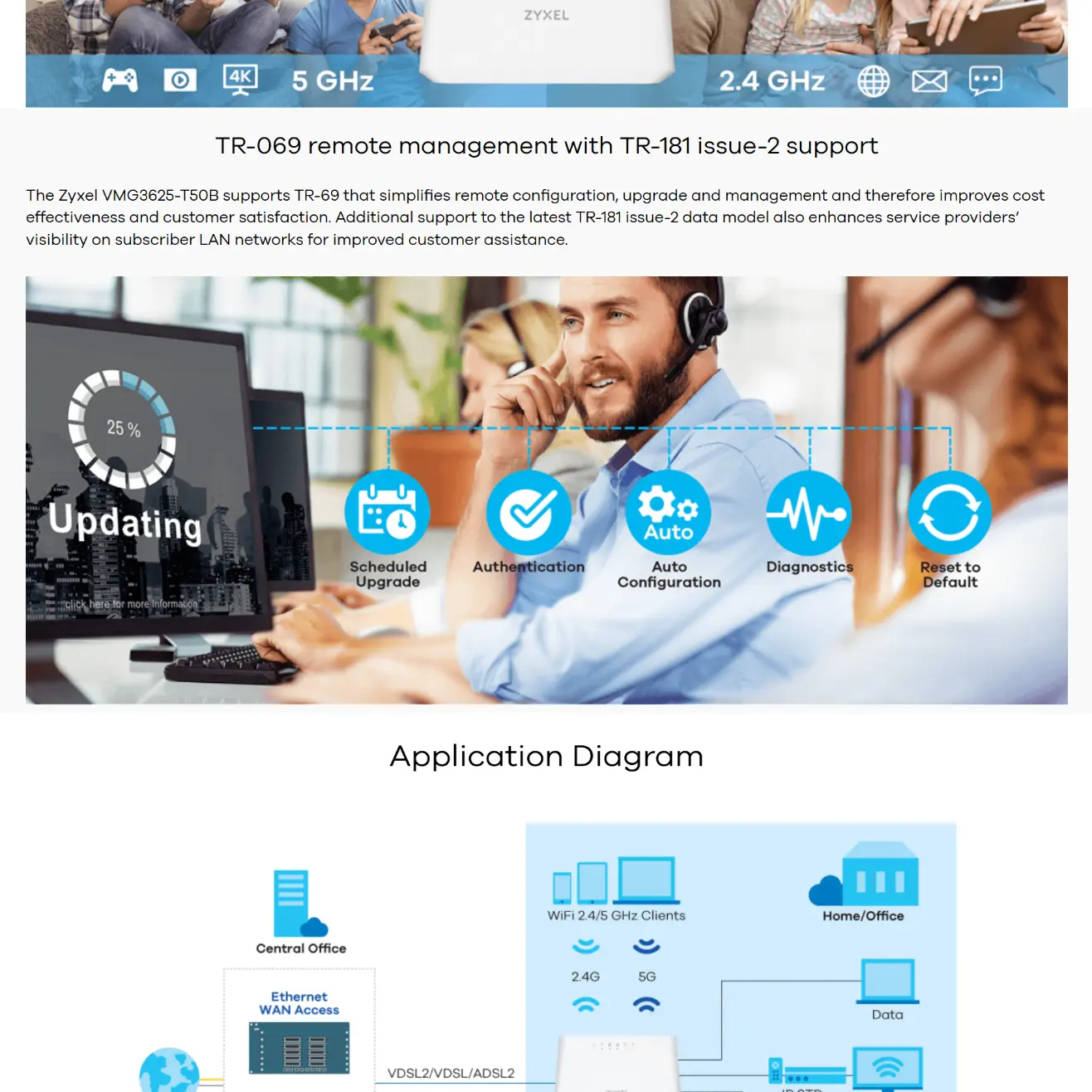

DSL forum
TR-069, TR-098
TR-111
and TR-181 i2
SNMP
v1, v2
Rom-D
support
UPnP
port forwarding rules on page
|
|
VDSL
|
G.993.1
VDSL
G.993.2
VDSL2, Band 997, 998, Over POTS
Support
VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
G.vector
|
|
ADSL
|
G.992.1
(G.dmt)
G.992.2
(G.lite)
ANSI
T1.413 compliant
G.992.3
(ADSL2)
G.992.5
(ADSL2+)
G.INP
support
|
|
Hardware
Specifications
|

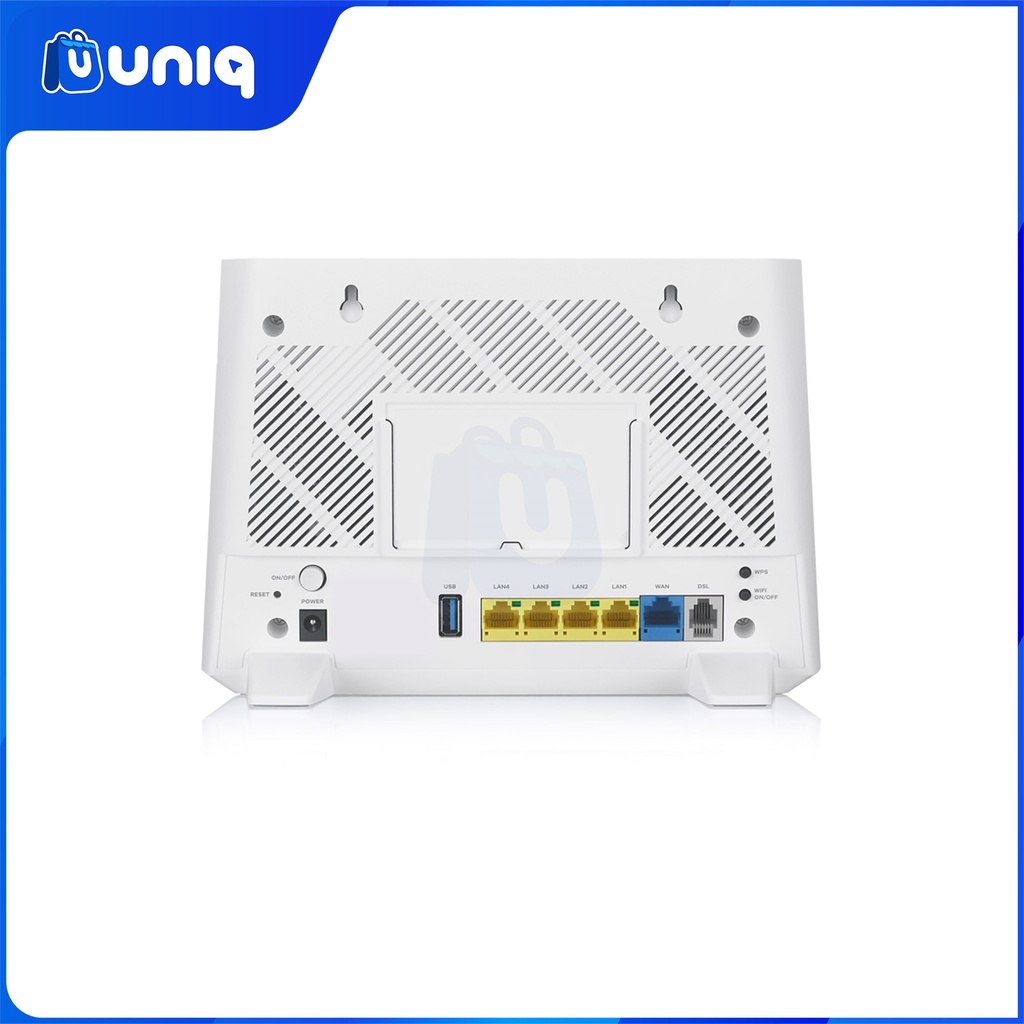

WAN:
One 10/100/1000 Mbps
Ethernet
port RJ-45
Wireless:
Two internal antennas (2.4 GHz)
Two
internal antennas (5 GHz)
|
|
Interface
Description
|
Ethernet:
four 10/100/1000 Mbps
Ethernet
ports RJ-45 (8P8C)
USB:
one USB 2.0 host
DSL:
one RJ-11
|
|
Button
|
One
Power on/off button
One
reset button
One WPS
on/off button
One
WLAN on/off button
|
|
Status
LEDs indicators
|
Power/System
WAN
Internet
LAN
WLAN-2.4G/WPS
WLAN-5G/WPS
|
|
Power
Consumption
|
12 V
DC/ 1.5 A
|
|
Environmental
Specifications
|
|
|
Temperature
|
Operating:
0°C to 40°C
Storage:
-30°C to 70°C
|
|
Humidity
|
Operating
humidity: 10 to 90% RH (Non-condensing)
Storage
humidity: 10 to 95% RH (Non-condensing)
|
|
Physical
Specifications
|
|
|
Item
dimensions
|
220 x
153 x 35 mm (8.66” x 6.02” x 1.38”)
|
|
Item
weight
|
325 g
(0.67 lb.)
|
